Long Service Life 01

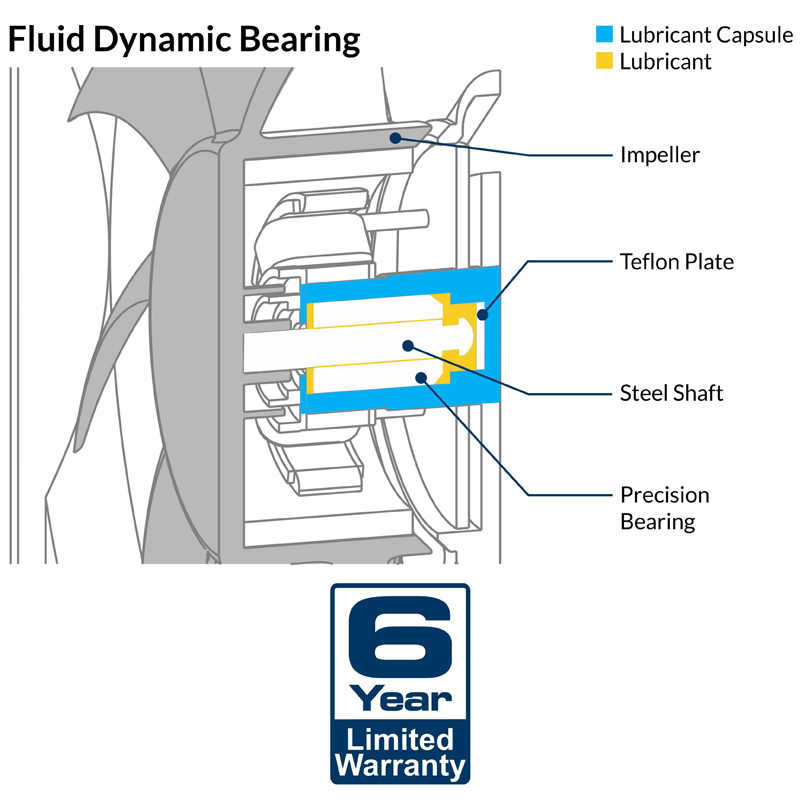

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

Innovative Design Enables Quiet and Efficient Ventilation 02

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

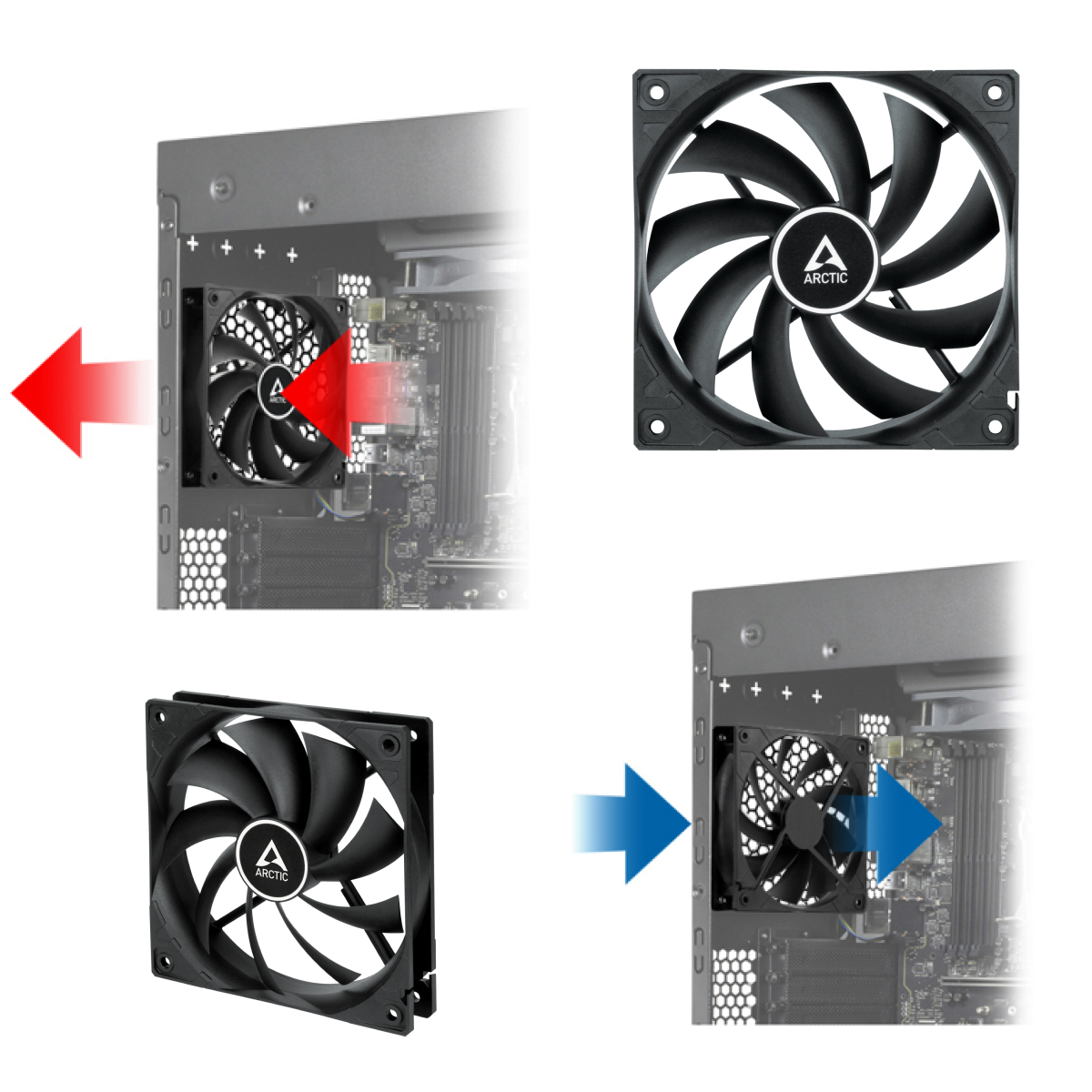

Two Way installation 03

                                                                          •Blow warm air out of the case                                    •Draw cool air into your case



Fan









Performance

Fan Speed:

1,350 RPM (@ 12V DC)
900 RPM (@ 7V DC)
650 RPM (@ 5V DC)

Air Flow:

53 CFM / 126 m³/h (@ 1,350 RPM)

Noise Level:

0.3 Sone (@ 1,350 RPM)

Electrical Characteristics

Typical Voltage:

12V DC

Start-up Voltage:

2.7V DC

Cable Length:

400mm



Voltage Current
12V DC (Norminal) 0.24A
7V DC 0.14A
5V DC 0.10A

Connection

Motherboard: +12V DC
3-pin socket




Size & Weight

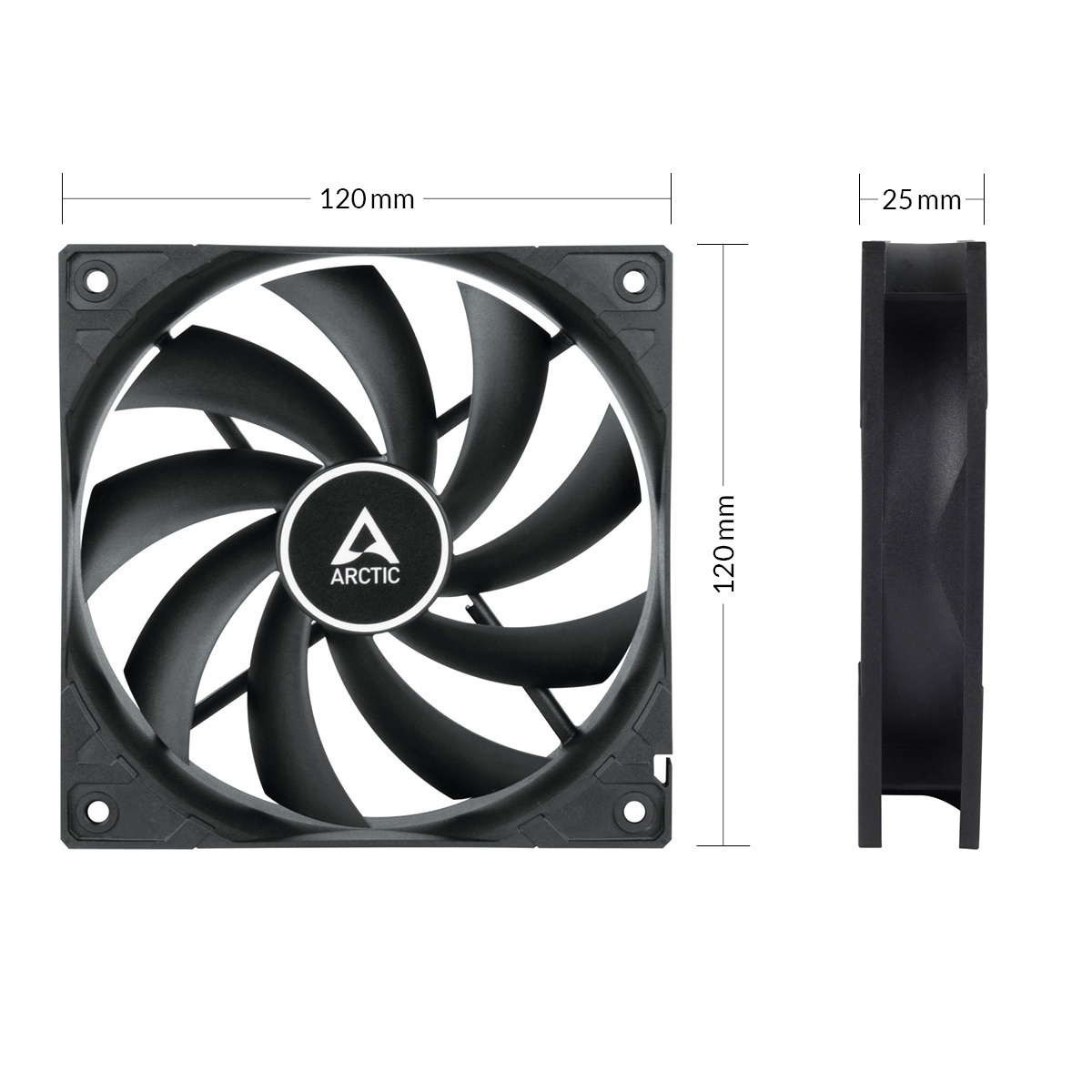

Standard 120 mm fan holes

Packaging & Box Content




Warranty

Model F12
Specification http://www.arctic.ac/eu_en/arctic-f12.html
Type Air Cooling (Cooler)
Packing Weight 400.00 g
Purpose Case Fan
Compatibility Motherboard: +12V DC 3-pin socket
Fan Size 120 mm
Heatsink Material Plastic
Bearing Type Fluid dynamic
RPM 1350
Noise Level 0.3 Sone
Packing Width 130 mm
Packing Depth 130 mm
Packing Height 45 mm
Package Type BOX
