Long Service Life 01

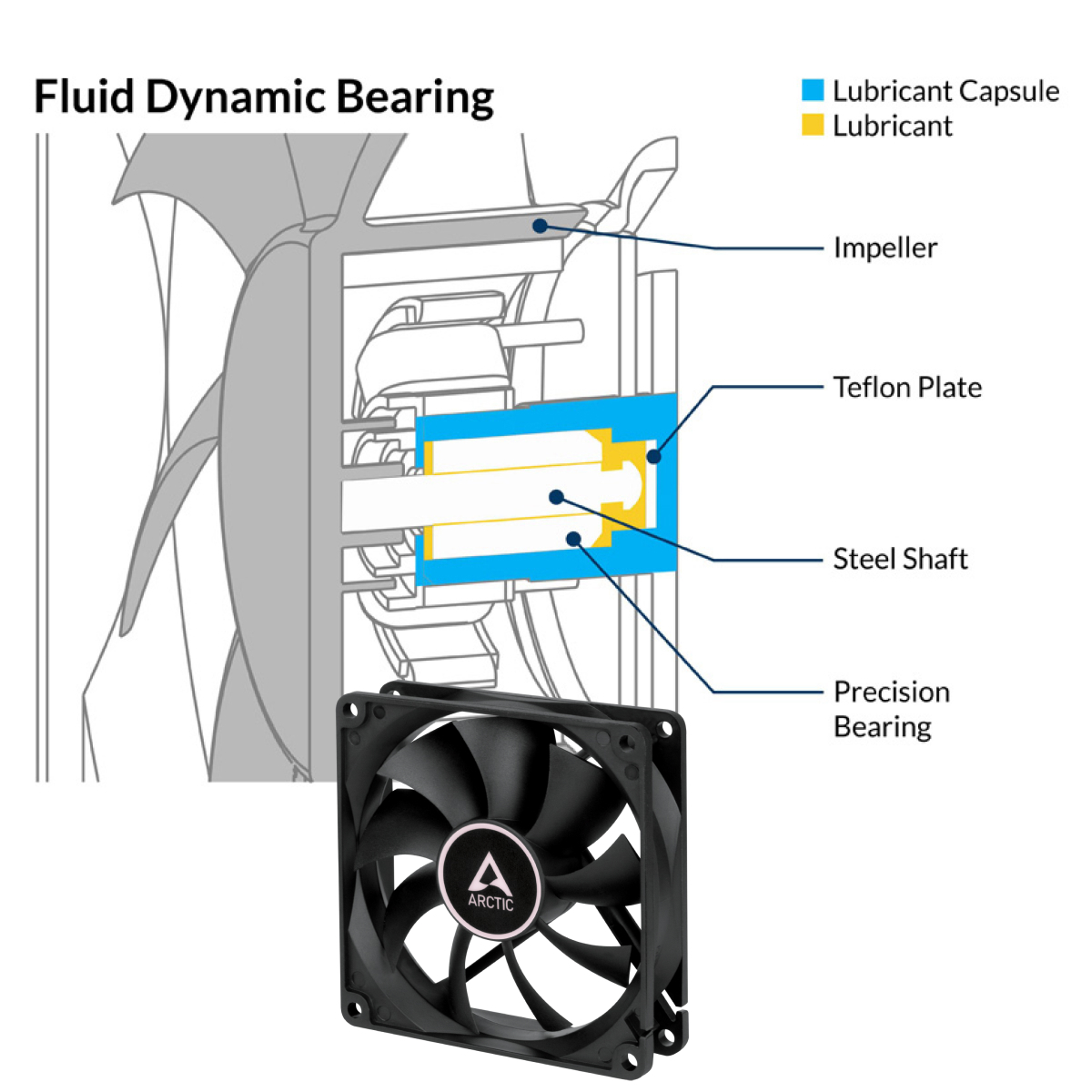

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

Innovative Design Enables Quiet and Efficient Ventilation 02

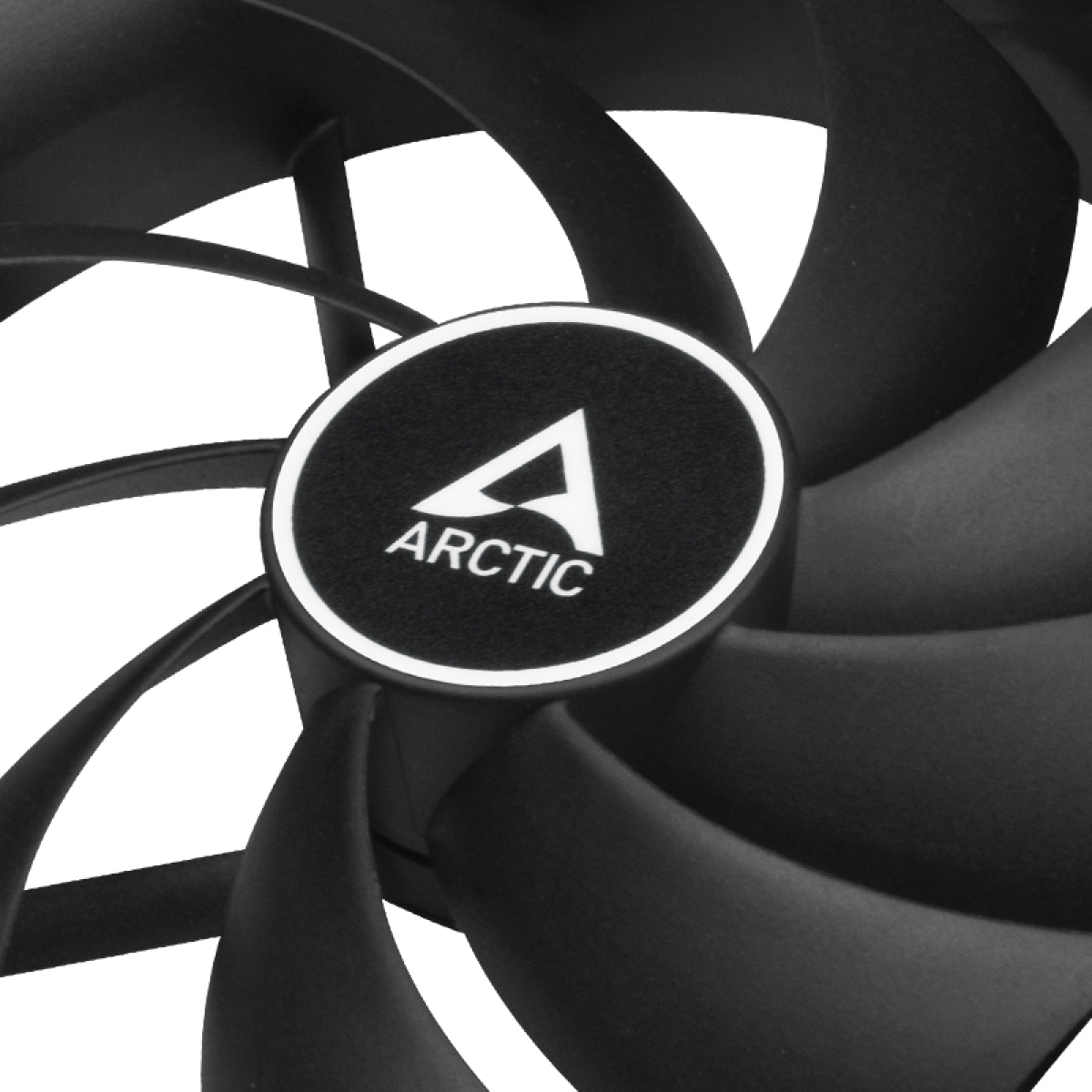

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

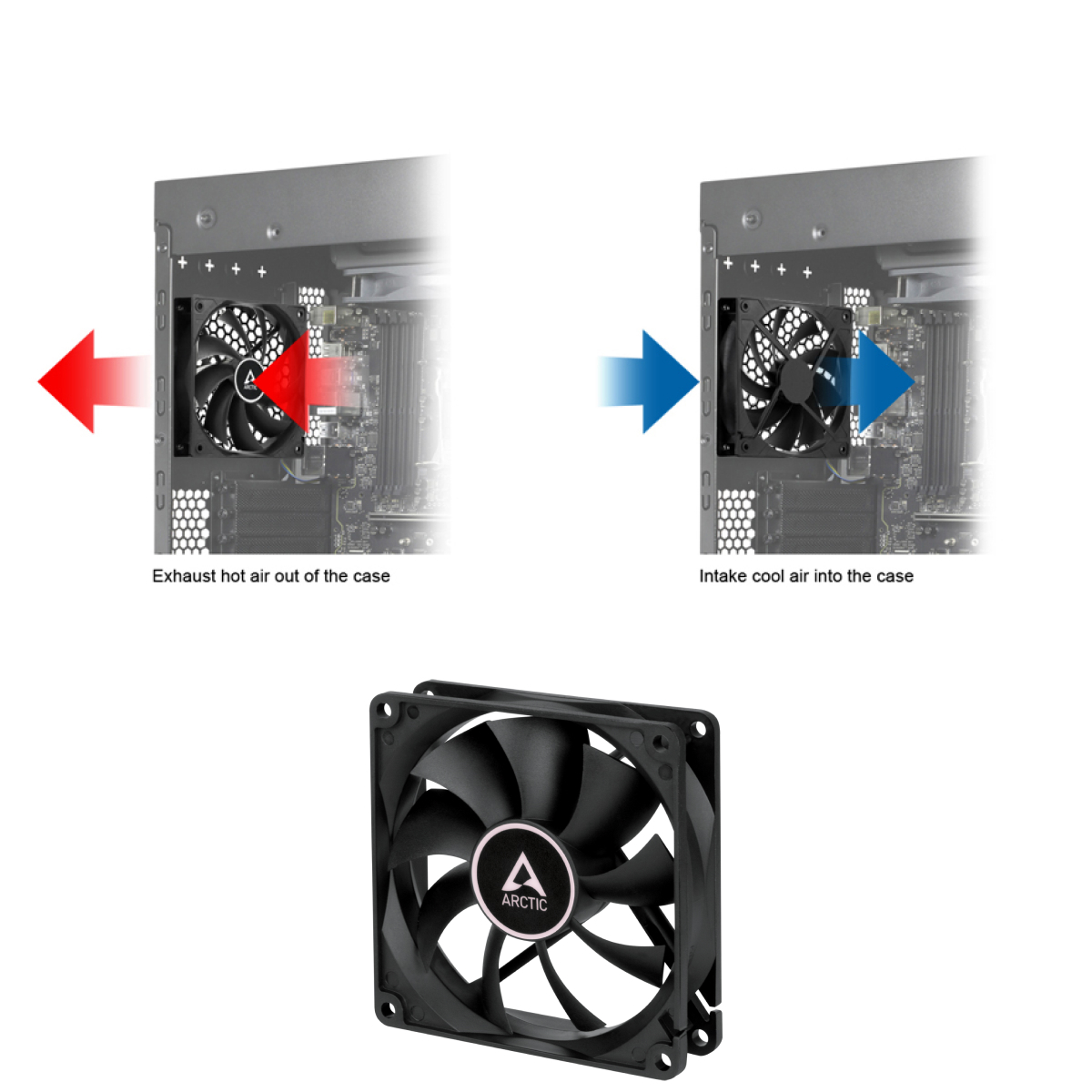

Two Way installation 03

                                                                          •Blow warm air out of the case                                    •Draw cool air into your case



Fan









Performance

Fan Speed:

1,800 RPM (@ 12V DC)
1,200 RPM (@ 7V DC)
800 RPM (@ 5V DC)

Air Flow:

43 CFM / 73.1 m³/h (@ 1,800 RPM)

Noise Level:

0.4 Sone (@ 1,800 RPM)

Electrical Characteristics

Typical Voltage:

12V DC

Start-up Voltage:

2.6V DC

Cable Length:

400mm



Voltage Current
12V DC (Nominal) 0.16A
7V DC 0.11A
5V DC 0.09A

Connection

Motherboard: +12V DC
3-pin socket

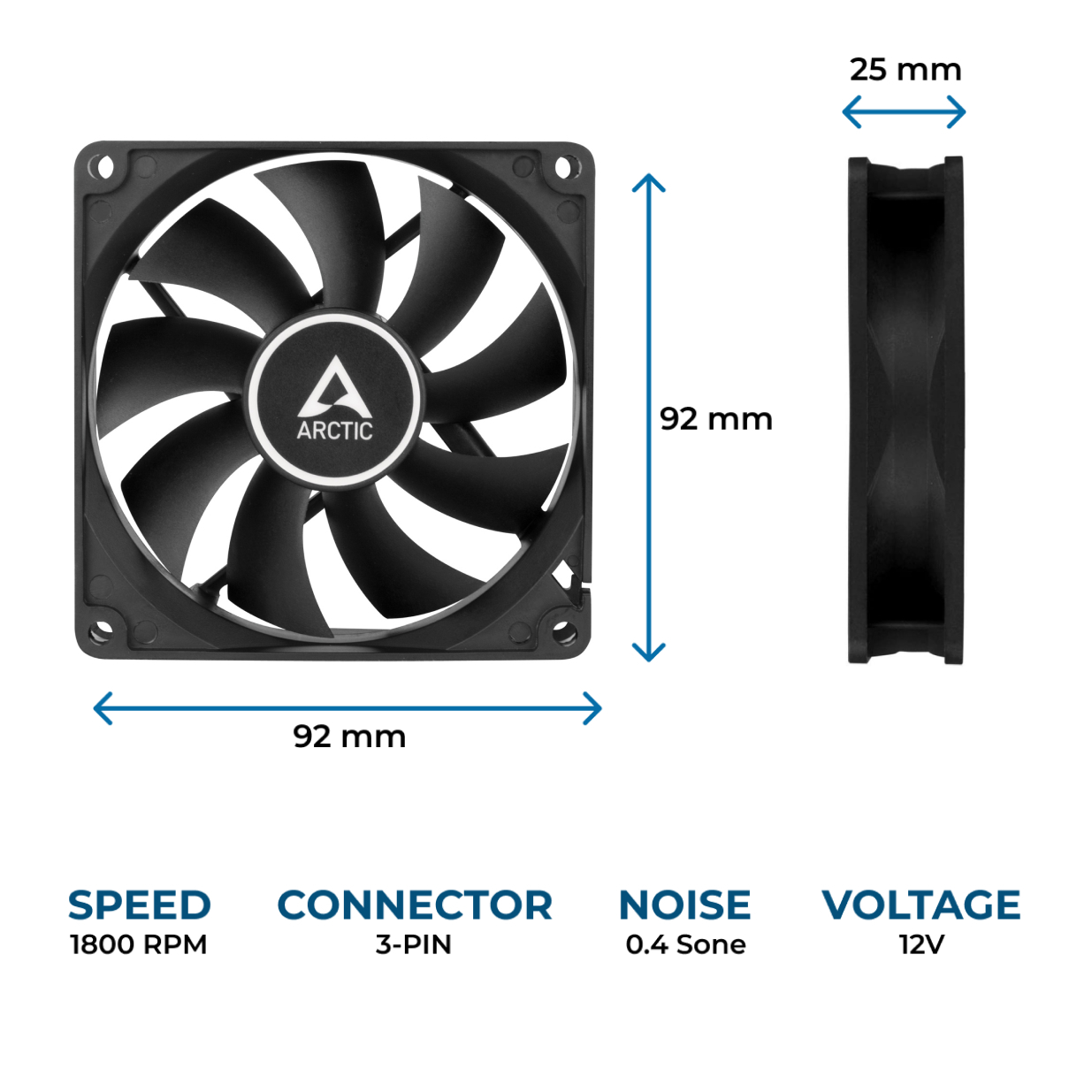

Size & Weight




Standard 92 mm fan holes

Packaging & Box Content




Warranty

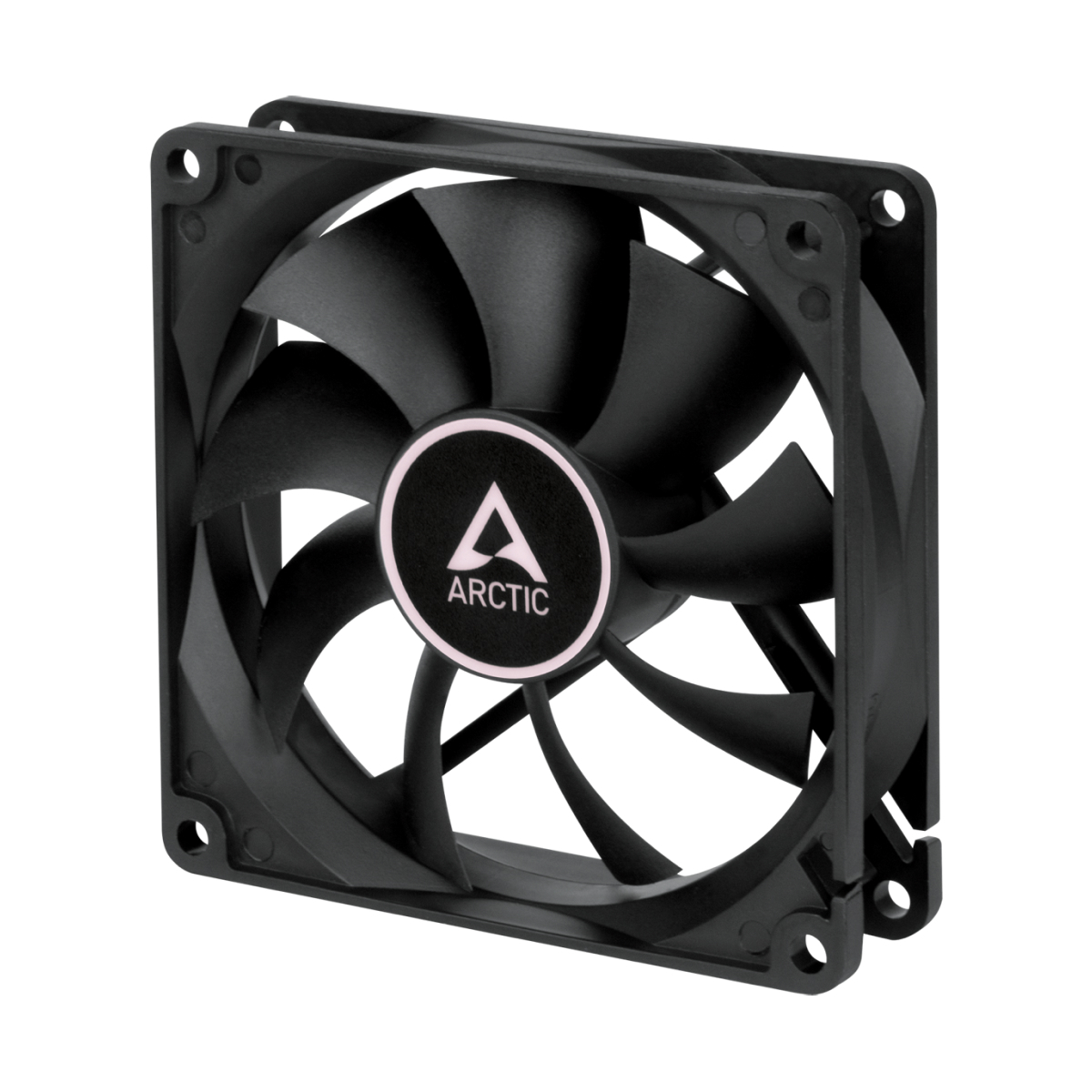

Model F9
Specification
Type Air Cooling (Cooler)
Packing Weight 190 g
Purpose Case Fan
Compatibility Motherboard: +12V DC 3-pin socket
Fan Size 92 mm
Heatsink Material Plastic
Bearing Type Fluid dynamic
RPM 1800
Noise Level 0.4 Sone
Packing Width 96 mm
Packing Depth 96 mm
Packing Height 60 mm
Package Type BOX

Very Happy

By: on 2 June 2020
Great product. Quiet and fits my needs perfectly. Didn't realise they had a 6 year warranty. Even better!! Thanks.
