Long Service Life 01

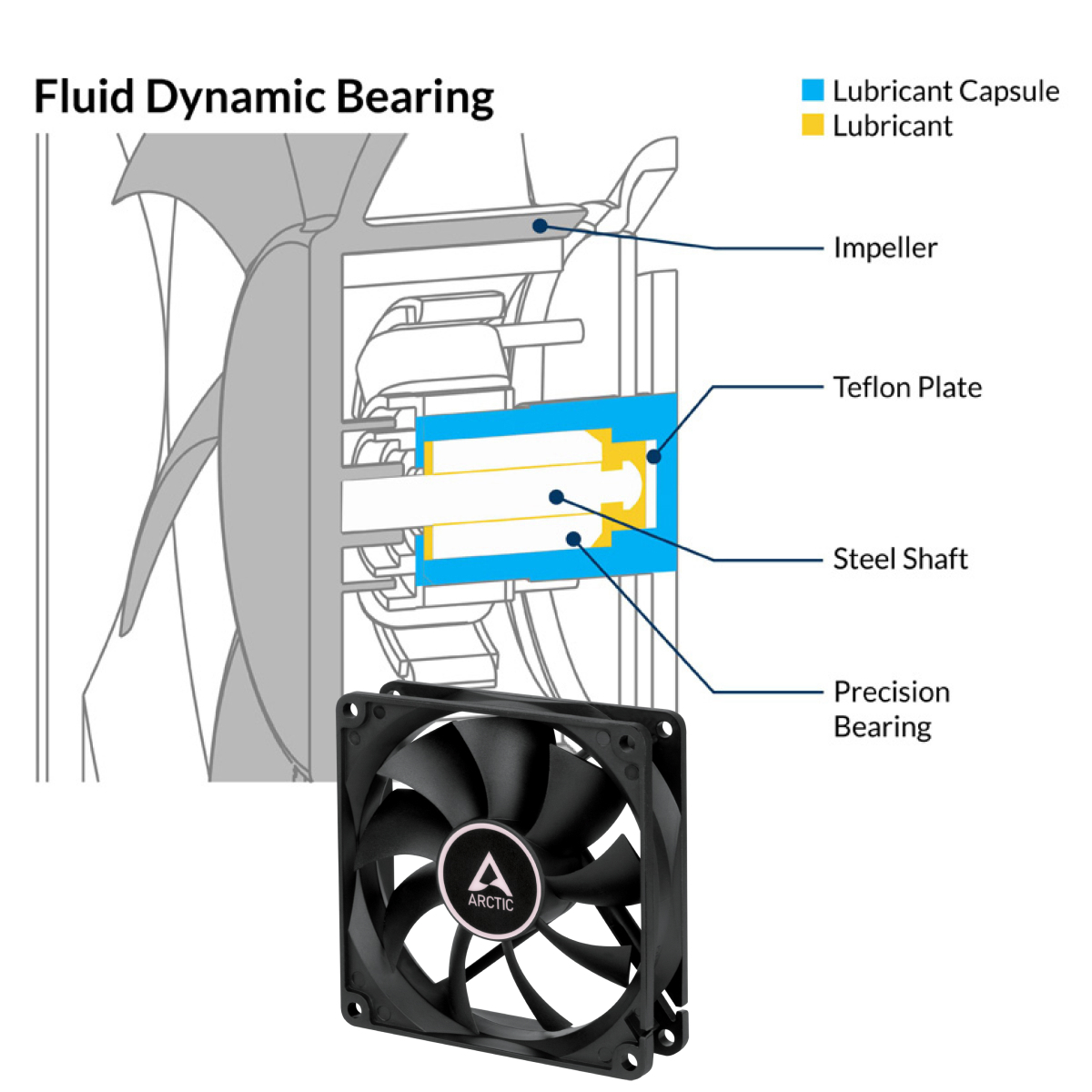

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Innovative Design Enables Quiet and Efficient Ventilation 02

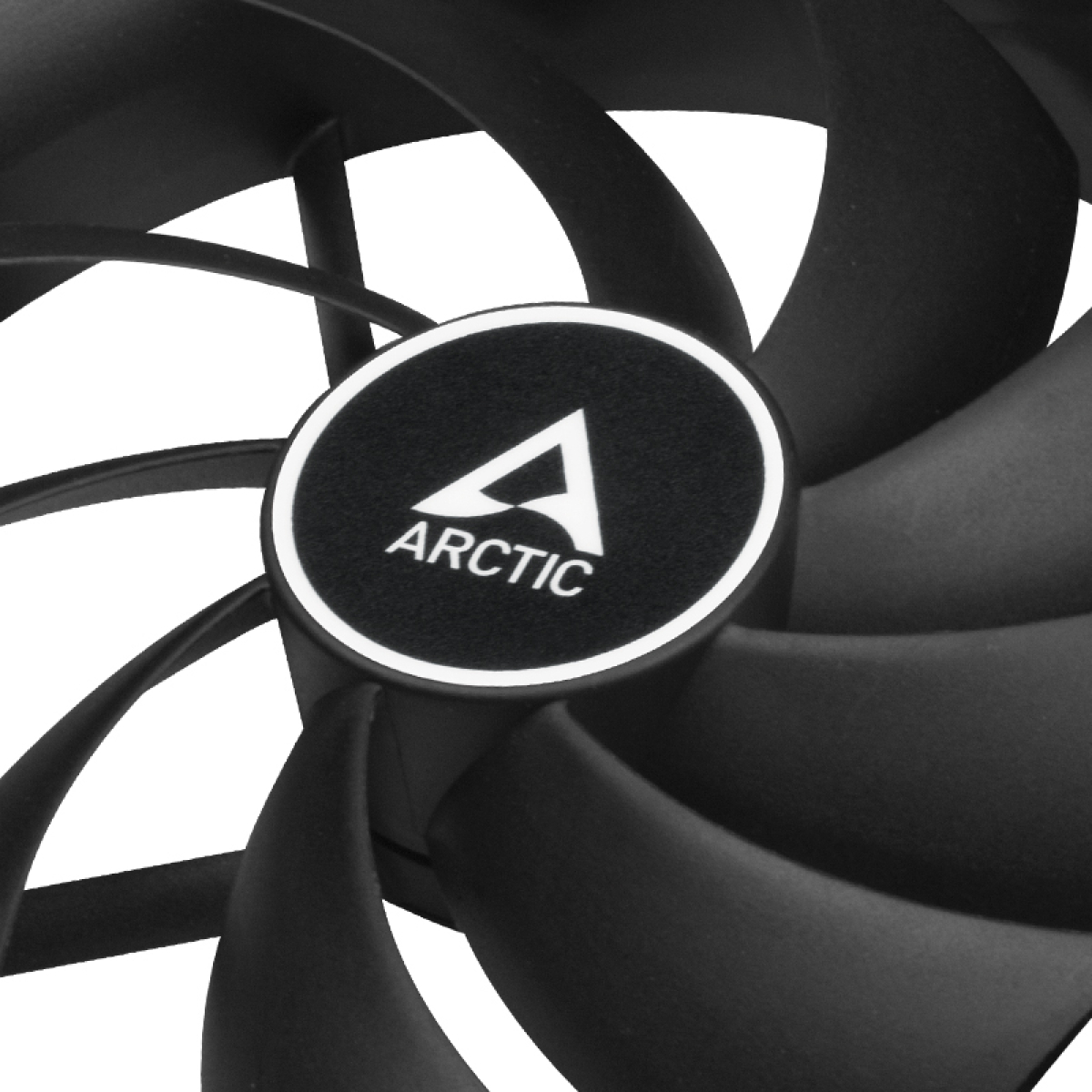

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

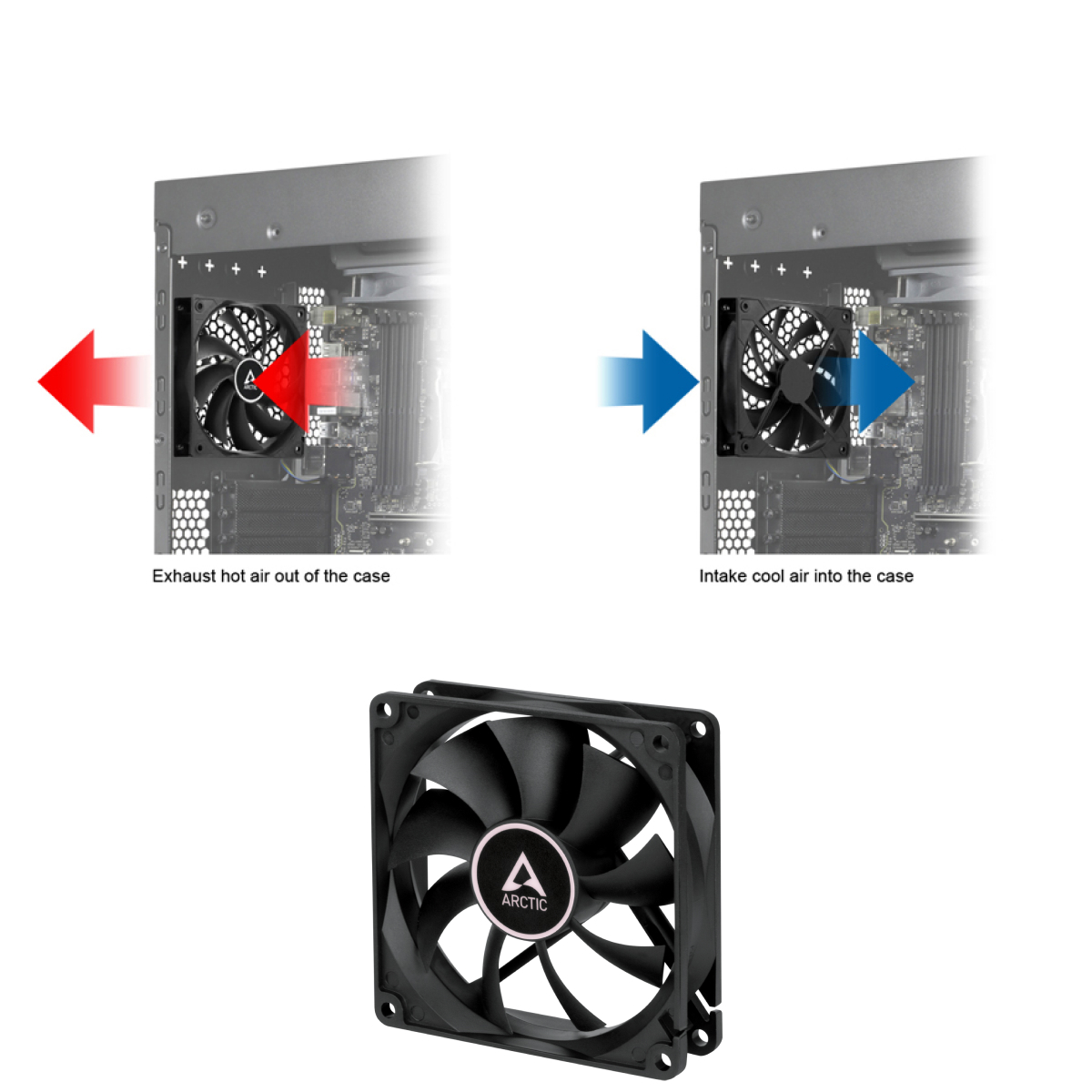

Two Way installation 03
                                                                          •Blow warm air out of the case                                    Draw cool air into your case




Fan Speed:
1,800 RPM (@ 12V DC)
1,200 RPM (@ 7V DC)
800 RPM (@ 5V DC)
Air Flow:
43 CFM / 73.1 m³/h (@ 1,800 RPM)
Noise Level:
0.4 Sone (@ 1,800 RPM)
Electrical Characteristics
Typical Voltage:
12V DC
Start-up Voltage:
2.6V DC
Cable Length:
Voltage Current
12V DC (Nominal) 0.16A
7V DC 0.11A
5V DC 0.09A
Motherboard: +12V DC
3-pin socket

Size & Weight

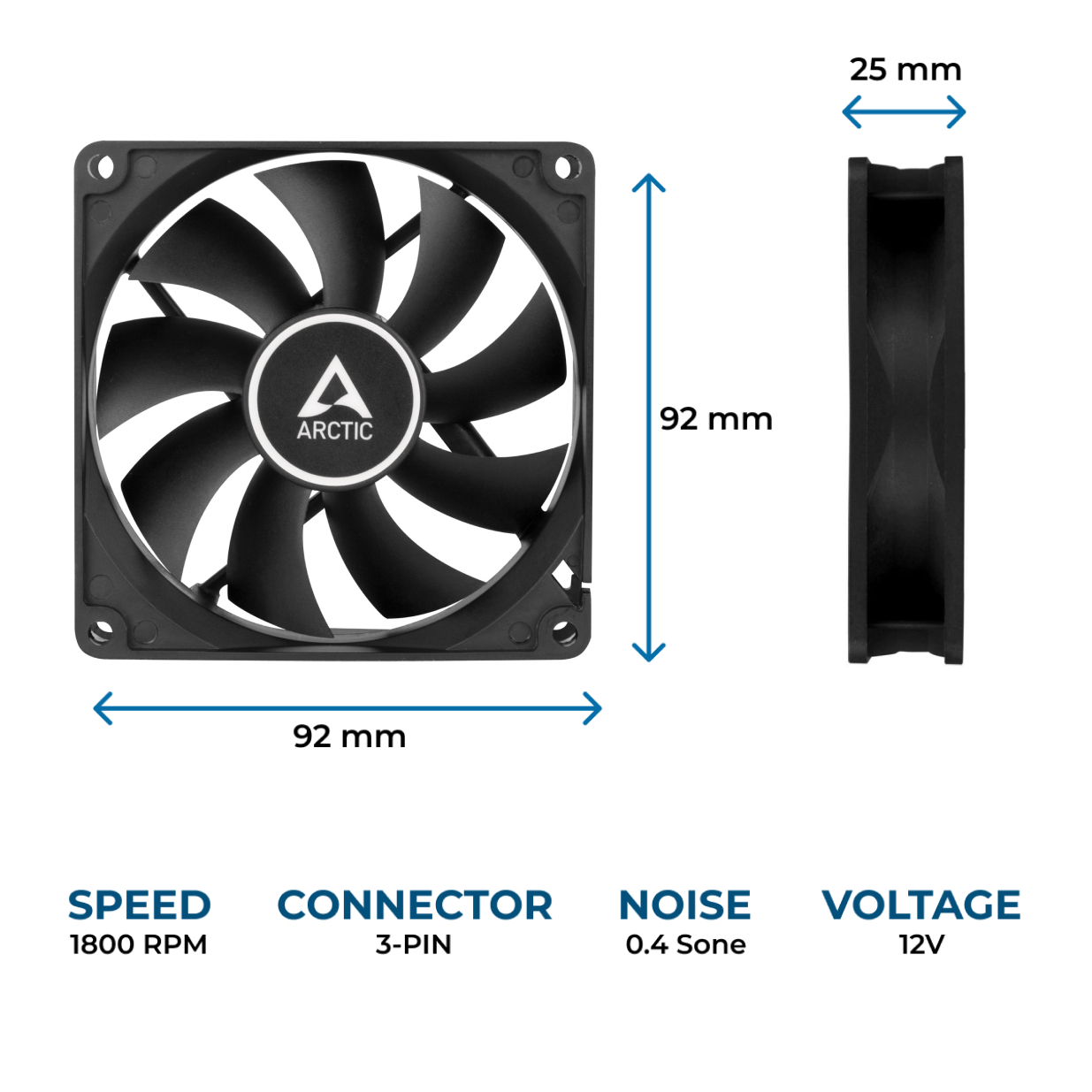

Standard 92 mm fan holes
Packaging & Box Content

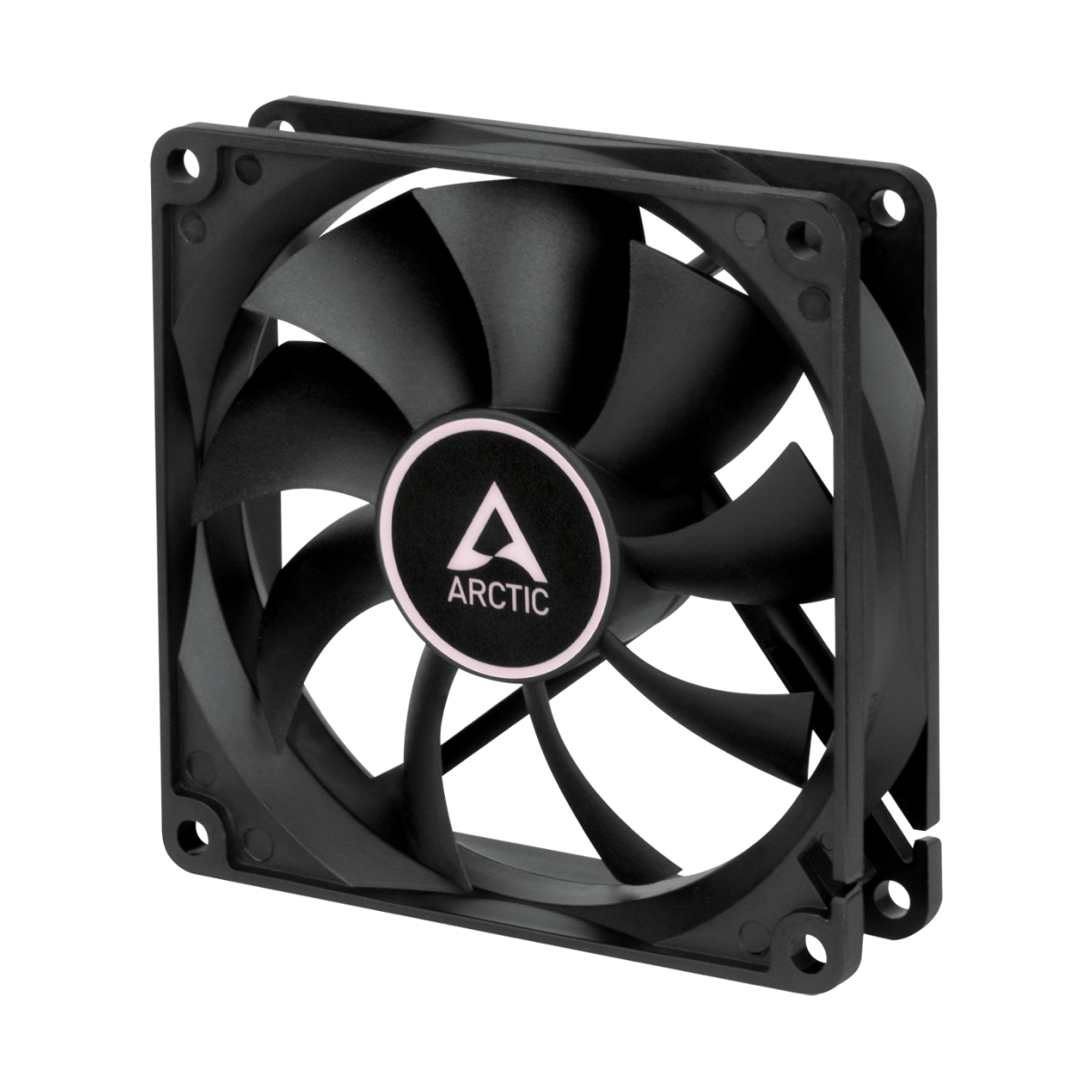

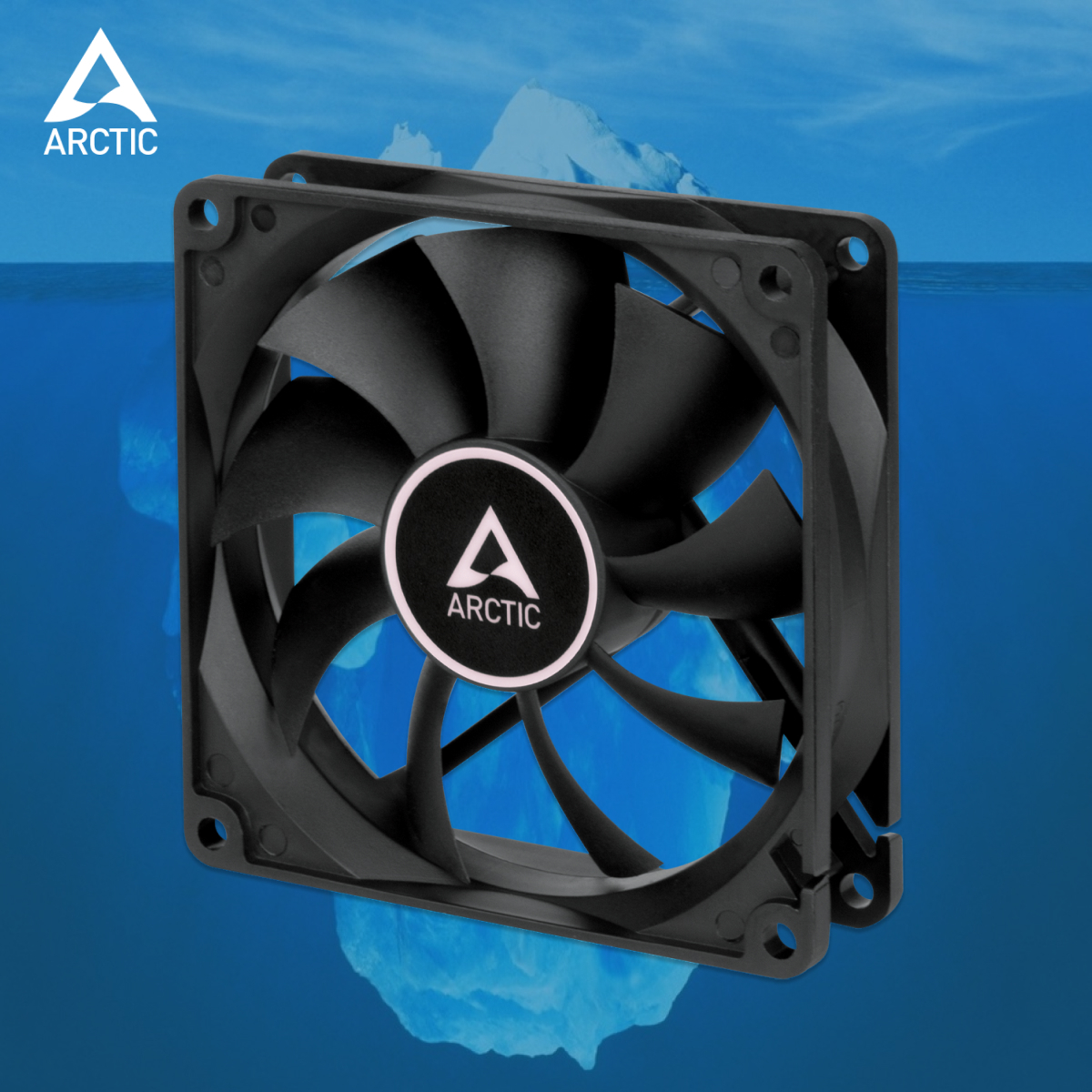

Model F9
Type Air Cooling (Cooler)
Purpose Case Fan
Packing Weight 250 g
Compatibility Motherboard: +12V DC 3-pin socket
Fan Size 92 mm
Heatsink Material Plastic
Bearing Type Fluid dynamic
RPM 1800
Noise Level 0.4 Sone
Packing Width 100 mm
Packing Depth 100 mm
Packing Height 80 mm
Package Type BOX
