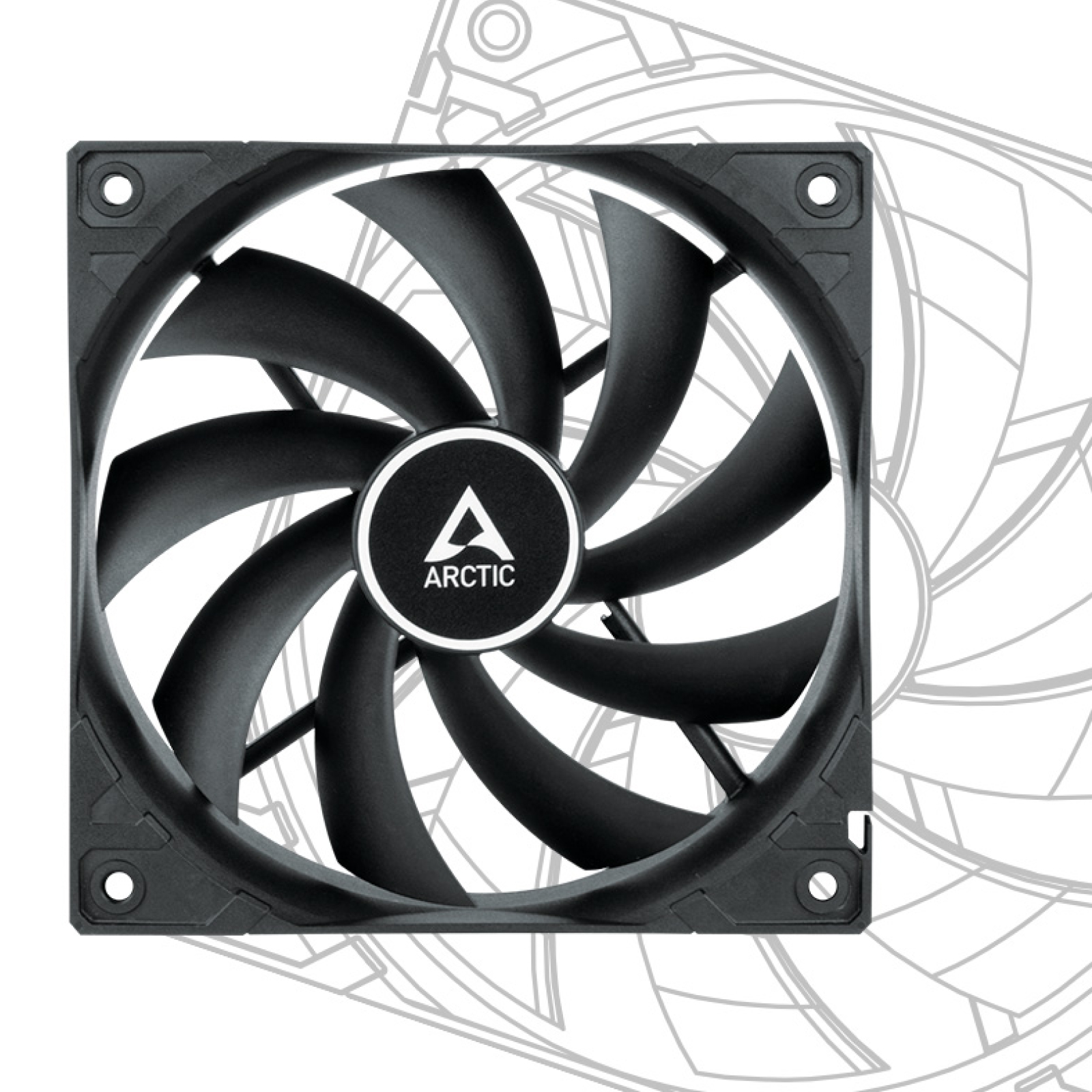

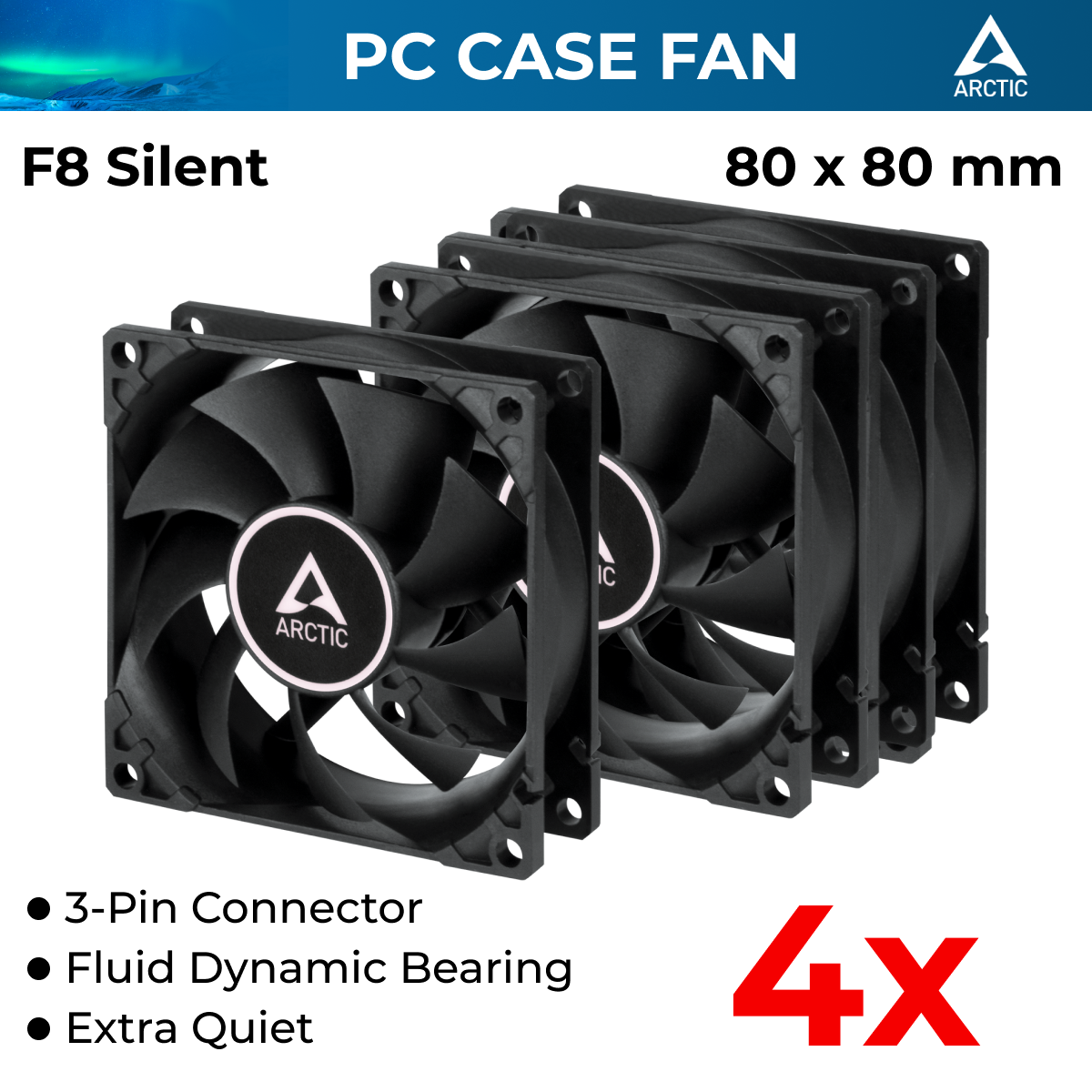

4 x 80mm Cooling Fan Silent Fan For Computer PC Case Cooler Ultra Quiet Black 3-Pin

ARCTIC offers innovative solutions incessantly - changing impossible user requirements into new. Always focused on our customers, ARCTIC is devoted to deliver excellence through a strong dedication and a high sense of commitment. In light of the ever-changing consumer landscapes, we aspire to continue to expand and diversify our products and solutions.

Case fan ARCTIC F8 Silent - quiet case fan with a diameter of 80 mm. The maximum noise level is 0.08 Sone. The fan motor, developed in Germany with a new combination of alloy and lubrication, reduces friction and noise. Innovative fan blade design improves airflow.

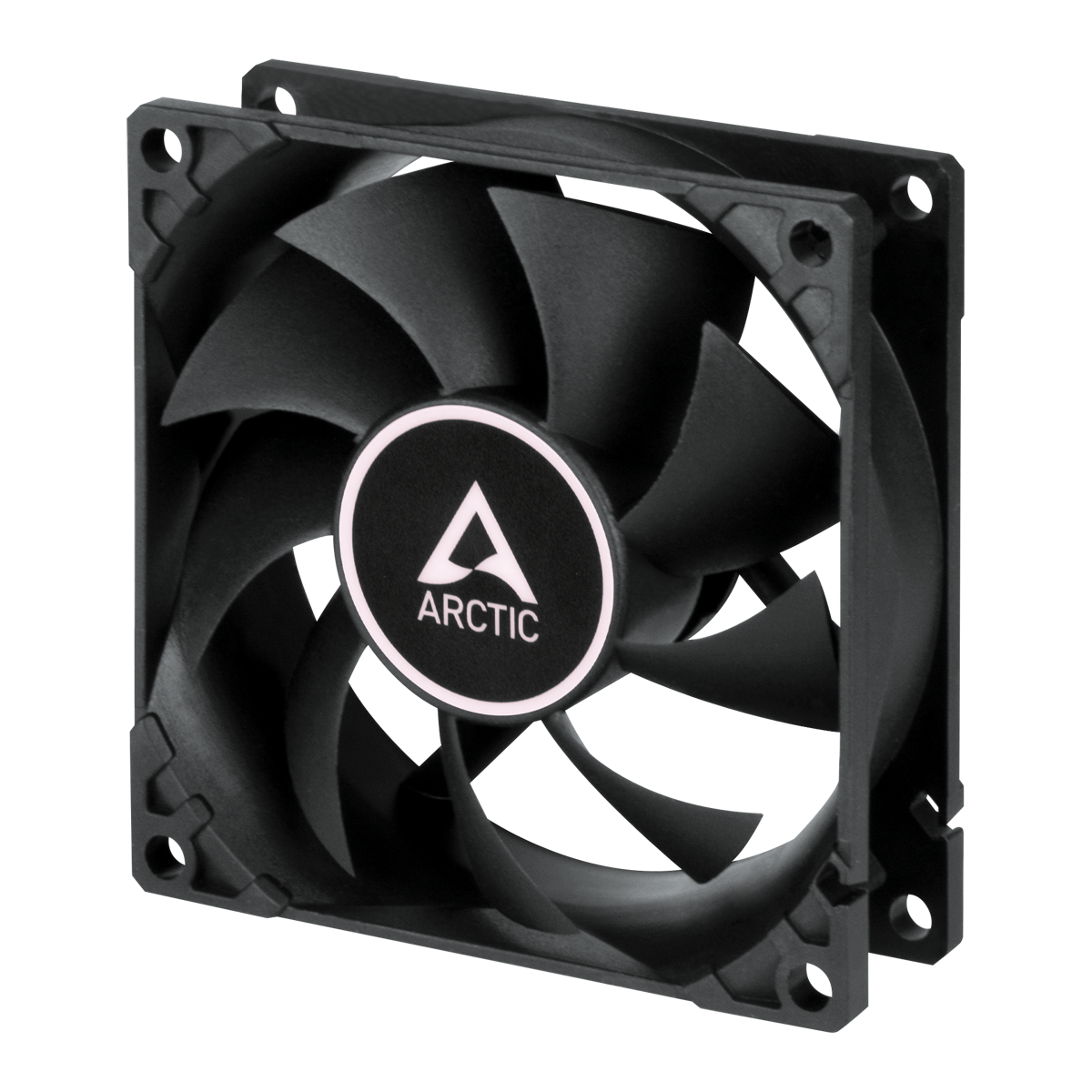

Silent Case Fan F8 Silent

  • Fan Size: 80 x 80 x 25 mm
  • Speed: 1200 RPM
  • Airflow: 15.1 CFM/ 25.7 m³/h
  • Noise Level: 0.08 Sone
  • Connector: 3-Pin
  • Control Type: Fixed Speed
  • Cable Lenght: 400 mm



Features:

  • OPTIMISED FOR STATIC PRESSURE: During the development of the new F8 Silent, special emphasis was placed on a focused airstream and thus a high static pressure
  • GREATER EFFICIENCY - LESS NOISE AT HIGHER AIRFLOW: At low fan speed, the motor noise is key, a motor developed in Germany with a new alloy, lubricant combination reduced friction and noise

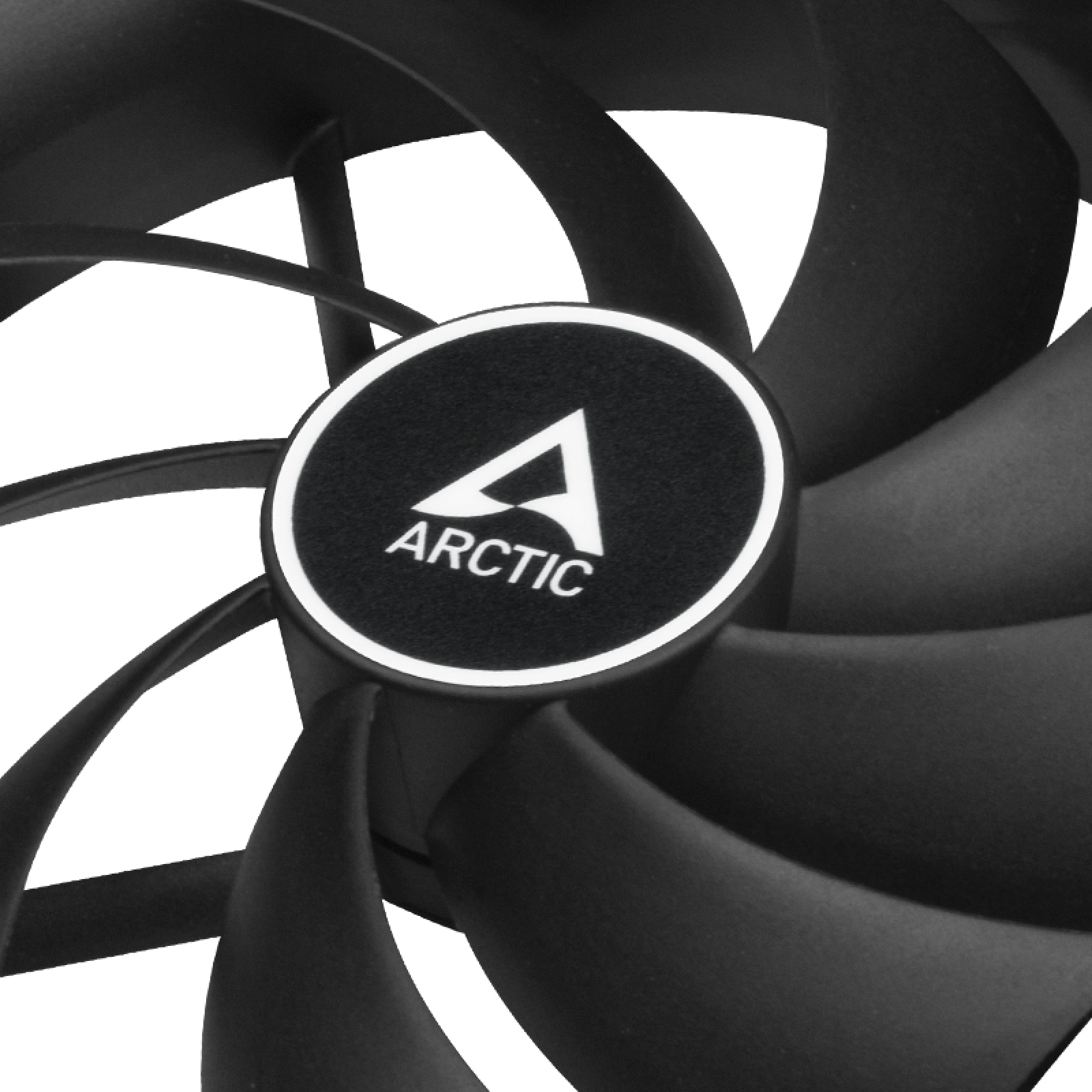

  • INNOVATIVE DESIGN: Design of fan blades improves airflow and facilitates efficient ventilation, propeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure

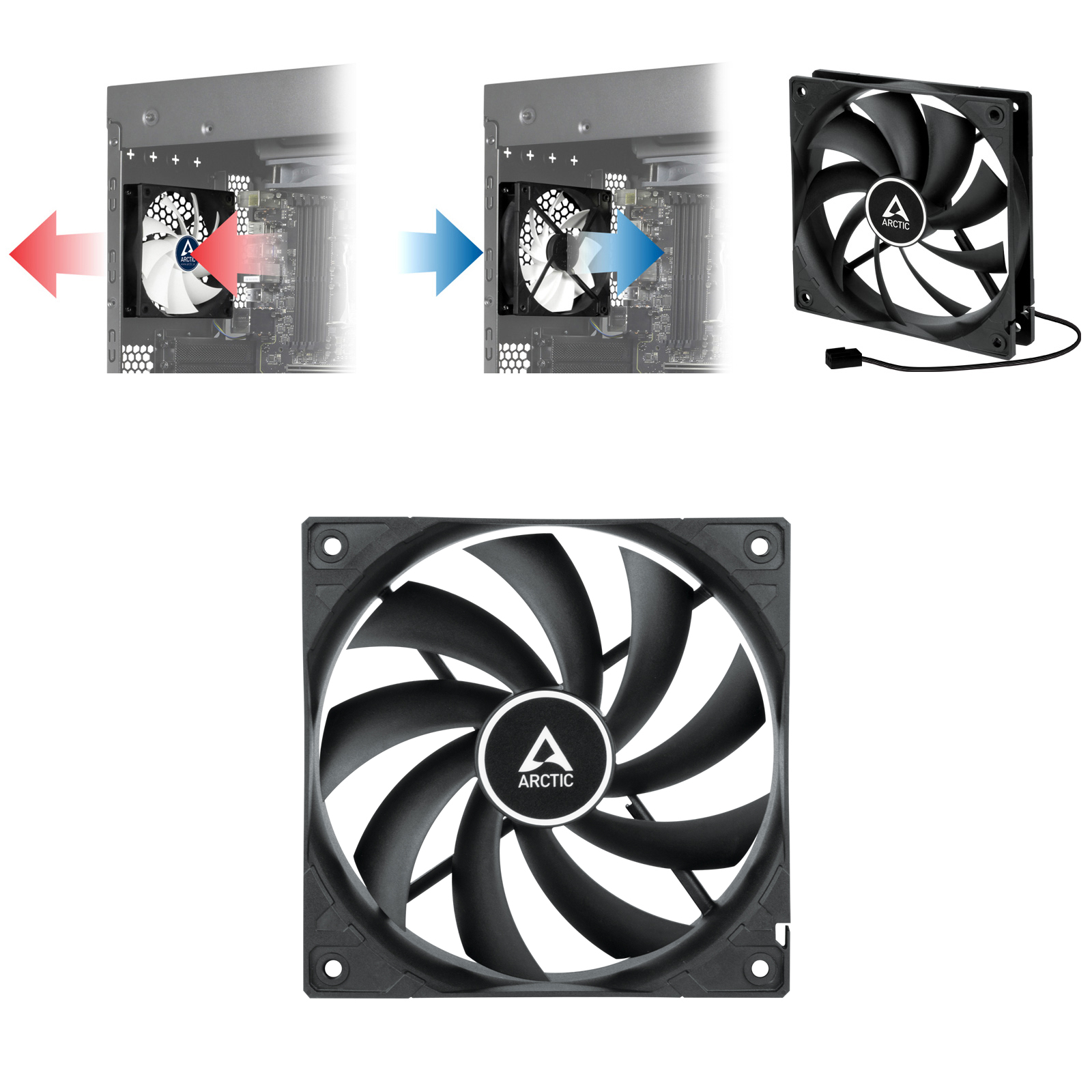

  • TWO WAY INSTALLATION: Blow warm air out of the case, draw cool air into your case

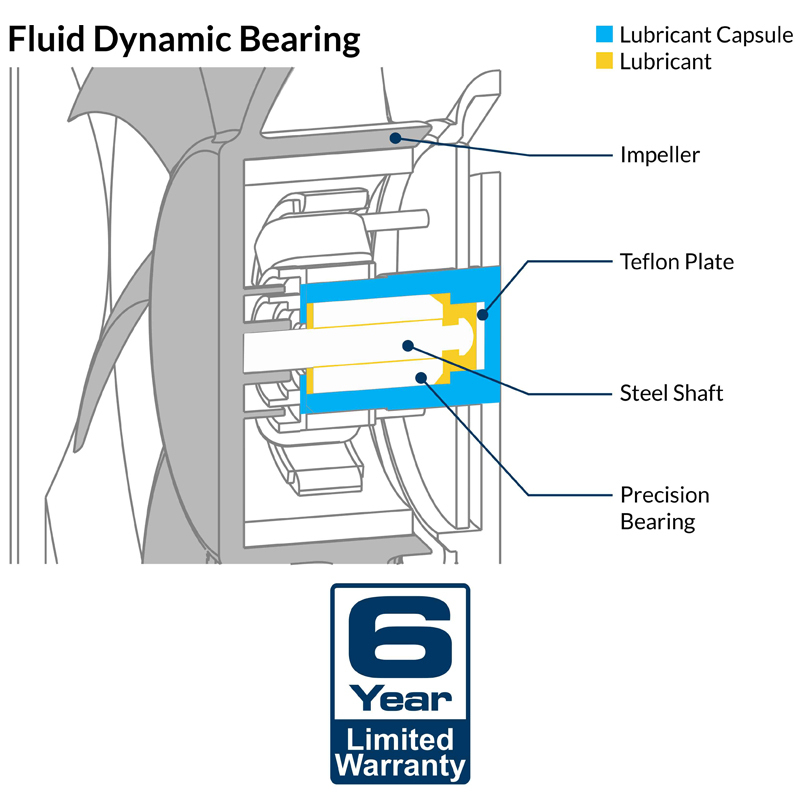

  • LONG SERVICE LIFE: The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage, thus this bearing is as quiet as a sleeve bearing but comes with a higher service life
  • TECHNICAL DATA: Fan speed: 1200 RPM, Airflow: 15.1 CFM/ 25.7 m³/h (@ 1200 RPM), Noise Level: 0.08 Sone (@ 1200 RPM), Pin: 3-pin

Performance

  • Fan Speed: 1200 RPM
  • Airflow:  15.1 CFM/ 25.7 m³/h
  • Static Pressure:  0.54 mm H₂O
  • Noise Level: 0.08 Sone
  • Operating Ambient Temperature: 0 - 40 °C


Fan

  • Fan Frame: Standard
  • Control Type: Fixed Speed
  • Connector: 3-Pin-Connector
  • Fan Bearing: Fluid Dynamic Bearing


Electric Characteristics:

  • Typical Voltage: 12 V DC
  • Starting Voltage: 4.5 V
  • Current/ Voltage:  0.053 A / 12 V
  • Current: 0.053 A
  • Cable Lenght: 400 mm

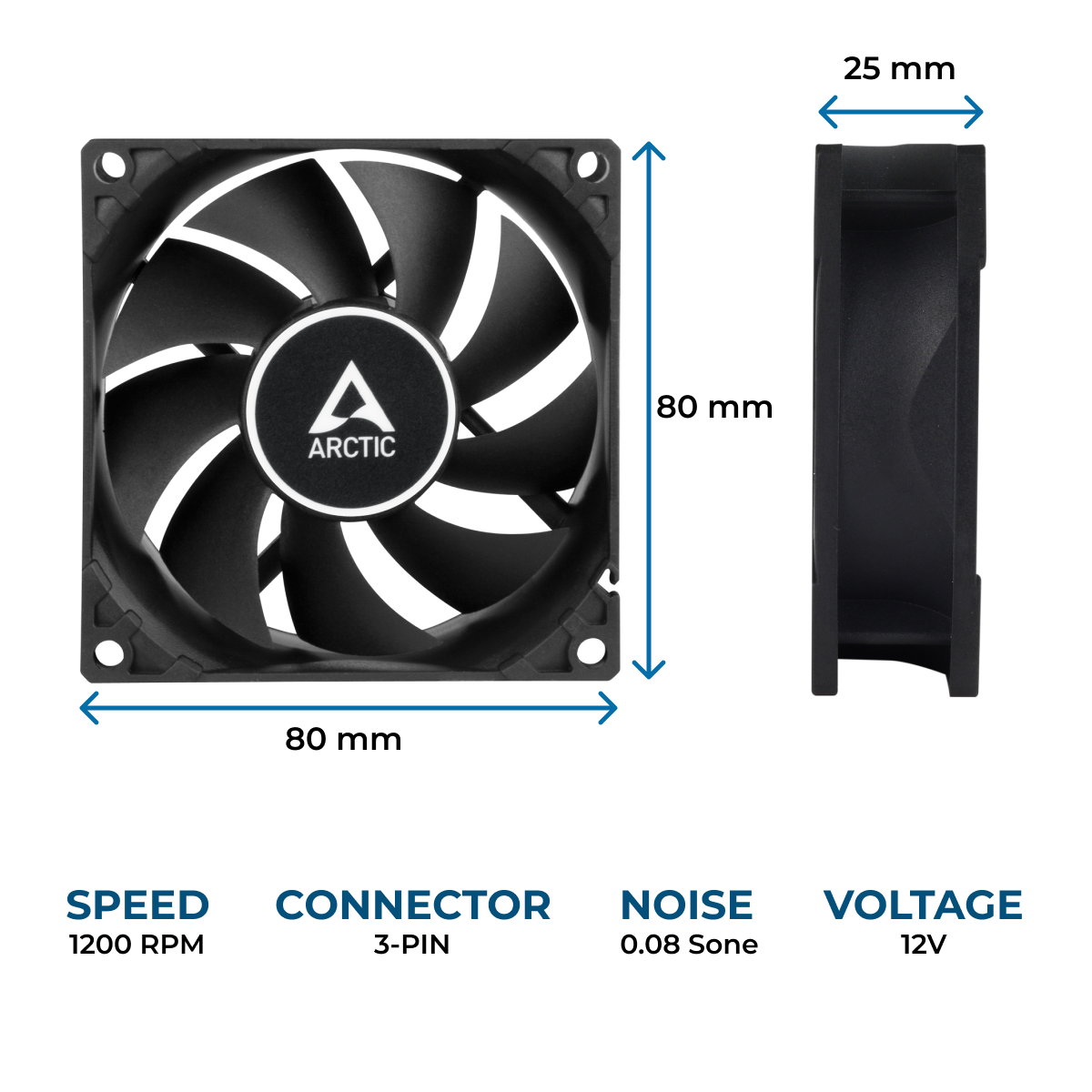

Size & Weight

  • Lenght: 80 mm
  • Width: 80 mm

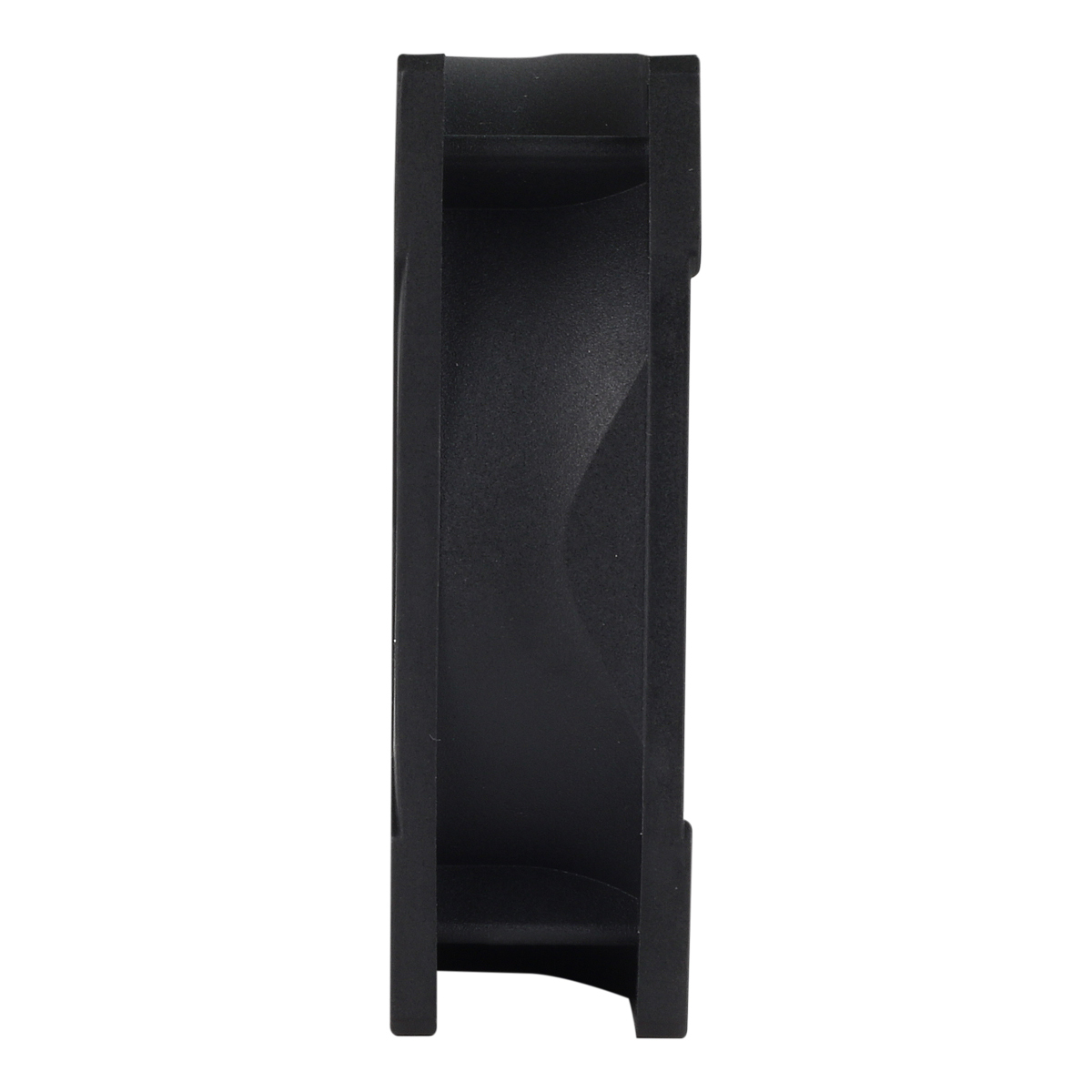

  • Height: 25 mm
  • Weight: 71 g
