AP8706S-WW Features

01

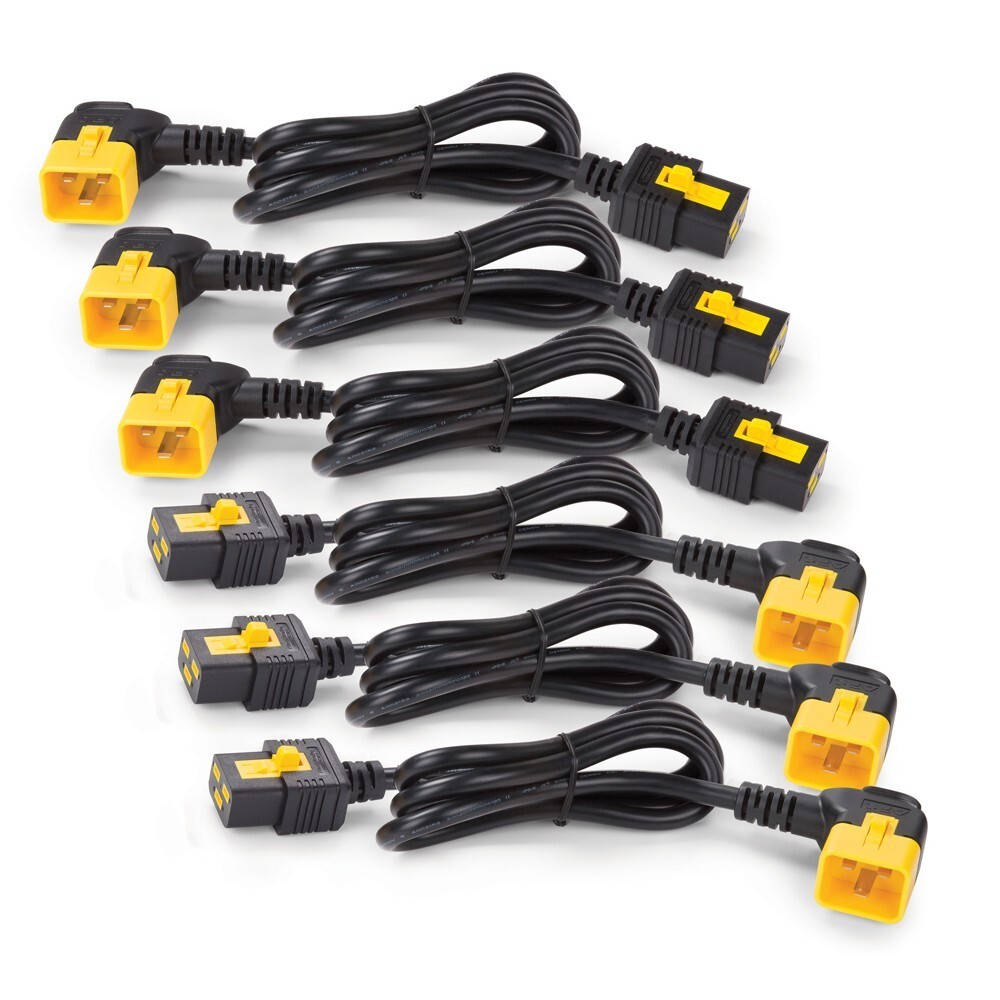

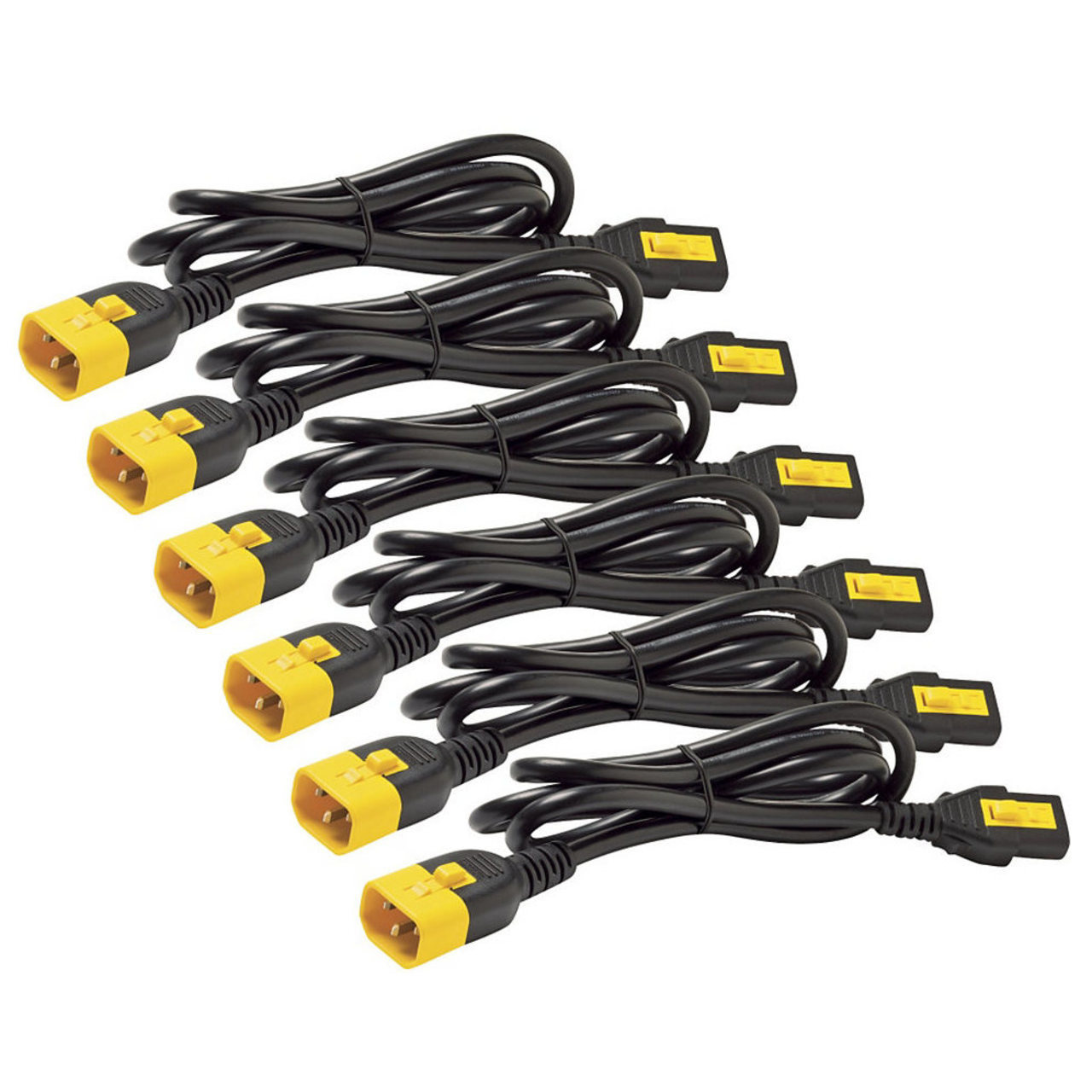

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.



Output

• Cord Length

  1.83 meters

• Maximum Total Current Draw

  10

• Output Connections

  (1) IEC 320 C13 (Battery Backup)

Input

• Input Connections

  IEC-320 C14

• Cord Length

  1.83 meters

• Number of Power Cords

  6

• Maximum Input Current

  10 A

• Maximum Line Current

  10 A

Physical

• Maximum Height

  240 , 24.0 cm

• Maximum Width

  75 , 7.5 cm

• Maximum Depth

  55 , 5.5 cm

• Net Weight

  1.35 kg

• Shipping weight

  1.35 kg

• Shipping Height

  240 , 24.0 cm

• Shipping Width

  75 , 7.5 cm

• Shipping Depth

  55 , 5.5 cm

• Color

  Black

• Units per Pallet

  300.0

Environmental

• Operating Environment

  0 - 70 °C

• Operating Relative Humidity

  20 - 80 %

• Operating Elevation

  0-3000 meters

• Storage Temperature

  -25 - 75 °C

• Storage Relative Humidity

  20 - 80 %

• Storage Elevation

  0-15000 meters

Conformance

• Approvals

  CCC, PSE, VDE

• Standard warranty

  2 years repair or replace
