Long Service Life 01

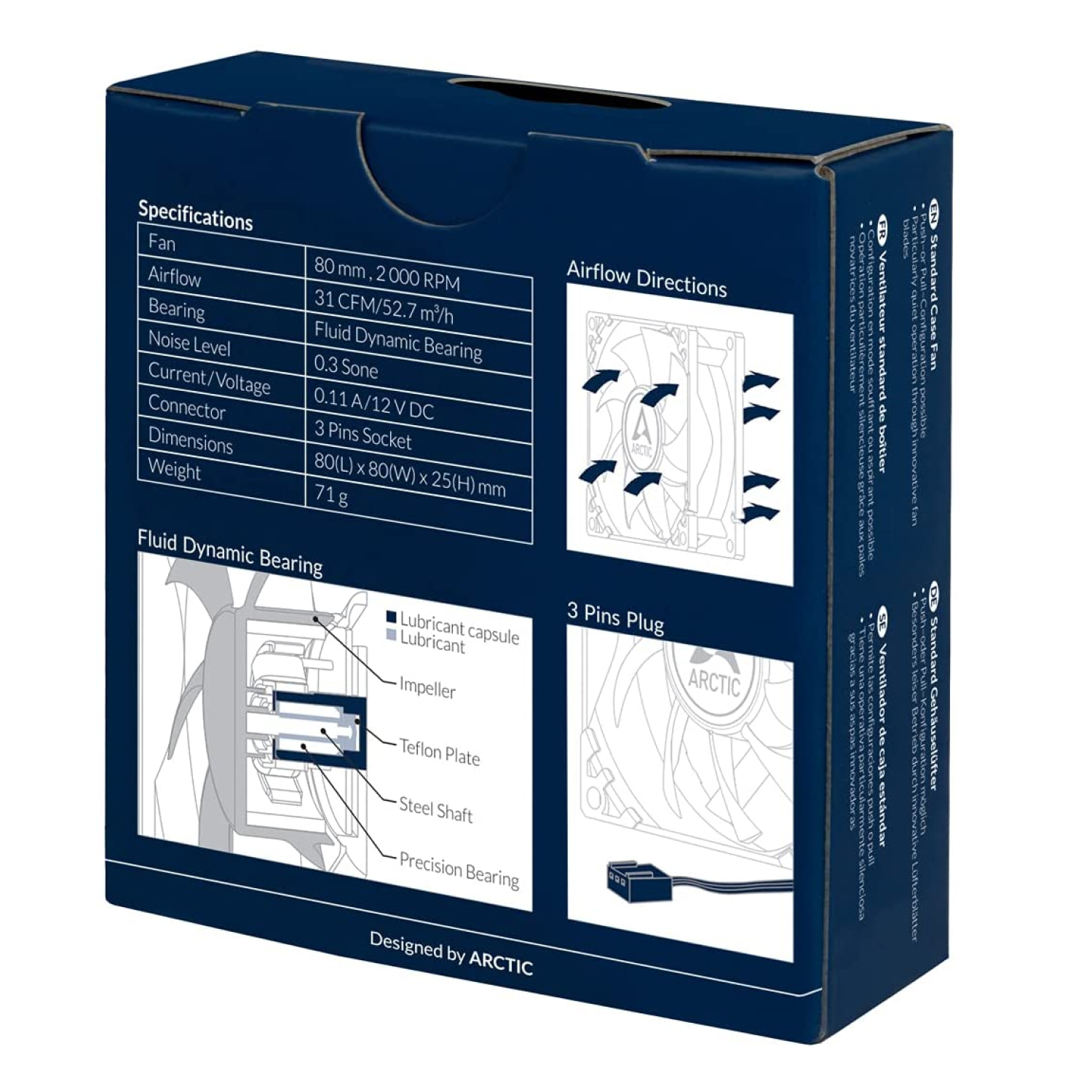

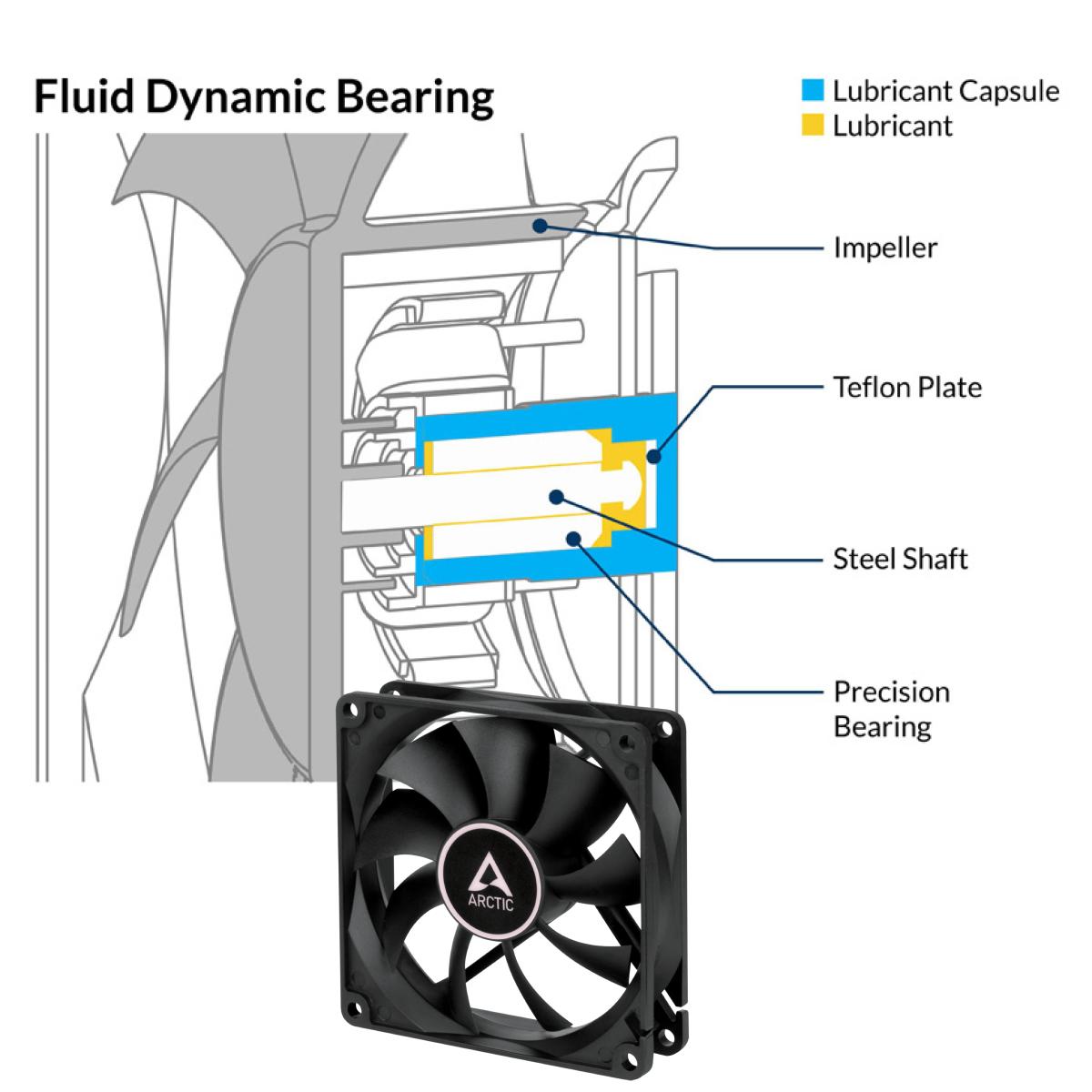

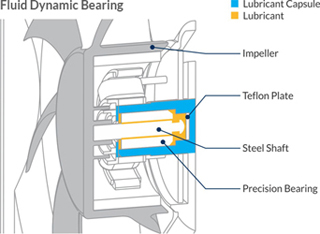

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

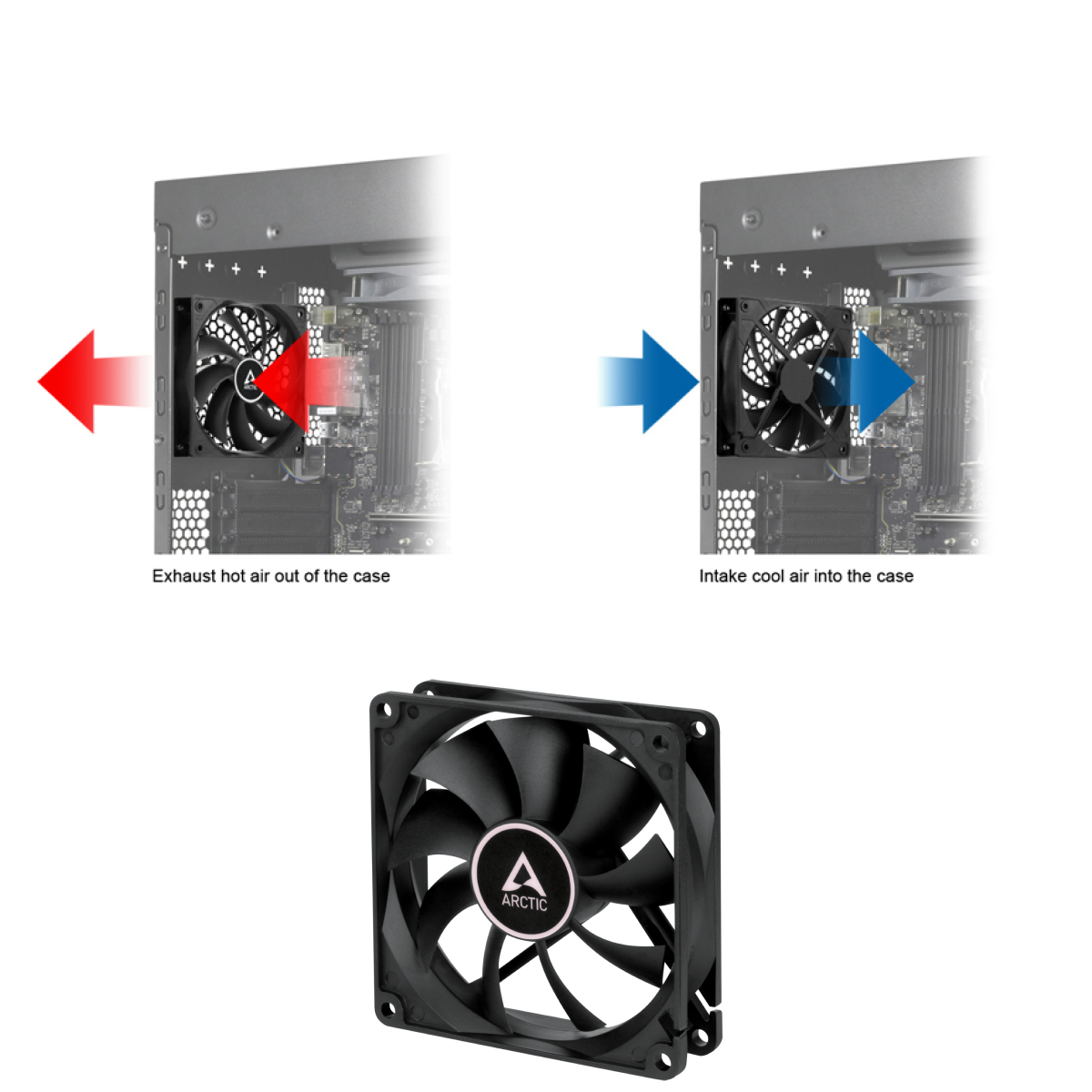

Two Way installation 02
Draw cool air into your case




Fan Speed:
2,000 RPM (@ 12V DC)
1,200 RPM (@ 7V DC)
850 RPM (@ 5V DC)
Air Flow:
31 CFM / 52.7 m³/h (@ 2,000 RPM)
Noise Level:
0.3 Sone (@ 2,000 RPM)
Electrical Characteristics
Typical Voltage:
12V DC
Start-up Voltage:
2.6V DC
Cable Length:
Voltage Current
12V DC (Norminal) 0.16A
7V DC 0.1A
5V DC 0.08A
Operation Requirements
Motherboard: +12V DC
3-pin socket

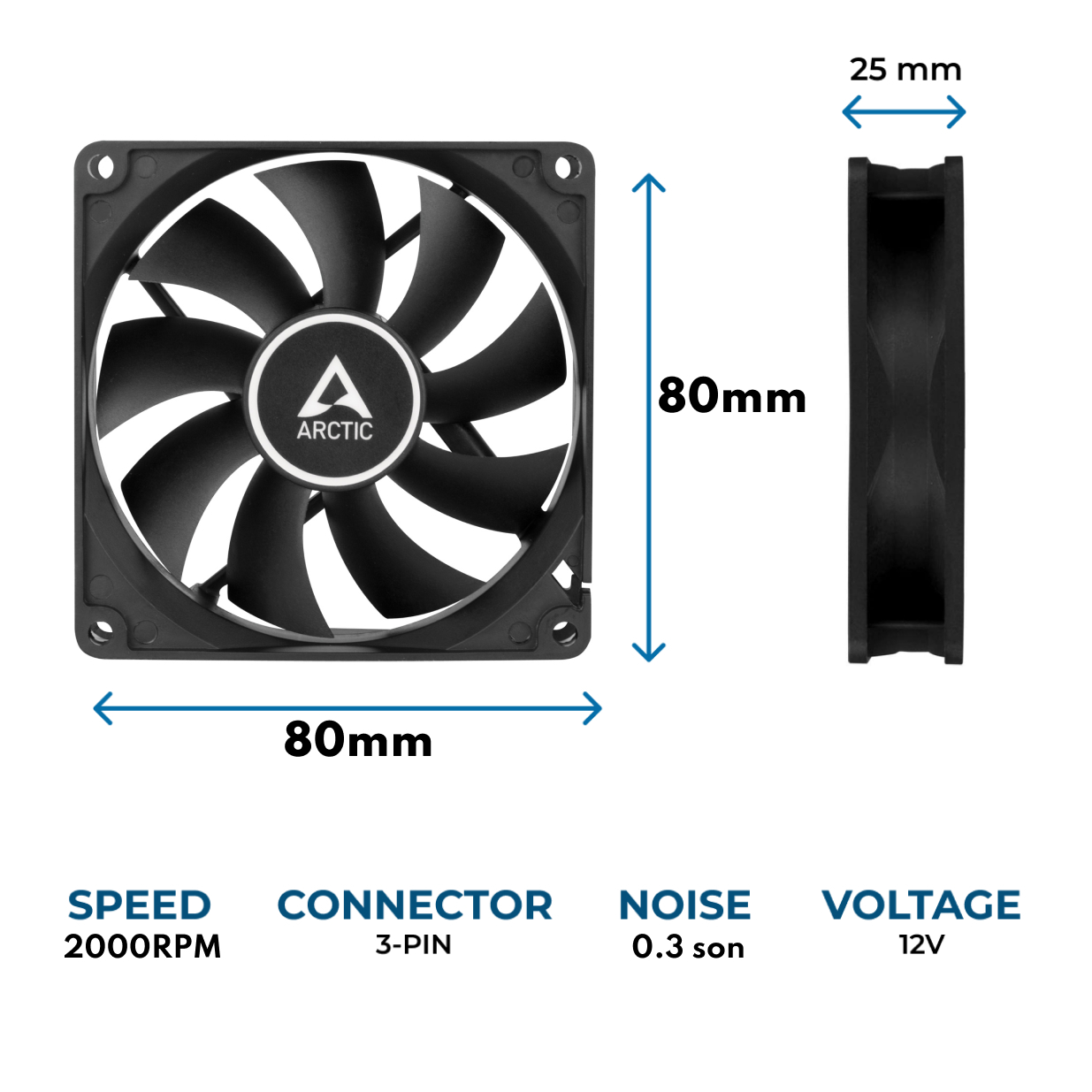

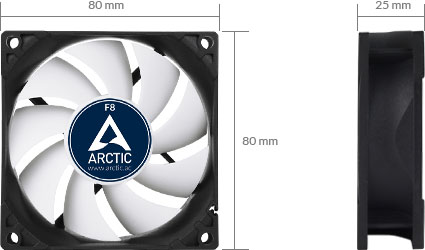

Size & Weight

Standard 80 mm fan holes

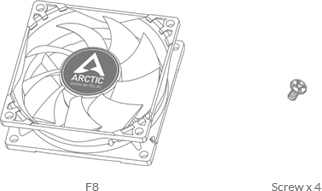

Packaging & Box Content

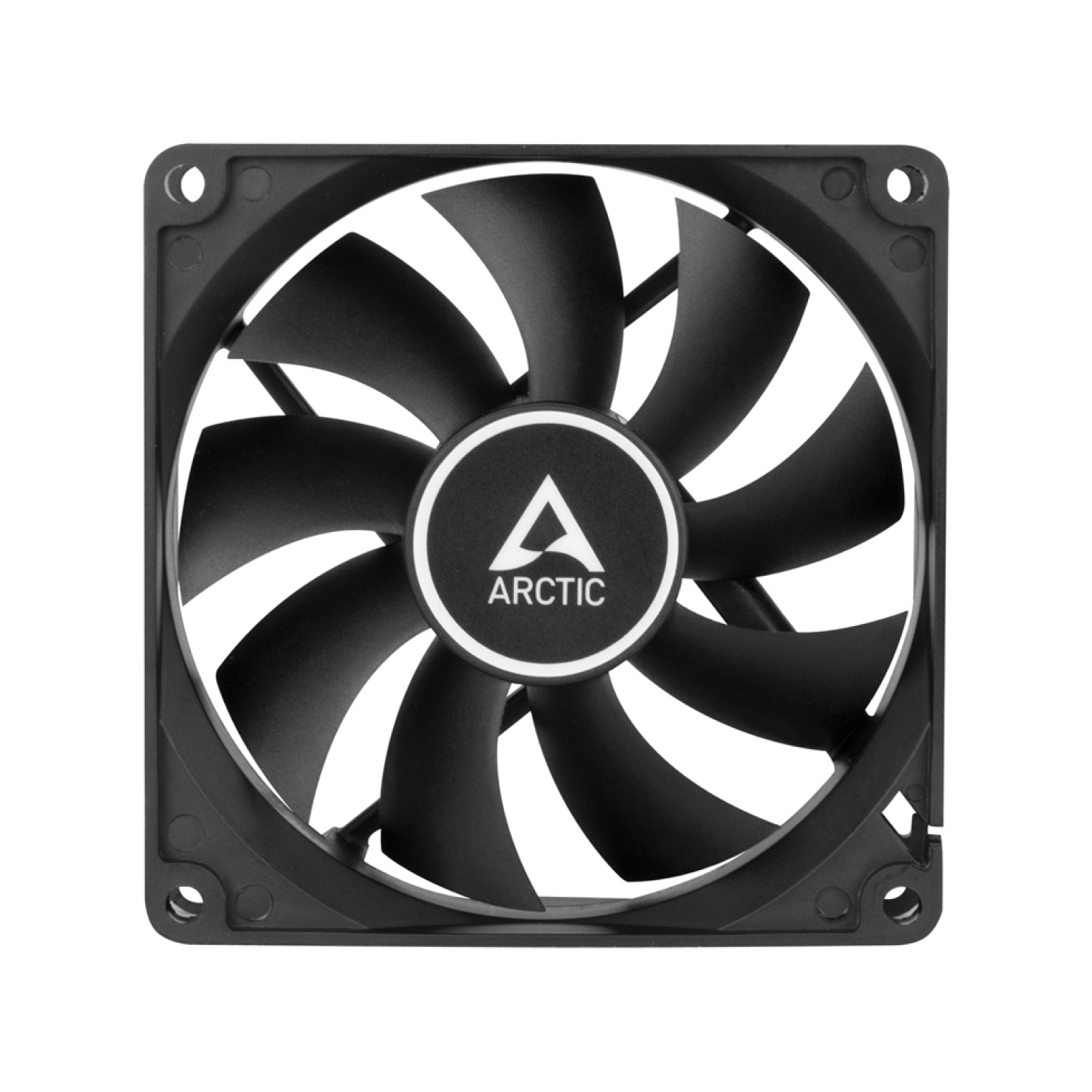

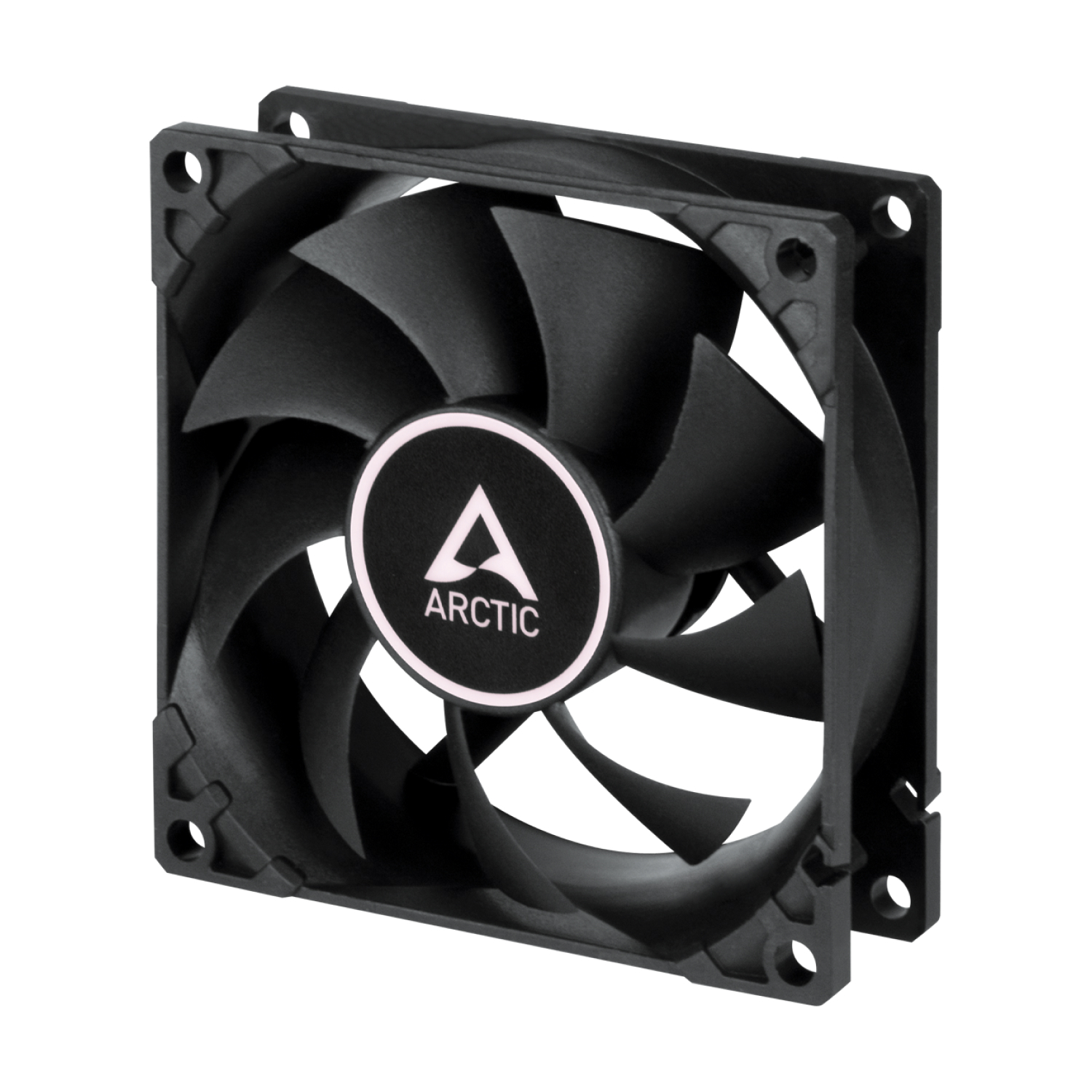

Model F8
Type Air Cooling (Cooler)
Purpose Case Fan
Packing Weight 120 g
Compatibility Motherboard: +12V DC 3-pin socket
Fan Size 80 mm
Heatsink Material Plastic
Bearing Type Fluid dynamic
RPM 2000
Noise Level 0.3 Sone

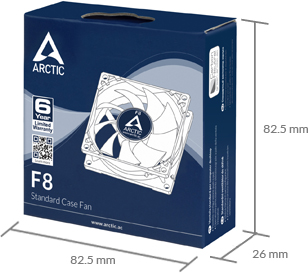

Packing Width 82.5 mm
Packing Depth 82.5 mm
Packing Height 26 mm
Features Fluid dynamic bearing assures long service life at a min. noise level of max. 0.3 sone Two way installation possible
Package Type BOX

Good Fan

By: on 26 August 2019
It's a good fan and will use on a computer. It was meant to be for my power amp to replace the old fan but my mistake was to take for granted that the fan in my power amp was a 3 pin... It is only 2 pin. However, as I say it will be used in one of my computers that will come over from NZ. Service was good and postage fast... Thank you very much
