ASUS DSL-N12E Wireless N300 ADSL Modem Router, ADSL 2 & 2+, WiFi 802.11 b/g/n, 4x 10/100Mbps, RJ11 Ports

Network Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4
Product Segment
N300 complete networking; 300Mbps
Wi-Fi Data Rate
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
xDSL Data Rate
G.992.1 (T1.413)
G.992.2 (G.dmt), G.lite
G.992.3 (G.bis/ADS L2)
G.992.5 (ADSL2+)
Annex L (reach extended ADSL2)
Antenna
Fixed 2 or 5 dBi antenna x 2
*Antenna signal power may vary by region due local regulations and requirements
LED Indicator
Power, ADSL, Internet, WLAN, LAN x 4
Button
WPS Button, Reset Button, Power Button

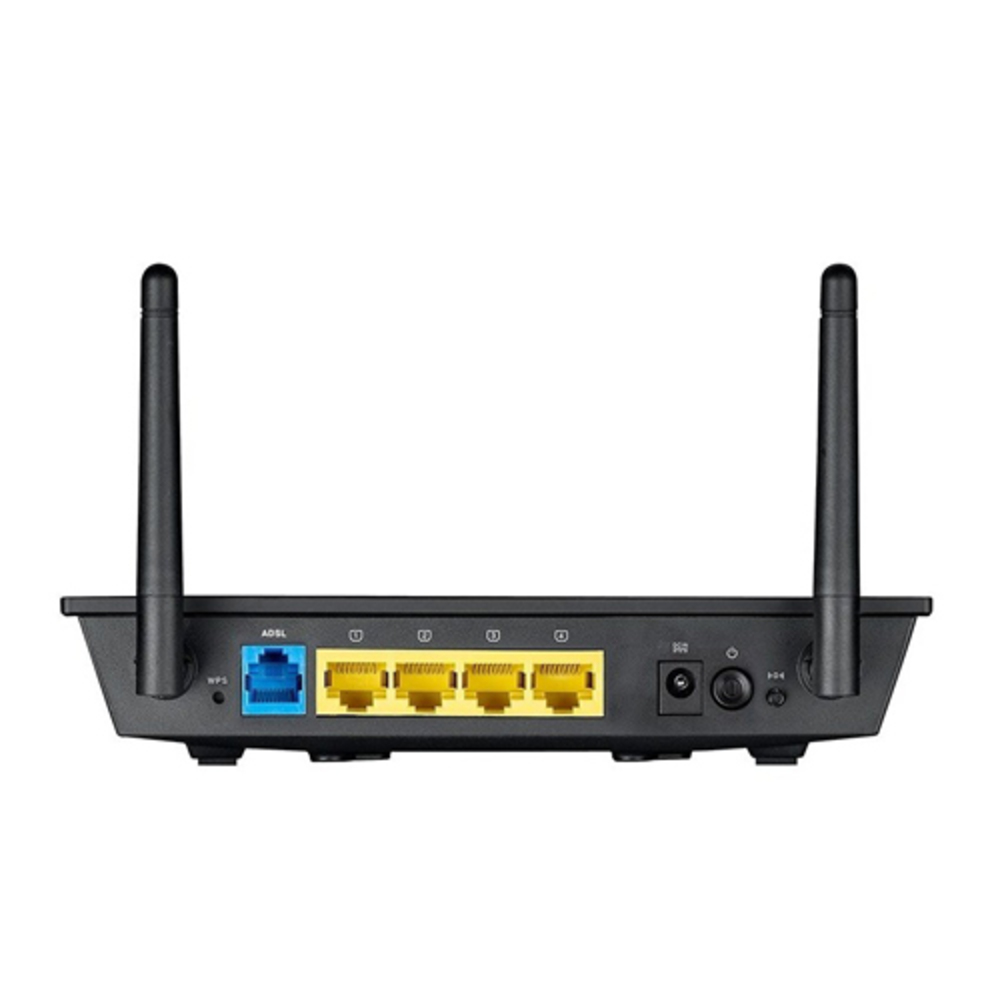

Ports
1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN
Operating Frequency
2.4GHz
Operation Channel
11 for N. America
13 Europe (ETSI)
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, Radius with 802.1x, WPS support
Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Configuration backup and restore
Diagnostics
Log & Trace function
Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/0.8 A
Certificates
CE
Dimensions
168 x 124 x 30 mm (WxDxH)
Weight
300 g (Device Only)
Environmental
Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)
OS Support
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux
Package Content
DSL-N12E Wireless ADSL modem Router
Power adapter
Support CD (user manual, QSG)
RJ45 cable
RJ11 cable
Quick Start Guide
Warranty card

Network Type	Wireless
WAN-port	ADSL2+
Packing Weight	500 g
Ports	4 x 10/100 Mbps RJ45
Frequency Wireless	2.4 GHz
Wi-FiSpeed	300 Mbps
LAN Speed	100 Mbps
Antenna	External/Undetachable
Wireless Security	64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Antennas Quantity	Fixed 2 or 5 dBi antenna x 2
Standards Compliance	IEEE 802.11b IEEE 802.3
Additional Features	Product Segment N300 complete networking; 300Mbps Wi-Fi Data Rate 802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6,9,12,18,24,36,48,54Mbps 802.11n : up to 300Mbps xDSL Data Rate G.992.1 (T1.413) G.992.2 (G.dmt), G.lite G.992.3 (G.bis/ADS L2) G.992.5 (ADSL2+) Annex L (reach extended ADSL2) LED Indicator Power, ADSL, Internet, WLAN, LAN x 4 Ports 1 x RJ11 for ADSL 4 x RJ45 for 10/100 BaseT for LAN Operation Channel 11 for N. America 13 Europe (ETSI) Security 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, Radius with 802.1x, WPS support xDSL Data Rate: G.992.1 (T1.413) G.992.2 (G.dmt), G.lite G.992.3 (G.bis/ADS L2) G.992.5 (ADSL2+) Annex L (reach extended ADSL2)
Packing Width	240 mm
Packing Depth	65 mm
Packing Height	190 mm
Package Type	BOX
