Asus Essence STX II 5.1 Hi-Fi Quality Sound Card with 124dB SNR Clarity
Product Code: ESSENCESTXII
Price:
Share This Item:
| Keeping the audiophile spirit and philosophy alive | 01 |
 | Four years after the debut of Essence STX — the long-term holder of the number-one position in Head-Fi's Sound Cards segment, as voted by highly-satisfied users globally — ASUS remains committed to delivering ever better high-end sound cards to delight the most demanding audiophiles. Drawing on years of experience in developing Essence One, Essence STU and Essence III, Essence STX II delivers meticulous design, quintessential performance and profound musicality — elements that shape the spirit of the whole Essence Hi-Fi series. |
| Legendary audio quality that just got better | 02 |

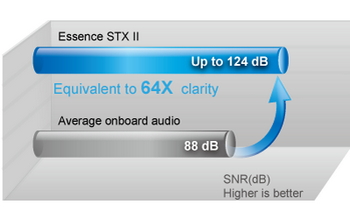

 | Industry-leading 124dB SNR Essence STX II delivers industry-leading 124dB SNR audio clarity, a much-envied quality inherited from the revolutionary and widely-acclaimed Essence STX sound card — and up to 64 times (64X) better than typical onboard audio hardware. Headphone output reaches a fantastic 120dB SNR. |
| Hardware essentials | 03 |

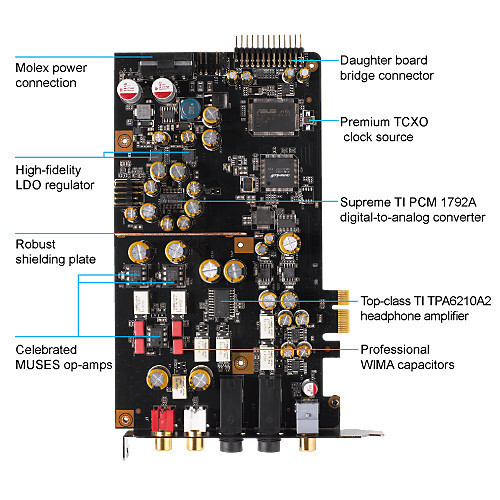

 | Ultra-low jitter A high-precision clock is crucial to audiophiles. Integrated circuits are susceptible to heat and temperature changes, which is why Essence STX II includes a premium temperature-compensated crystal oscillator (TCXO) clock source. It is an ultra-accurate timing technology that ensures ultra-low jitter. Clean and consistent power supplyEssence STX II uses a dedicated four-pin Molex power connection rather than drawing power from the expansion slot like other cards, and that means a cleaner supply of electricity. Optimized power delivery is further assured with high-fidelity low-dropout (LDO) regulators — unprecedented in the audio-card industry. As well, audiophile-appreciated WIMA® capacitors deliver balanced sound. Celebrated MUSES op-ampsThe profound musicality that Essence listeners expect is encapsulated by celebrated MUSES 8920 and MUSES 8820 op-amps, which deliver true-to-life tonality and spacious sound imaging. |
| Impeccable headphone amplification | 04 |

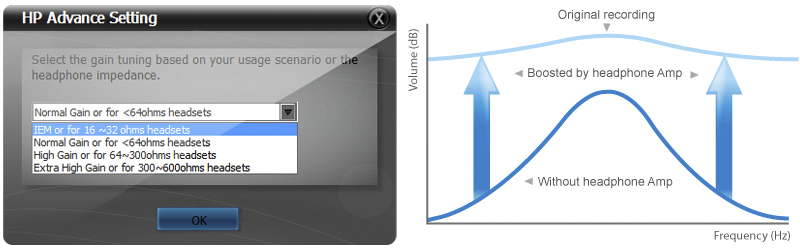

The built-in headphone amplifier supports up to 600ohm impedance — so audiophiles can plug in the finest high-impedance headphones to enjoy the pure quality delivered by Essence STX II.
ASUS engineers have furnished Essence STX II with an additional gain control designed especially for high-sensitivity IEM headphones, allowing musicians and audio purists to use earpieces that channel audio output straight to the ear canal — isolating ambient noise for listening that requires undisturbed concentration.
Asus Essence STX II
Keeping the audiophile spirit and philosophy alive
Four years after the debut of Essence STX — the long-term holder of the number-one position in Head-Fi's Sound Cards segment, as voted by highly-satisfied users globally — ASUS remains committed to delivering ever better high-end sound cards to delight the most demanding audiophiles. Drawing on years of experience in developing Essence One, Essence STU and Essence III, Essence STX II delivers meticulous design, quintessential performance and profound musicality — elements that shape the spirit of the whole Essence Hi-Fi series.
| Specification | https://www.asus.com/Essence-Hi-Fi-Audio/Essence_STX_II/specifications/ |
| Model | Essence STX II |
| Type | Internal |
| Packing Weight | 826 g |
| Packing Width | 277 mm |
| Interface | PCI Express x1 |
| Packing Depth | 235 mm |
| Audio Chipset | ASUS AV100 High-Definition Sound Processor |
| Channels | 5.1 |
| Packing Height | 78 mm |
| Sample Rate | 192KHz |
| Package Type | BOX |
| Digital Audio | 24bit |
| Connectivity | 2x RCA |
| Additional Features | Output Signal-to-Noise Ratio (A-Weighted) (Front-out) : 124 dB Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) : 120 dB Input Signal-to-Noise Ratio (A-Weighted) : 118 dB Output THD+N at 1kHz (Front-out) : >0.0003 %(-110 dB) Output THD+N at 1kHz (Headphone-out) : >0.001 %(-100 dB) Frequency Response (-3dB, 16bit/44.1KHz input) : 10 Hz to 90 KHz Output/Input Full-Scale Voltage : Line output (RCA, 3.5) : 2 Vrms (5.65 Vp-p) Headphone output : 7 Vrms ( Vp-p) |
| System Requirements | Windows 10 Windows 8.1 Windows 8 Windows 7 Windows XP |
