Audio Interface

PCI Express

Audio Performance

Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
124 dB
Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) :
124 dB
Input Signal-to-Noise Ratio (A-Weighted) :
117 dB
Output THD+N at 1kHz (Front-out) :
0.0009 %(-107 dB)
Output THD+N at 1kHz (Headphone-out) :
0.0009 %(-107 dB)
Input THD+N at 1kHz :
0.000316 %(-110 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
Line output (RCA, 3.5) : 2 Vrms (5.65 Vp-p)

Chipset

Audio Processor :C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 384KHz / 24bit)

Digital-to-analog Converter(DAC)

ESS SABRE9016 Premier 8 Channel Audio DAC

Sample Rate and Resolution

Analog Playback Sample Rate and Resolution :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO 2.0 Driver Support :
44.1K/48K/96K/192KHz @ 16bit/24bit with very low latency

Connectivity

Analog Output

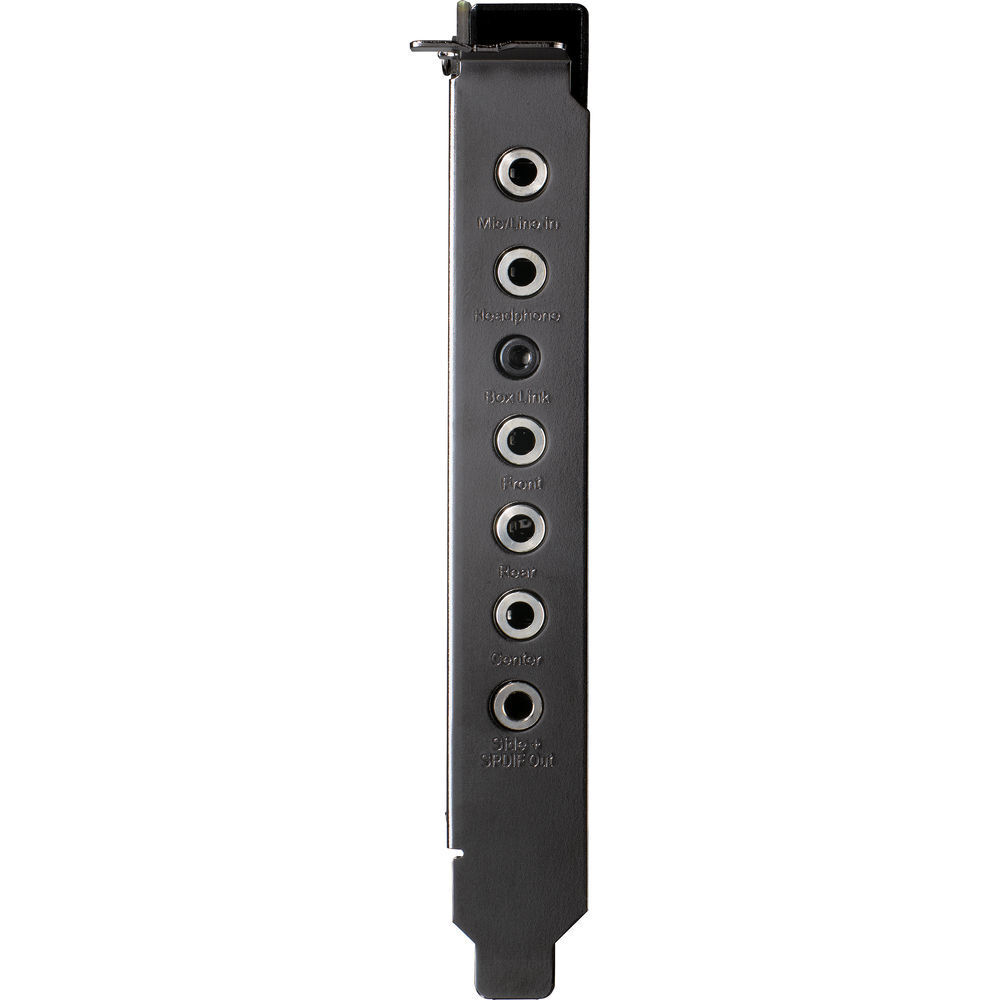

5 x 3.5 mm jack (1/8") (Headphone out /Front out/Side out/Center-Subwoofer out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out ((combo with side out))
1 x Box Link

Special Features

Sonic Studio

Operating System

Windows® 10 , 32bit/64bit
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 SP1, 32bit/64bit

Accessories

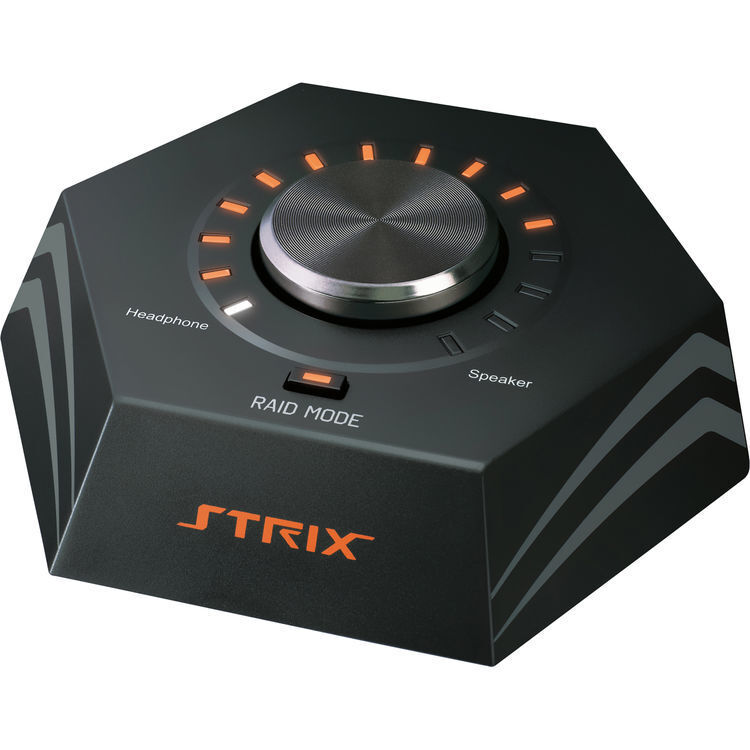

Control box x 1
S/PDIF optical adaptors x 1
Driver CD x 1
Quick start guide x 1
Box link cable x 1

Dimensions

190 x 130 x 22 mm ( L x W x H )
