CONNECT EASILY TO A COMPUTER NETWORK 01

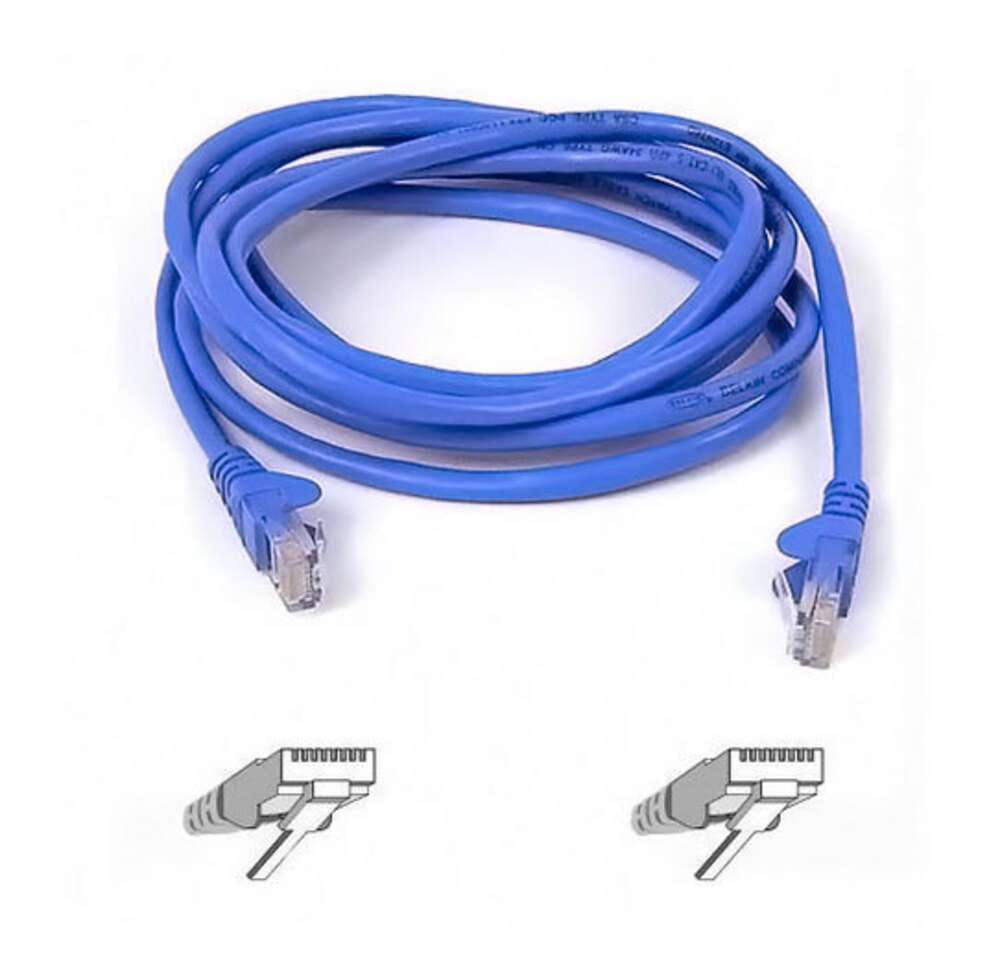

Upgrade your network and enjoy clean and clear transmissions with the Belkin CAT6 Snagless Ethernet Patch Cable. This patch cable lets you connect a laptop or desktop computer to a wall outlet, modem, router or another networking device. It meets the CAT6 standard and is suitable for use with 100/1000BASE-T networks. Patch cables are also handy in home offices and hotel rooms to establish a wired Internet connection.
KEY FEATURES 02

1.4 UTP stranded copper wires

2.Durable PVC jacket

3.RJ45 plugs with 50-micron gold-plated connectors

4.Molded strain relief with snagless design

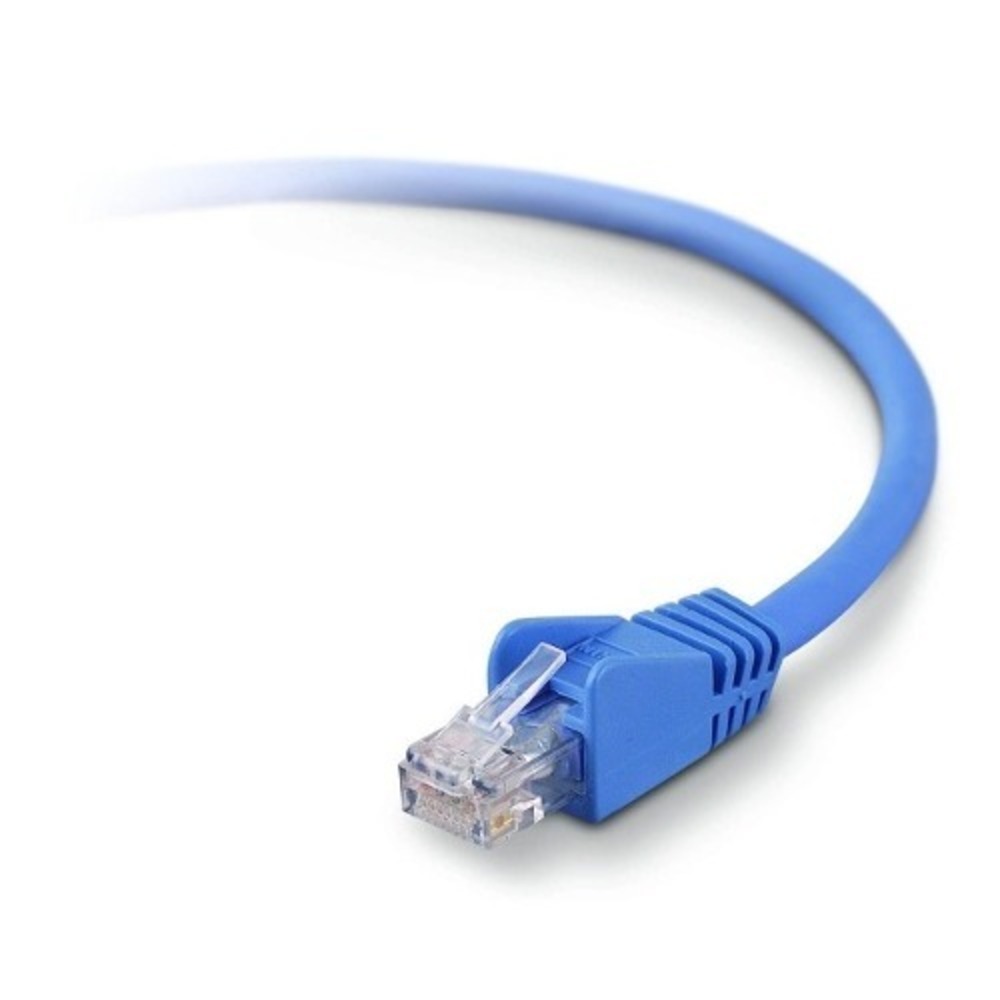

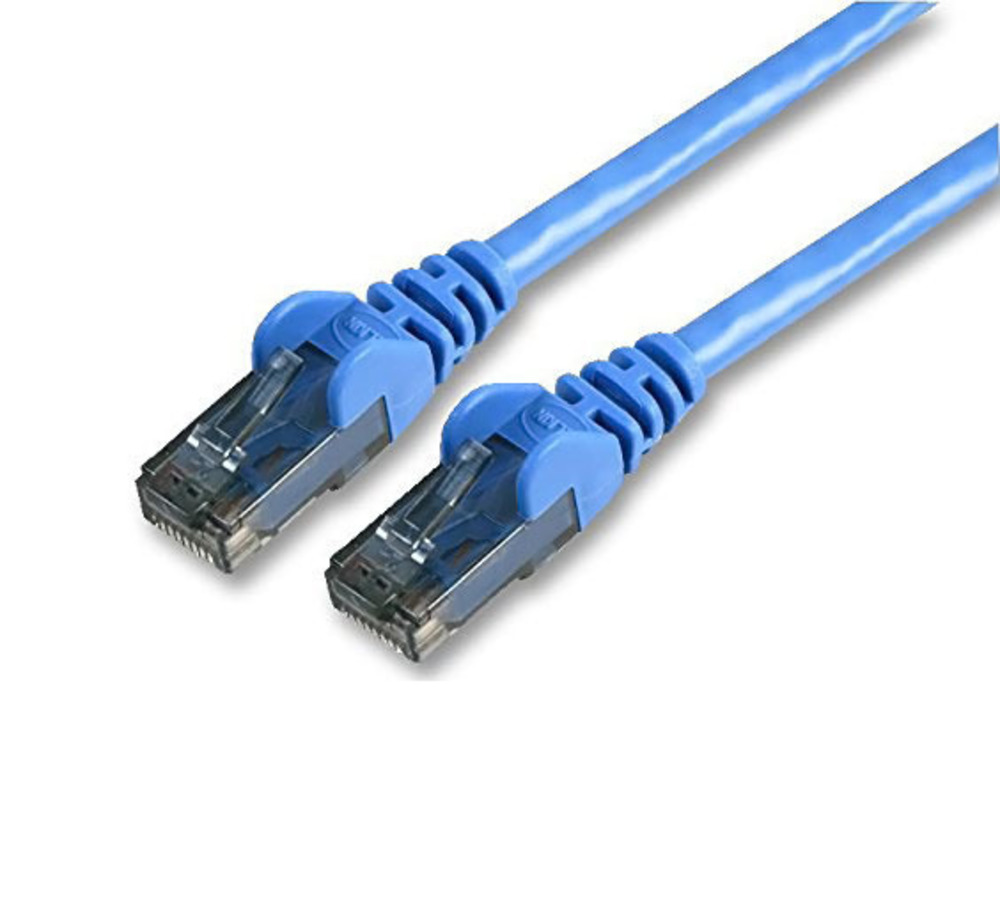

RJ45 PLUGS WITH GOLD-PLATED CONTACTS FOR A CLEAR SIGNAL 03
The Belkin CAT6 Snagless Ethernet Patch Cable features an RJ45 male connector on each end. Internal load bars ensure accurate plug positioning and consistent high performance, while 50-micron gold-plated connectors resist corrosion and wear and deliver a clean, clear signal.
GIGABIT SPEEDS WITH CAT6 TECHNOLOGY 04

Made with Unshielded Twisted Pair (UTP) stranded copper wires, this cable meets the CAT6 Ethernet network cable standard and can support Ethernet speeds of up to 1 gigabit per second. Unlike CAT5 technology, CAT6 cables fully use all four pairs of twisted copper wires for greater bandwidth and speed.
LESS CROSSTALK WITH TWISTED PAIR WIRES 05

The CAT6 Snagless Ethernet Patch Cable features 4 UTP 24 AWG (American Wire Gauge) stranded copper wires to reduce electromagnetic interference. Stranded cables are more pliable than solid cables, making them better suited for travel. Plus, the wires are housed in a durable PVC outer jacket for abrasion and corrosion resistance.
RESISTS WEAR WITH SNAGLESS-TYPE MOLDINGS 06

This Ethernet cable includes a molded strain relief with ridges at each end that provides flexibility, reduces stress and allows the patch cable to move without cracking or breaking away from the plug for greater durability. And, the snagless molds protect each RJ45 plug, preventing damage during installation.



Characteristic Impedence 100±15Ω @ 1 ~ 550MHz
Conductor Construction Bare Stranded Copper
Conductor Resistance 93.8Ω/km/20°C max
Conductor Size 24AWG x 4pairs
Connectors 1 x RJ-45 - male
Dielectric Strength AC 1.5kV
Flame Retardant Test CM
Insulation Material HDPE
Jacket Material PVC
Mutual Capacitance 56pF/m max
Propagation Delay 536nS/100m max @ 550MHz
Spark Test 2.5kV
Standards Compliance ISO/IEC 11801; TIA/EIA-568-B.2-1
Structural Return Loss 8.6dB min at 550MHz
Cable Type Cat 6
Cable Characteristic Unshielded twisted pair (UTP)
Jacket Diameter 5.9±0.15mm
Connector Type(s) 50 micron gold-plated connector



Kind Cable
Connector Gender Male Male
From 1 x RJ-45, Male
Packing Weight 300 g
To 1 x RJ-45, Male
Length 5 m
Packing Width 260 mm
Packing Depth 180 mm
Colour Blue
Packing Height 66 mm
Additional Features Patch cable CAT 6 Unshielded twisted pair (UTP) Molded, snagless , gold plated connectors, staggered pin configuration
Type Ethernet
Length Group 2.4 - 6 m
Package Type BOX
Compatibility Designed For: Belkin Omniview SMB 1x16 KVM-over-IP Switch, SMB 1x8 KVM-over-IP Switch, Belkin OmniView SMB CAT5 KVM Switch
