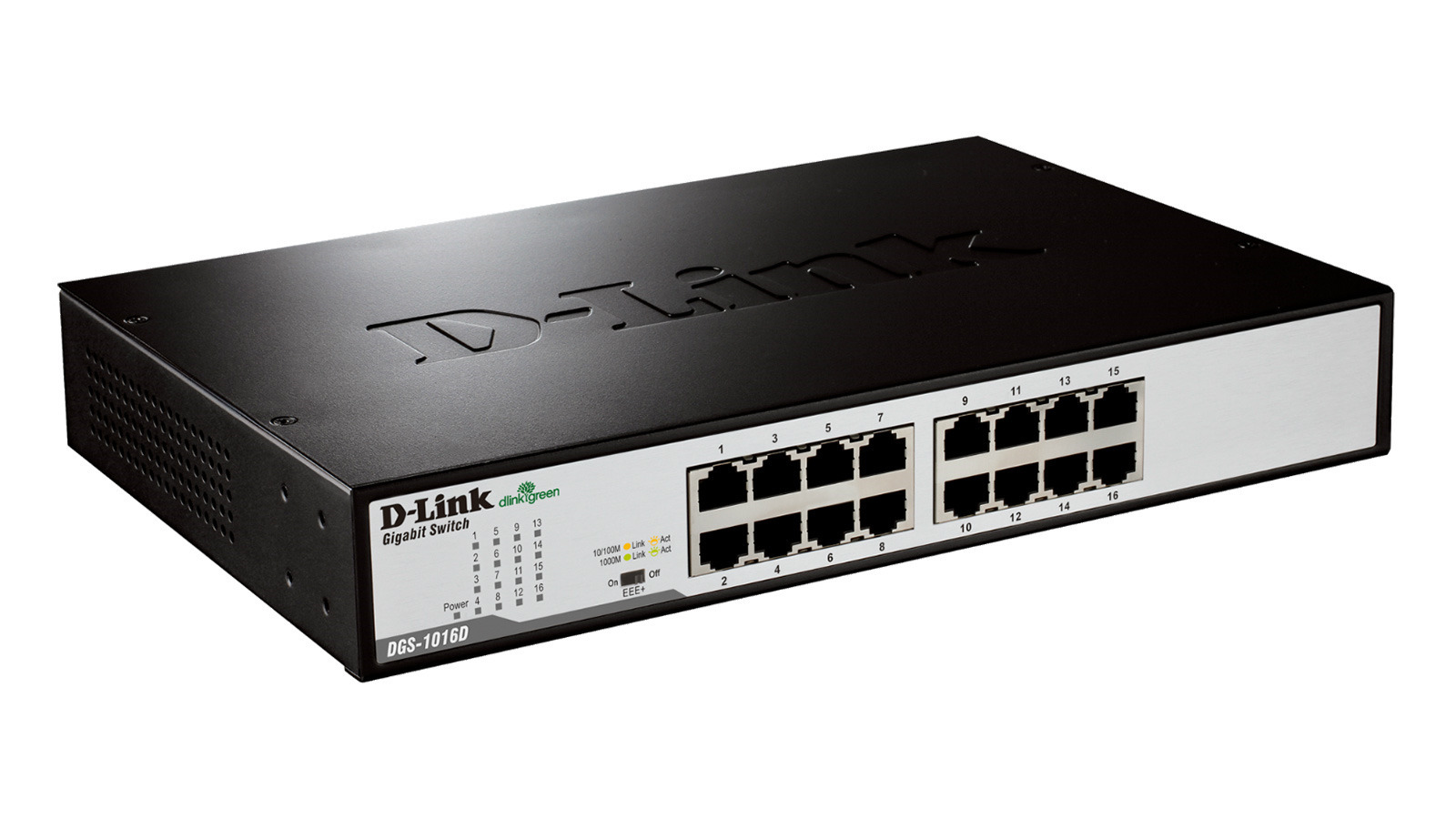

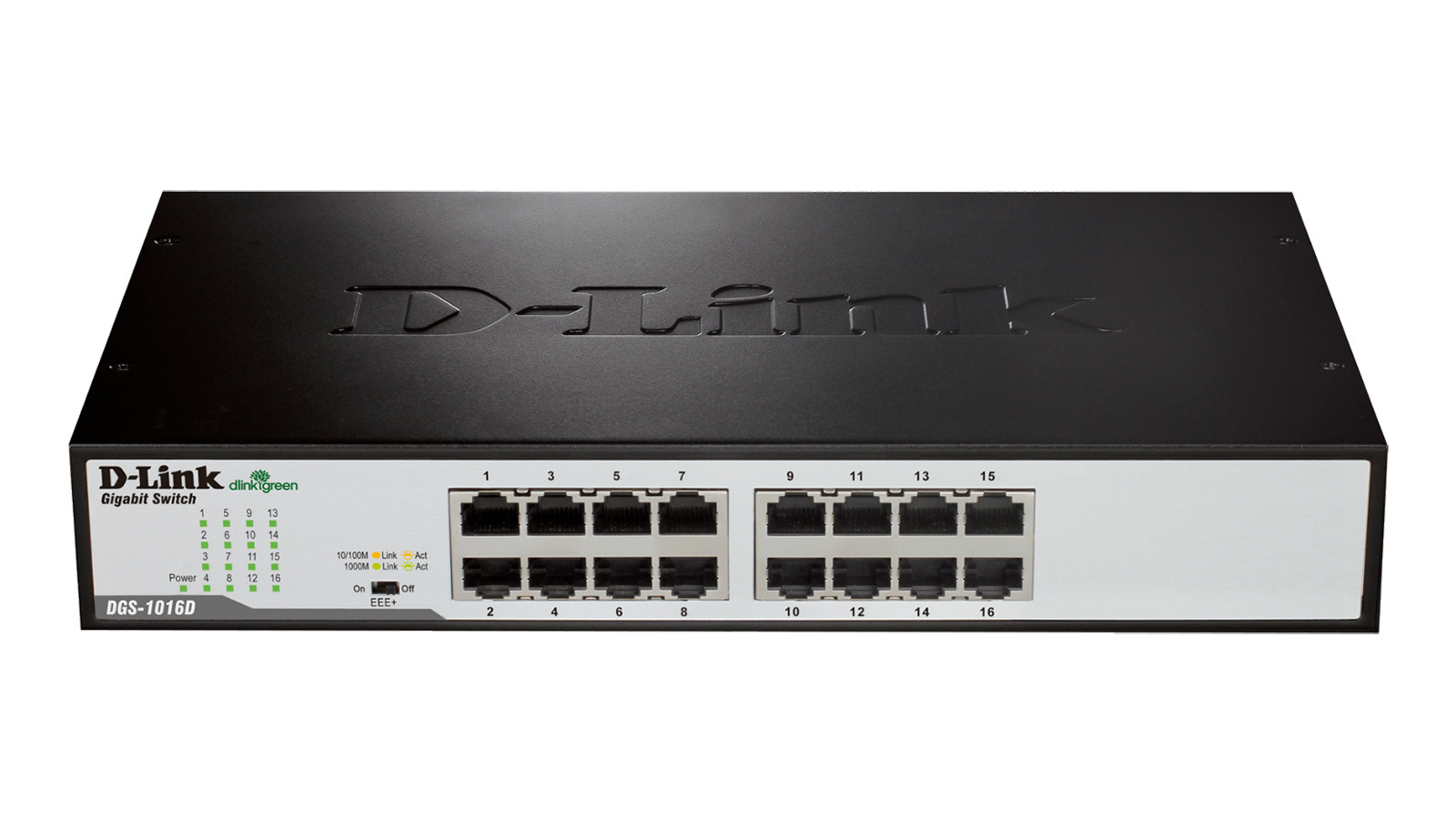

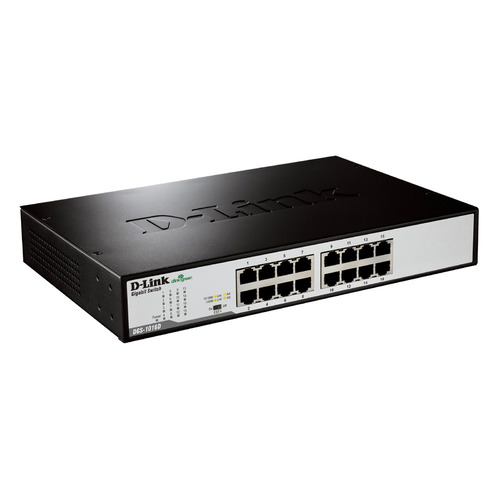

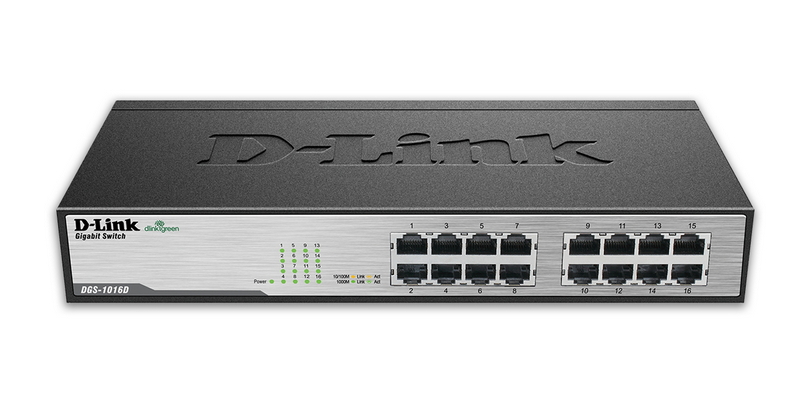

D-Link DGS-1016D

The DGS-1016D provides three key benefits through its cutting edge, innovative D-Link Green eco-friendly technology:



Reduces power consumption & creates less heat



Extended product life



Reduces operating costs



Power Savings by Number of Connected Ports and Link Status

Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shut down, switches often remain on and continue to consume considerable amounts of power. With D-Link Green Technology, D-Link switches can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.



Power Savings by Cable Length

D-Link Green verified switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.



Overall Power Savings Per Day

For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link Green Technology can save up to 20%* power used for each system.



Note: Switch uses switching power adapter. The cable length which PCs are connected to switch is 20m cables.



Get the bling speed of Gigabit Ethernet with the D-Link GigaExpress DGS-1016D, an 16-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.



Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.



Power-Packed

It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.



Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. The D-Link DGS-1016D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.



Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



The switch also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.



16-Port Unmanaged Gigabit Switch 01



The D-Link DGS-1016D 16-Port Unmanaged Gigabit Switch offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.

Gigabit on Every Port 02

The 16-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Improve Network Efficiency 03

DGS-1016D 16-Port Unmanaged Gigabit Switches incorporate several optional advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure connectivity during heavy usage periods by reducing packet loss and wasteful data retransmission. In addition, Storm Control and Port Isolation mitigates the effects of broadcast storms caused by rogue software and malware, which propogate across networks and can bring communication to a standstill.

Innovative Design 04

The metal case of the DGS-1016D series and a compact desktop style, helps generate heat dissipation levels that allow for a fanless design, making the switches silent, as well as economical. The 16/24-Port Unmanaged Gigabit Switch series is small, lightweight, wallmountable, and ideal for any business with big needs and a small budget.

Product Highlights 05

Gigabit Ethernet Speed

High-speed ports provide the latest Ethernet technology while remaining backward compatible for connections to older computers and equipment



Revolutionary Design

Compact metal case for high-port count Gigabit switches, plus a fanless design that provides noise-free operation at all times



Green Solution

Range of D-Link Green Technology features help save energy usage automatically and reduce costs, without sacrificing performance



Cable Diagnostics Function

The D-Link Cable Diagnostics Function enables users to efficiently detect cable conditions through the LEDs on the front-panel. Users can determine whether the pin connections of their cables’ connectors are correct, facilitating network troubleshooting.



Switching Capacity 32 GB/s
Additional Features Metal case for better heat dissipation and a compact size Fanless design for silent operation IEEE 802.3x Flow Control Auto MDI/MDI-X crossover for all ports Full/half-duplex for Ethernet/Fast Ethernet speeds 9216 Byte Jumbo Frames (DGS-1016D) 802.3az EEE hardware implementation reduces power consumption significantly RoHS compliant
Quantity Ports 16
Power Consumption 10.24 W
Ports 16 x 10/100/1000 Mbps RJ45
Standards Compliance IEEE 802.3 IEEE 802.3u IEEE 802.3az IEEE 802.3ab
Model DGS-1016D
Packing Weight 1780 g
Packing Width 355 mm
Packing Depth 100 mm
Packing Height 155 mm
Package Type BOX
