D-Link Green / Power Saving Performance 01

Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low. By deploying EEE devices, users can cut operating costs and reduce necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and reduce power consumption on the interface when there is no link or no network traffic detected.

Easy to Deploy 02

The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant Utility2 or SmartConsole Utility3) and a web-based management interface. The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any network-connected PC.

Surveillance VLAN and Bandwidth Control 03

The DGS-1100 Series supports Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority
through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

Quantity Ports16
Standards ComplianceIEEE 802.3 IEEE 802.3u IEEE 802.3az IEEE 802.3aе IEEE 802.3x
Switching Capacity32 GB/s
Power Consumption9.3 W
Ports16 x 10/100/1000 Mbps RJ45
Additional FeaturesWeb-Based GUI 802.1p Quality of Service

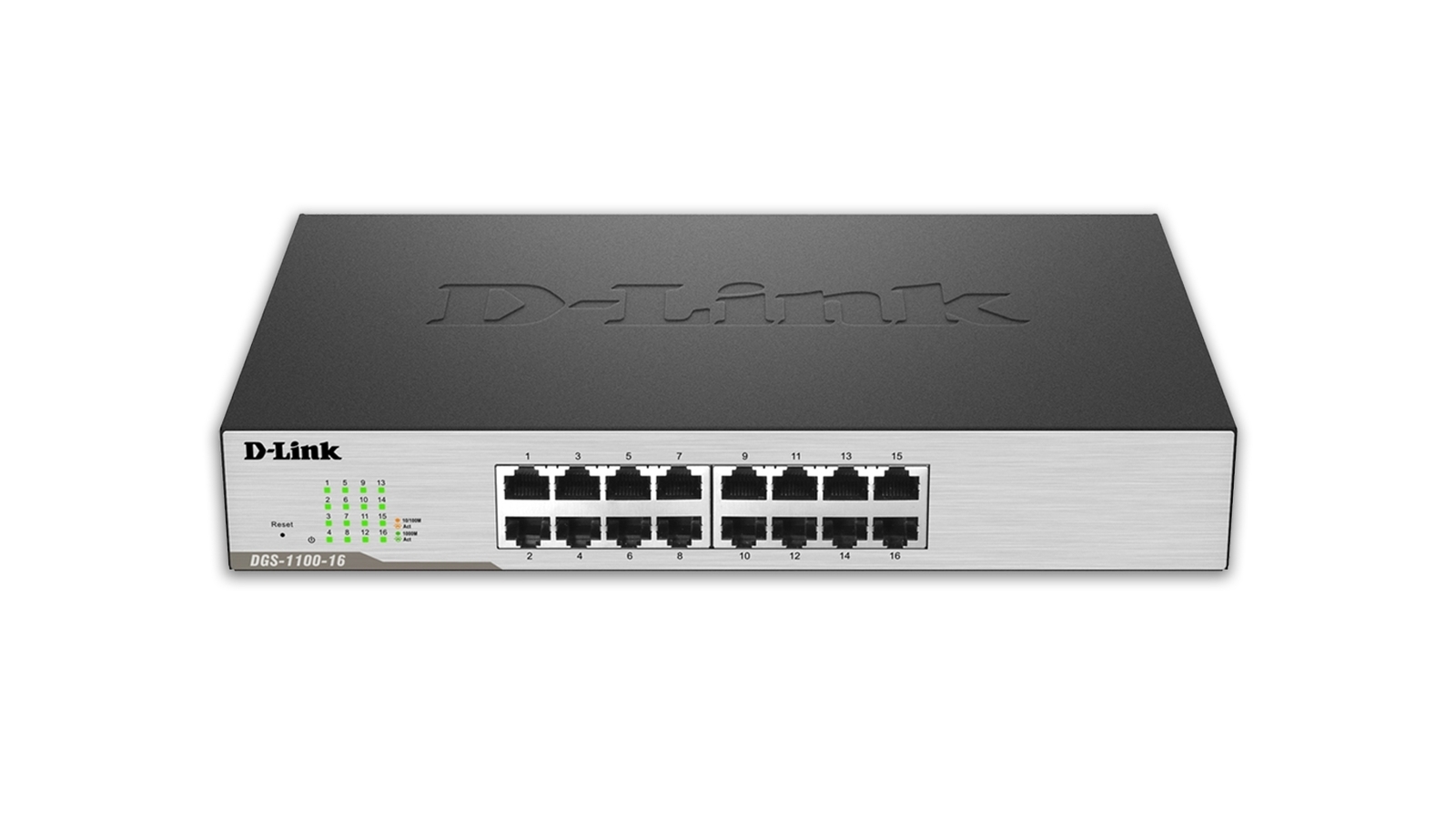

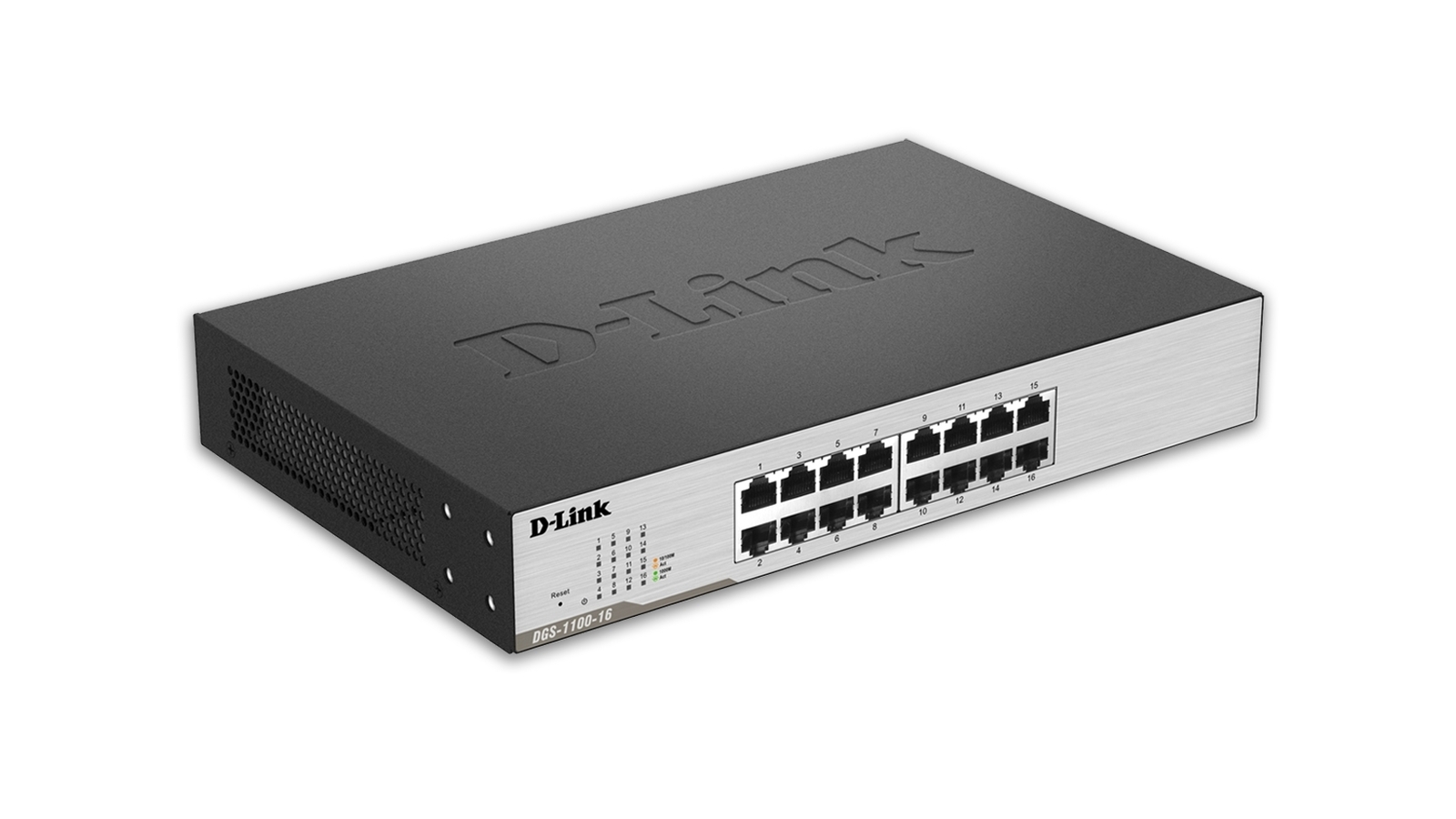

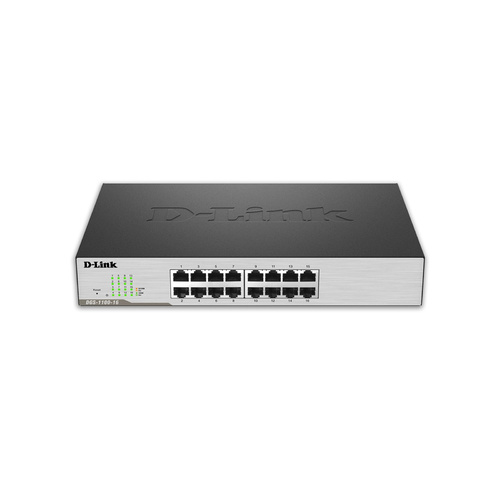

ModelDGS-1100-16
Packing Weight1900 g
Packing Width370 mm
Packing Depth250 mm
Packing Height85 mm
Package TypeBOX
