High-Speed Wireless and Wired LAN

01

The DAP-1665 features the latest 802.11ac wireless technology, capable of delivering combined speeds of up to 1200 Mbps over two bands. Use the 2.4 GHz band’s 300 Mbps for web surfing, email and chat, while simultaneously using the lower-interference 5 GHz band’s 867 Mbps for network bridging, downloading, video streaming and file transfers. For wired connections, the Gigabit LAN port enables wired data speeds of up to 1000 Mbps, meaning that Gigabit-compatible wired devices can also benefit from the high speeds of wireless AC.

Versatile Operation Modes

02

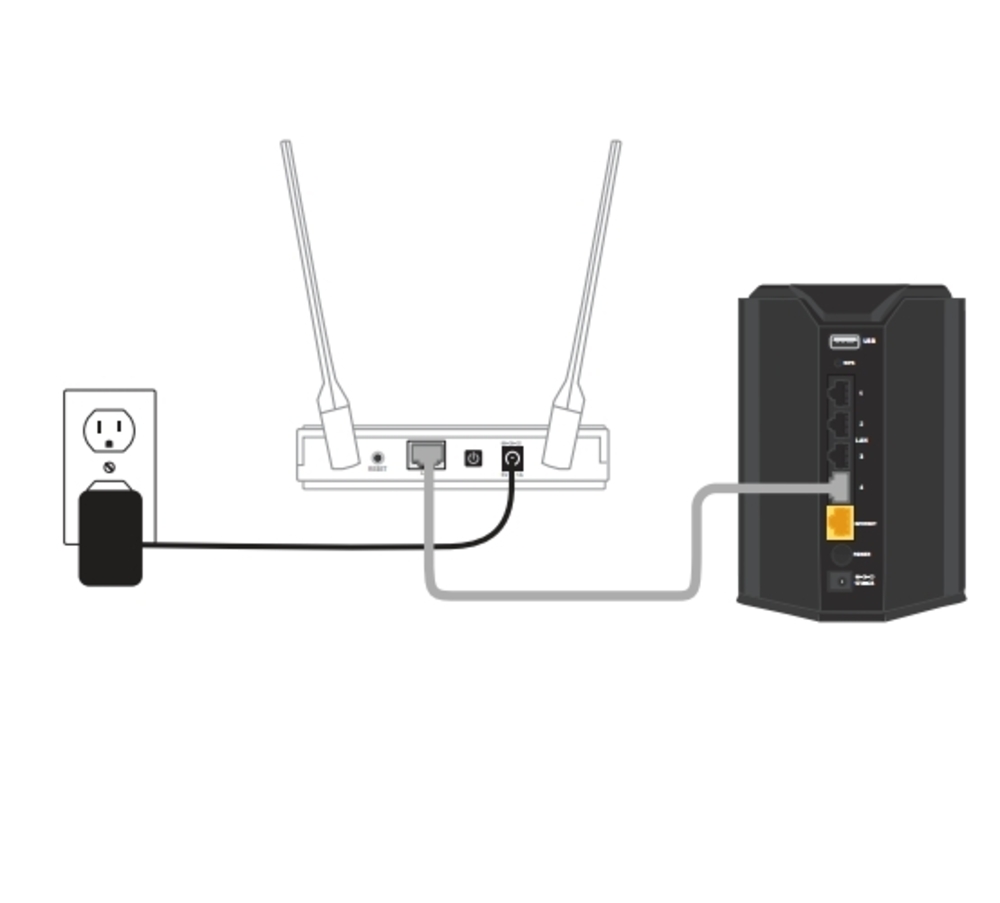

The DAP-1665 can be configured to operate in several modes. Access Point mode allows the device to act as a central hub for wireless users, giving them access to an existing wired network.  Bridge-mode creates a high-speed wireless link between two wired networks (LANs), alleviating the need to install additional network cabling. Repeater mode extends wireless coverage of an existing wireless network to cover “dead” spots and reach farther into a business environment.  Bridge mode with AP adds the functionality of a wireless access point to a bridged network, so wireless clients can access resources on both networks. Wireless Client mode is available to enable the DAP-1665 to connect to another access point and provide network and Internet access to a remote wired device such as a gaming console or media center.

Technical Specifications

General

Networking Standards
• Draft IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• 802.3/802.3u

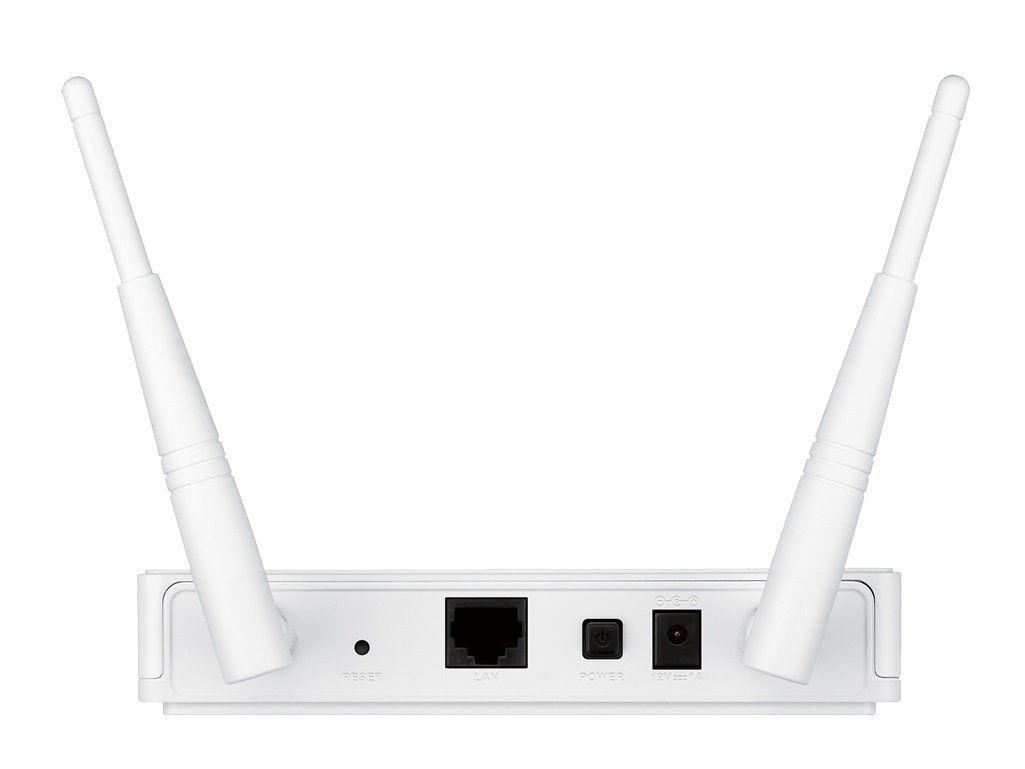

Interface
• IEEE 802.11ac wireless LAN
• IEEE 802.11n/g/b/a wireless LAN
• 10/100/1000BASE-TX wired LAN

Operating Modes
• Access Point (AP)
• Bridge
• Bridge with AP
• Wireless Client
• Repeater

Operating Frequency
• 5 GHz Band:
     • 5.15 GHz to 5.35 GHz
     • 5.47 GHz to 5.85 GHz
• 2.4 GHz Band:
     • 2.4 - 2.4835 GHz

Antenna
• Two 2 dBi external antennas

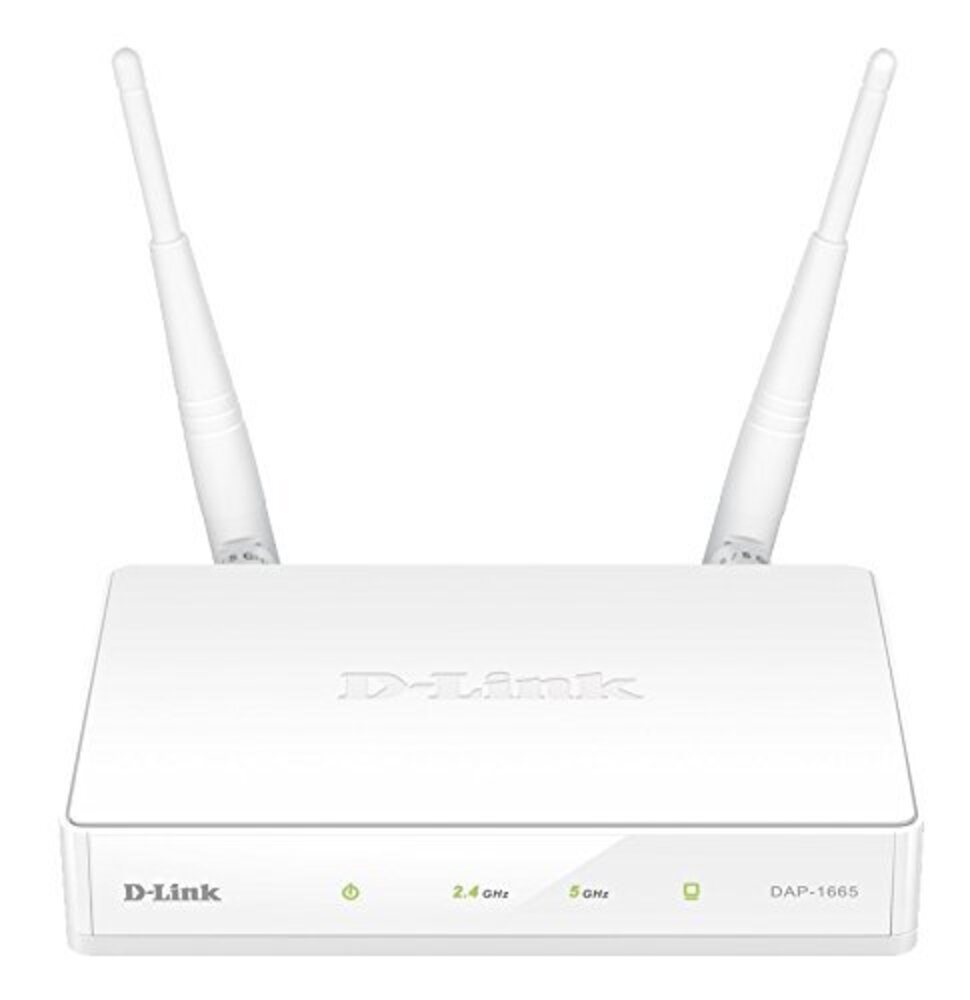

LEDs
• Power
• 2.4 GHz wireless
• 5 GHz wireless
• LAN

Advanced Features

Security
• 64/128-bit WEP
• WPA-PSK/WPA2-PSK
• Wi-Fi Protected Setup (WPS)
• MAC address filtering

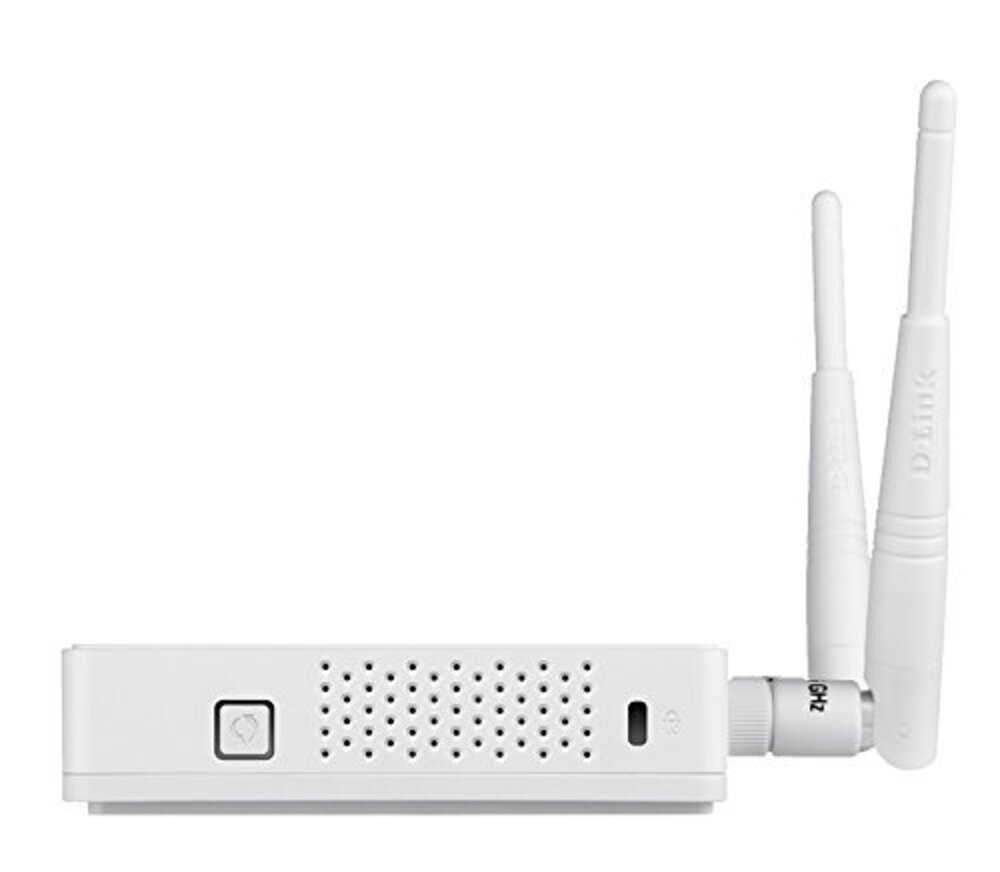

• Kensington® security slot
• SSID broadcast disable

Device Management
• Web-based interface minimum requirements:
• Internet Explorer 7, Firefox 12.0, Chrome 20.0, or Safari 4.0

Physical

Dimensions
• 5.79 x 4.25 x 1.1 inches (147 x 108 x 27.8 mm)

Weight
• 0.489 lbs (222 grams)

Power
• Input: 12 V/1 A
• Consumption: Maximum 5.18 W

Temperature
• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: -4 to 149 °F (-20 to 65 °C)

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications
• CE
• FCC
• TELEC
• IC
• Wi-Fi Certified
• VCCI
