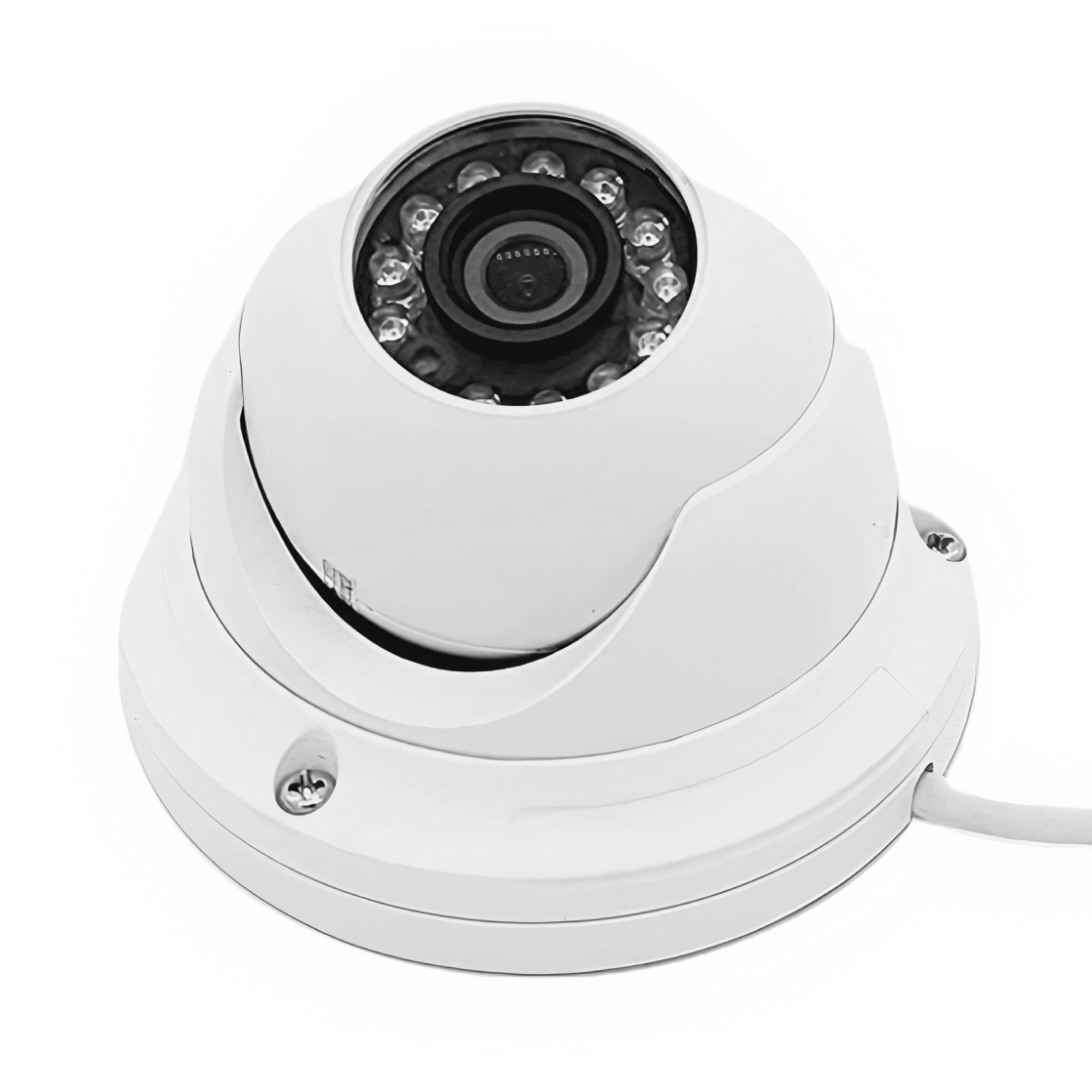

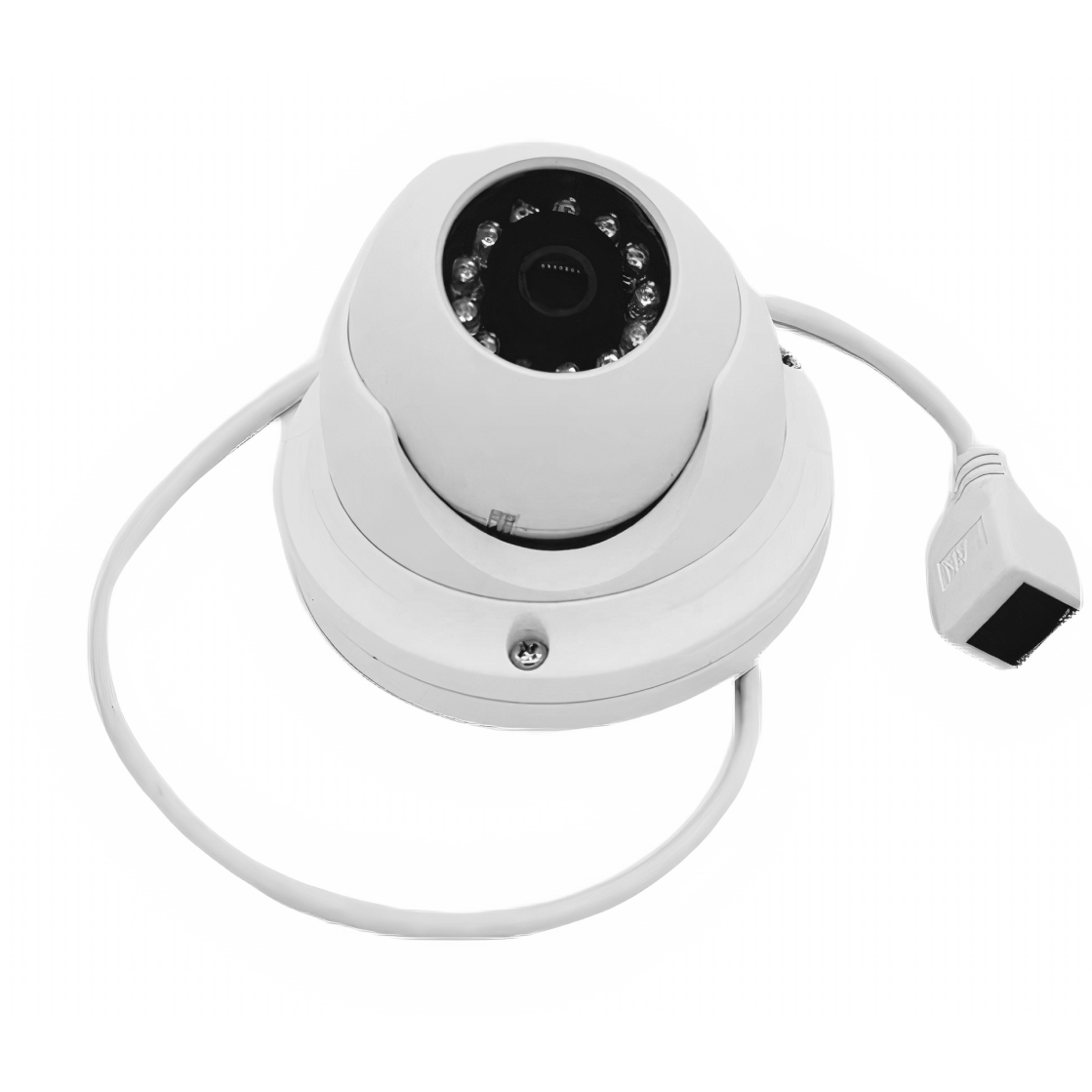

An IP camera, or internet protocol camera, is a type of digital security camera that receives and sends video footage via an IP network. Commonly used for surveillance. Unlike analog closed-circuit television cameras (CCTV), IP cameras do not require a local recording device, only a local network. This Dome Digital IP Network Security Camera with line scanning digital and advanced DSP technology with lPicture Resolution 960P color CMOS, 1.3 Mega Pixel, 1280X960 best choise for surveillance.



Features:

• Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image
• Convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space
• Support triple bit streams
• The most advanced network delivery server technology
• Easily achieve more user access, Multi-stage user password rights management
• Built in Web Server, through the IE browser easy to realize the remote control Settings prison see operation
• Support facilities remote security upgrade function
• Support DDNS ,PPPoE and(UPnP), Lan ,Wan transport.
• Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network
• Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
• Support mobile detection / image shielding / image snapshot
• Functions of auto recovery in abnormality and auto reconnection in network breakdown





Specification:

• Model: IPC5F24P-I2
• Camera Pixel: 1.3 Mega Pixel, 1280*960
• Lens: 3.6mm
• Electronic shutter: 1/25s-1/30,000s
• Low Lux Color: 0.1Lux@F1.6  B/W:0.01Lux@F1.6
• ICR: Support
• Video parameter: Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer
• Infrared IR Properties: Dual filter day / night: automatic switch, linkage switch

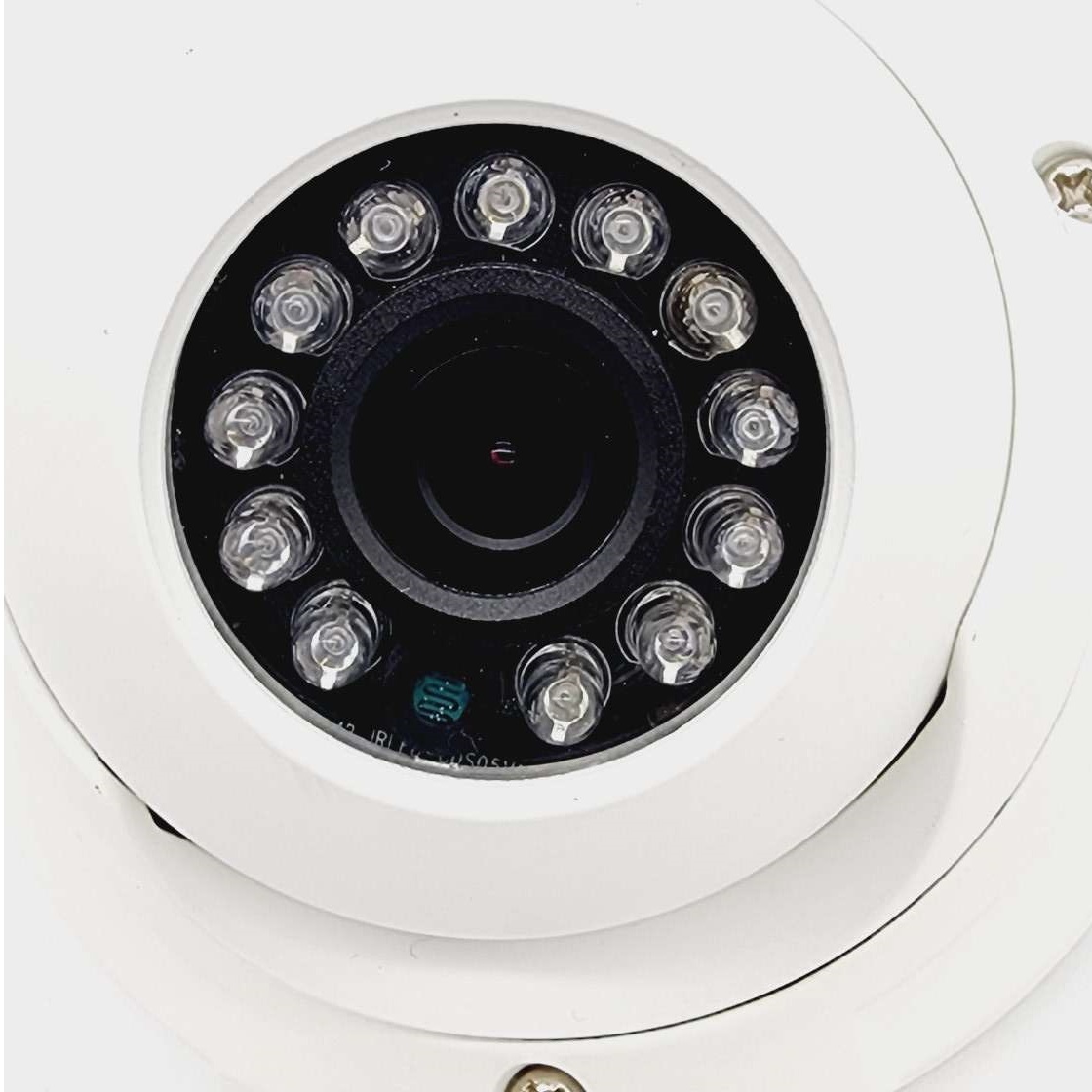

• Infrared IR Light: 12pcs 5Φ IR LEDS, IR Distance: 20M
• Effective Distance >30m

Audio-video coding parameters:

• Compression: H.264 Main Profile@Level 3.0 / MJPEG optional
• Video bit rate: 0.1M-6Mbps, customized
• Bit stream type: video stream
• Triple bit streams: Support
• Video resolution: 1280*960
• Video flame rate: PAL: 1-25 frames/second, NTSC: 1-30 frames/second

Function:

• IP auto pop-out: IP auto pop-out at customer end
• Password protection: Multi-level protection on password
• Intellectual alarm: Mobile detection, video shielding, video loss, network breakdown, abnormality in storage
• Basic functions: One-key reset, password protection, watermark technology

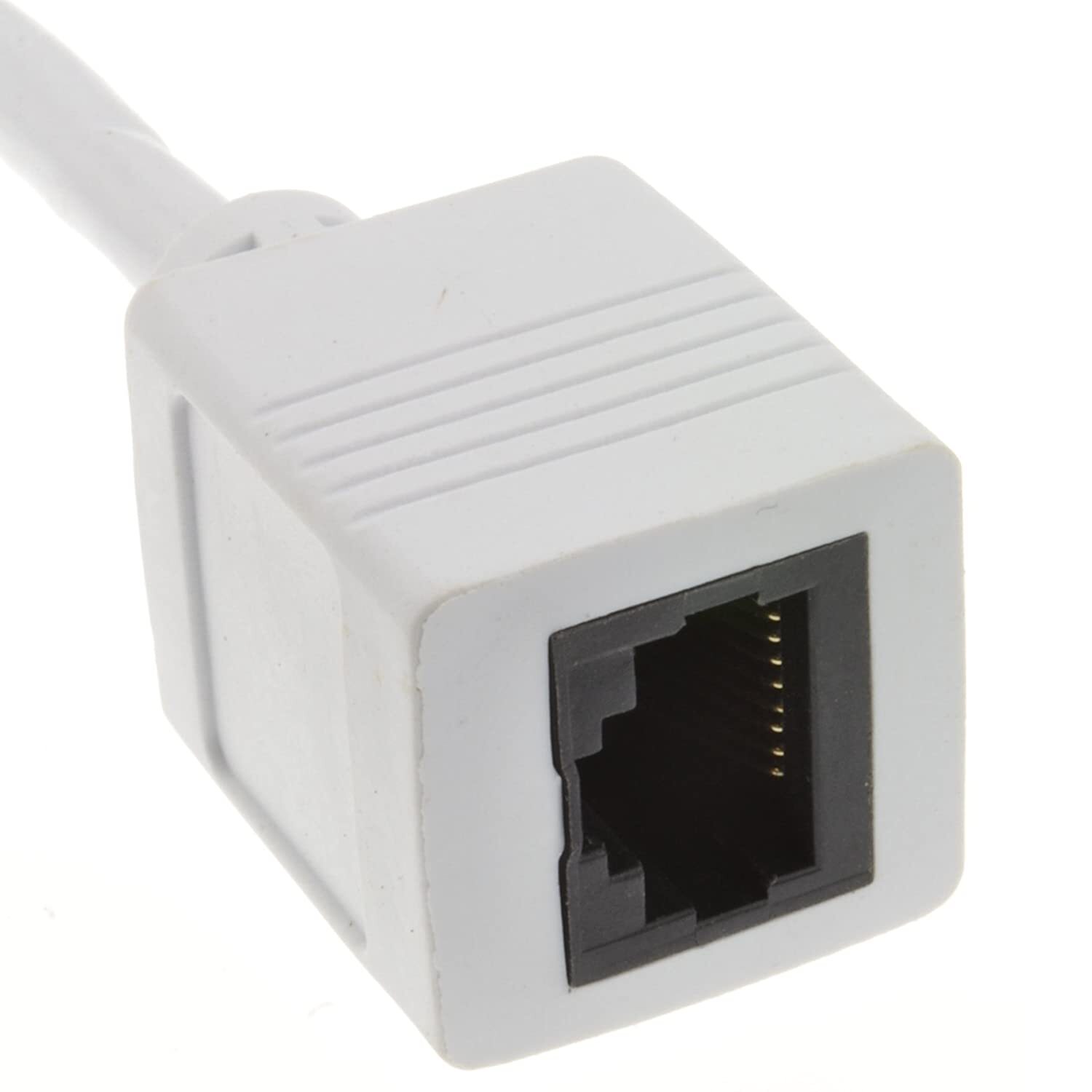

• Network port: 1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port
• Power supply: DC12V/1.5A
• Power consumption: <6W
• Working temp: -10ºC ~ +55 ºC
• Working humidity: 10 ~ 85%
• Dimension: ¢106mm*65.8mm
• Weight: 0.3Kg
