•  Screen ≤24"
•  Capacity 14–40 lbs 6.4–18.1 kg *
•  Lift13 "  33.0 cm
•  Tilt 75°
•  Pan 360°
•  Rotation 360°
•  Vesa MIS-D

• UPC: 698833058413
• Part Number (color):
• 45-492-216 (white)

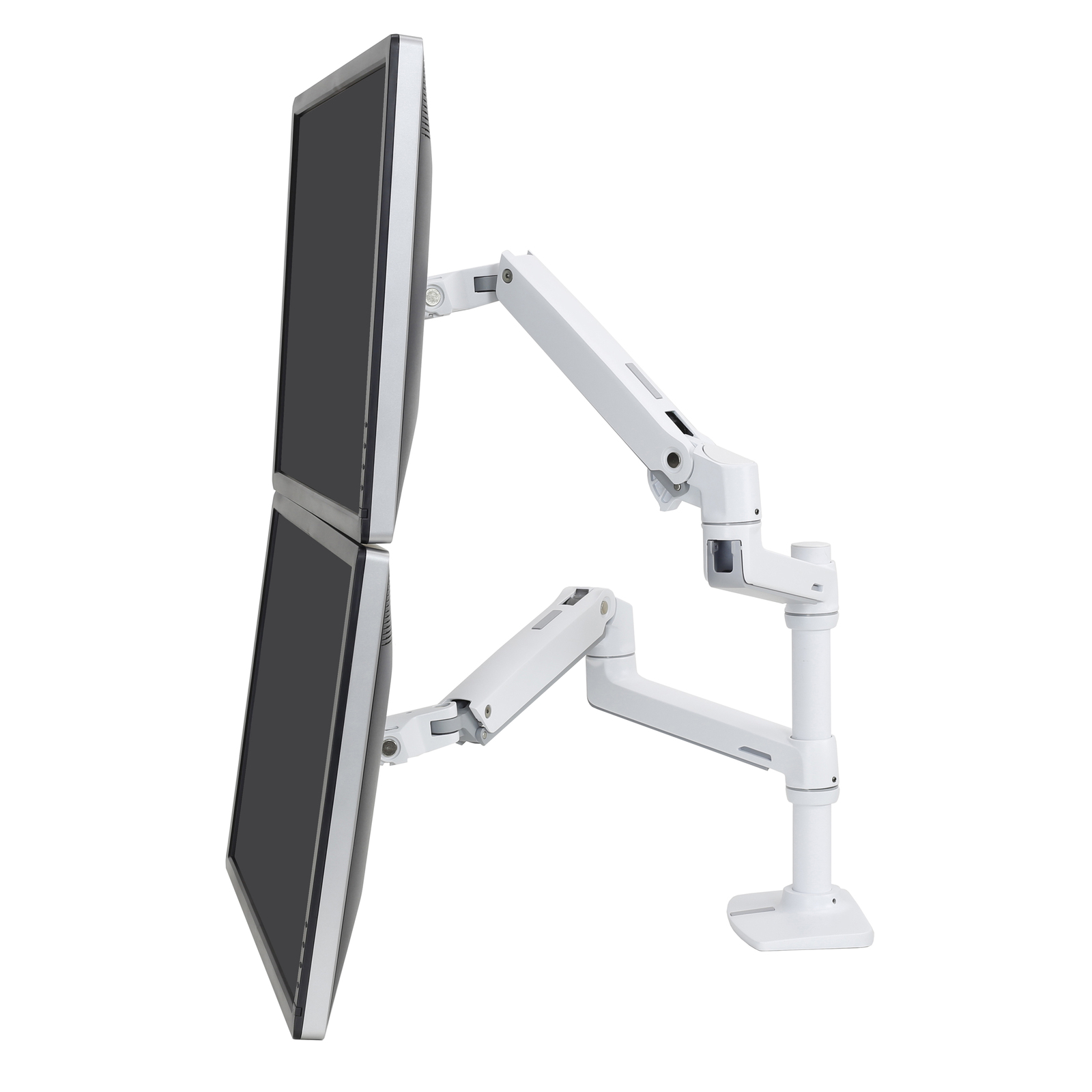

• Description: LX Dual Monitor Arm, Stacking
• Includes two (2) LCD arms and extensions, pole, desk clamp
• Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Improved LX Arm Features & Benefits

• Steel and aluminum construction offers greater durability and enhanced aesthetics
• Snap-fit cap secures interface of arms to extensions for greater stability
• New clamp and grommet mount base ensures greater stability of display and arm
• † To facilitate the stacking of monitors, the maximum outside height of the display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side
• * Weight Capacity: individual LCD weight = 7 to 20 lbs (3.2 to 9.1 kg)
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• Desk clamp attaches to edge up to 2.6" (66 mm) thick
• A separately ordered grommet mount accessory (98-035) is available to attach the arm through a hole in the desktop
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Shipping Dimensions: 19.25" x 15.25" x 9" (487 x 387 x 229 mm)
• Shipping Weight: 16lbs (7.2 kg)
• Warranty: Ten (10) years
