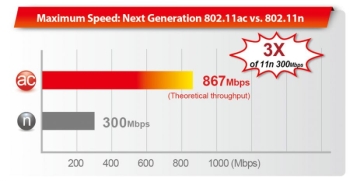

Next-Generation Wireless Networking 01

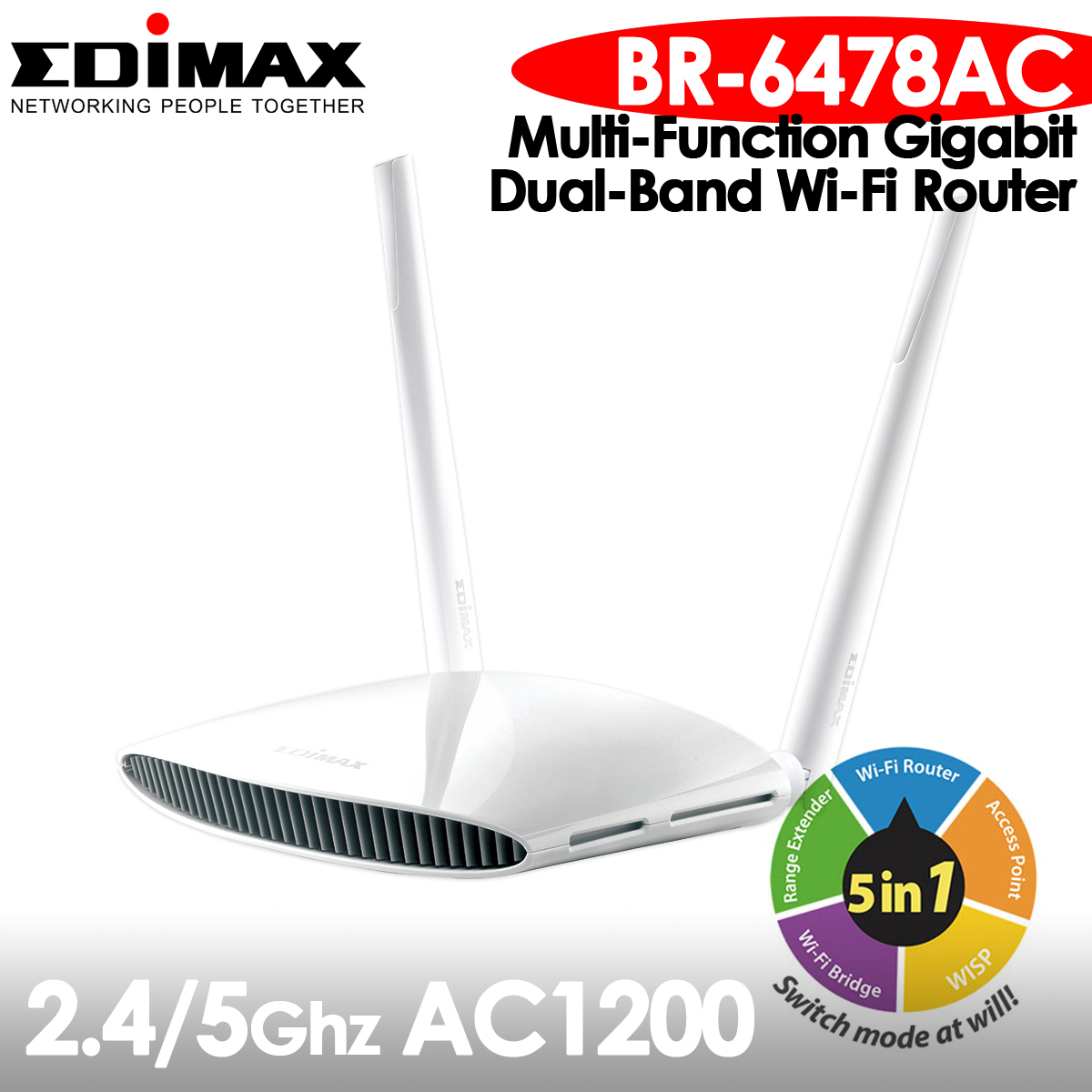

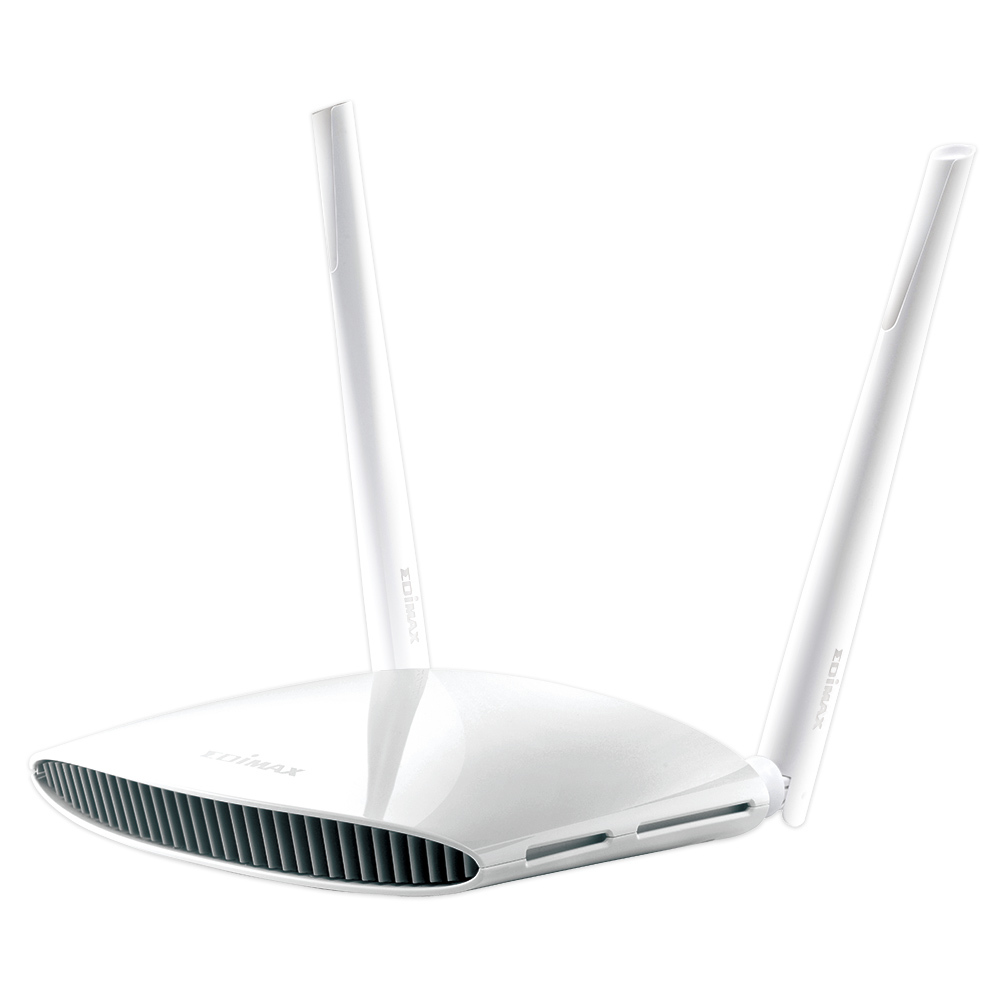

The Edimax BR-6478AC V2 router supports the next generation IEEE 802.11ac wireless standard, meaning higher data rates in the 5GHz band. With 300Mbps speeds in the 2.4GHz band and 867Mbps speeds in 5GHz, the BR-6478AC V2 is ideal for HD video streaming and large file transfers. The router is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.

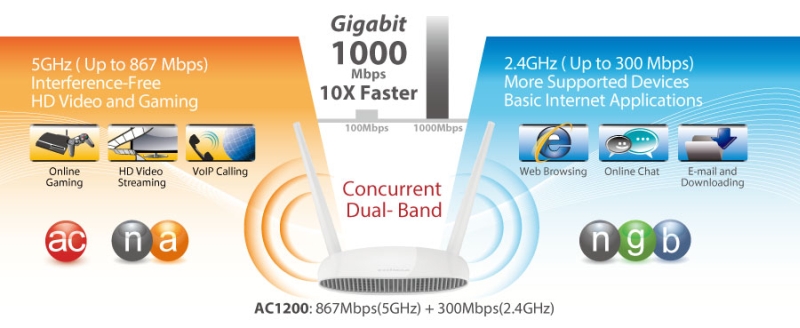

Concurrent Dual-Band Wi-Fi Connectivity 02
The Edimax BR-6478AC V2 router provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use.

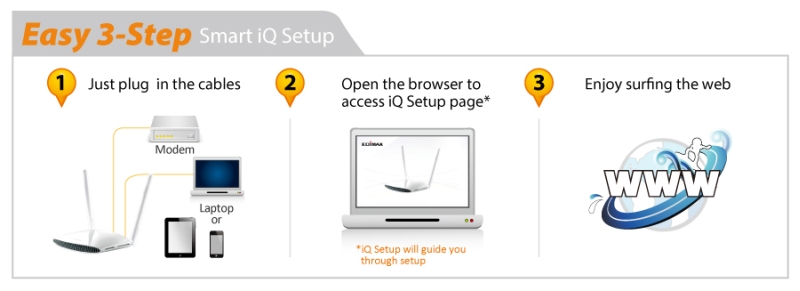

Smart iQ Setup 03
Features iQ Setup for smart, automatic and quick installation with no CD required, no smartphone app downloaded, and no PC required.

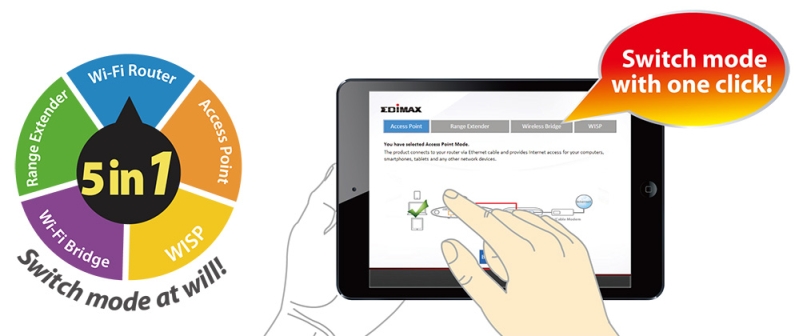

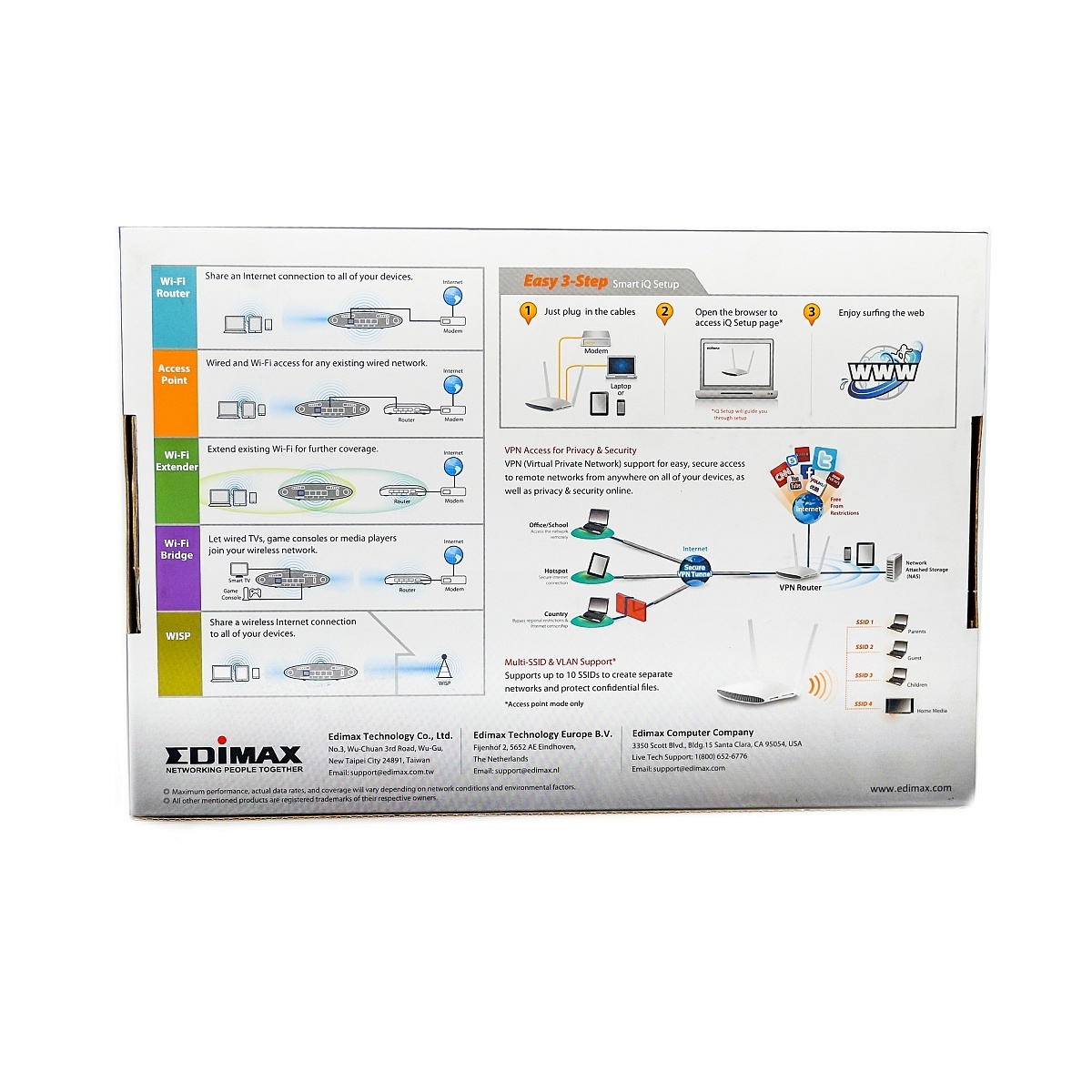

5-in-1 Router, Access Point, Range Extender, Wireless Bridge and WISP 04
The BR-6208AC can work as router, access point, range extender, wireless bridge or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.

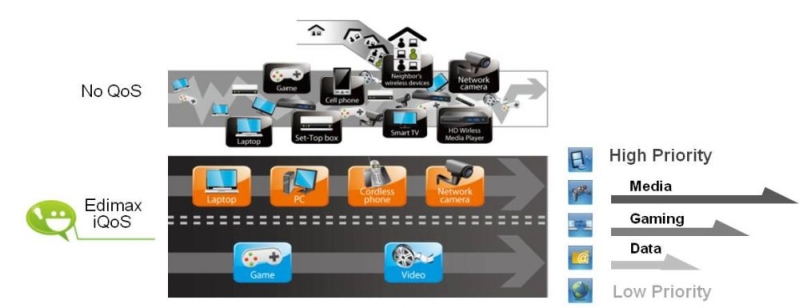

Edimax’s Revolutionary iQoS 05
iQoS is Edimax’s solution for a quicker, easier, and more effective way to manage Internet bandwidth. While Quality of Service (QoS) functionality is a common feature in routers across the market, typically only advanced users have the knowledge required to set up the complex parameters. Edimax though has redesigned QoS with user-friendliness and accessibility in mind. A simple and intuitive user interface allows users to arrange bandwidth priority settings in just a few clicks. With iQoS, you can enjoy gaming, video streaming, VoIP applications and BT clients at the same time without the usual nightmare of lag and interruptions. An original, efficient and effective means of managing your Internet bandwidth.

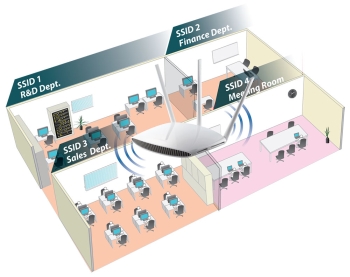

Multi-SSID & VLAN Support 06
Multi-SSID enables users to configure up to eight separate SSIDs (2.4GHz x 4 and 5GHz x 4) in order to group and manage users according to your requirements. In addition, each SSID can be assigned a different VLAN ID, so users with multiple VLANs can manage the network access level of each SSID – ensuring security and protecting confidential or critical network resources.
*Access point mode only

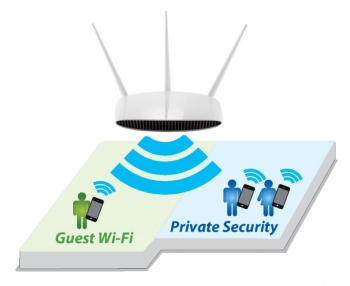

Guest Network 07
Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only



SPECIFICATIONS



FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports router, access point,  Wi-Fi range extender, Wi-Fi Bridge & WISP modes
•Supports Open VPN Server for private network with high security & flexible
•DNS proxy for filtering and monitoring illegal DNS traffic
•Guest network
•Up to 10 SSIDs (2.4GHz x 5 and 5GHz x 5) with VLAN support in AP mode
•IGMP proxy and IGMP snooping
•DDNS and DHCP
•Port triggering for special applications
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•iQoS for smart bandwidth management
•Static routing
•UPnP architecture
•Wi-Fi schedule control

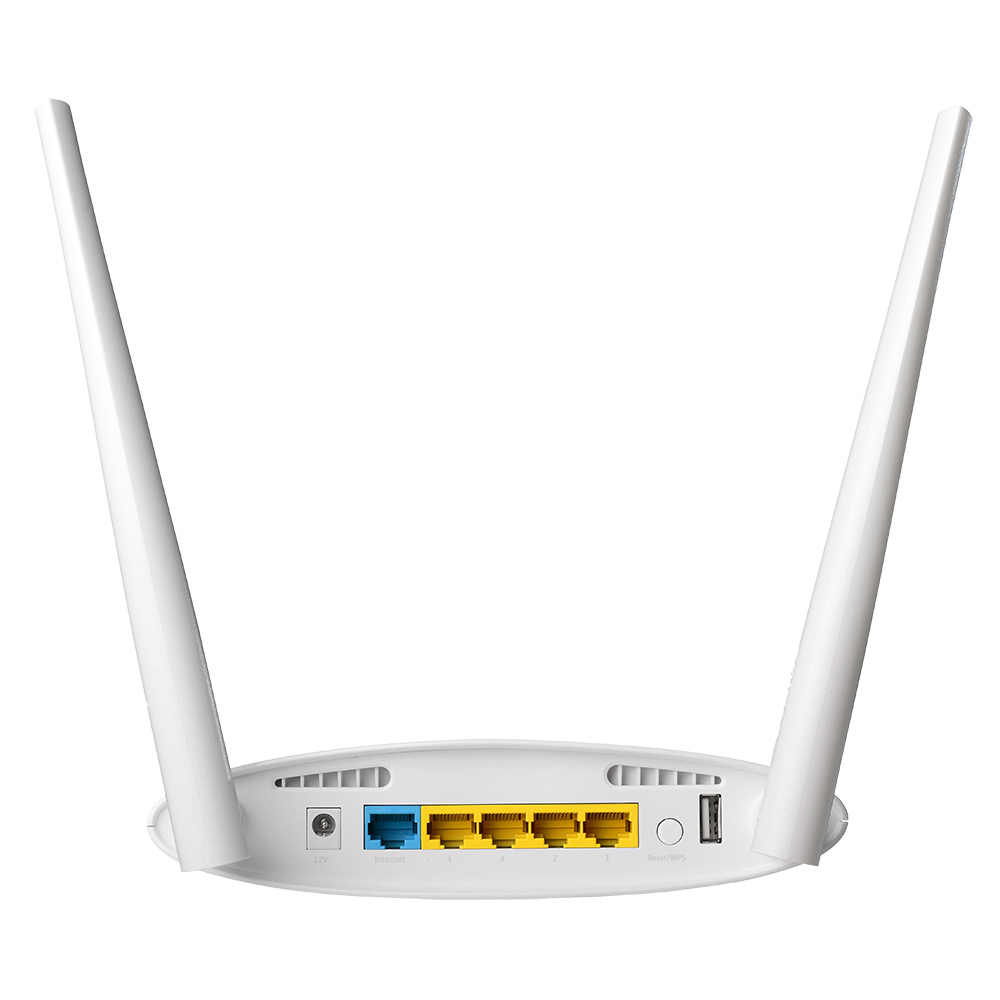

•1 x RJ-45 10/100/1000Mbps gigabit WAN port
•4 x RJ-45 10/100/1000Mbps gigabit LAN port
•LED indicators: Power, Internet, WLAN, USB
•2 x Dual-band antennas
•Reset/WPS button
•1 x USB 2.0 port

•Multi-language user interface
•Supports remote management
•System status and security log
•Fault tolerance firmware upgradable
•Auto firmware upgrage
•Auto restart while malfunction (Watch Dog)
•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup).

WAN

OUTPUT POWER & SENSITIVITY GAIN (5GHz)

OUTPUT POWER & SENSITIVITY GAIN (2.4GHz)

•WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP
•Supports WISP connection mode

Output Power
•11a(6Mbps): 18±1.5dBm
•11a(54Mbps): 14±1.5dBm
•11n(20MHz, MCS7): 13±1.5dBm
•11n(40MHz, MCS7): 13±1.5dBm
•11n(80MHz, MCS9): 13±1.5dBm
Receive Sensitivity
•11a(6Mbps): ?90±2dBm
•11a(54Mbps): ?71±2dBm
•11n(20MHz, MCS7): ?69±2dBm
•11n(40MHz, MCS7): ?65±2dBm
•11n(80MHz, MCS9): -55±2dBm

Output Power
•11b (1Mbps): 18±1.5dBm
•11b (11Mbps): 16±1.5dBm
•11g (54Mbps): 14±1.5dBm
•11n (20MHz, MCS7): 131.5dBm
•11n (40MHz, MCS7): 13±1.5dBm
Receive Sensitivity
•11b(1Mbps): ?91±2dBm
•11b(11Mbps): ?87±2dBm
•11g (54Mbps): ?71±2dBm
•11n(20MHz, MCS7): ?68±2dBm
•11n(40MHz, MCS7): ?65±2dBm

SECURITY

MEMORY

HUMIDITY & TEMPERATURE

•WEP, WPA and WPA2 security
•QoS for critical operations
•SPI anti-DoS firewall

•8MB NOR Flash
•64MB RAM

•10-90% (non-condensing)
•0-40oC

POWER ADAPTER

DIMENSIONS & WEIGHT

 CERTIFICATIONS

•DC 12V, 1.25A (UK, AU)
•DC 12V, 1.5A (US, EU)

•190.2mm x 172mm x 42mm
•322g

•FCC/CE

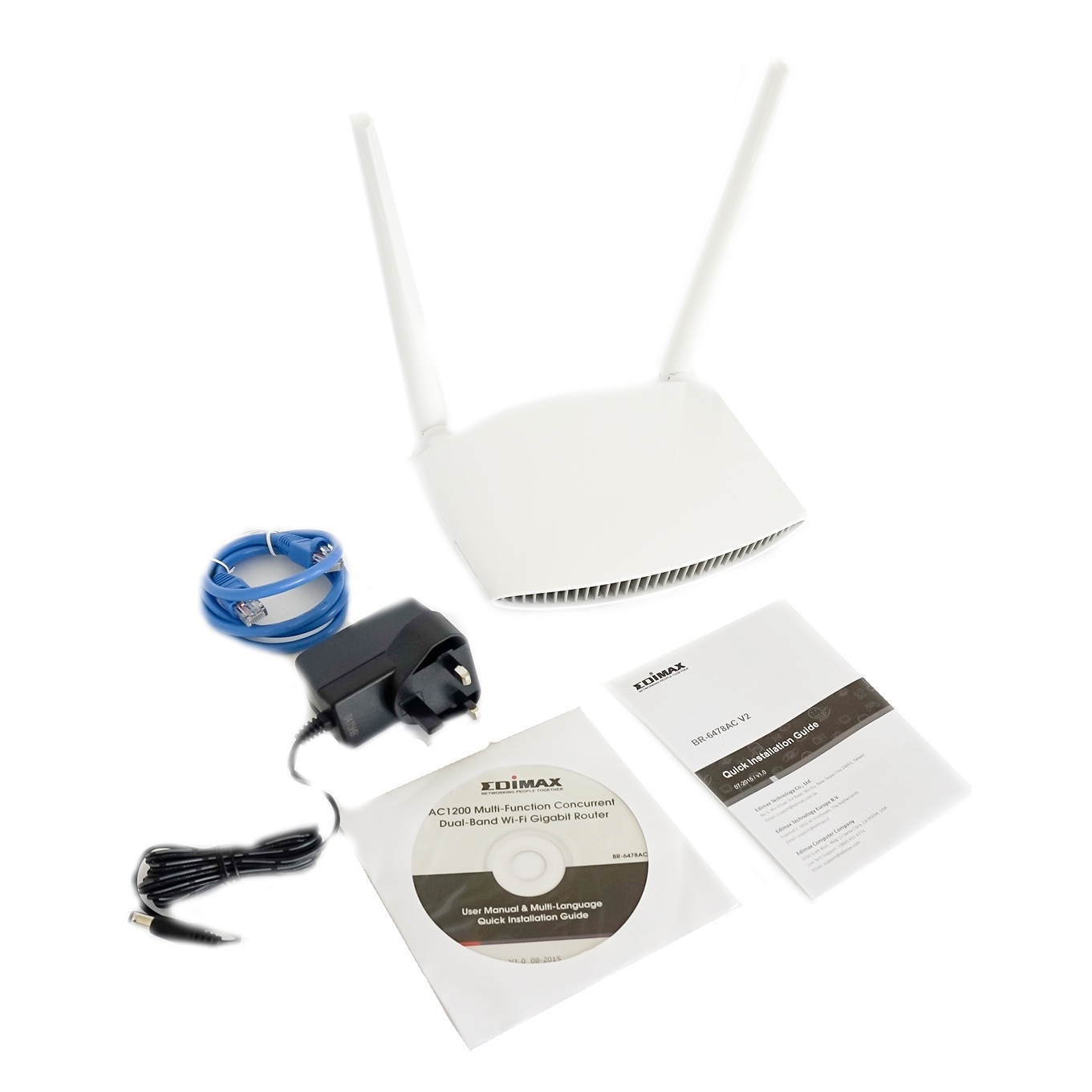

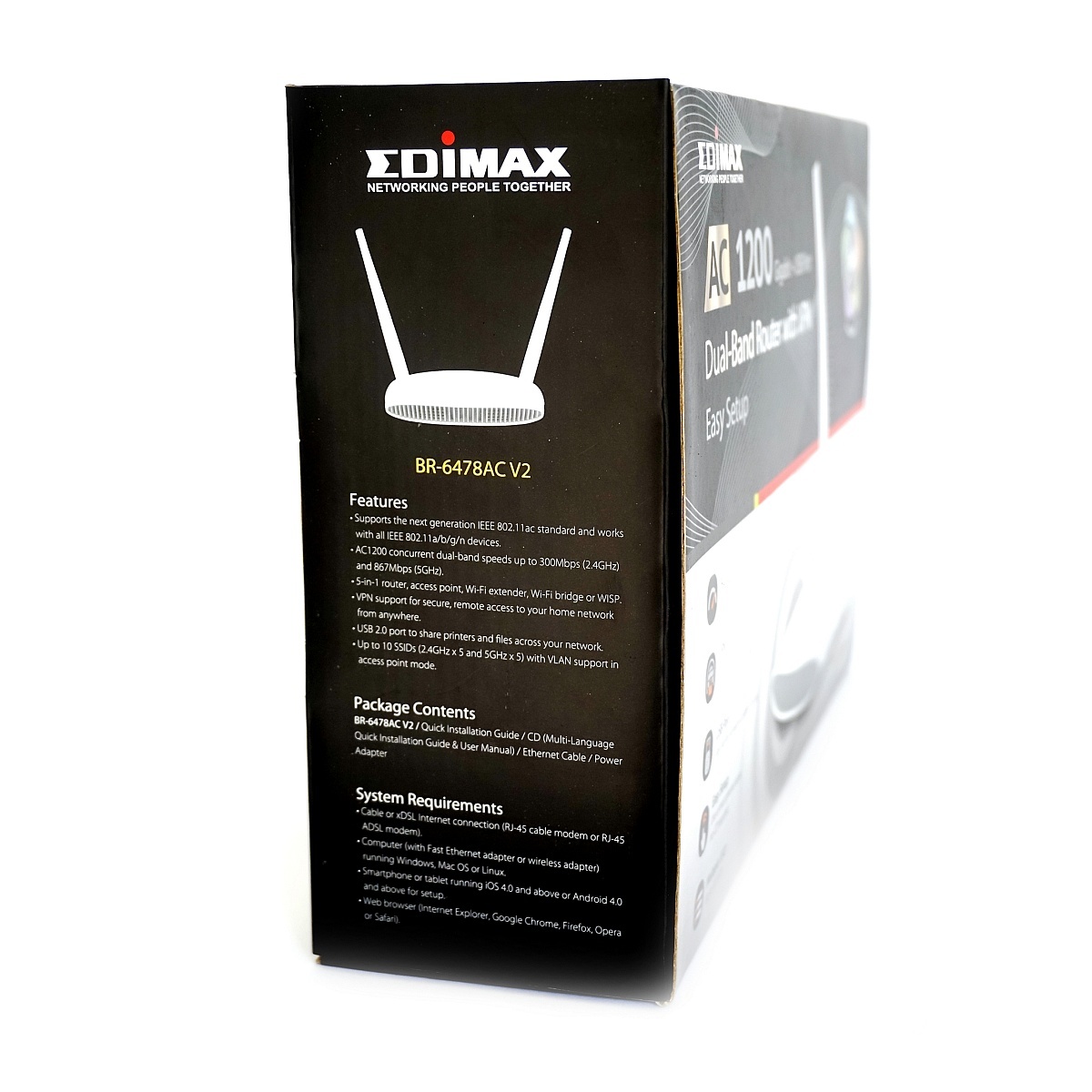

PACKAGE CONTENT


  • Broadband router (main body, 1 pcs)

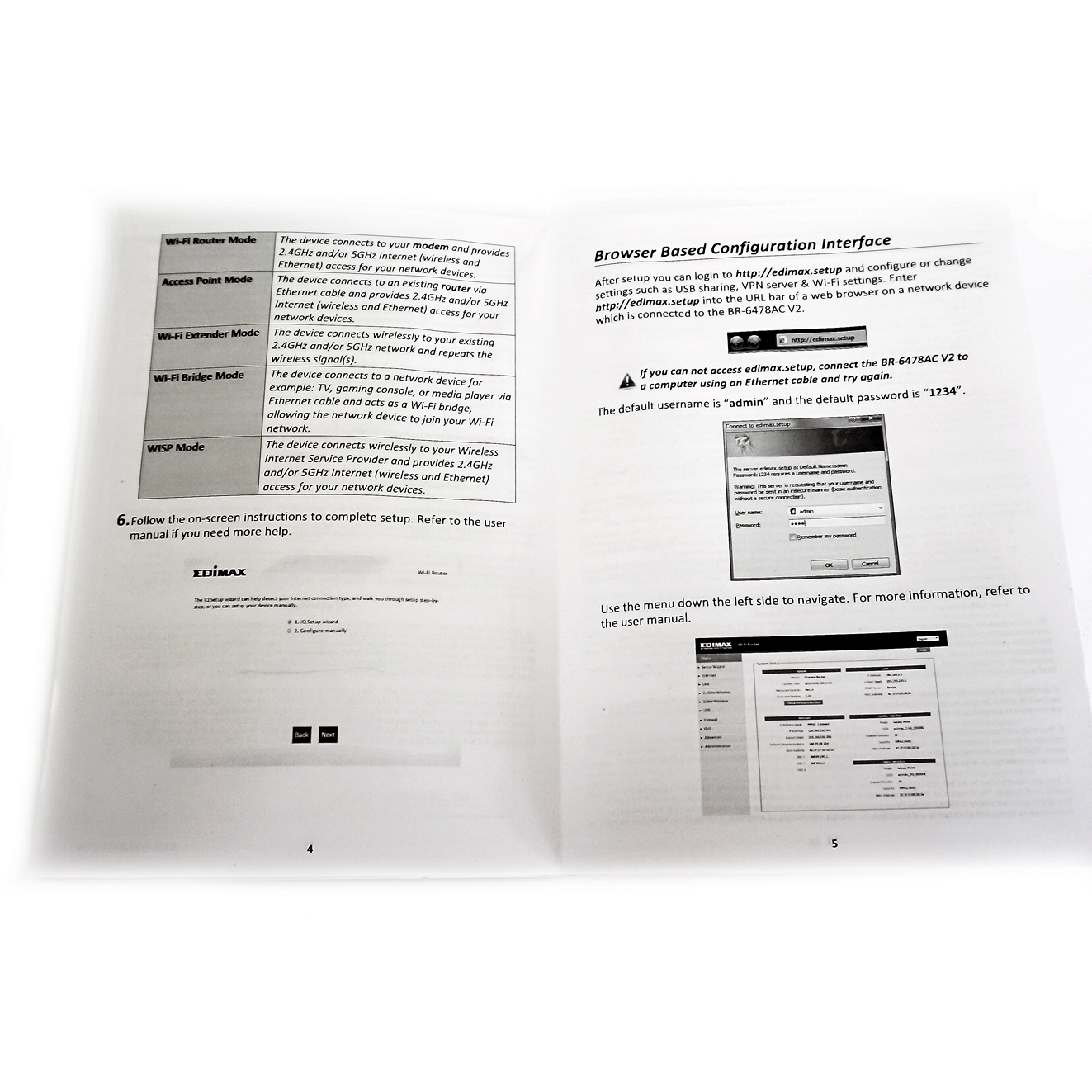

  • Quick Installation Guide (1 pcs)
  • One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual)
  • 12V DC power adapter (1 pcs)
  • Ethernet Cable

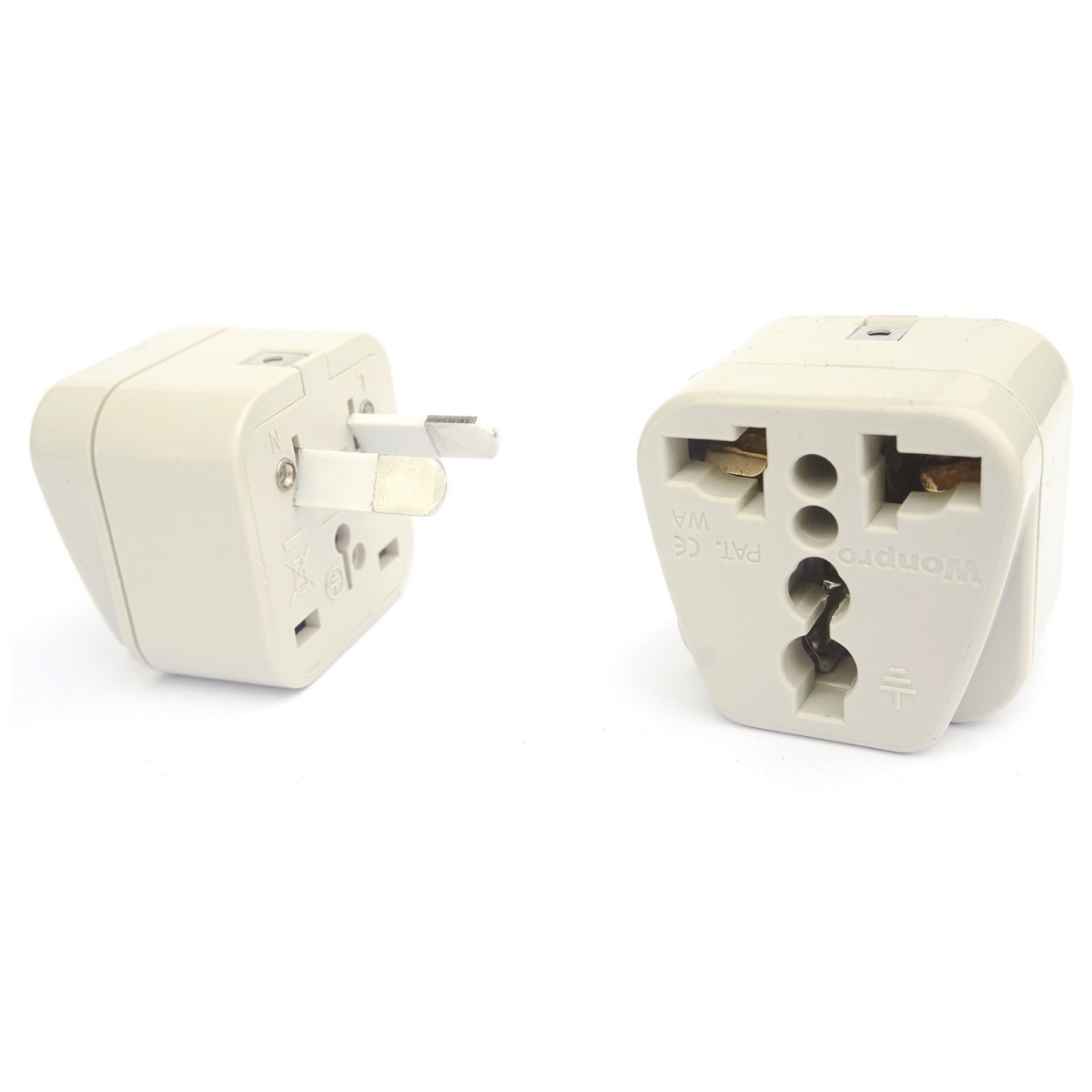

  • AU adapter
Network Type Wireless
Specification http://www.edimax.com/edimax/merchandise/merchandise_detail/data/edimax/global/wireless_routers_ac1200/br-6478ac_v2/
WAN-port Ethernet
Packing Weight 725 g
Ports 1 x 10/100/1000 Mbps 4 x 10/100/1000 Mbps RJ45 1 x USB 2.0
Frequency Wireless 2.4 GHz 5 GHz
Wi-FiSpeed 300 Mbps 867 Mbps
LAN Speed 1 Gbits
Antenna External/Undetachable
Antennas Quantity 2
Wireless Security WEP, WPA, WPA2
Standards Compliance IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac
Security QoS for critical operations SPI anti-DoS firewall
Additional Features VPN (Virtual Private Network) Multiple SSIDs & VLAN Guest Network
Packing Width 279 mm
Packing Depth 228 mm
Package Contents Broadband router (main body, 1 pcs) Quick Installation Guide (1 pcs) One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual) 12V DC power adapter (1 pcs) Ethernet Cable
Packing Height 76 mm
VPN Pass-Through PPTP L2TP
Package Type BOX
