Ergotron 45-241-026 Stand Arm Desk Mount for Single Monitor Screen Display LED LCD TV Holder Bracket

Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Monitor Arm. Place your screen where you need it with patented Constant Force™ Technology, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.   



Benefits:

Comfortable fit

• Offers ergonomic monitor positioning using patented Constant Force™ Technology

More motion

• Luxury arm easily adjusts monitors up to 34" in size

Saves space

• Places screen in the best view to tackle each to-do

Sleek build

• A streamlined look enhances your work area

Easy storage

• Folds to fit under storage shelves or cabinets

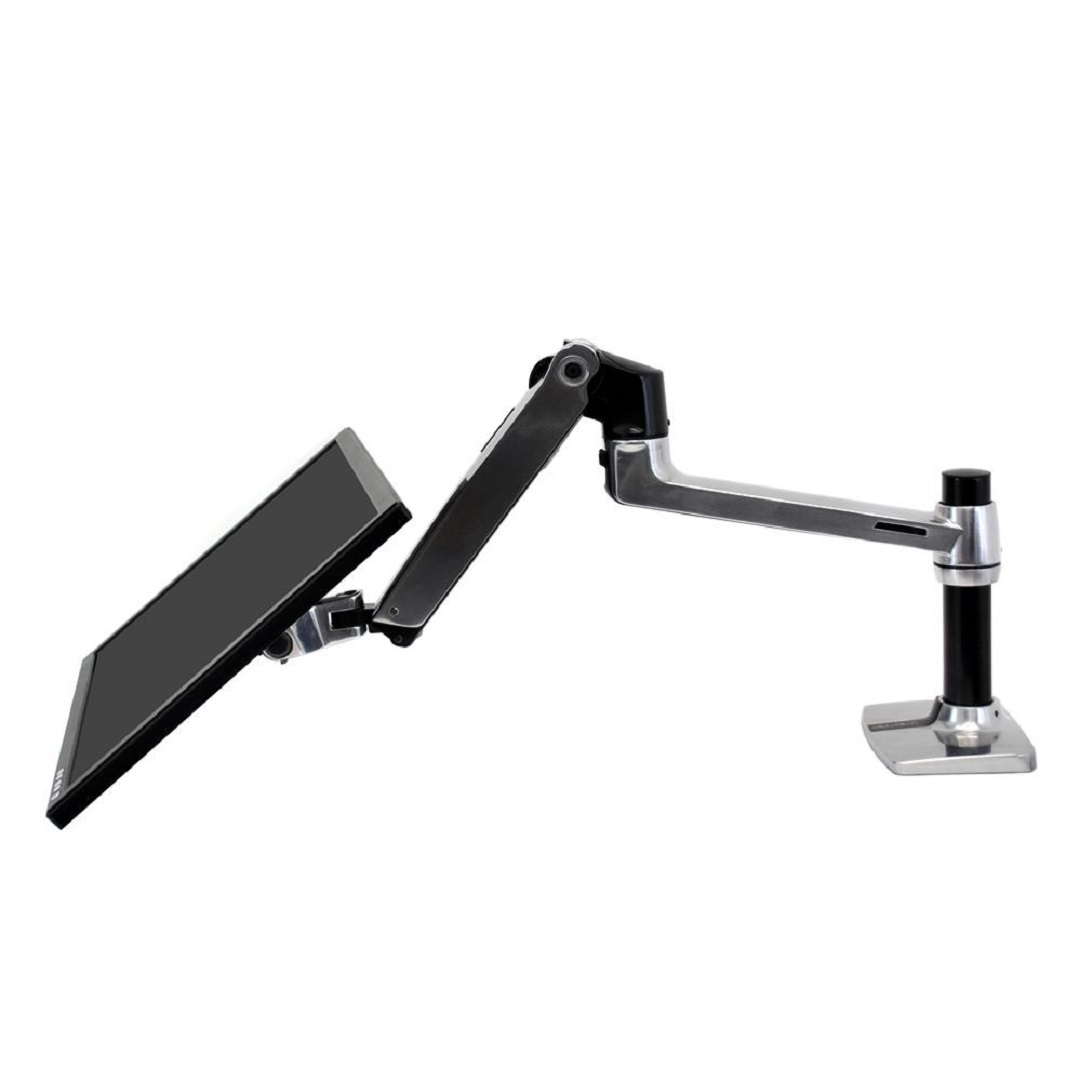

Description: LX Desk Mount LCD Monitor Arm

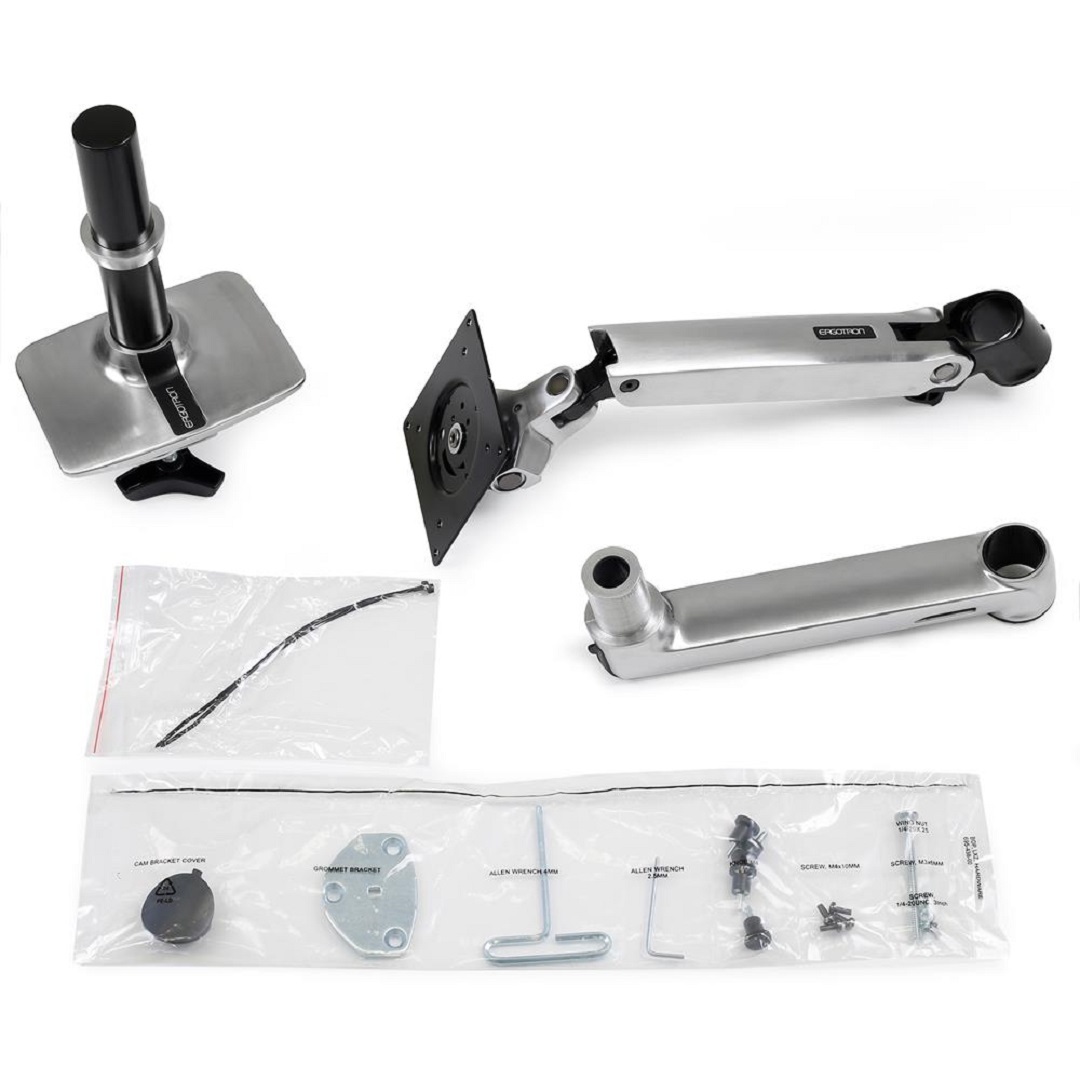

Includes arm, extension, base, 2-piece clamp, grommet mount, 7" pole, attachment hardware

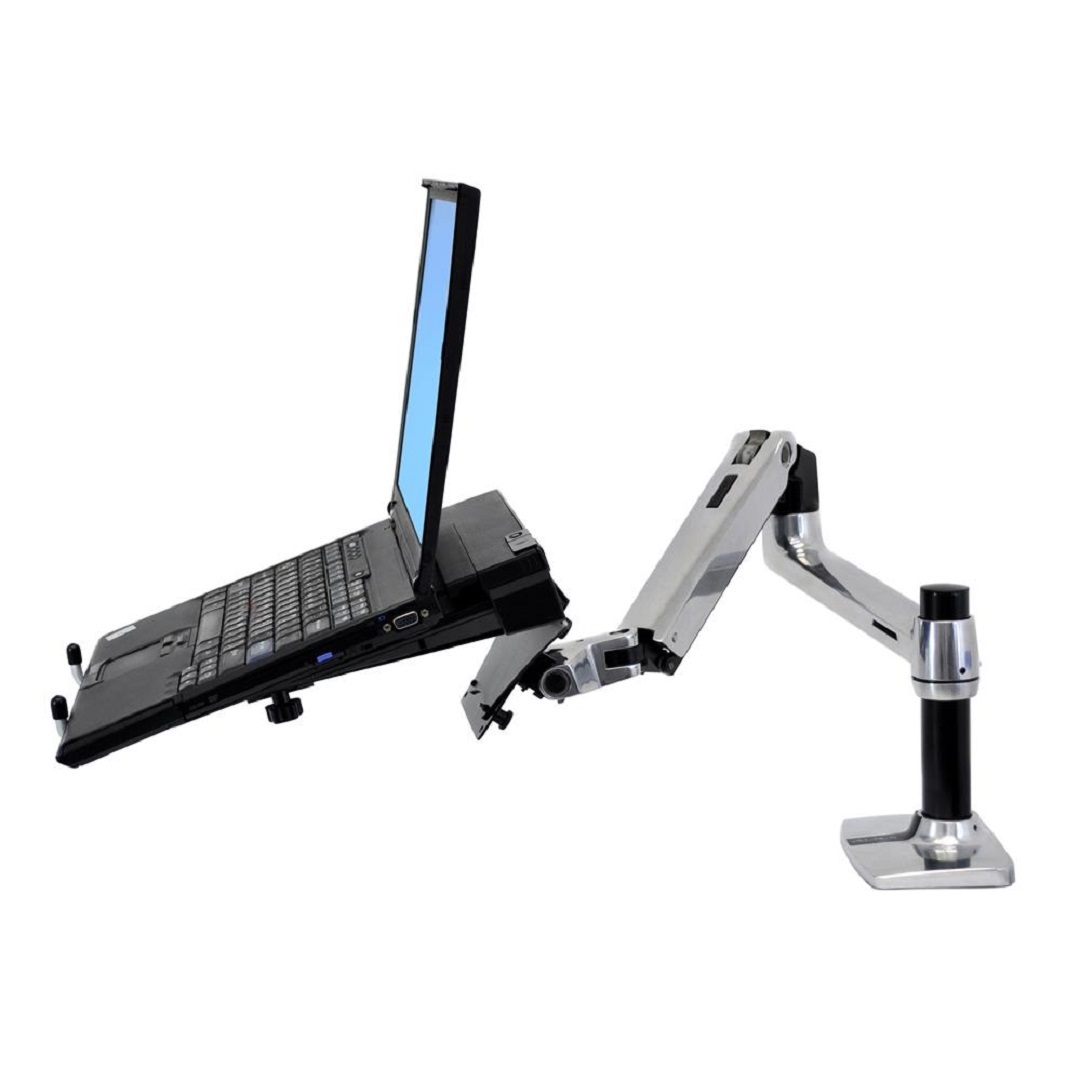

Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
Patented Constant Force motion technology provides premium ease-of-use display adjustment
Aluminum construction offers greater durability and enhanced aesthetics
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space-constrained areas
Cable management feature routes cables under the arm, out of the way
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 11 cm for a total height range of 22 cm
Note: If installed on WF-T or WF-TL, the maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment

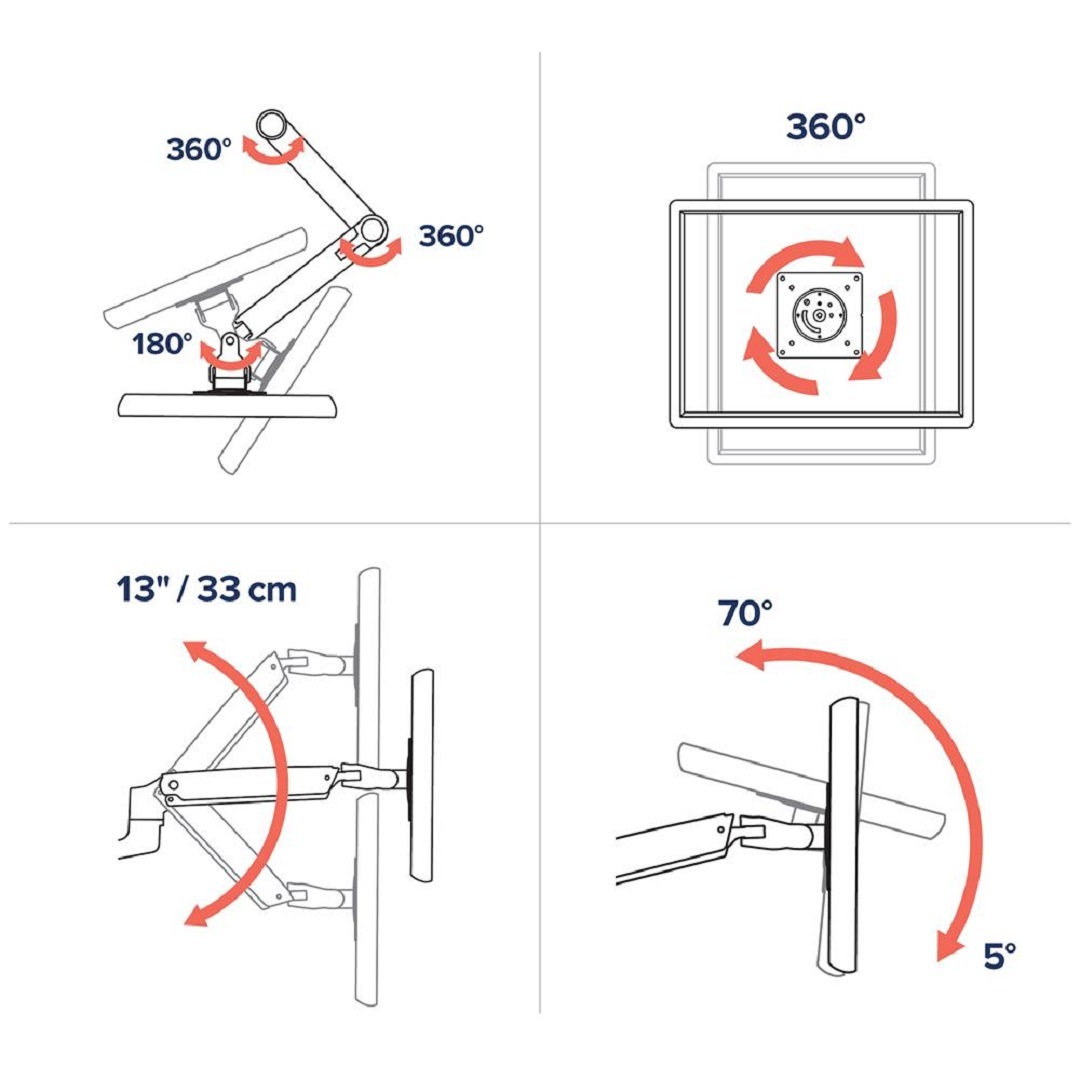

Tilt Range: 70° backward, 5° forward
This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

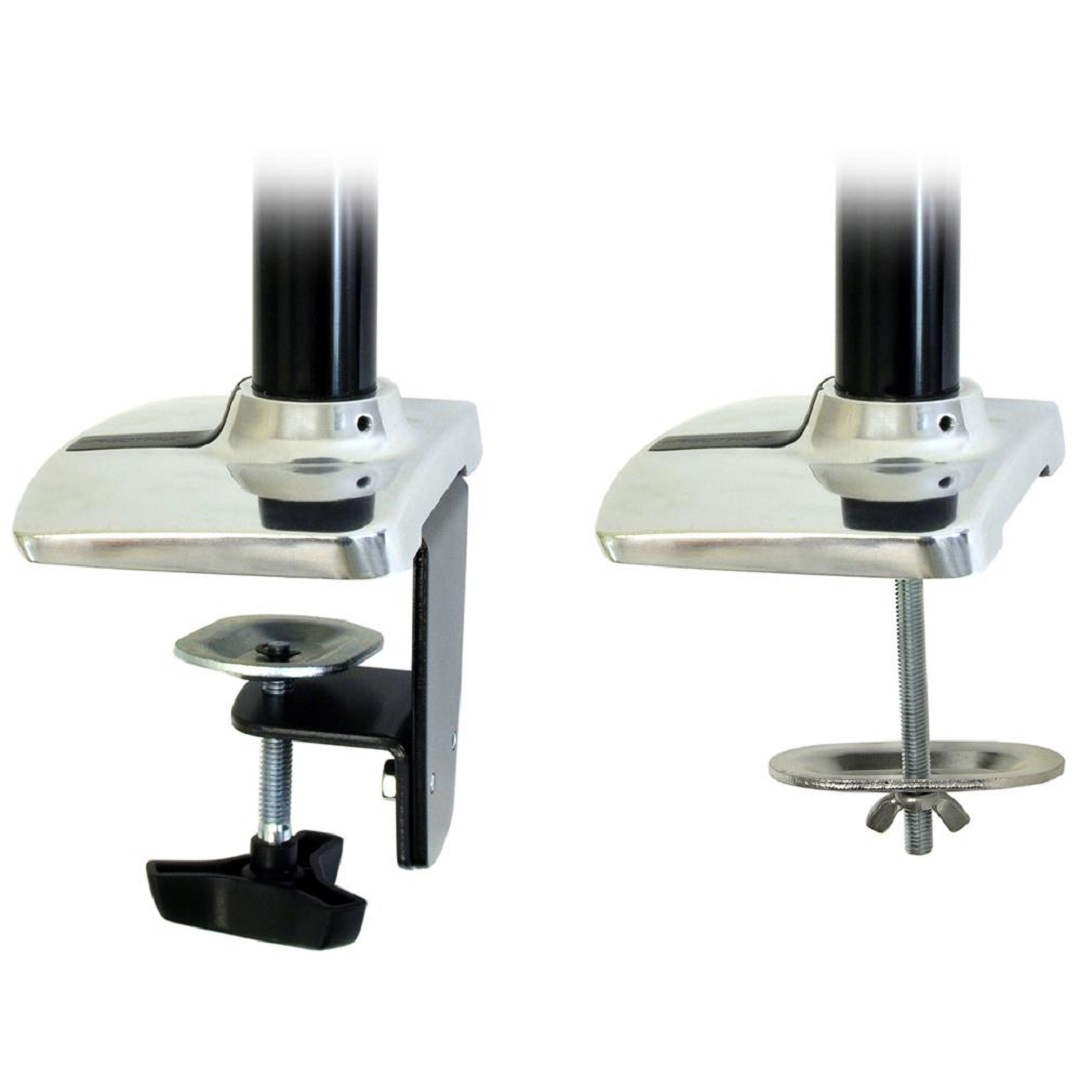

2-Piece Clamp attaches to surface edge 10 to 60 mm thick
Grommet Mount attaches through surface hole 8 to 50 mm wide and up to 57 mm thick. (Grommet Mount not included with white model of arm, 45-490-216)
Note: This arm cannot be retrofitted with a Low-Profile Clamp
Product Weight: 3.6 kg
Shipping Dimensions: 56 x 25 x 14 cm
Shipping Weight: 4.4 kg





Specification:

• Screen ≤34"
• Capacity 3.2 – 11.3 kg
• Lift 33.0 cm
• Tilt 75°
• Pan 360°
• Rotation 360°
• Vesa MIS-D
