Ergotron 45-475-224 Stand Arm Desk Mount for Single Monitor Screen Display LED LCD TV Holder Bracket

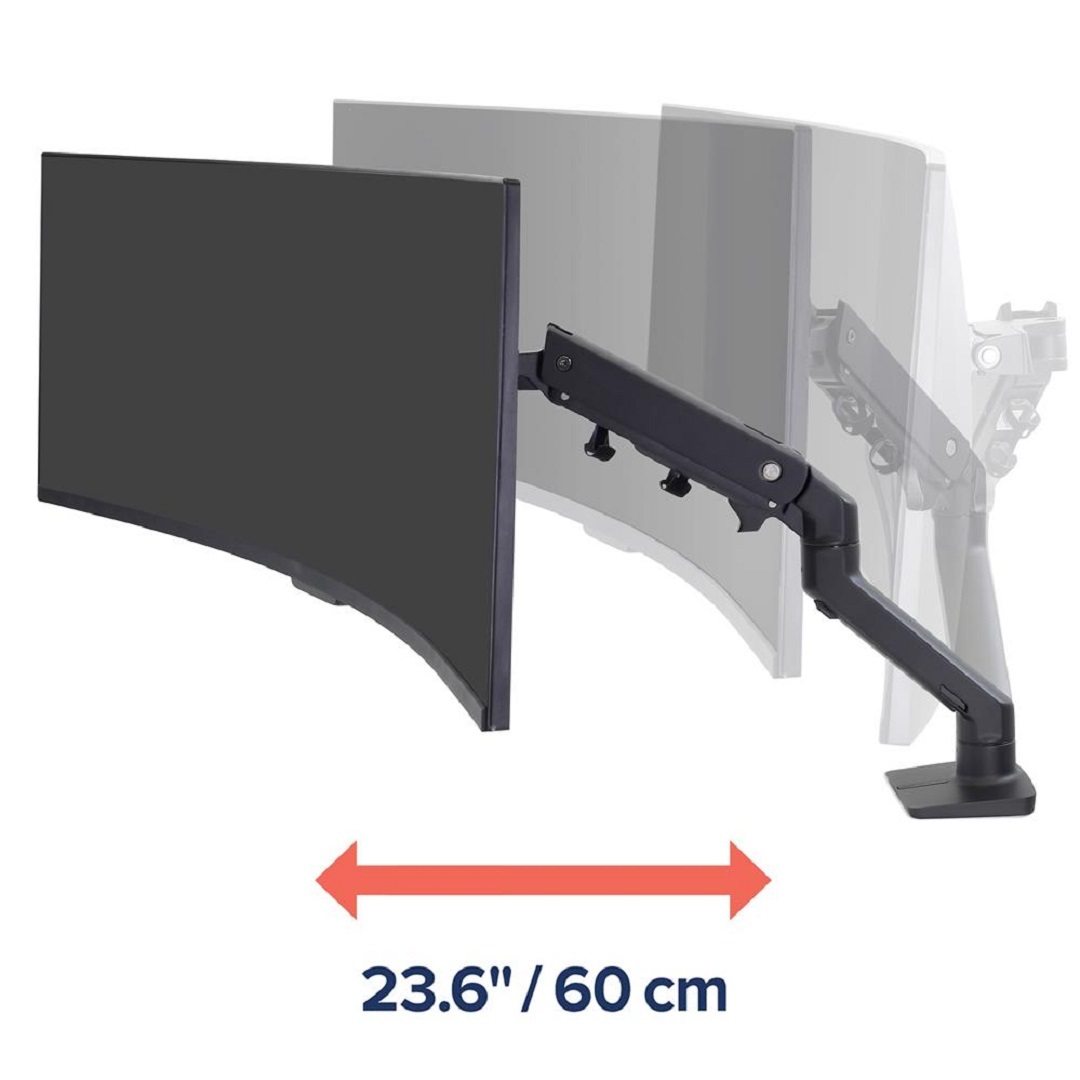

Ergotron 45-475-224 provides flexibility in the form of height adjustability and extension to your heavy monitors, weighing from 20-42 lbs. Mount the HX arm on your desk, install your heavy monitor and what you have freed up is valuable desk space for your writing material, keyboard, mice, and other devices. This arm's 11.5" vertical as well as 23.6" horizontal adjustability not only allows you to position your display to suit your ergonomic preference but also lets you retract the arm over the base or tuck away the monitor under the shelf or cabinet, when not in use. This feature is especially important in space-constrained areas. The display adjustability increases ergonomic comfort by reducing strain on shoulders, neck, and eyes.



• HX Desk Mount Monitor Arm for heavy monitors, TVs
• For an ultrawide monitor that is above 43" screen size, see our solution

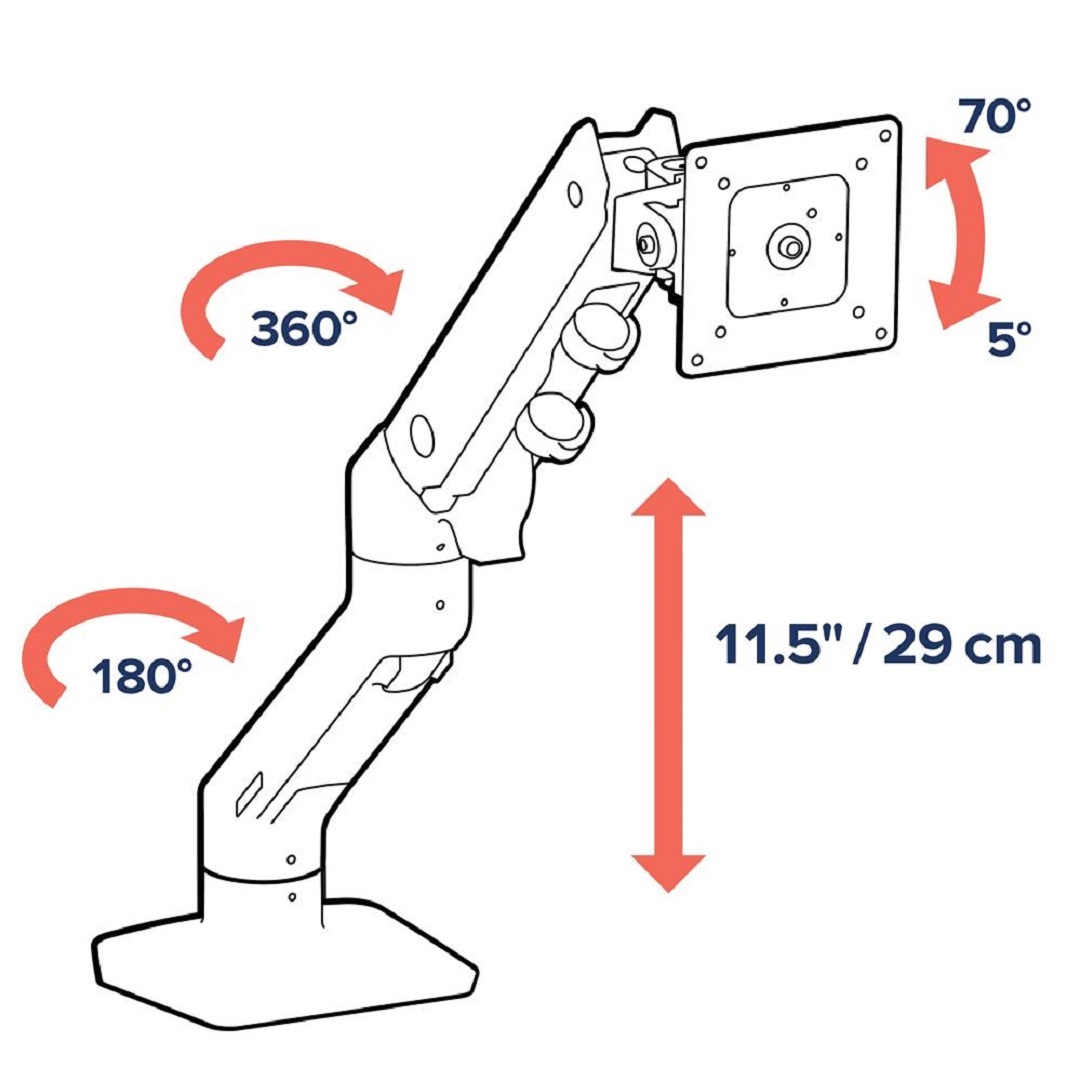

• Provides vertical adjustment: 11.5"
• Arm folds back to free up space in tight areas



The higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing, and surveillance needs that demand heavy monitors. Modular ability to increase from single monitor setup to triple monitor setup (with an HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white, matte black and polished aluminum, this arm looks slick and chic.



The HX Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The HX features a new post design, frees up space, and allows positioning of your display for greater productivity. Sleek and streamlined, it accommodates large monitors weighing up to 19.1 kg. Extension/retraction motion and height adjustment capability promote user comfort. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity.



Specification:

• Model    45-475-224
• Manufacturer    Ergotron
• Part Number    45-475-224
• Color    Matte Black
• Monitor Size    Up to 49"
• Weight Capacity    9.1–19.1 kg
• Lift    29.2 cm
• Tilt    75 degree
• Pan    180 degree
• Rotation    360 degree
• Mounting Pattern    VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY)
