Ergotron 45-478-216 Single Monitor Wall Mount Stand Arm Screen Display LED LCD TV Holder Bracket

Choose a monitor arm that’s as adaptable as you. With the HX Wall Monitor Arm, you can reposition large monitors weighing up to 19.1 kg using patented Constant Force Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level 2 certified based on the arm’s low environmental and social impact.

Benefits:

Comfortable fit

• Offers ergonomic monitor positioning using patented Constant Force Technology

Rotation stop

• Avoid hitting cube walls with a rotation-stop on the base

Saves space

• Places screen in the best view and open up the valuable work area

Sleek build

• Cables stay hidden under the arm and through the extension

Sustainable choice

• BIFMA level 2 certified for a low environmental and social impact

Quality design

• Built for thousands of movements by passing 10,000-cycle test



• Includes arm, extension, monitor pivot, wall mount, mounting hardware

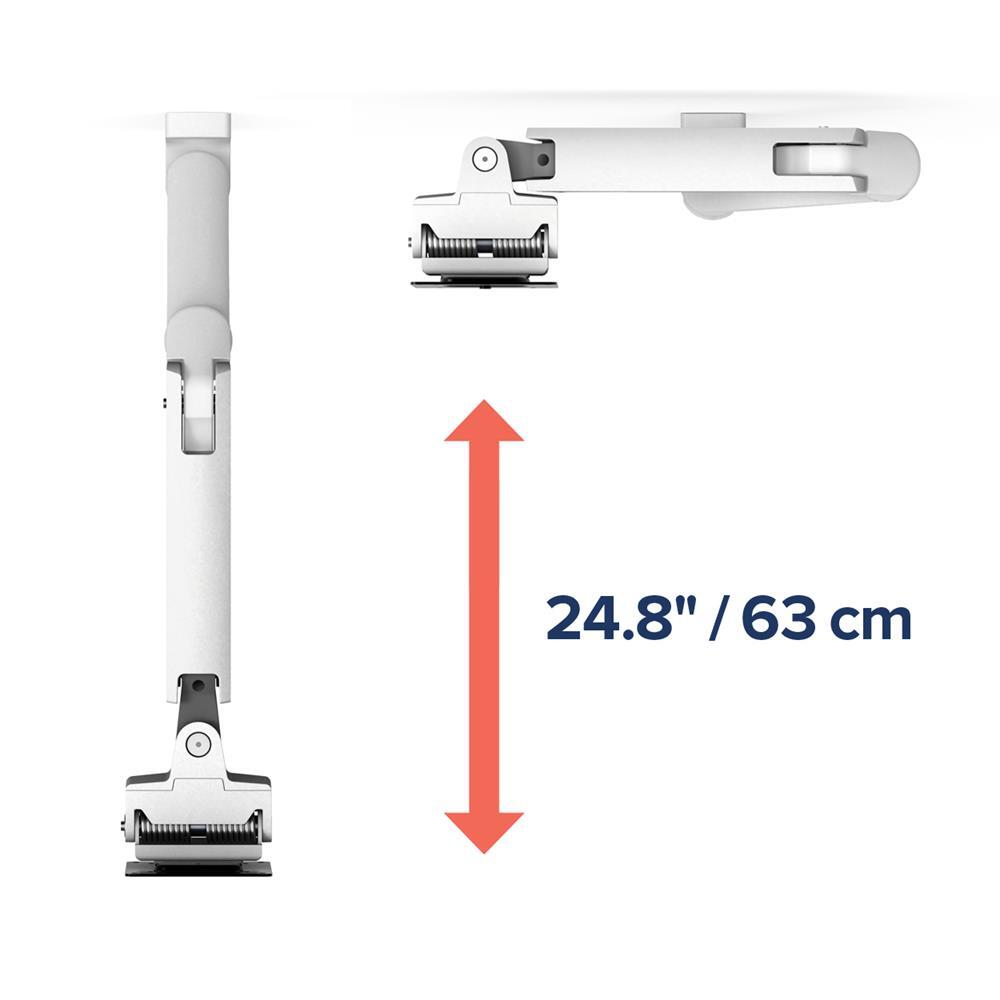

• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space-constrained areas
• Portrait/landscape rotation with lockout
• Streamlined cable management routes cable underarm and within the extension
• Weight Capacity: 9.1–19.1 kg.

Note: Display depth > 15 cm may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility.



Mounting Standards:

• VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, apply to wood stud. Also attaches to wall track using bracket 97-091 (order separately)

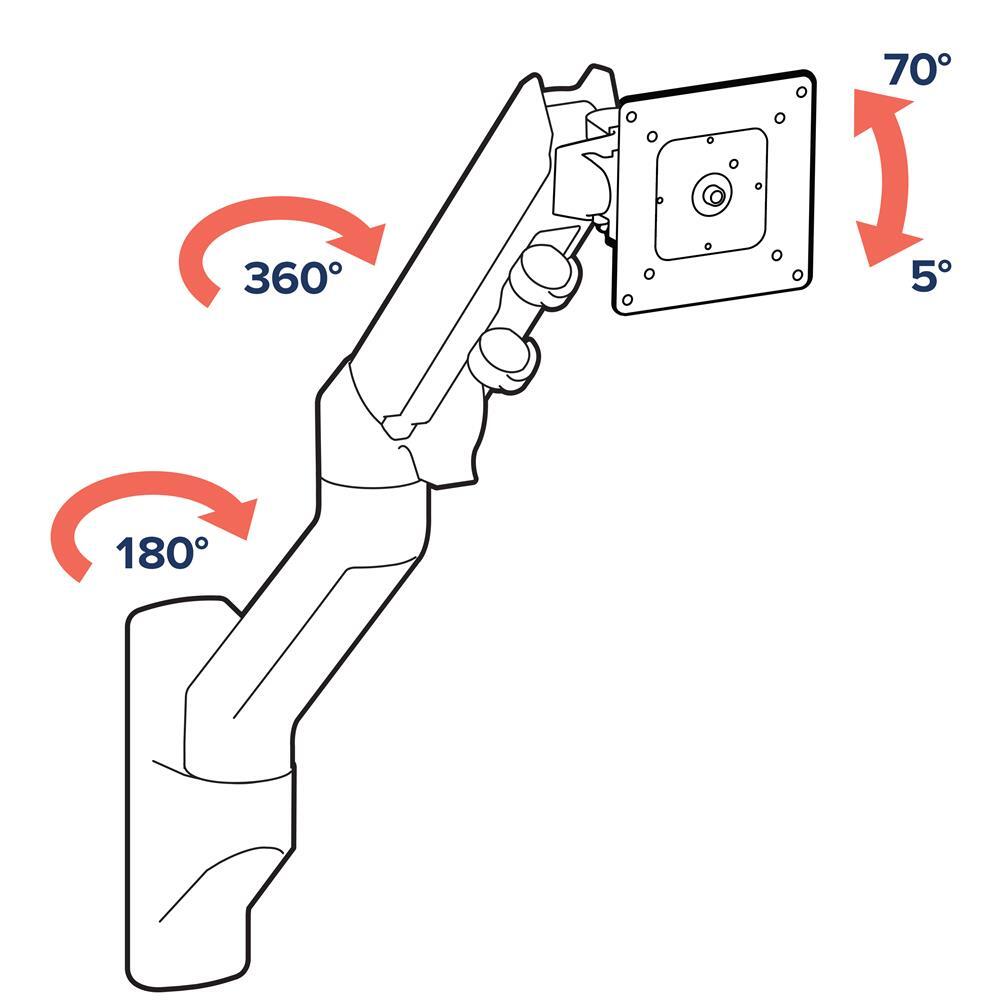

• Tilt Range: 70° backward, 5° forward
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)



Specification:

• Screen ≤49"
• Capacity 9.1–19.1 kg

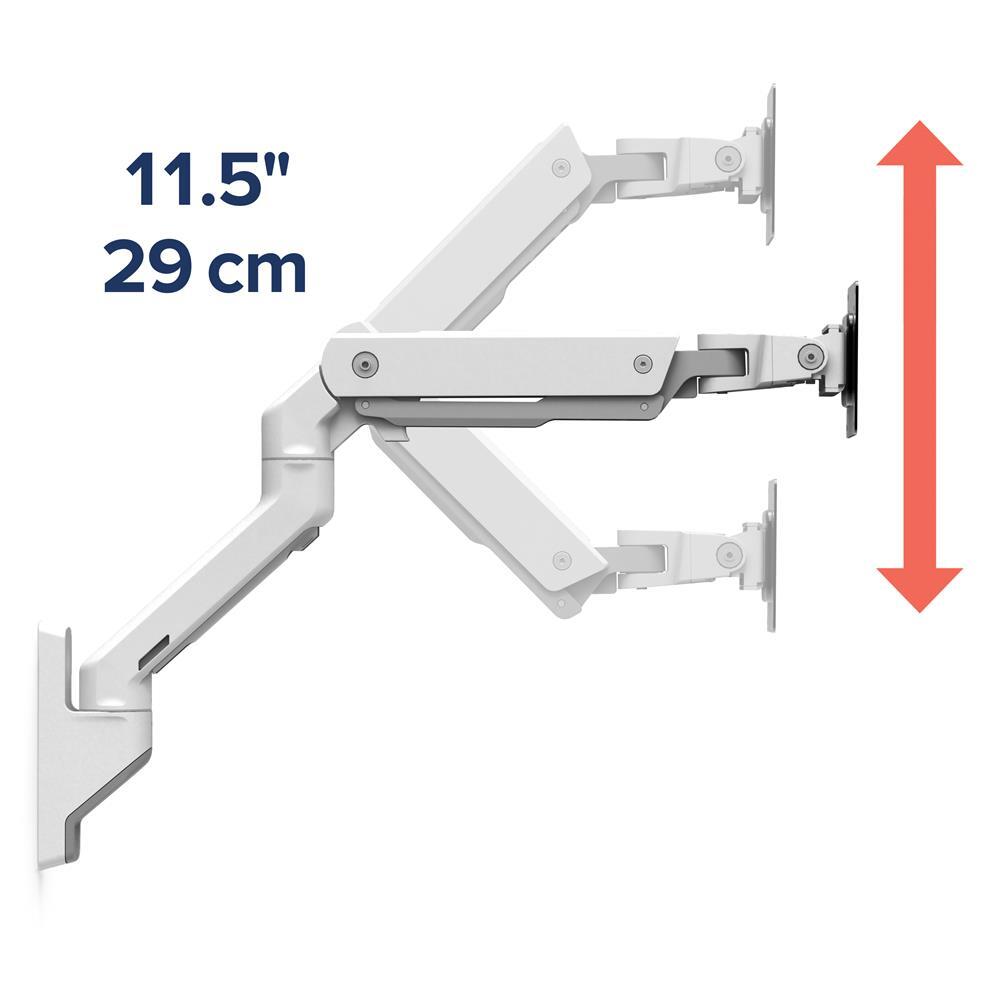

• Lift 29.2 cm
• Tilt 75°
• Pan 180°
• Rotation 360°
• Vesa MIS-D/E/F
