Ergotron 45-509-216 Dual Monitor Stand Arm Desk Mount Screen Display LED LCD TV Holder Bracket Up to 40"

Find your best view, save desk space and discover your most productive self, thanks to the LX Dual Stacking Arm, Tall Pole. This multi-monitor mount lets you position large screens separately for a new level of flexible working. Did project wrap up? Reclaim a space full of opportunities by folding the arms and pushing them aside during a much-needed screen break.



Specification:

  • Screen ≤40"
  • Capacity 6.4–18.1 kg

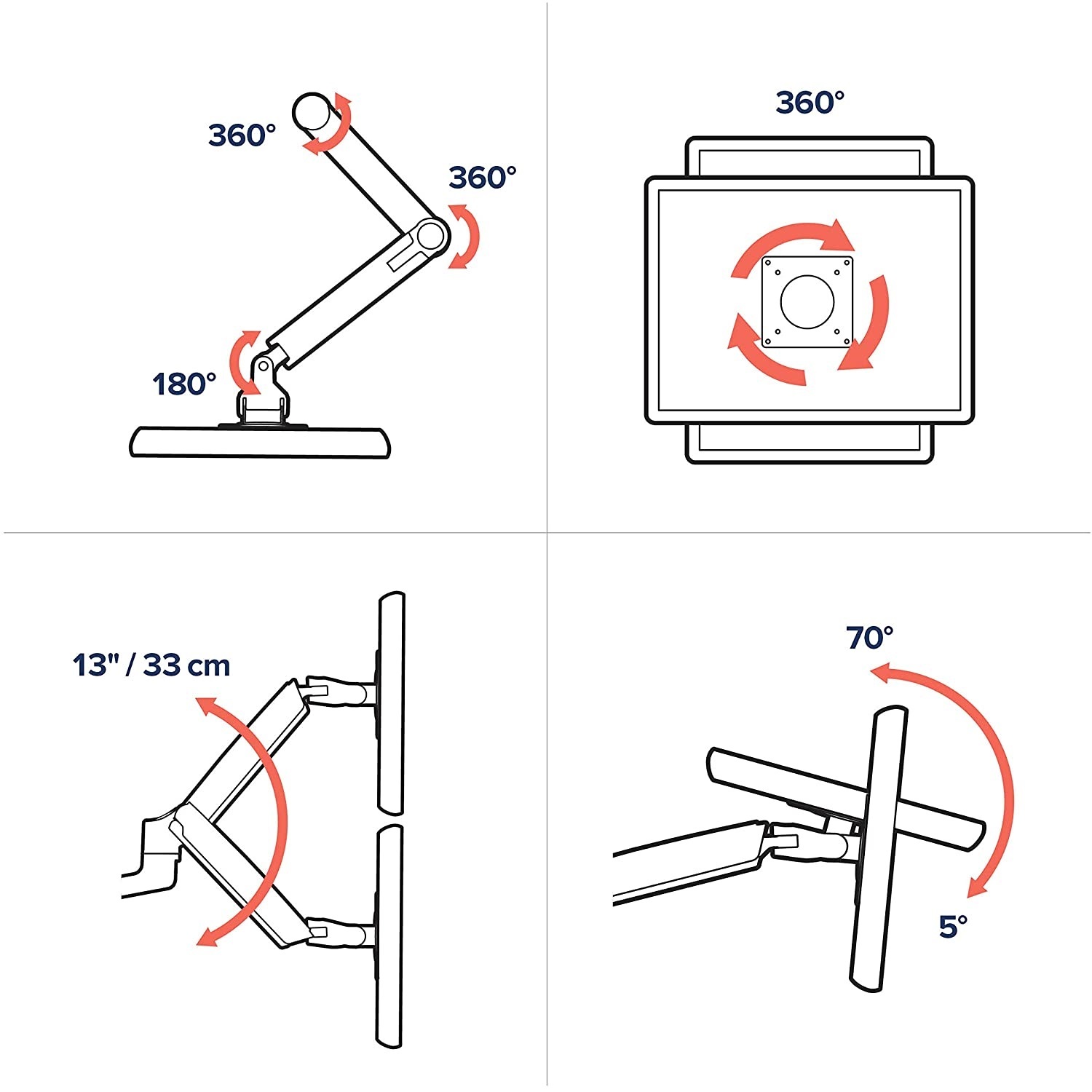

  • Lift 33.0 cm
  • Tilt 75°
  • Pan 360°
  • Rotation 360°
  • Vesa MIS-D

Benefits:

Extra flexibility

  • Each arm lifts, extends and rotates for the best view

More motion

  • Place screens up to 40" one over the other or on either side

Multi-purpose

  • Support up to four screens with the LX Arm, Extension and Collar Kit accessory

Sleek build

  • Streamlined look enhances your work area

Easy storage

  • Folds to fit under storage shelves or cabinets

Quality design

  • Built for thousands of movements by passing 10,000-cycle test



  • Includes two LX arms and extensions, 23" pole, heavy-duty two-piece desk clamp base with dual screws, two pole collars, two caps, grommet mount plate and hardware, monitor mounting hardware
  • Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
  • Aluminum and steel construction offers greater durability
  • New clamp and grommet mount base ensures greater stability of display and arm

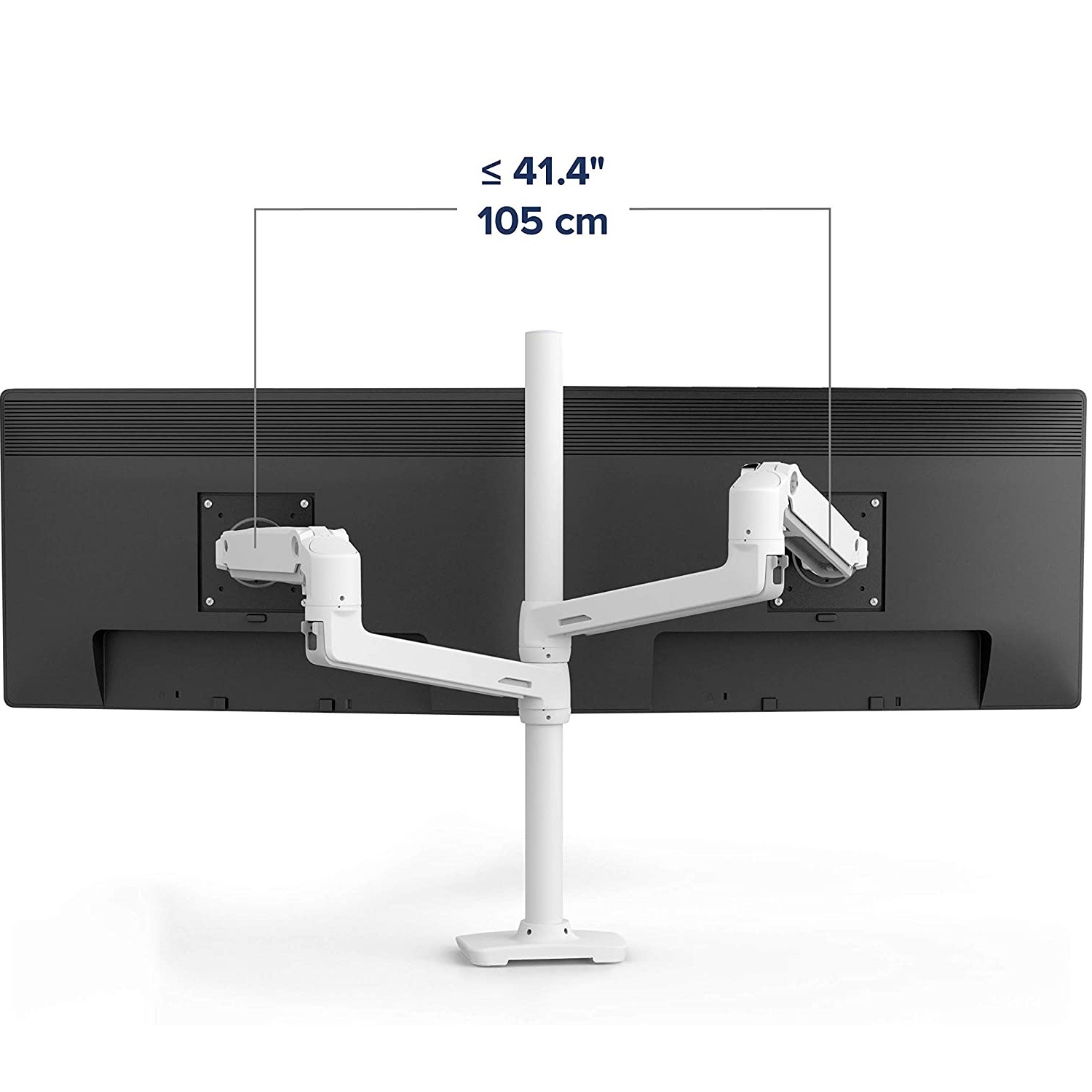

  • To facilitate stacking of monitors, maximum outside height of display should be no more than 21" (53 cm). To align monitors side by side, maximum outside width should be no more than 40" (102 cm). Most monitors with screen sizes of 40" or less fit within this specification


Mounting Standards:

  • VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Desk clamp attaches to surface edge up to 2.6" (66 mm) thick
  • Grommet mount attaches through hole 0.31" to 2" (8–50 mm) wide and up to 3" (76 mm) thick

Weight Capacity:

  • Two arms: 7–20 lbs (3.2–9.1 kg) each;


This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
