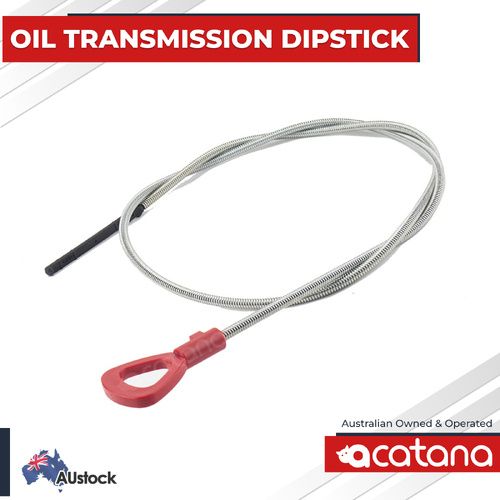

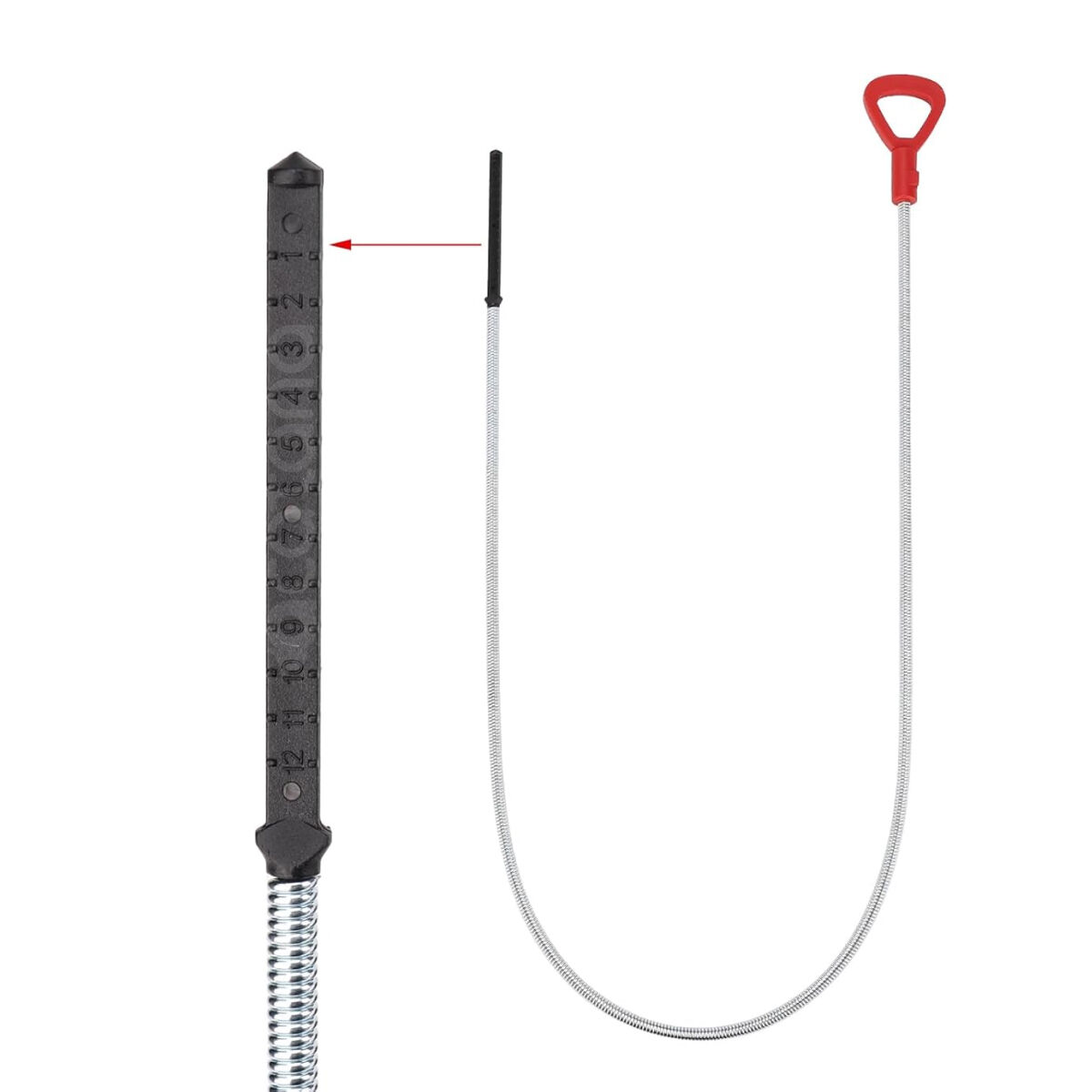

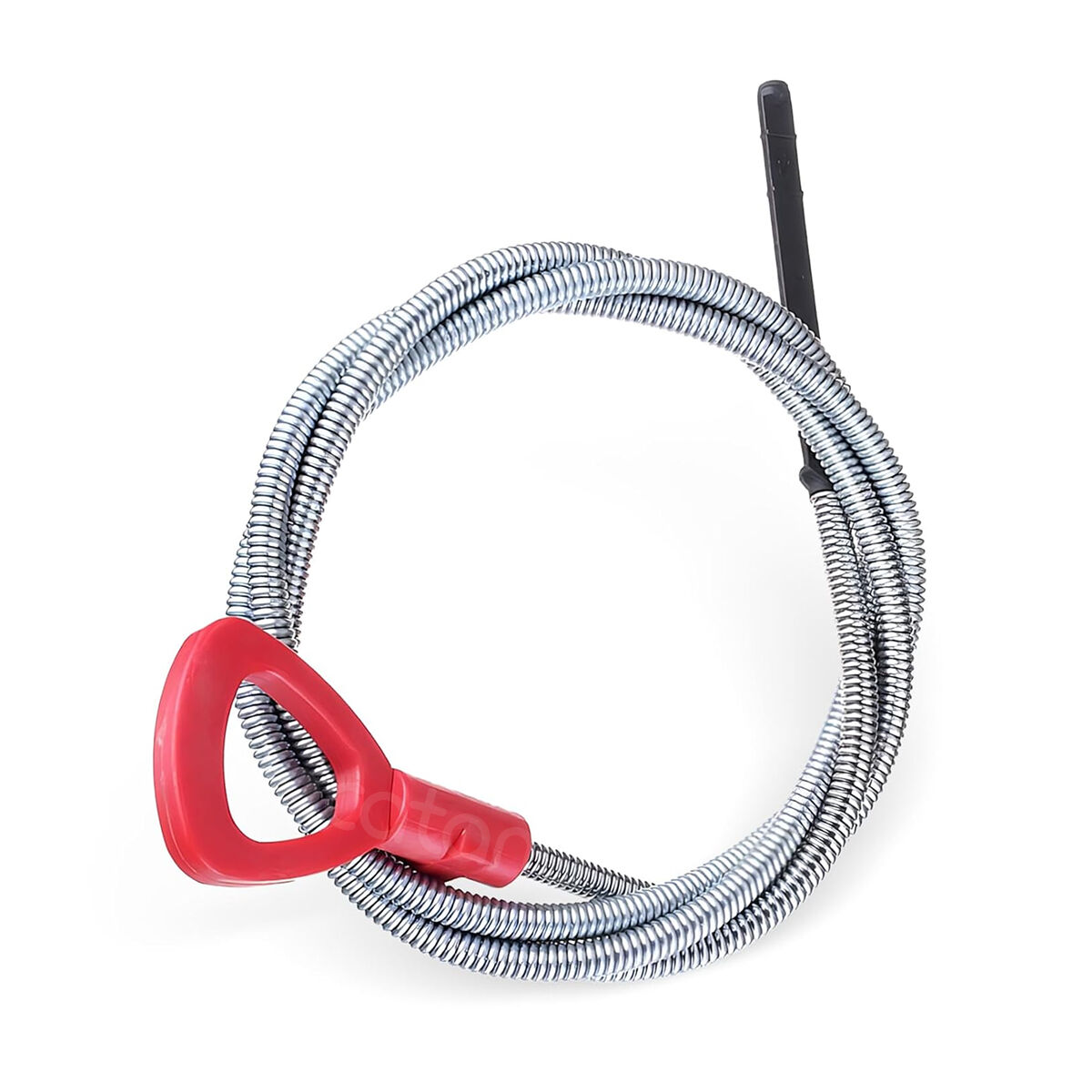

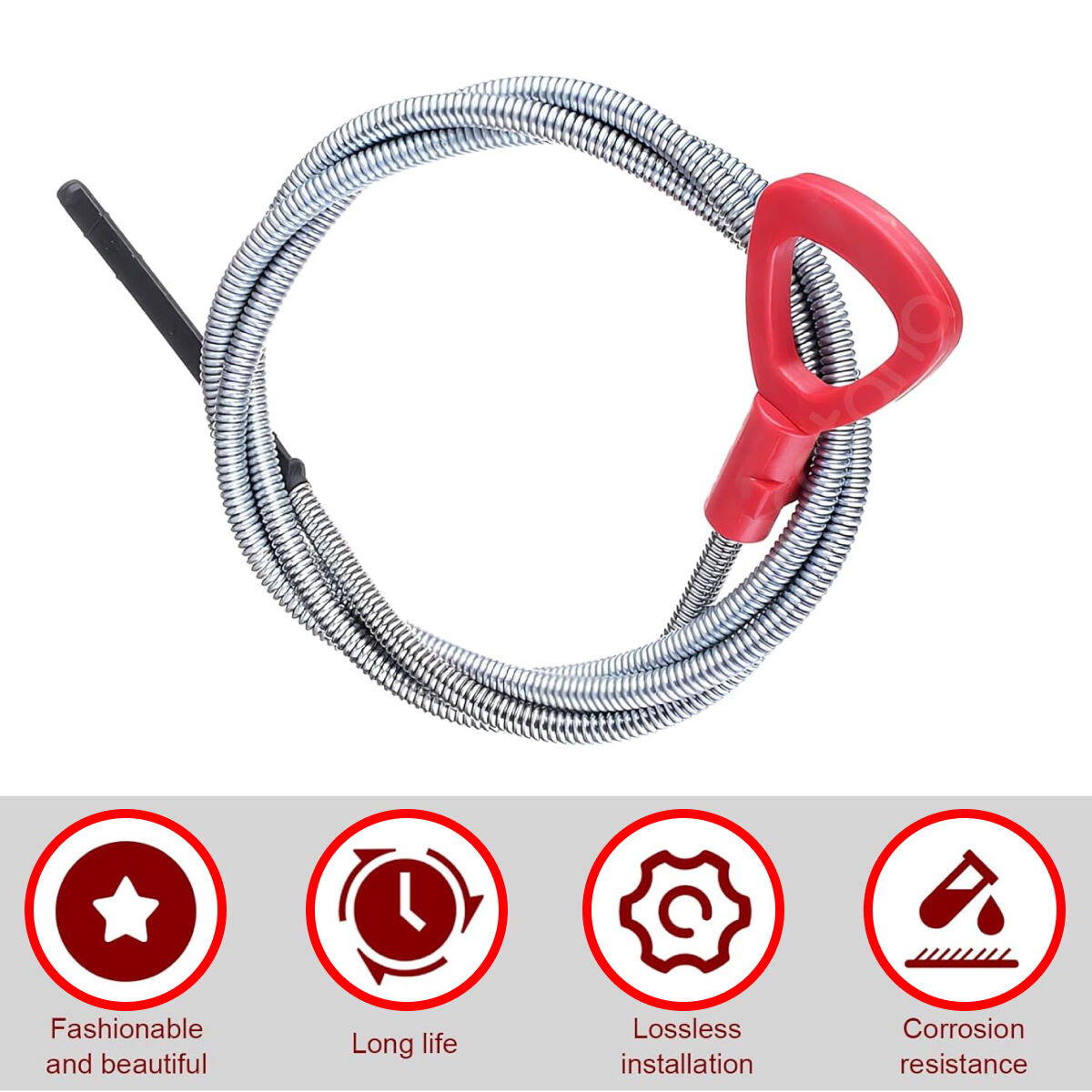

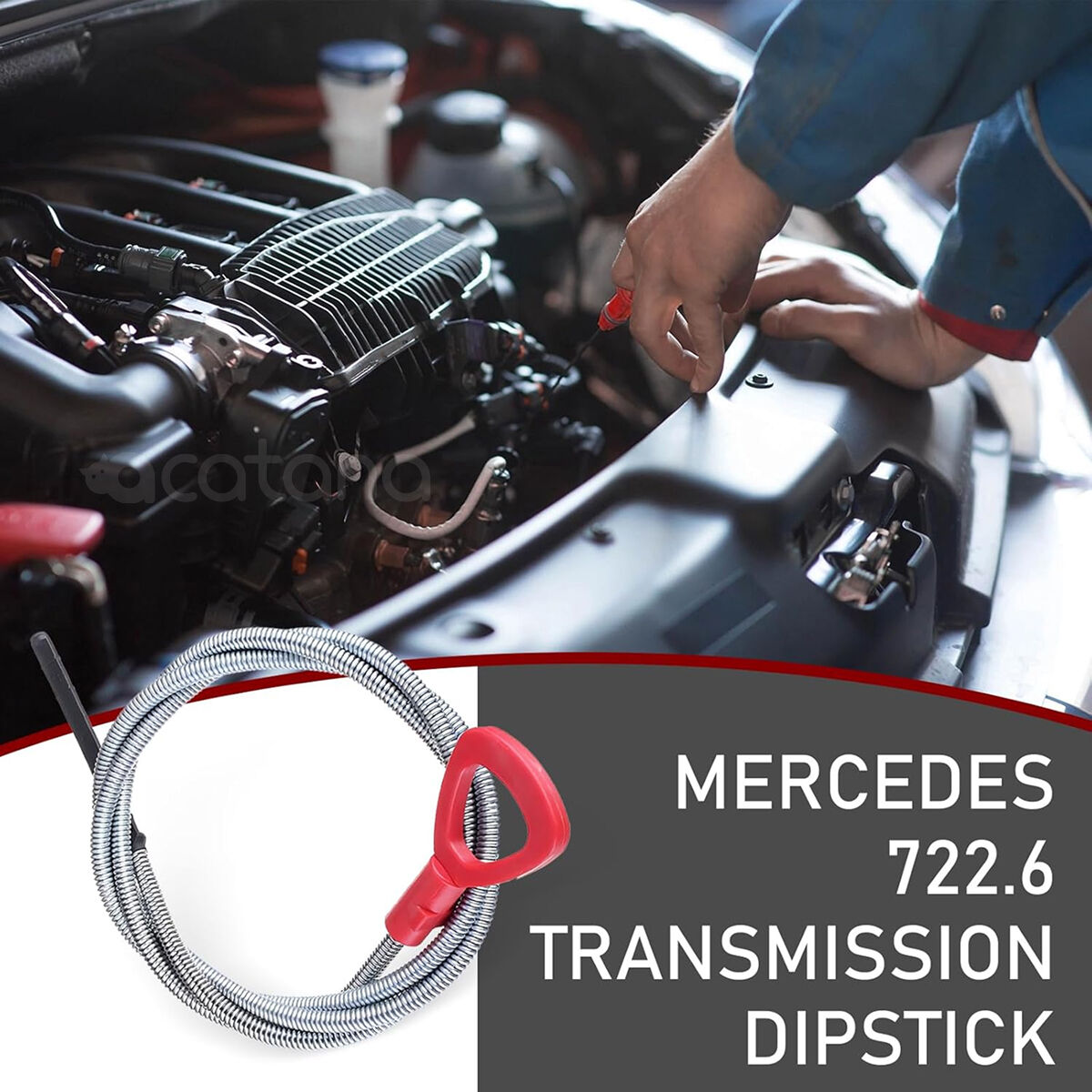

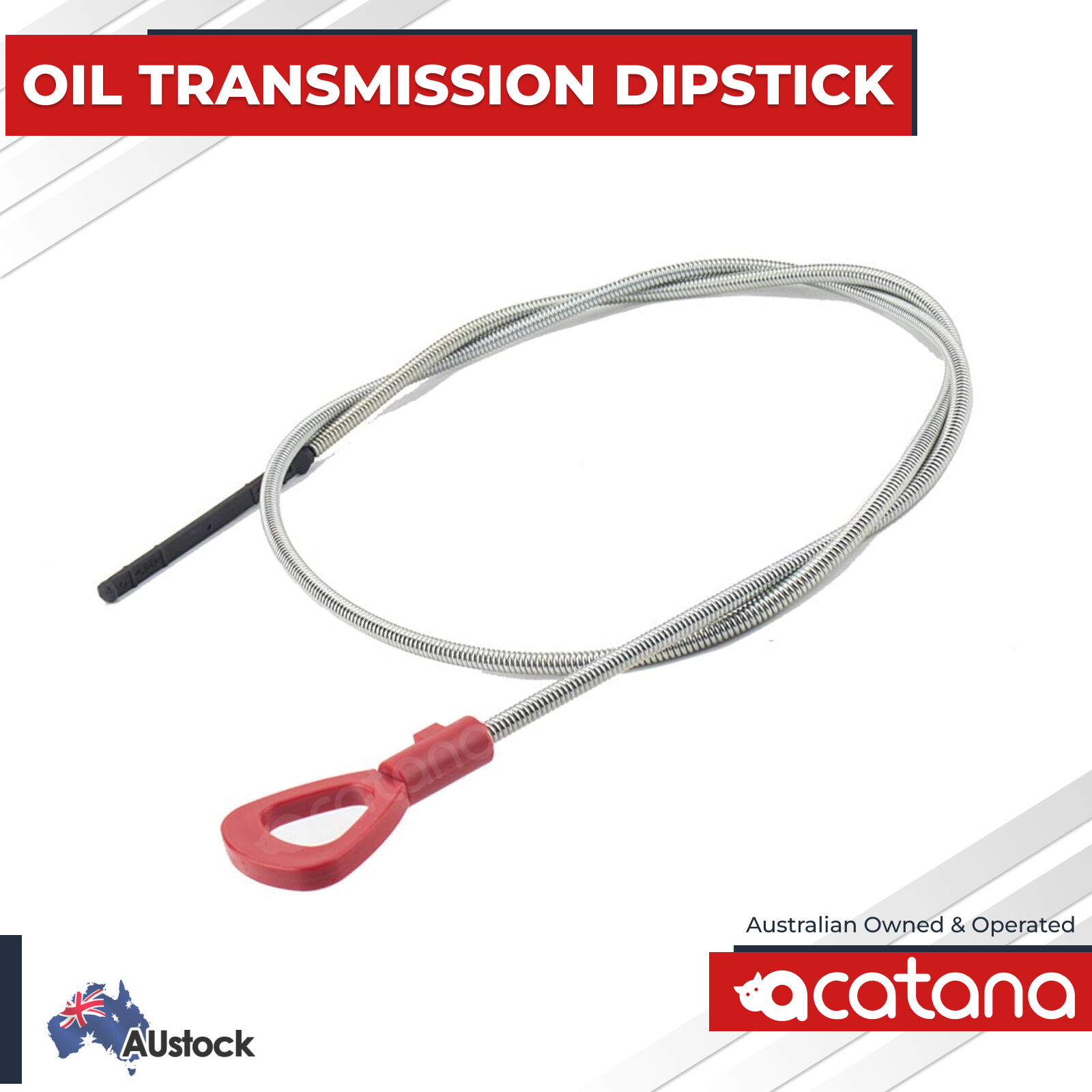

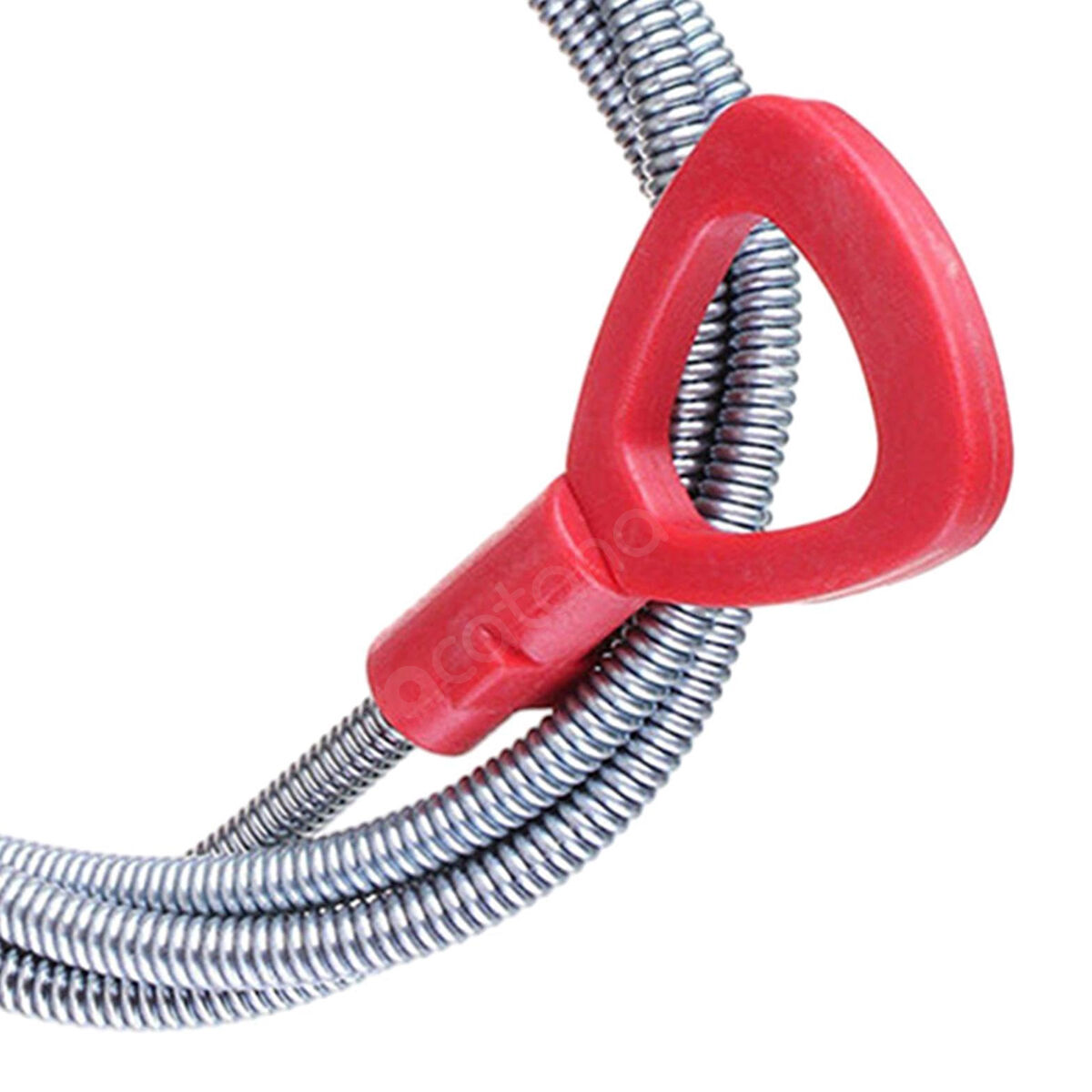

This Automatic Oil Transmission Dipstick for Mercedes-Benz 722.6 (OEM 140589152100) is designed for checking the ATF level on all Mercedes-Benz vehicles equipped with the 722.6 gearbox (5G-Tronic, NAG1). A must-have service tool for Mercedes owners and mechanics – ensures precise fluid measurement, prevents costly transmission issues, and keeps your car shifting perfectly.



Compatibility for Mercedes-Benz C-Class T-Model (S202):

• C 180 T (202.078/081) - 06.1996 - 03.2001
• C 200 T (202.080) - 06.1996 - 03.2001
• C 200 T Kompressor (202.082/087) - 11.1996 - 03.2001
• C 230 T (202.083) - 06.1996 - 06.1998
• C 230 T Kompressor (202.085) - 06.1997 - 09.2000
• C 240 T (202.086/088) - 06.1997 - 03.2001
• C 280 T (202.089) - 06.1997 - 03.2001
• C 43 AMG T (202.093) - 08.1997 - 03.2001
• C 200 T D (202.180) - 10.1996 - 03.2001
• C 200 T CDI (202.194) - 03.1998 - 03.2001
• C 220 T CDI (202.193) - 09.1997 - 03.2001
• C 220 T D (202.182) - 06.1996 - 03.2001
• C 250 T Turbo-D (202.188) - 06.1996 - 03.2001



Reference OEM numbers: W140589152100, 140589152100, 168589012100



Important Note:

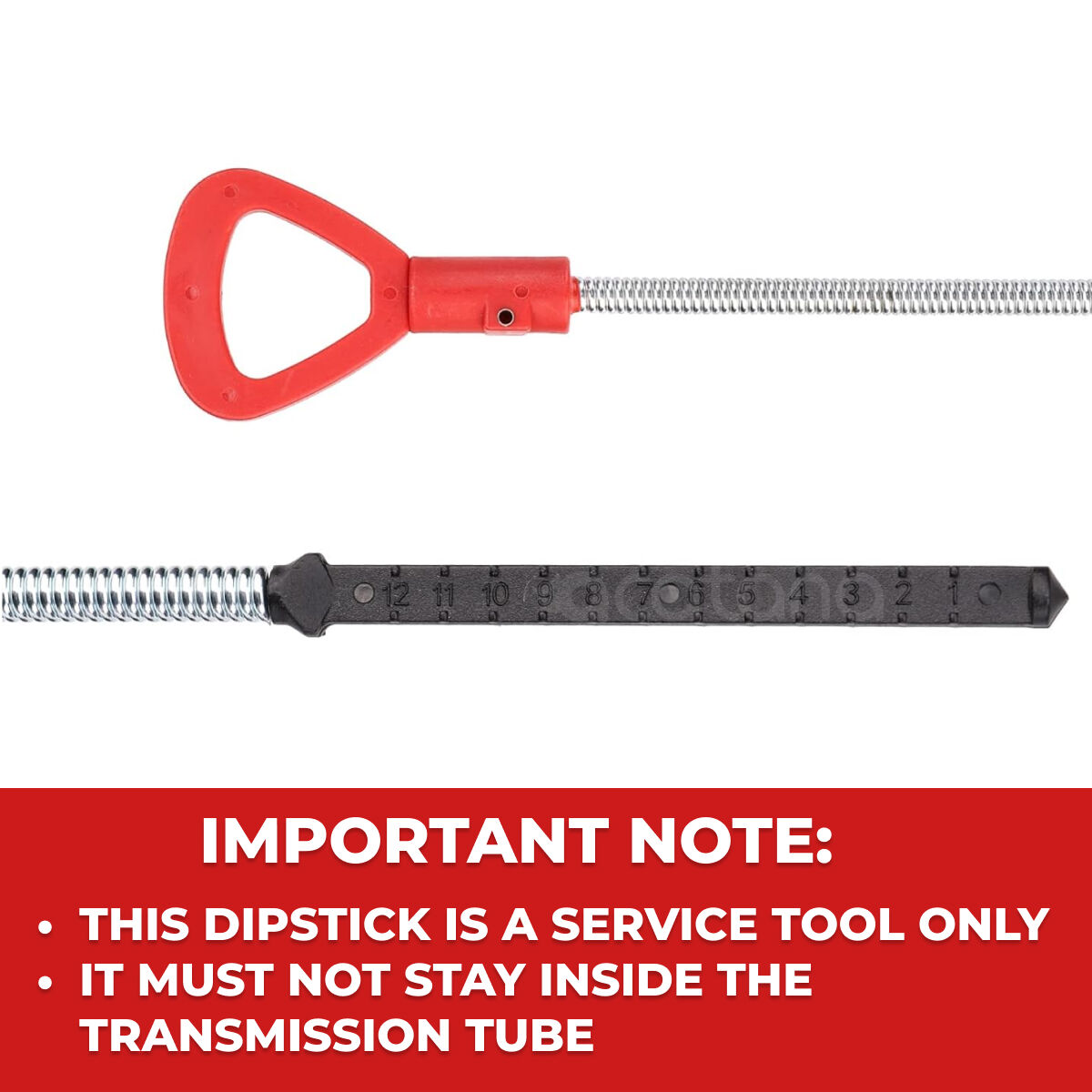

• This dipstick is a service tool only – it must not stay inside the transmission tube.
• Always measure ATF with the engine running and at operating temperature (80°C).
• Use only approved ATF fluid for best results.
• If unsure, have a professional mechanic perform the check.



Features:

• Perfect Fit – designed specifically for Mercedes 722.6 transmissions
• Accurate Measurement – ensures correct ATF level every time
• Durable Construction – heat-resistant, high-quality materials
• Easy to Use – just insert, measure, wipe, and re-check
• Professional Grade – same tool used in official service centers



Specification:

• Type: Automatic Transmission Fluid Dipstick Tool
• Application: for Mercedes-Benz 722.6 AT (5G-Tronic)
• Material: Steel dipstick with plastic handle
• Length: 1220 mm
• Usage: Service tool (not left inside tube)



How to Check ATF Level (Step by Step):

• Warm up the engine to 80°C.
• Park the car, leave the engine idling, gear selector in “P”.
• Insert dipstick fully into the ATF tube.
• Remove and check the fluid level markings.
• Add ATF fluid if necessary, re-check until within the range.



Why you need this Automatic Oil Transmission Dipstick:

• Prevents hard shifting, slipping, delayed gear engagement caused by low ATF
• Ensures correct fluid level for long transmission life
• Saves money on repairs by doing regular DIY checks
• Works for Mercedes models with 722.6 transmission (1996 – 2010s)
• OEM quality, professional grade, built for accurate readings



Package includes: Automatic Oil Transmission Dipstick for Mercedes-Benz 722.6
