GeoVision IP Security Camera Outdoor Night Vision System H.264





GV-UBX1301-1F

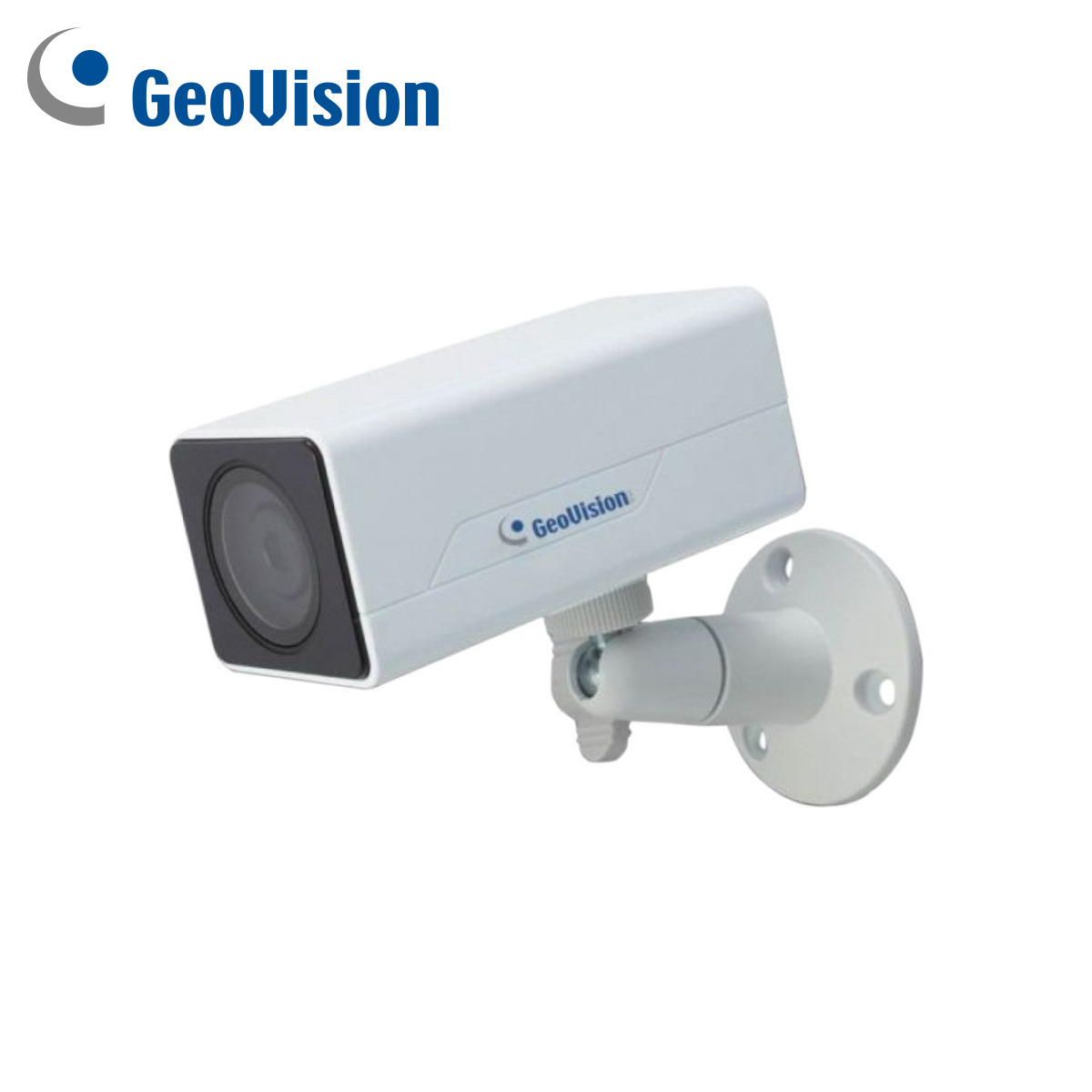

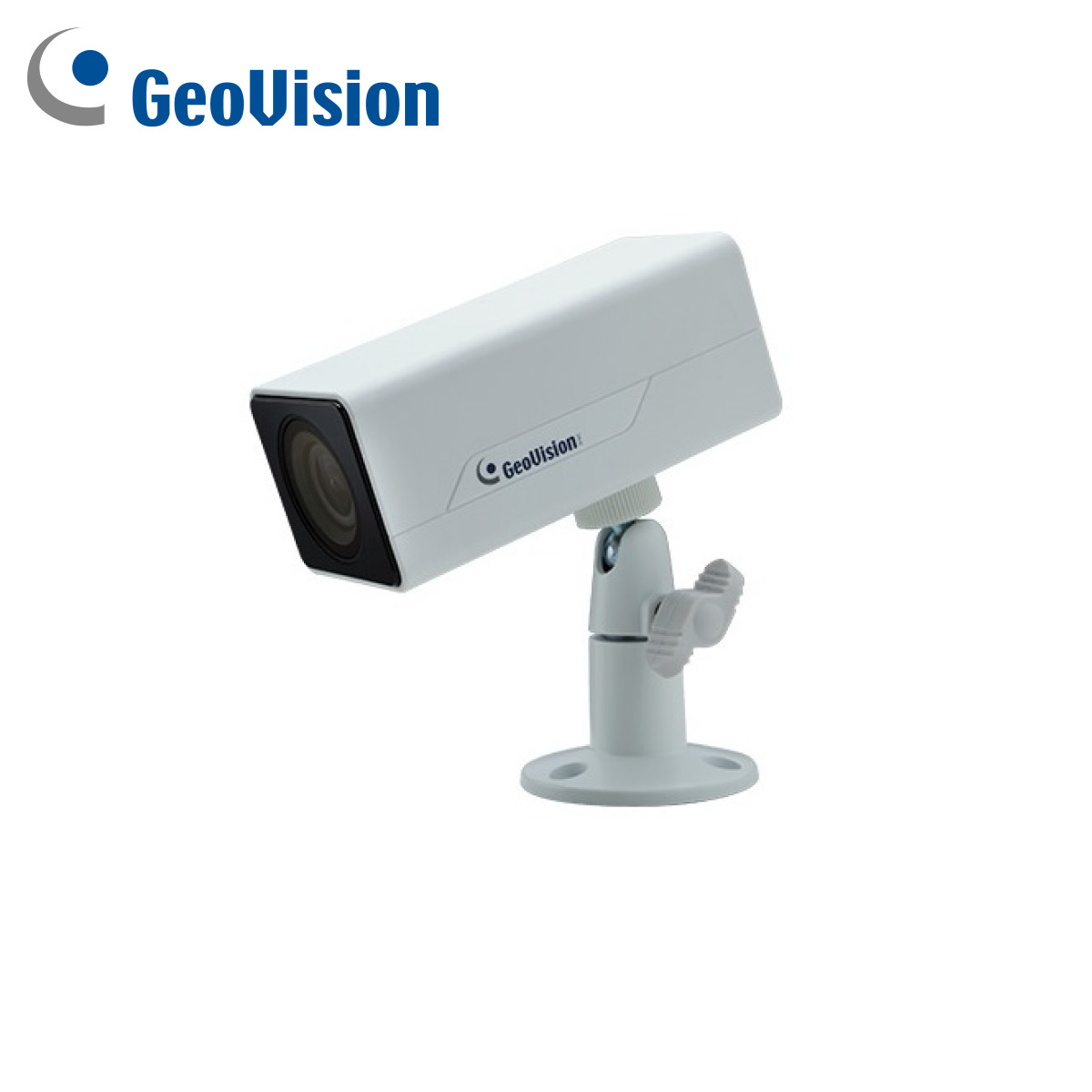

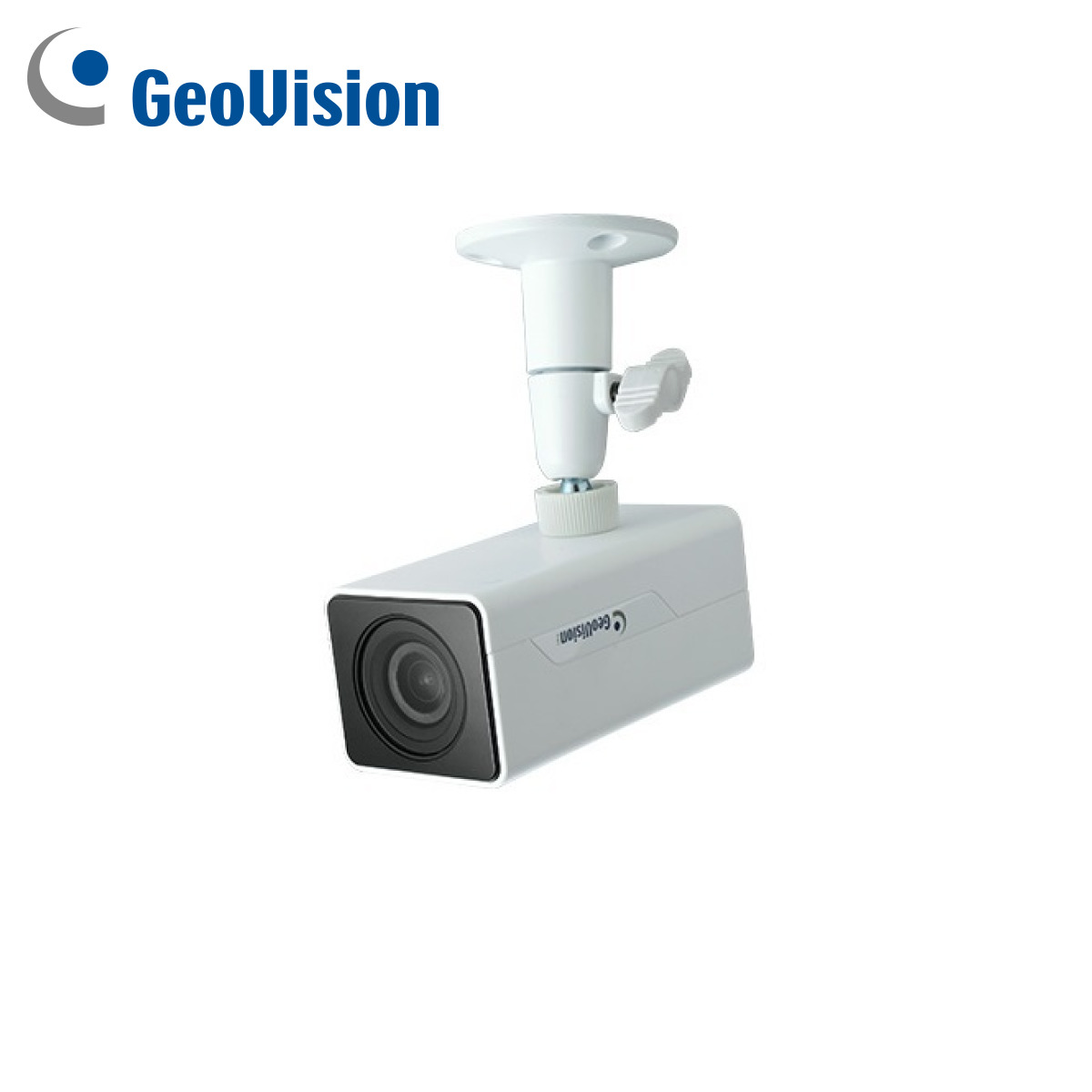

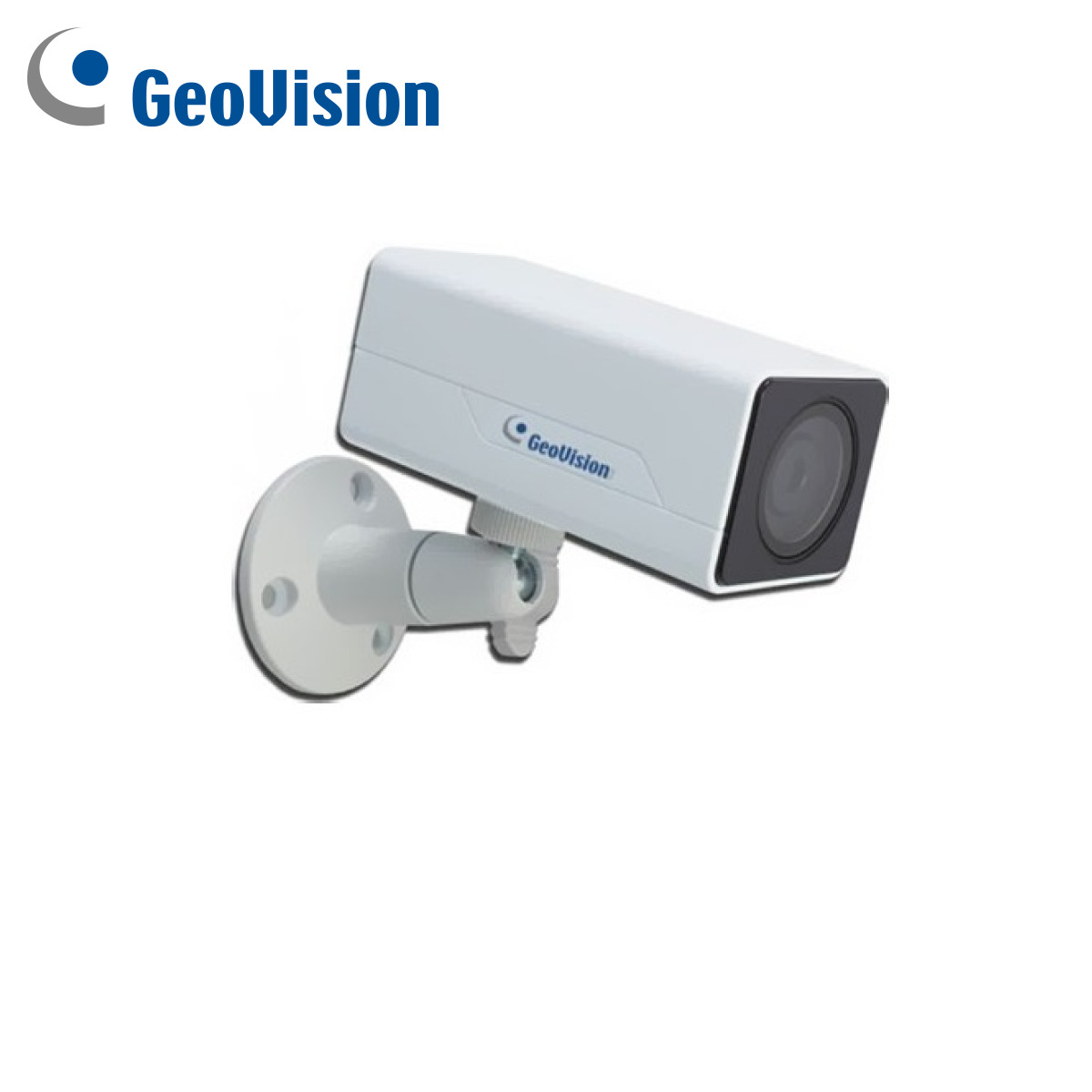

The Ultra Box Camerais a series of light-weighted cameras designed for indoor usage. Equipped with an IR-cut filter and built-in IR LEDs, the Ultra Box Camera provides excellent image quality. The camera supports PoE and can be installed intuitively. It is available in different focal lengths to best suit your needs.



Features:

  • 1/2.5" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 x 1024
  • Intelligent IR
  • Day and night function (with removable IR-cute filter)
  • Wide Dynamic Range (WDR)
  • Defog
  • Memory Card Slot
  • Two-way audio
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 5V / PoE
  • Megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant



Camera

  • Image Sensor: 1/2.5” progressive scan CMOS ”
  • Picture Elements: 1280 (H) x 1024 (V)
  • Minimum Illumination:

Color  0.15 Lux at F/1.6

B/W: 0 Lux at F/1.6

IR ON: 0 Lux at F/1.6

  • Shutter Speed: Automatic, Manual (1/5 ~ 1/8000 sec)
  • White Balance: Automatic, Manual (2800K ~ 8500K)
  • Gain Control: Automatic
  • S/N Ratio: 50 dB
  • BLC: Yes



Lens

  • Megapixel: Yes
  • Focal Length: 4 mm
  • Day/Night: Yes (with removable IRͲcut filter)
  • Lens Type: Fixed
  • Maximum Aperture: F/1.6
  • Mount: M12, Pitch 0.5 mm
  • Image Format: 1/3”
  • Operation:

Focus: Fixed

Zoom: Fixed

Iris: Fixed

  • IR LED Quantity: 4 IR LEDs
  • IR Distance: 10 m / 32.81 ft. (Max.)



Operation

  • Video Compression: H.264, MJPEG
  • Video Stream: Dual streams from H.264 and MJPEG
  • Frame Rate: 30 fps at 1280 x 1024 *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
  • Image Setting: Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, FlickerͲless, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
  • Audio Compression: G.711, AAC (24 kHz / 16 bit) *AAC (24 kHz / 16 bit) is only supported by GV-System V8.5.6 or later
  • Two-way Audio: Yes



Video Resolution

  • Main Stream:

4:3 : 1280 x 960, 640 x 480, 320 x 240

16:9 : 1280 x 720, 640 x 360, 448 x 252

5:4 : 1280 x 1024, 640 x 512, 320 x 256

  • Sub Stream:

4:3 : 640 x 480, 320 x 240

16:9 : 640 x 360, 448 x 252

5:4 : 640 x 512, 320 x 256



Network

  • Interface: 10/100 Ethernet
  • Protocol: HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF



Mechanical

  • Temperature Detector: Yes

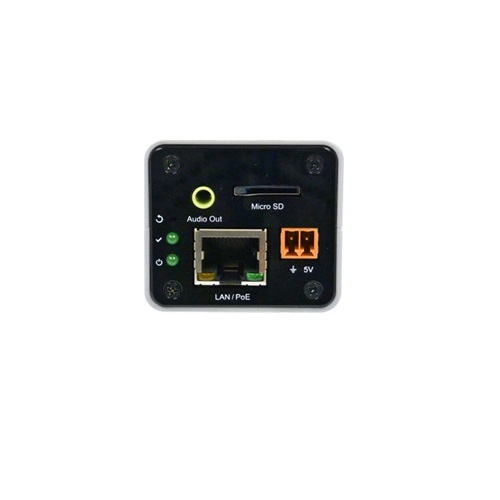

  • Connectors:

Power: 2-pin terminal block, PoE

Ethernet: RJͲ45

Audio:

- 1 In (RCA female for microphone)
- 1 Out (RCA female for speaker)

  • Auto Iris: DC Drive
  • Local Storage: Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above)
  • LED Indicator: 2 LEDs: Power, Status



General

  • Environment Temperature: 0°C ~ 40°C / 32 °F ~ 104 °F
  • Humidity: 10% to 90% (no condensation)
  • Power Source: 5V DC / PoE
  • Max. Power Consumption: 6.5 W

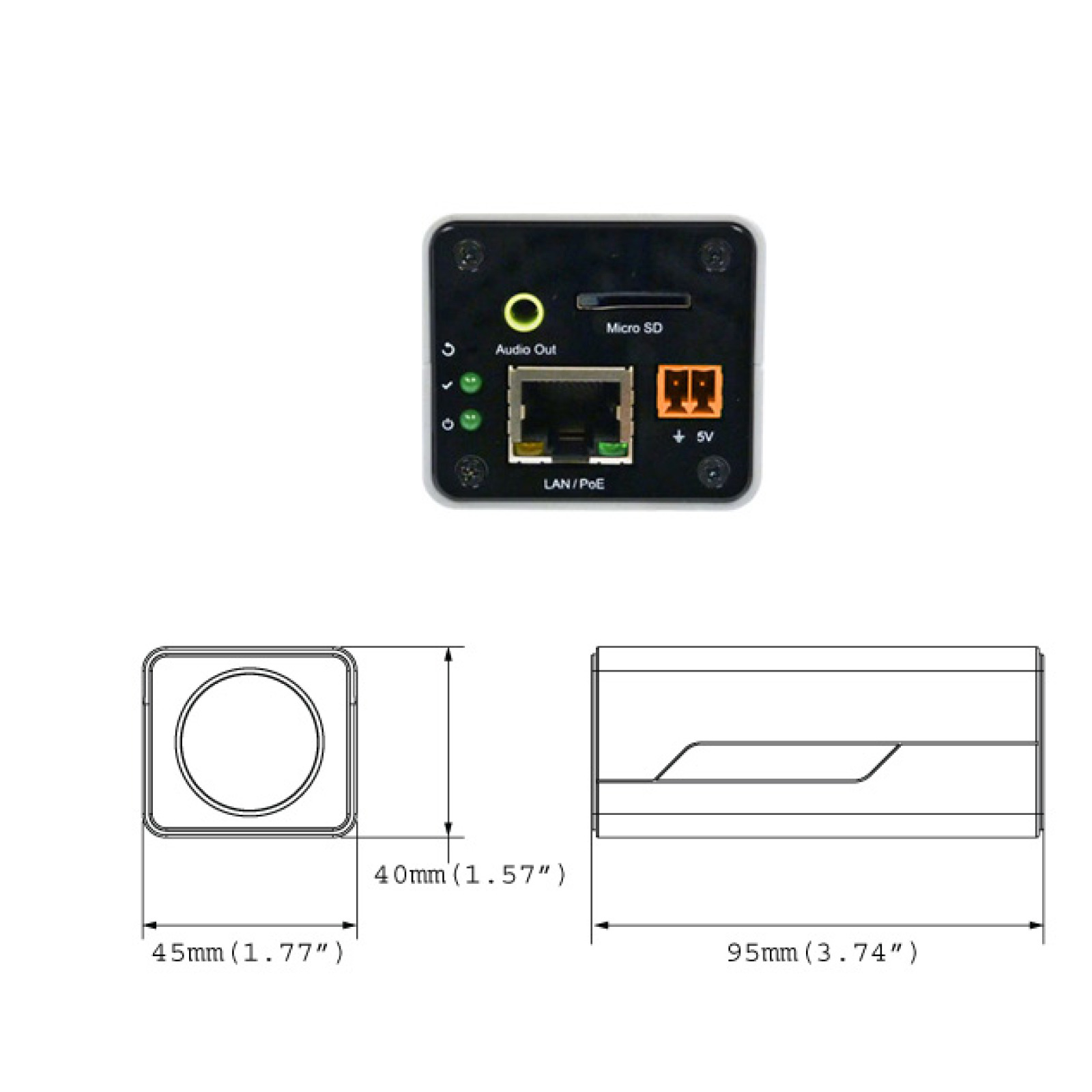

  • Dimensions: 95 x 45 x 40 mm / 3.7 x 1.8 x 1.6 in
  • Weight: 120 g / 0.26 lb
  • Regulatory: CE, FCC, CͲTick, RoHS compliant



Power over Ethernet

  • PoE Standard: IEEE 802.3af Class 3 Power over Ethernet / PD
  • PoE Power Supply Type: End-Span
  • PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts



Web Interface

  • Installation Management: Web-based configuration
  • Maintenance: Firmware upgrade through Web Browser or Utility
  • Access from Web Browser: Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
  • Language: Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish



Application

  • Network Storage: GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
  • Smart Device Access: GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch GV-Eye HD for iPad
  • Live Viewing: IE, mobile phone
  • CMS Server support: GV-Control Center, GV-Center V2, GV-VSM
