Intel Ethernet - It just works! 01

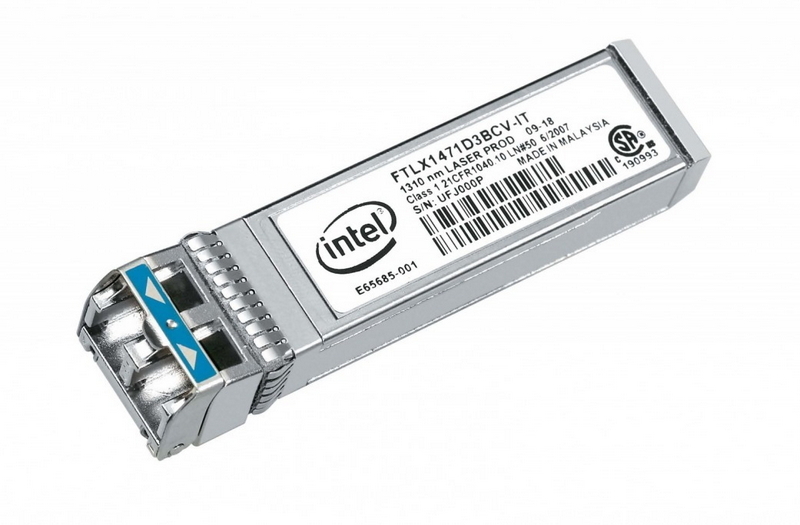

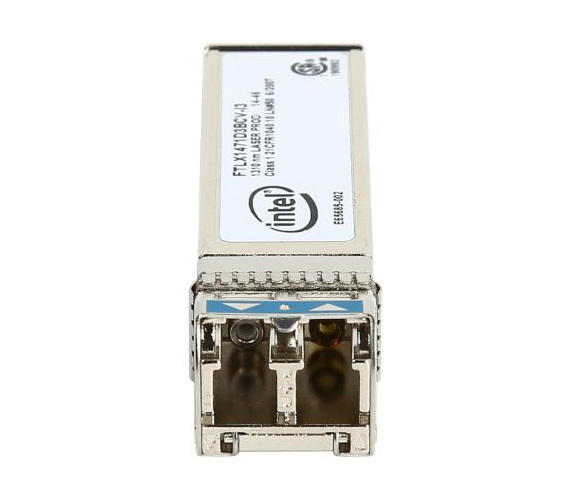

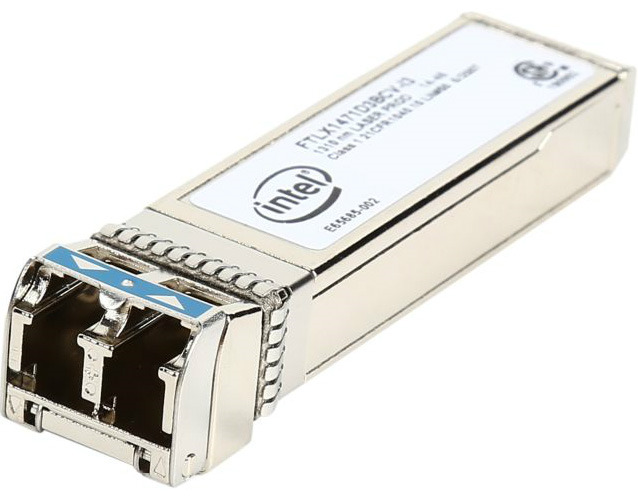

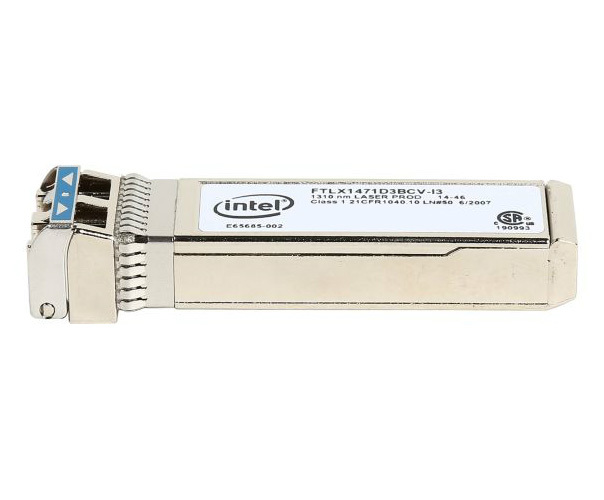

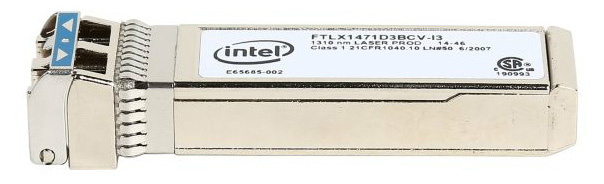

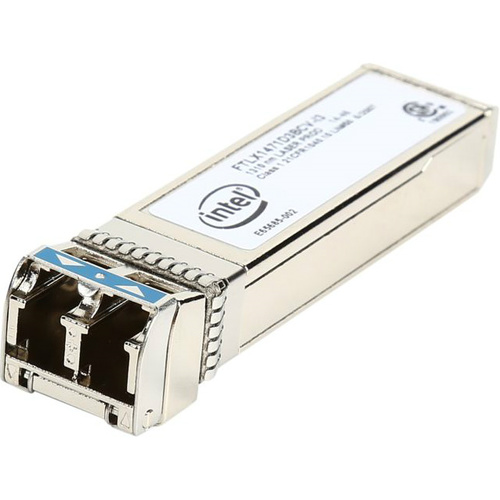

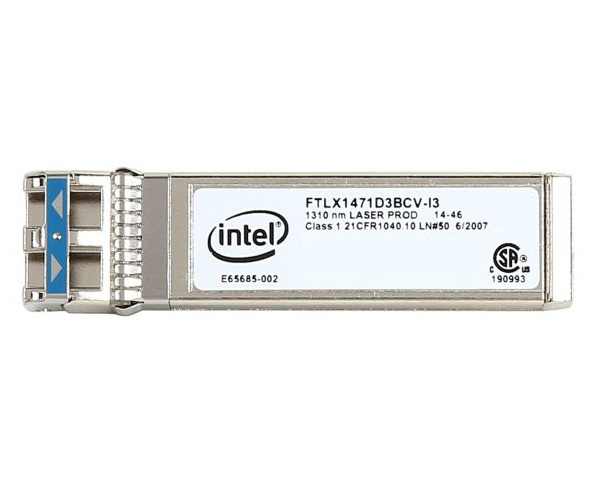

The Intel Ethernet SFP+ LR ( Long Range - Max link distance is 10km) Optic is a SFP+ module designed for the Intel Ethernet Converged Network Adapters (X520 family: product codes: E10G43BTDA, E10G41BFSR, E10G42BFSR, E10G41BFLR). This lead free optic module supports rates selectable 1.25 Gb/s to 10.3 Gb/s bit rates.

Intel® Ethernet SFP+ SR Optics and LR Optics for the Intel® Ethernet Server Adapter X520 Family 02

Intel’s family of Intel® Ethernet Server Adapter X520 family with SFP+ connectivity are the most flexible and scalable Ethernet adapters for today’s demanding data center environments. The escalating deployments of servers with multi-core processors and demanding applications such as high performance computing (HPC), database clusters, and video-on-demand are the types of applications driving the need for 10-gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

Powered by Intel’s third-generation 10 GbE network controller, the Intel® Ethernet Controller 10 Gigabit 82599, the Intel Ethernet Converged Network Adapter X520 family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.

To ensure maximum flexibility, Intel supports the ability to mix any combination of the SFP+ optical modules, direct attach copper cables, or 1000BASE-T SFP modules on the Intel Ethernet X520 Adapters. For instance, customers can remove the optical modules that come installed on the adapter and replace them with an Intel® Ethernet SFP+ SR Optic or LR Optic, an SFP+ direct attach copper cable, or a 1000BASE-T SFP module. Intel Ethernet SFP+ Optics are available in both short range (SR) 850 nm and long range (LR) 1310 nm options.

Standart Data Transfer Rates Gigabit Ethernet
Standard Gigabit Ethernet
Type Internal
Packing Weight 100 g
Interface Ethernet
Packing Width 122 mm
Packing Depth 24 mm
Additional Features Maximum Data Transfer Rate: 10 Gbit/s Network Technology: 10GBase-LR Interfaces/Ports: 1 x 10GBase-LR Connectivity Media: Fiber 10GBase-LR
Packing Height 78 mm
Package Type BOX
