  • Screen Screen ≤24"
  • Capacity Capacity ≤32 lbs ≤14.5 kg *
  • Lift Lift 25" 63.5 cm †
  • Tilt Tilt 30°
  • Pan Pan 360°
  • Rotation Rotation 90°
  • UPC: 698833018165
  • Part Numbers (CPU size, color):
  •
  • 45-272-216 (small CPU, white)
  •

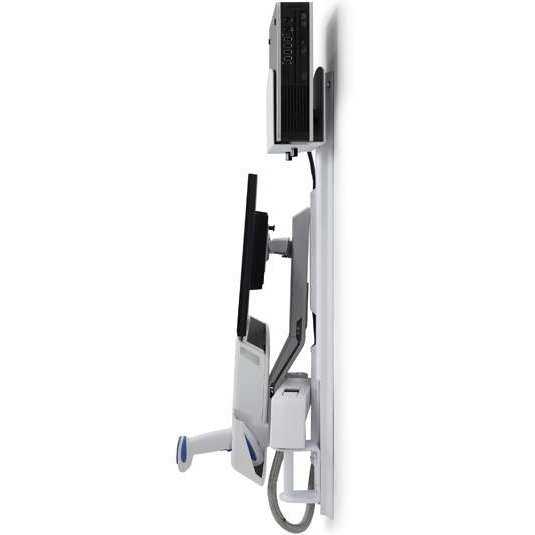

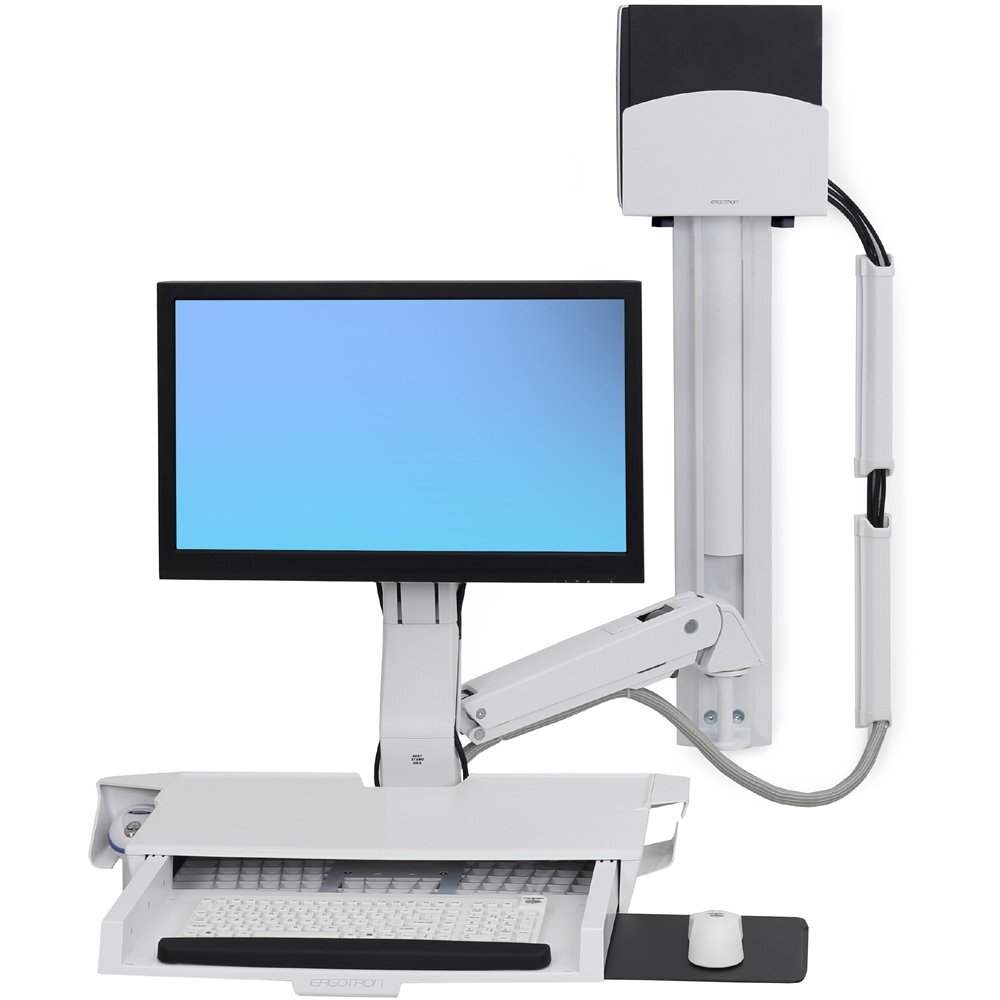

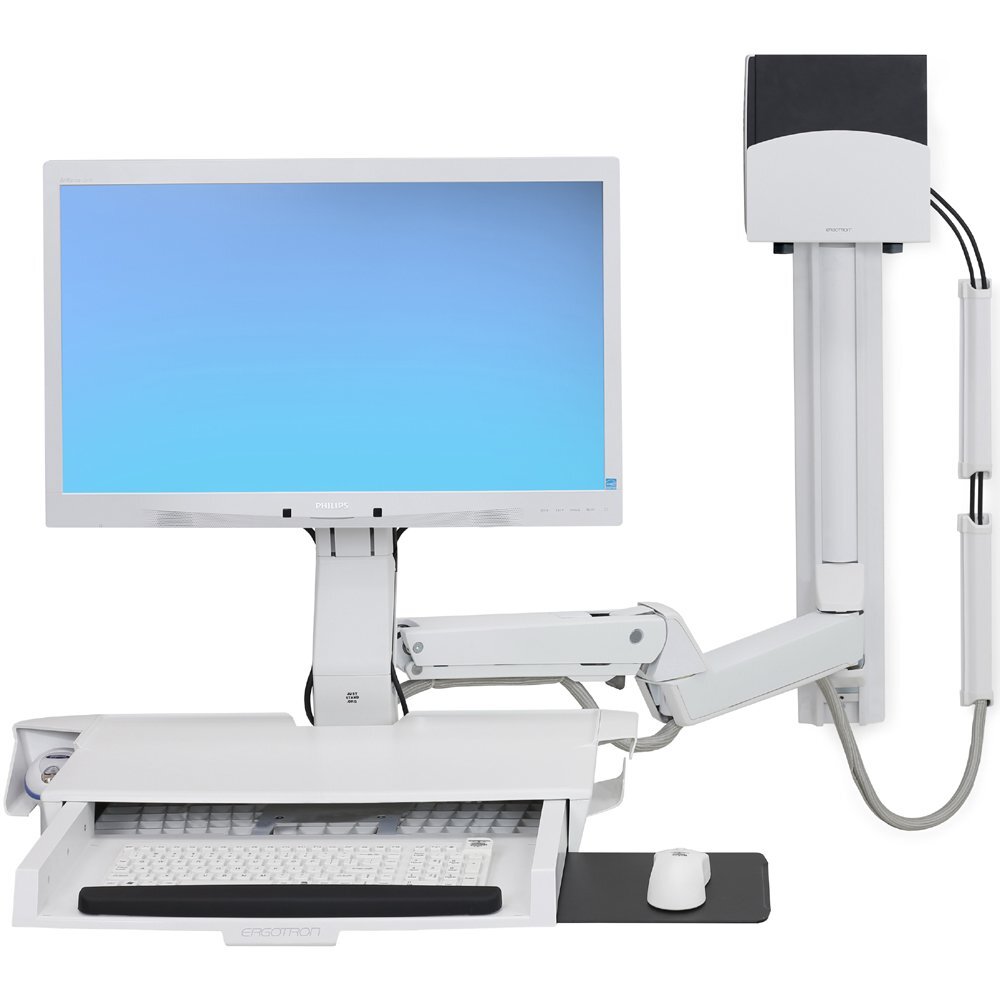

  • Description: StyleView Sit-Stand Combo System with Worksurface and CPU Holder
  • Includes Combo Arm, 34" Wall Track with (2) track covers, CPU holder, (2) 10" cable channels, CPU and arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, cable ties
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
  • * Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18 kg)
  • † Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
  • Monitor up/down tilt = +25°/-5°
  • Patented CF™ lift-and-pivot motion technology
  • Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
  • Integrated mouse and barcode scanner holder provide easy access

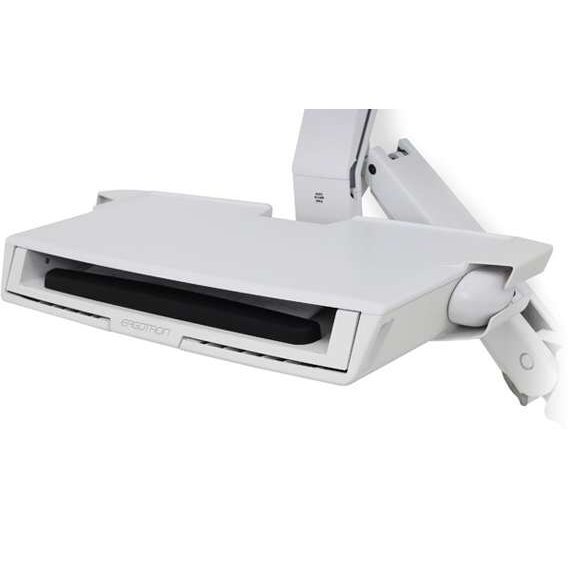

  • Fold-down worksurface/keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
  • CPU Size Range:
  • Small CPU Holder: 1-3/8" to 3-3/4" (3.5 to 9.5 cm) wide
  • Medium CPU Holder: 3-3/8" to 8" (8.5 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included spacer within the holder
  • To increase extension range, also order SV Extender (see Accessories)
  • Can be configured to hold a laptop instead of an LCD display; also order Notebook Tray (see Accessories)
  • Product Weight: 41 lbs (19 kg)
  • Shipping Dimensions: 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
  • Shipping Weight: 51.2 lbs (23 kg)
