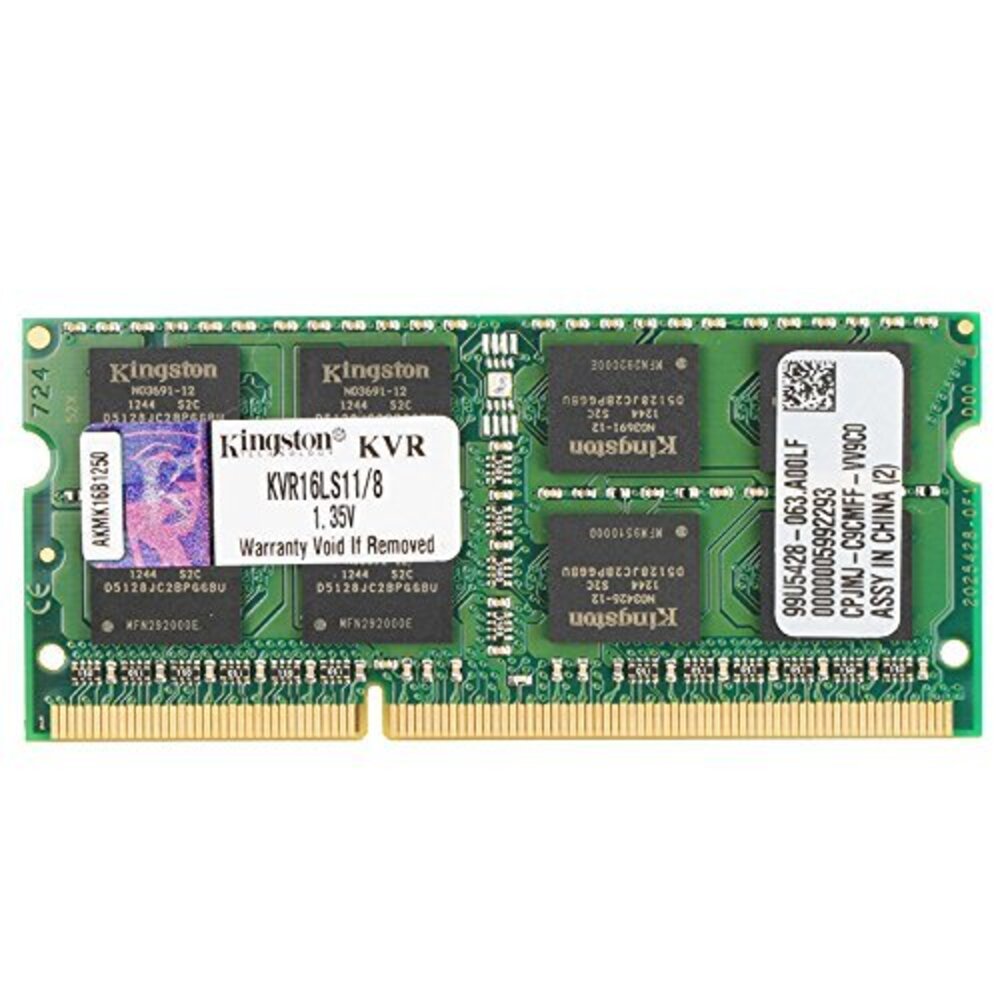

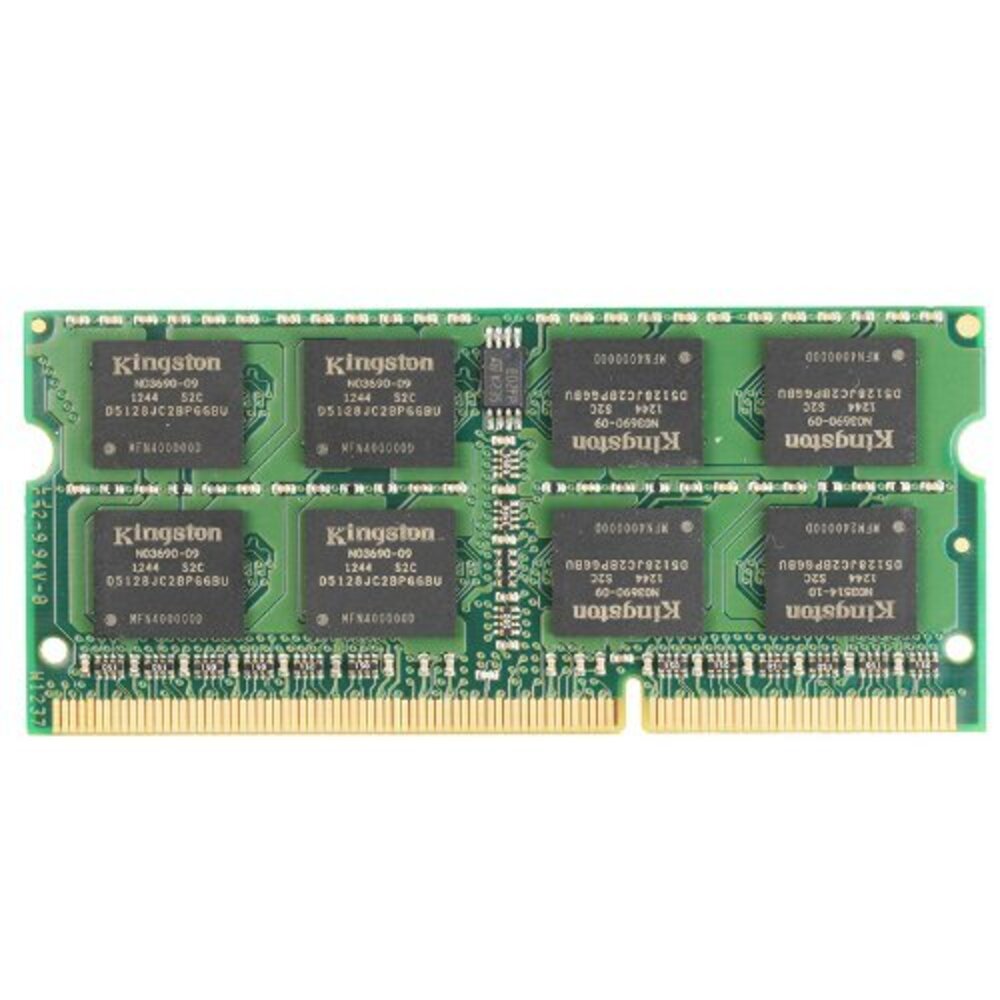

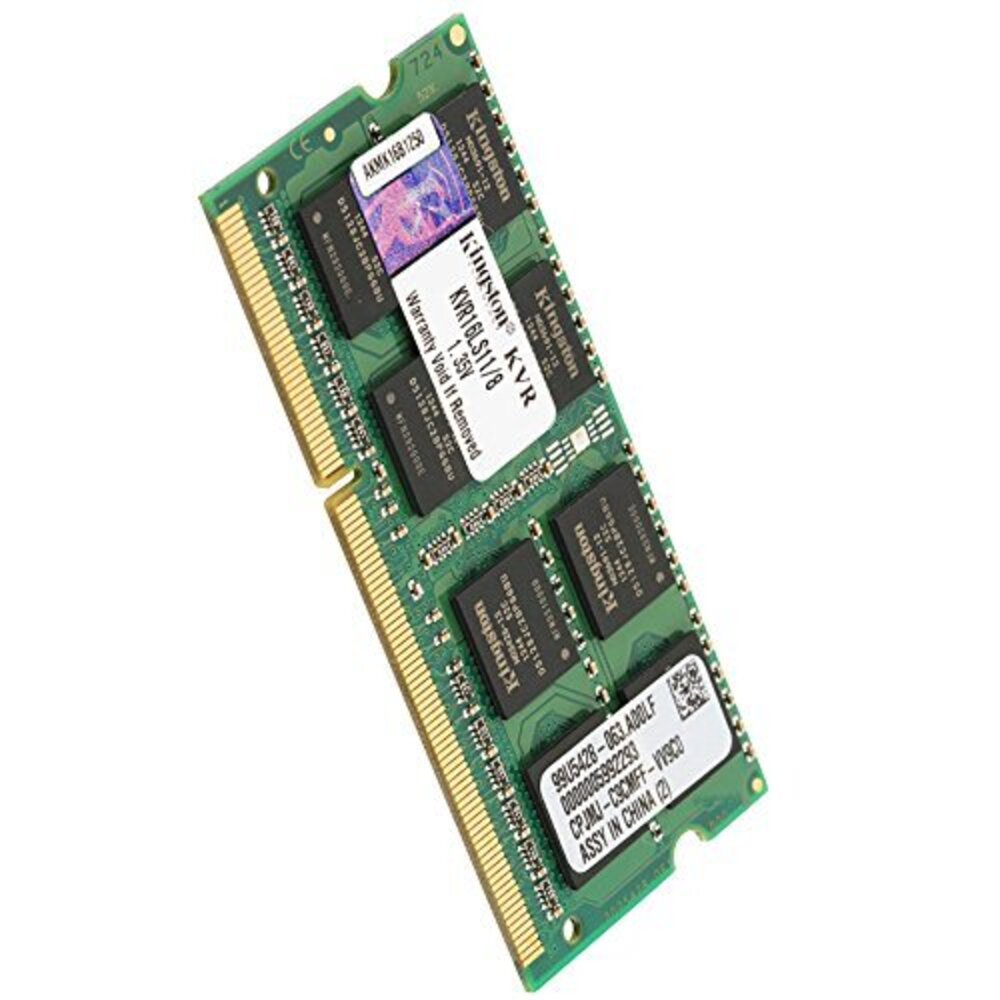

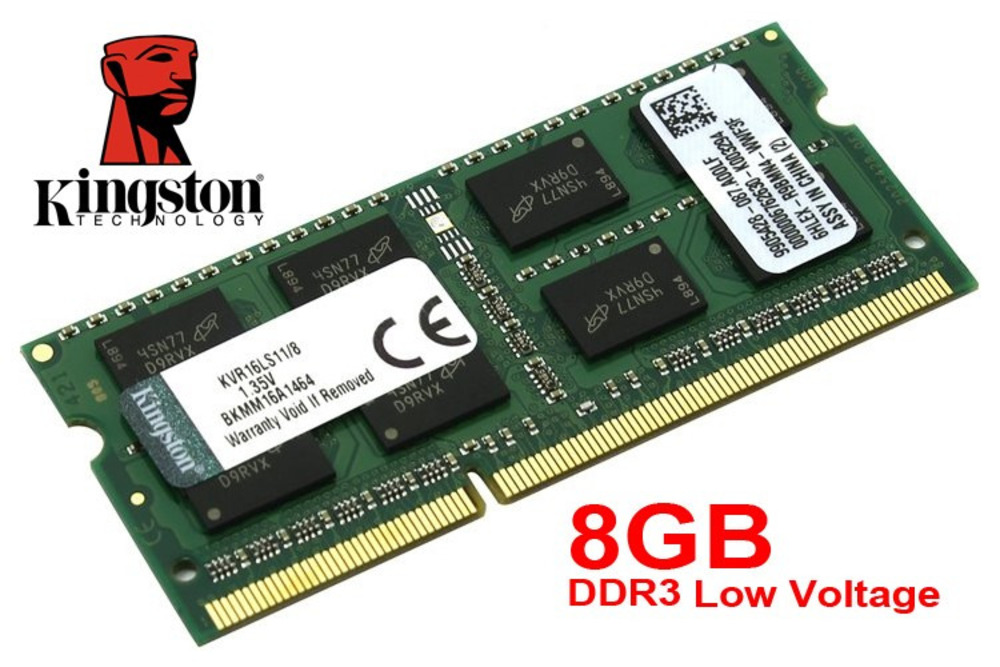

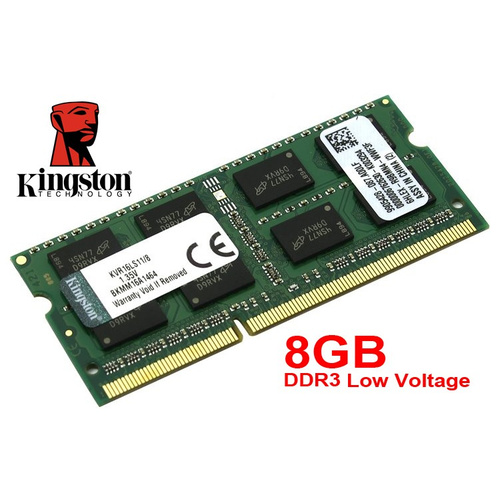

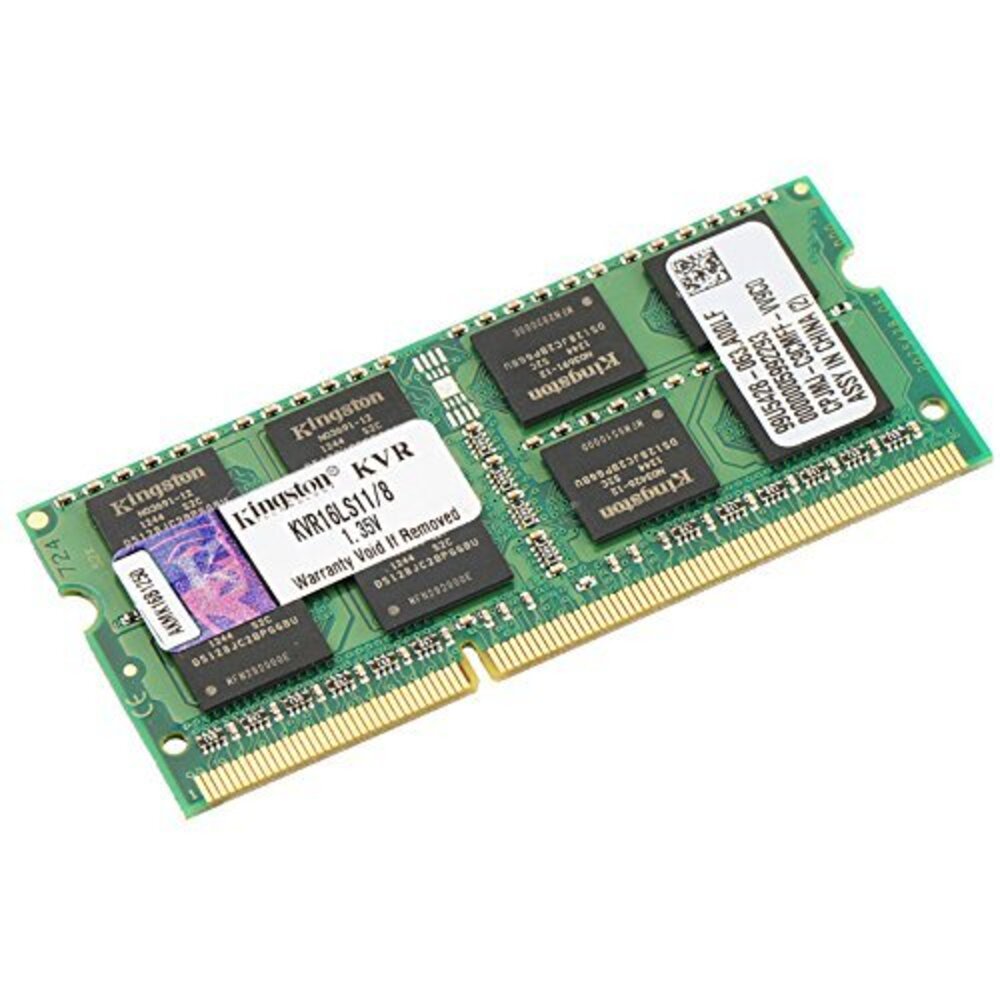

Kingston ValueRAM 8GB 1600MHz DDR3L (PC3-12800) 1.35V Non-ECC CL11 SODIMM Intel Laptop Memory

Kingston ValueRAM - Intel Systems Support

Kingston Memory for Branded Systems

Designed with your specific system in mind, Kingstonsystem-specific memory makes it easy to select exactly what you need, based onyour OEM system brand and model.+

Quality

Kingston engineers use only the highest quality components on the market toensure maximum performance and legendary Kingstonreliability.

Guaranteed compatible

All Kingston system-specific memory is guaranteed to becompatible with the system for which it was designed – which takes the hassleout of selecting memory for your notebook or desktop.

Improve performance

If your system is lagging or a program doesn’t respond or won’t load, you may have a memory shortage. You may see subtle signs, like poor performance in everyday tasks, or you may be receiving “out of memory” messages.

Add reliable Kingston memory and watch your productivity soar. Pages may load faster and launching new applications may be easier and faster, leaving you more time for that important project.

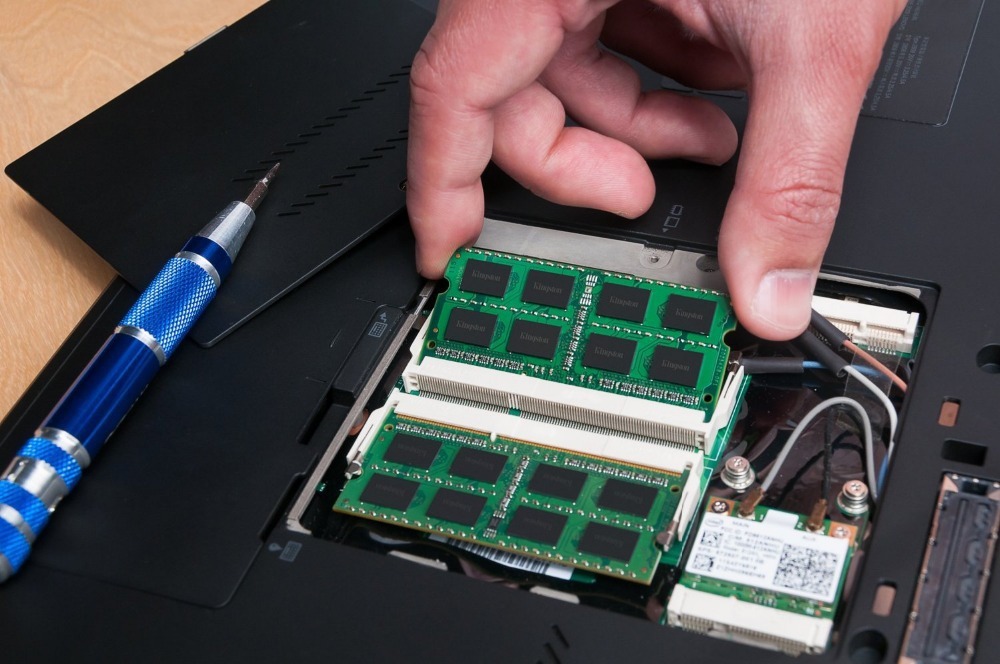

Replace your memory

In case your memory fails, rest assured that Kingston can deliver what you need to get back up and running.

If you’re using a brand-name system or you know the name of your whitebox system’s motherboard, use our configurator to find the right module.

If you know the specs of the memory in your whitebox system, our product selection tool is for you. Finding the memory you need is easy with Kingston.

FEATURES

• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply

• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)

• 800MHz fCK for 1600Mb/sec/pin

• 8 independent internal bank

• Programmable CAS Latency: 11, 10, 9, 8, 7, 6

• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

• 8-bit pre-fetch

• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]

• Bi-directional Differential Data Strobe

• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)

• On Die Termination using ODT pin

• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C

• Asynchronous Reset

• PCB: Height 1.18” (30mm), double sided component

Memory Module Specifications

CL(IDD) 11 cycles

Row Cycle Time (tRCmin) 48.125ns (min.)

Refresh to Active/Refresh 260ns (min.)

Command Time (tRFCmin)

Row Active Time (tRASmin) 35ns (min.)

Maximum Operating Power (1.35V) = 2.721W*

UL Rating 94 V - 0

Operating Temperature 0^o C to 85^o C

Storage Temperature -55^o C to +100^o C

*Power will vary depending on the SDRAM.

Specification	http://www.kingston.com/dataSheets/KVR16LS11_8.pdf
Model	KVR16LS11/8
Capacity	8 GB
Type	SODIMM DDR3L
Packing Weight	20 g
Number of Modules	1
Purpose	For Notebooks
Memory Speed	1600 MHz
Voltage	1.35 V
Timing Parameters	11-11-11
Packing Width	80 mm
Packing Depth	10 mm
Packing Height	50 mm
Cooling	None
Package Type	BOX
Subject	Usual
