DIMENSIONS

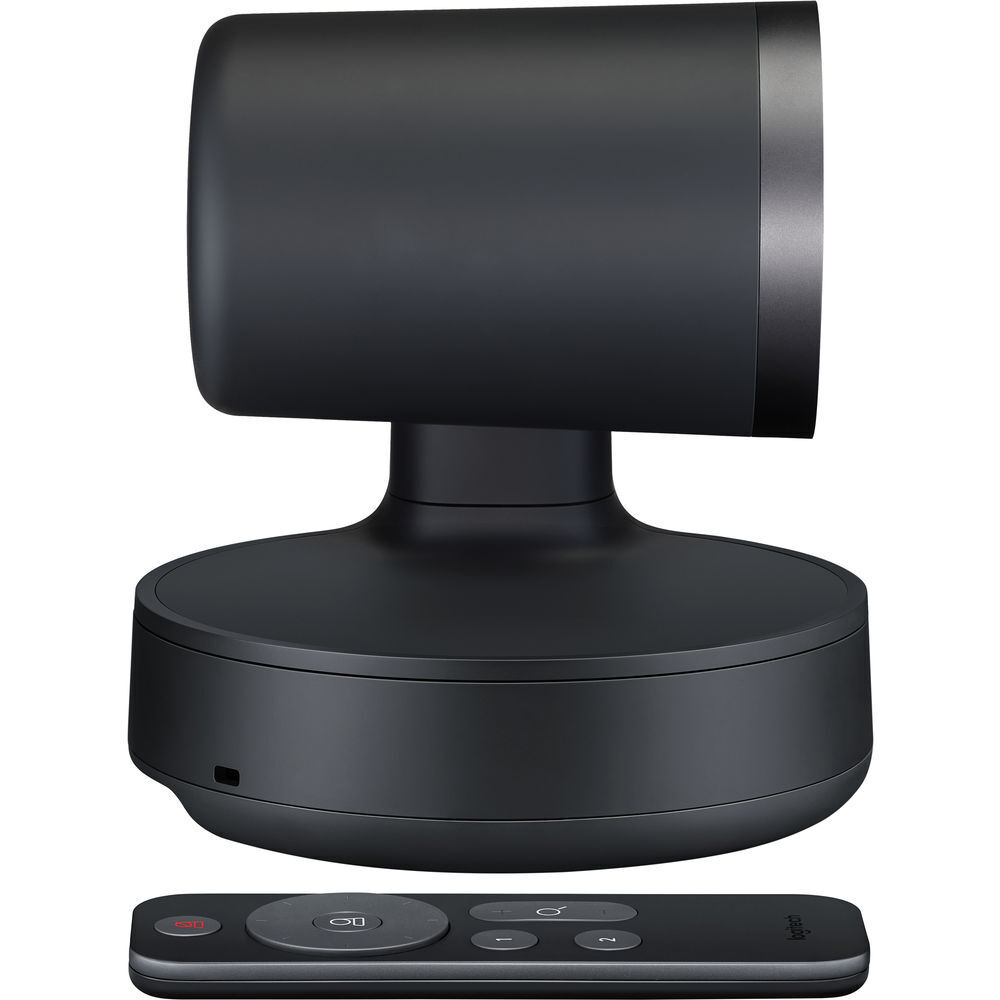

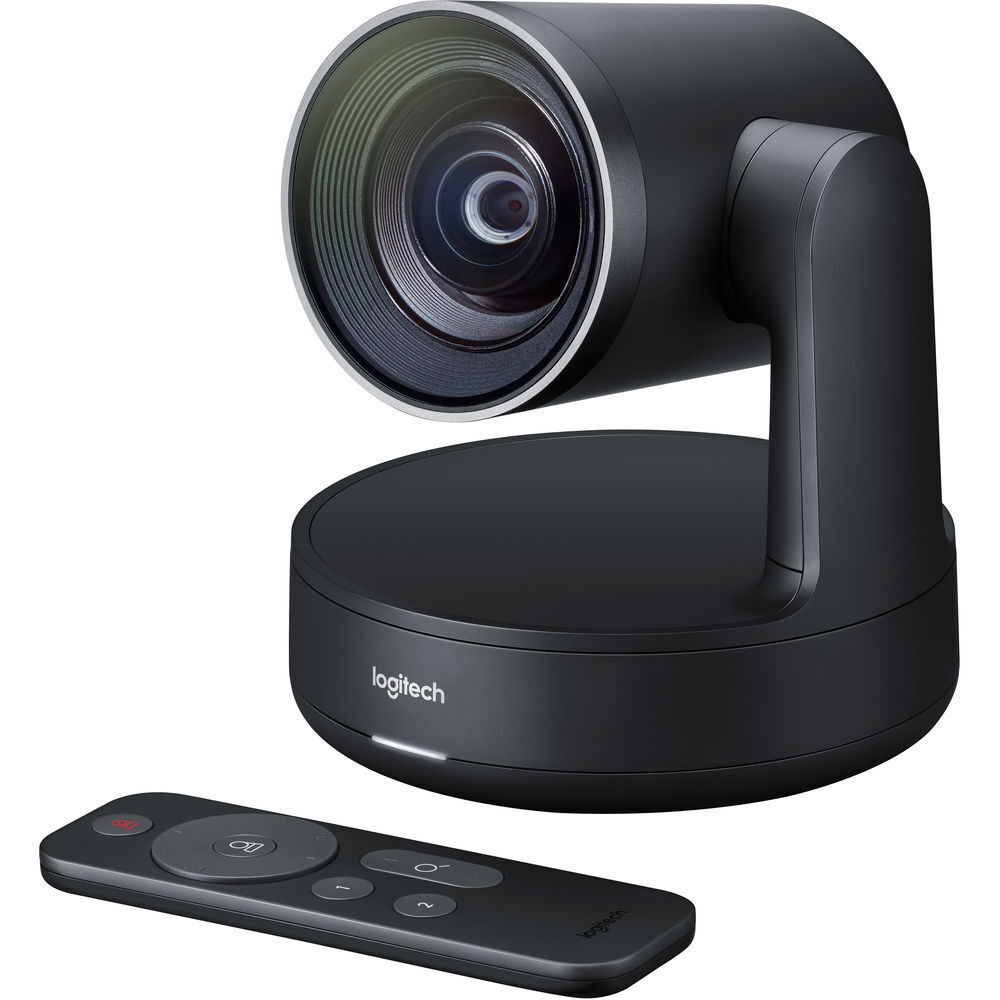

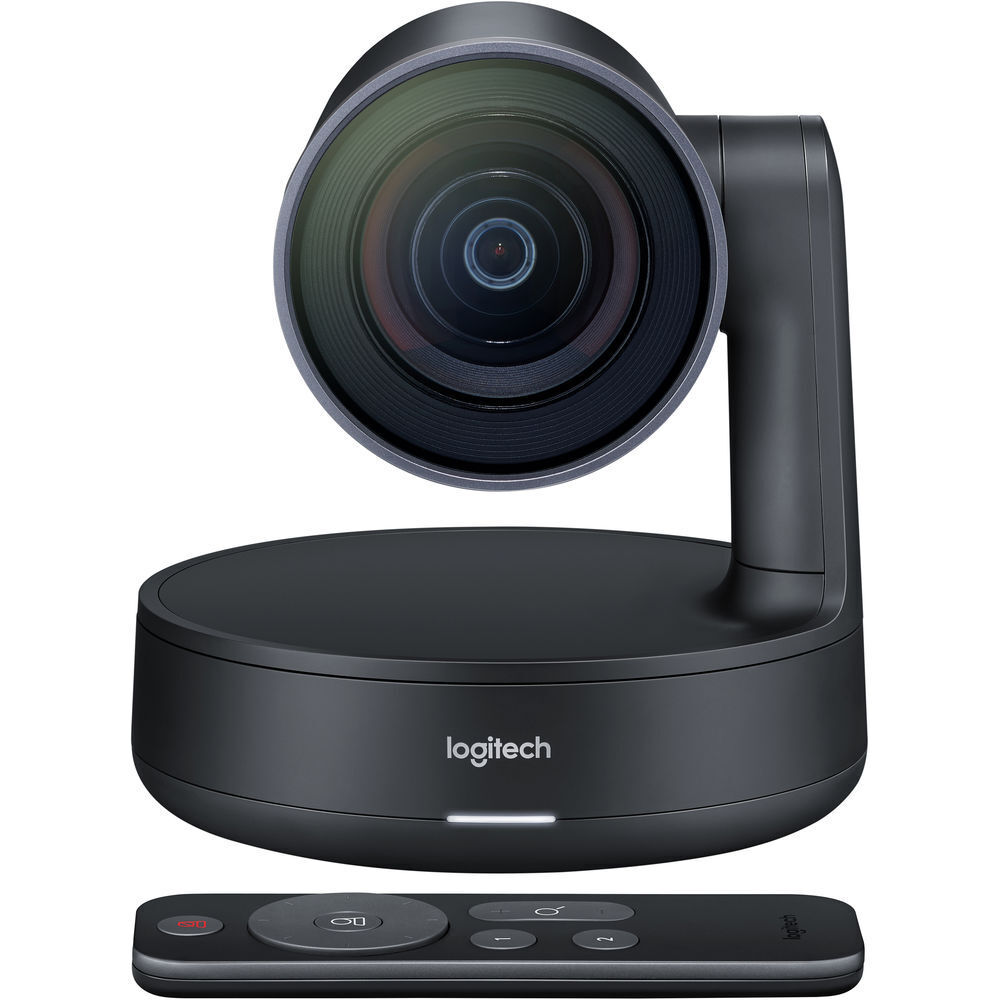

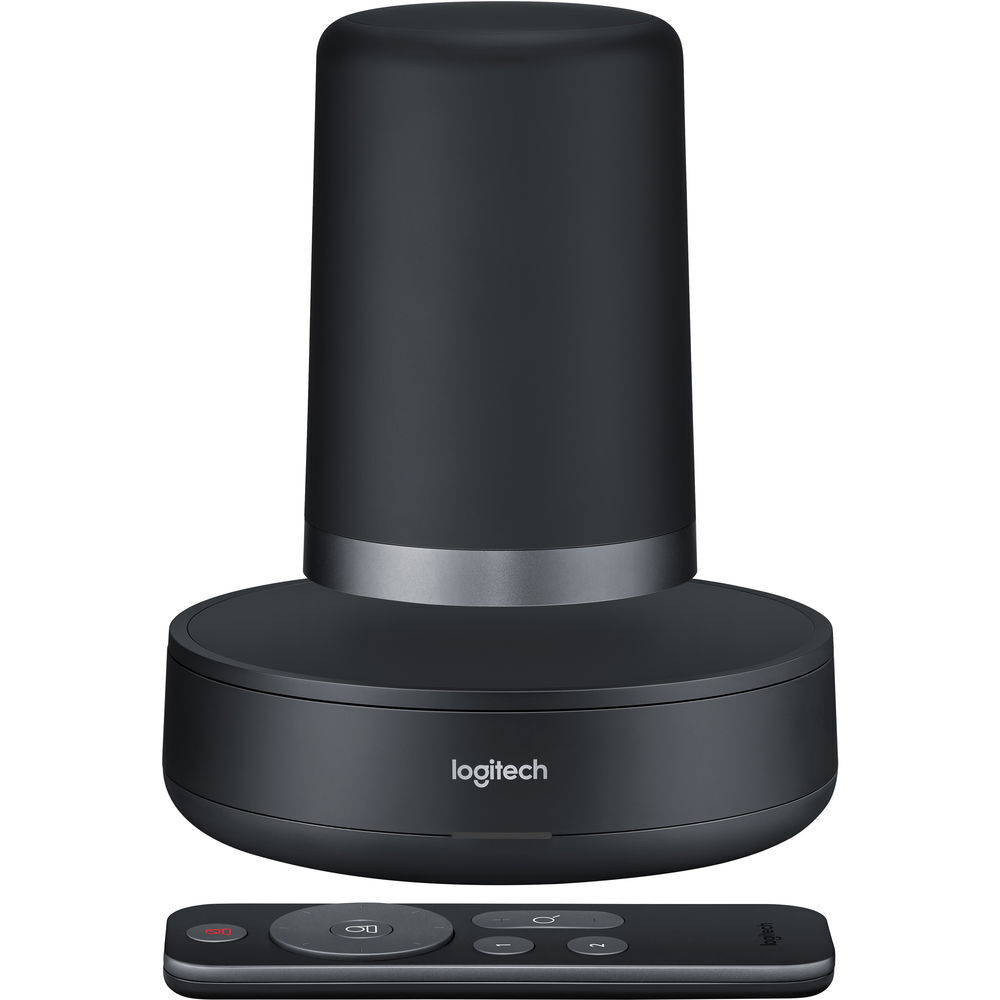

Rally Camera

Height x Width x Depth: 7.19 in (182.5 mm) x 5.88 in (152 mm) x 5.88 in (152 mm)

Rally Camera Power Splitter

Height x Width x Depth: 0.84 in (21.4 mm) x 3.19 in (81 mm) x 2.38 in (60.5 mm)

Rally Camera Mounting Bracket

Height x Width x Depth: 3.47 in (88 mm) x 4.33 in (110 mm) x 6.69 in (170 mm)

USB 3.0 cable

7.2 ft (2.2 m)

Power Adapter Cable

9.8 ft (3 m)

SYSTEM REQUIREMENTS

• Operating Systems
• Windows® 7, Windows 8.1 or Windows 10
• macOS®: 10.10 or higher
• Chrome OS™
• Resolutions higher than 1080p
• Windows 8.1 or higher or macOS 10.10 or higher
• USB 3.0 port and Type C cable
• Compatible software
• Additional Software
• RightSight automatic camera control 1



TECHNICAL SPECIFICATIONS

CAMERA

Ultra-HD imaging system supports: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps 1080p, 720p at 30fps and 60 fps

Smooth motorized pan, tilt and zoom:

• Pan: ±90°
• Tilt: +50° / -90°
• 15x HD zoom

Field of View:

• Diagonal:90°
• Horizontal: 82.1°
• Vertical: 52.2°

Autofocus

3 camera presets

Kensington security slot

Video mute/unmute LED indicator

Standard tripod thread

RIGHTSENSE™ TECHNOLOGIES

• RightLight™ with Wide Dynamic Range (WDR)
• RightSight™ automatic camera control2
• REMOTE CONTROL
• RF remote control (line of sight not required)
• CR2032 battery (included)

CABLES / POWER

• AC Power adapter with regional plugs
• Power cable (9.8 ft / 3 m)

MOUNT

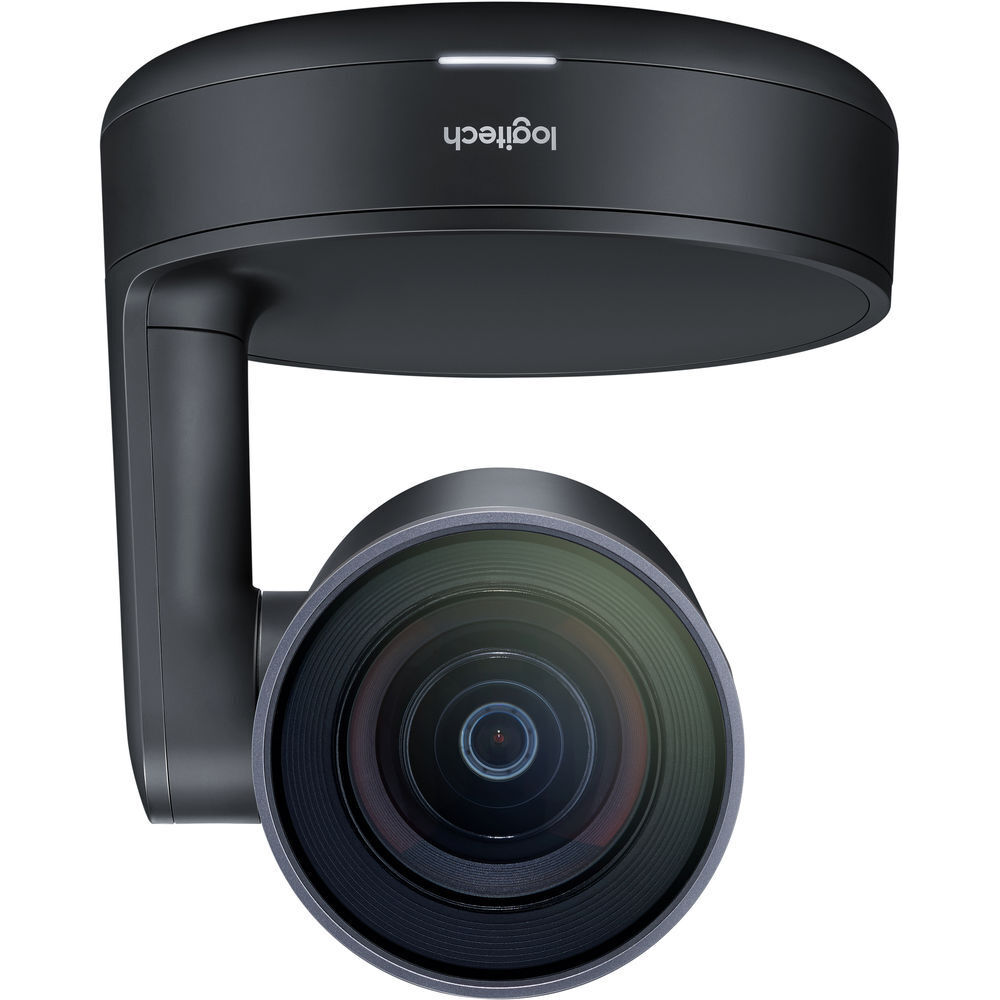

• Invertible wall mount with power splitter bay and cable management

COMPATIBILITY AND CERTIFICATIONS

• Plug-and-play USB connectivity
• Certified for Skype for Business and ready for Teams
• Zoom Certified
• Fuze Certified
• Cisco Compatible
• Compatible with Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

PACKAGE CONTENTS

• Rally Camera
• Remote control
• USB 3.0 Type-C cable
• Power adapter with regional plugs
• Power splitter & case
• Camera mount with mounting hardware
• Documentation

WARRANTY INFORMATION

• 2-Year Limited Hardware Warranty

PART NUMBER

• PN: 960-001226
