 Studio-quality video with 4K Ultra-HD clarity
· Includes two speakers and two mic pods, with support for up to seven mic pods for larger rooms
· Premium design and materials complement any room
· Built-in Logitech RightSense™ suite of technologies automate a better user experience
· Table and Display Hubs minimize cross-room cabling

Logitech Rally Plus delivers studio-quality video, unmatched voice clarity, and RightSense™ automation for better, more natural meetings with most any software-based video conferencing service.

Ultra-HD Video: Premium 4K optics and intelligent PTZ features to capture every seat in meeting rooms and classrooms Modular Audio Components: Two front-of-room speakers and an expandable beamforming mic pod array deliver natural-sounding audio to everyone in the meeting.

RALLY PLUS

Premium Ultra-HD ConferenceCam system with automatic camera control

 RightSense™ technology automates a better user experience

 Modular audio for full coverage of medium to very large rooms

 Premium components and sleek industrial design

Rally Plus

ALL TOGETHER NOW



Logitech Rally delivers studio-quality video, unmatched voice clarity, and RightSense® automation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skype® for Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management, and premium finishes, Rally integrates beautifully into medium and larger rooms.



KEY FEATURES



STUDIO-QUALITY VIDEO

With an Ultra-HD imaging system, Rally delivers brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLight™ technology optimizes light balance to emphasize faces and render natural-looking skin tones, even in dim or backlit conditions.



ADVANCED MODULAR AUDIO



Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound.



Audio Image

Audio Image

SLEEK INDUSTRIAL DESIGN

Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.

ENHANCED USER EXPERIENCE

Logitech RightSense™ is a suite of technologies built into Rally that automate a better user experience. RightSight™ perfectly auto-frames participants no matter their distance from the lens. RightLight™ prioritizes faces over the environment to render natural-looking skin tones while RightSound™ enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings automatically!



Wide View



Unit I/O

Option 1 Cabling

Option 2 Cabling

Unit I/O





SMART CABLING AND CONTENT SHARING

With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.

  • DIMENSIONS

    Rally Camera

    • Height x Width x Depth:
    • 182.5 mm x 152 mm x 152 mm



    Rally Speaker

    • Height x Width x Depth:
    • 103 mm x 449 mm x 80 mm



    Rally Mic Pod

    • Height x Width x Depth:
    • 21 mm x 102 mm x 102 mm



    Rally Display Hub

    • Height x Width x Depth:
    • 40 mm x 206 mm x 179 mm



    Rally Table Hub

    • Height x Width x Depth:
    • 40 mm x 176 mm x 138 mm

    SYSTEM REQUIREMENTS

    Operating Systems

    Resolutions higher than 1080p

      • Windows® 7, Windows 8.1 or Windows 10
      • macOS 10.10 or higher
      • Windows 8.1 or higher or macOS 10.10 or higher
      • USB 3.0 port and Type C cable
      • Compatible software

    RIGHTSENSE TECHNOLOGIES

    RightLight with WDR

    • Low-light compensation
      Video noise reduction
      Low-light saturation optimization
      Renders natural skin tones for each participant on camera
      Reduces backlighting and glare without darkening the entire image.

    RightSight1

    • Human figure detection
      Auto-frame participants at meeting start
      Auto-frame participants on-demand
      Auto-reframe participants during meetings 1

    RightSound

    • Machine learning AI trained to distinguish human speech from other sounds
      AEC (Acoustic Echo Cancellation)
      VAD (Voice Activity Detector)
      Background noise suppression
      Auto-level loud and soft voices

    RightSound Mic Matrix

      • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
      • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
      • Beam focus refresh rate: 8ms (125 times/second)

    Anti-Vibration Suspension:

      • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
      • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
  • TECHNICAL SPECIFICATIONS

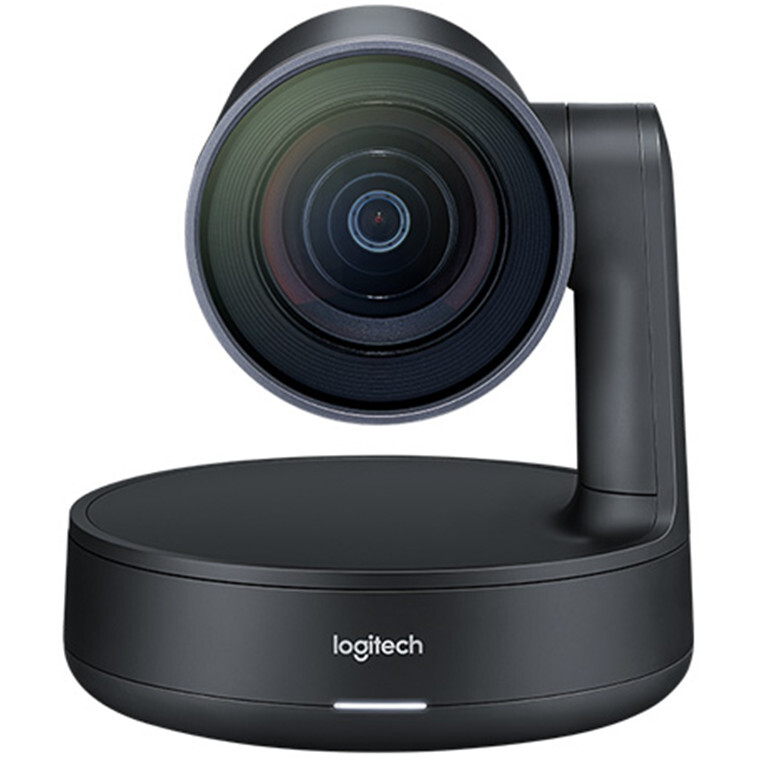

    RALLY CAMERA

    • Ultra-HD imaging system supports:
      • 4 K, 1440 p, 1080 p, 900 p, 720 p, and SD at 30 fps
      • 1080 p, 720 p at 30 fps and 60 fps
    • Smooth motorized pan, tilt and zoom
    • Pan: ±90°
    • Tilt: +50° / -90°
    • 15x HD zoom
    • Field of View:
      • Diagonal: 90°
      • Horizontal: 82.1°
      • Vertical: 52.2
    • Autofocus
    • 3 camera presets
    • Kensington security slot
    • Video mute/unmute LED indicator
    • Standard tripod thread
    • Lens parks at -90° in sleep mode for assured privacy

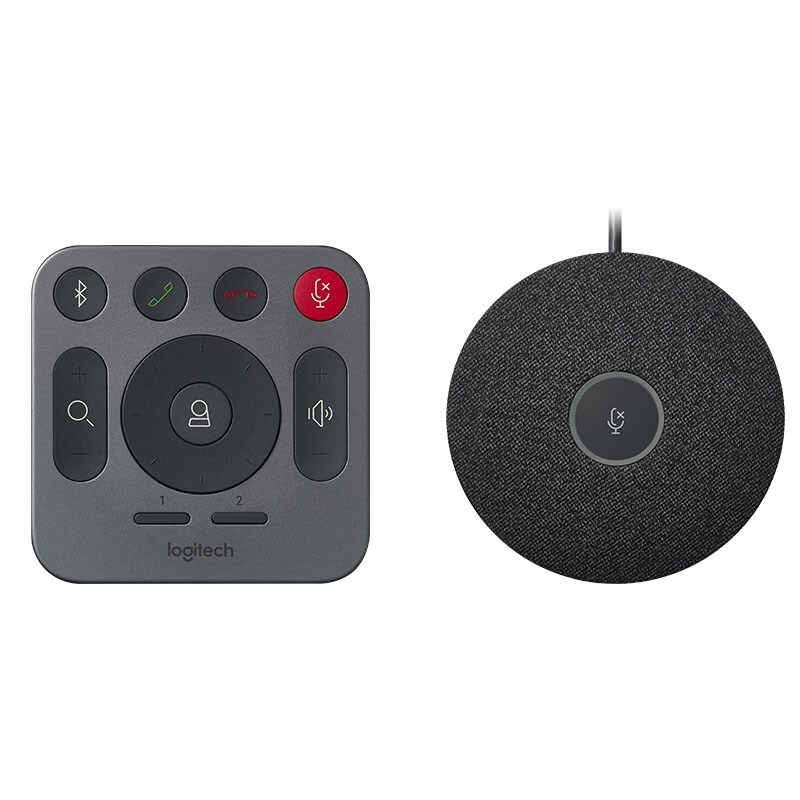

    RALLY MIC POD

    • Pickup range: 4.5 m diameter
      Four omnidirectional microphones forming eight acoustic beams
      AEC (Acoustic Echo Cancellation)
      VAD (Voice Activity Detector)
      Background noise suppression
      Mute button with LED status indicator
      Captive 2.95 m 12-pin cable
      Daisy chain up to 7 Rally Mic Pods
      Frequency response: 90 Hz – 16 kHz
      Sensitivity: >-27 dB +/-1 dB @ 1 Pa
      Microphone data rate: 48 kHz

      Recommended # of participants:
      Rally (one Mic Pod): 10
      Additional participants per Mic Pod: 6
      Recommended participants for Rally with 7 Mic Pods: 46

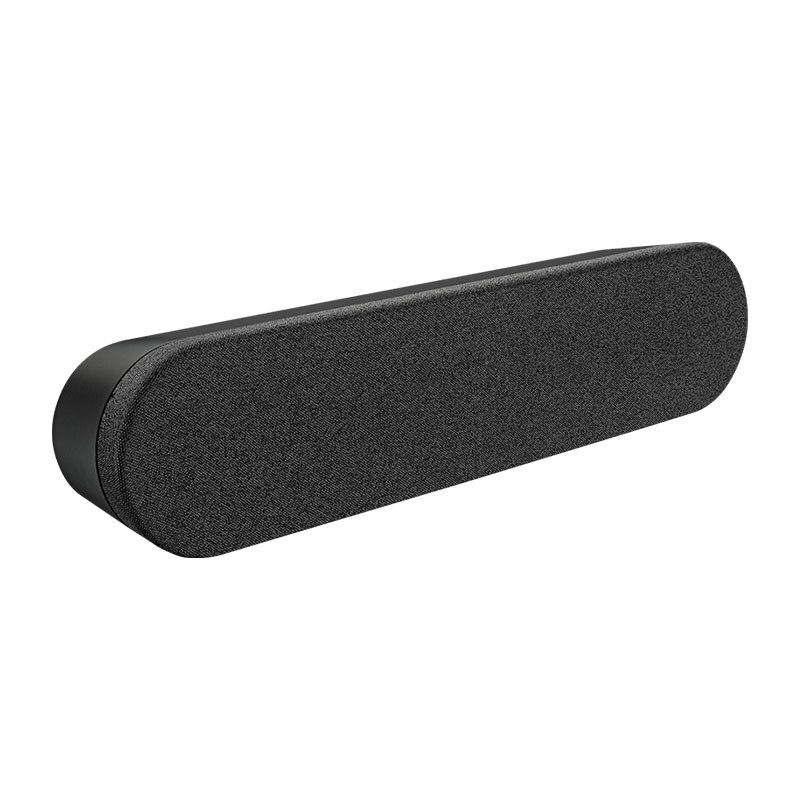

    RALLY SPEAKER

    • High-performance 76 mm driver with rare-earth magnet
      Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
      Mini XLR cable connects to Rally Display Hub for both signal and power
      Speaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter
      Sensitivity: 95+/-2 dB SPL at ½ meter
      Distortion: 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
      Speaker sampling rate: 48 kHz

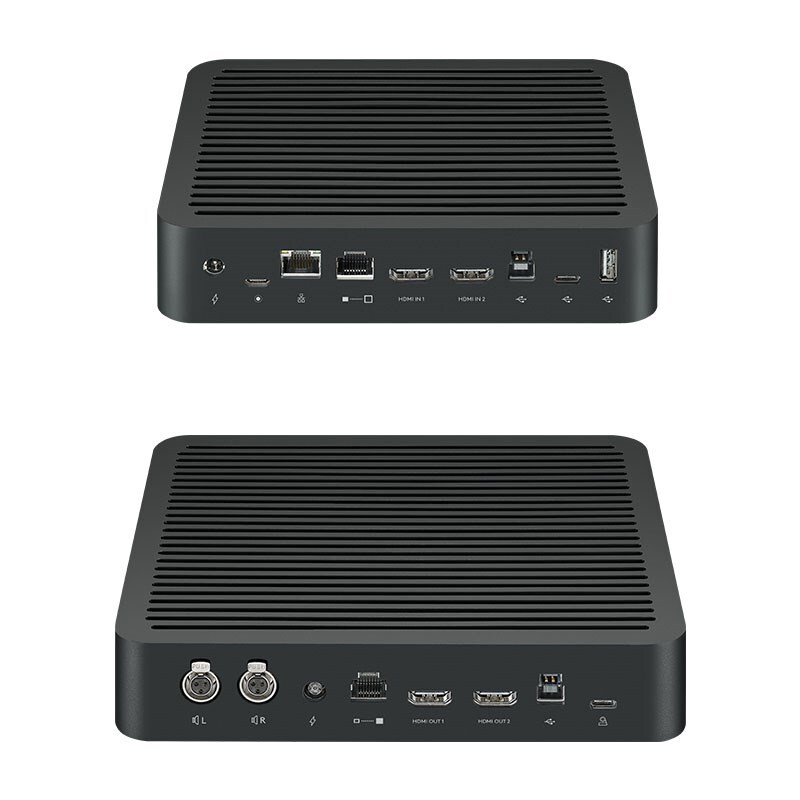

    RALLY TABLE HUB

    • Single CAT6A cable connection to Rally Display Hub ( 5 m cable included, supports customer-supplied cables up to 50 m)
      Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
      12 Pin connector for Rally Mic Pod
      HDMI Type A passthrough to Display Hub (x2)
      USB Type C
      USB Type A (reserved for future capability)
      USB Type B (connects to meeting room computer)
      RJ45 (reserved for future capability)
      Power input

    RALLY DISPLAY HUB

    • HDMI Type A (x2) (connects to displays)
      USB C (connects to Rally Camera)
      USB Type B (connects to meeting room computer)
      RJ45 (connects to Table Hub)
      Mini XLR (x2)
      Powers one or two Rally Speakers
      Power input

    REMOTE CONTROL

    • RF remote control (line of sight not required)
    • CR2032 batteries (included)

    CABLES / POWER

    • Camera to Display Hub
      2 m USB 3.1 Type C to USB Type C 3.1

      Conference Room Computer to Display or Table Hub
      2 m USB 3.1 Type A to USB Type B

      Display Hub to Table Hub
      5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

      Display Hub to Speaker (x2)
      2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m

      Conference Room Computer to Displays (x2)
      2 m HDMI A

      Mic Pod
      2.95 m: Hardwired with 12 pin connector

      Power Outlets to Power Supplies (x2)
      1 m

      Power Supplies to Table Hub / Display Hub (x2)
      1.5 m
      • Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

    COMPATIBILITY AND CERTIFICATIONS

    • Plug-and-play USB connectivity
    • Certified for Skype for Business and ready for Teams
    • Zoom Certified
    • Fuze Certified
    • Certified for Google Hangouts Meet Hardware
    • Microsoft Cortana® certified
    • Cisco Jabber® and WebEx Compatible
  • PACKAGE CONTENTS

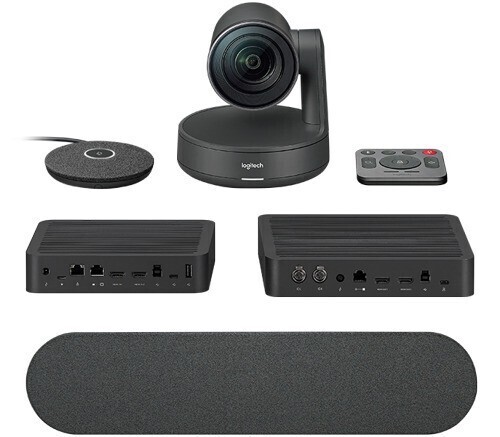

    • Logitech Rally
      Rally Camera
      Rally Display Hub
      Rally Table Hub
      Rally Speaker (x1)
      Rally Mic Pod (x1)
      Remote control
      USB Type C to USB Type C
      USB Type-A to USB Type B
      CAT6A Ethernet cable
      HDMI Type A (x2)
      A/C cables (x2)
      Power Supplies (x2)
      Documentation

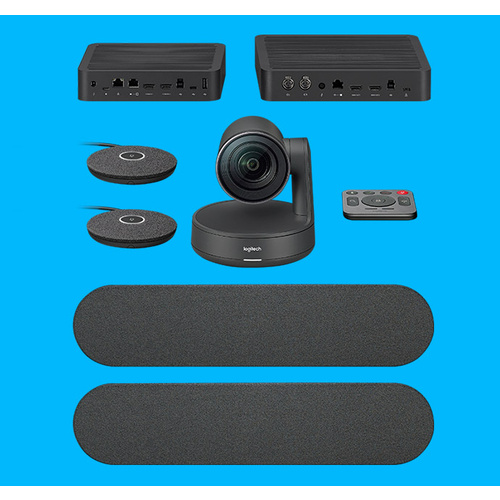

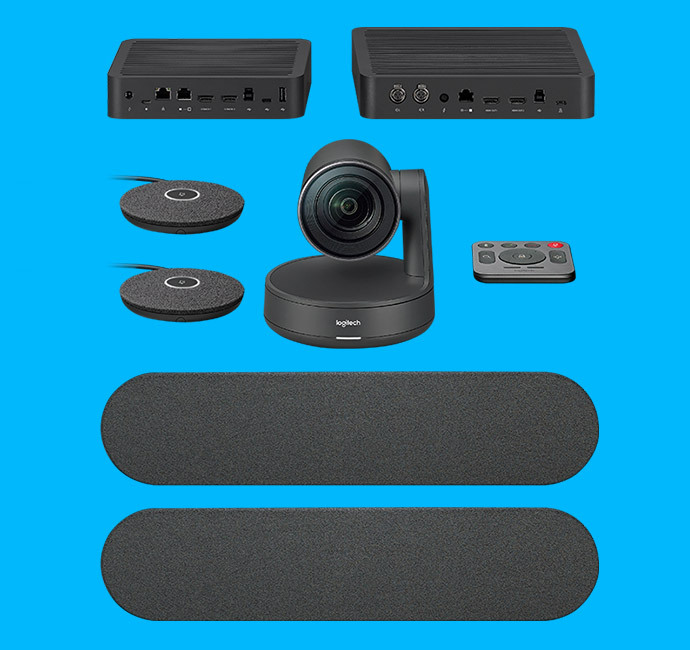

      Logitech Rally Plus
      Rally Camera
      Rally Display Hub
      Rally Table Hub
      Rally Speaker (x2)
      Rally Mic Pod (x2)
      Remote control
      USB Type C to USB Type C
      USB Type-A to USB Type B
      CAT6A Ethernet cable
      HDMI Type A (x2)
      A/C cables (x2)
      Power Supplies (x2)
      Documentation

    WARRANTY INFORMATION

    2-Year Limited Hardware Warranty

    PART NUMBER

    RALLY

    PN: 960-001219

    RALLY PLUS

    PN: 960-001274
