01

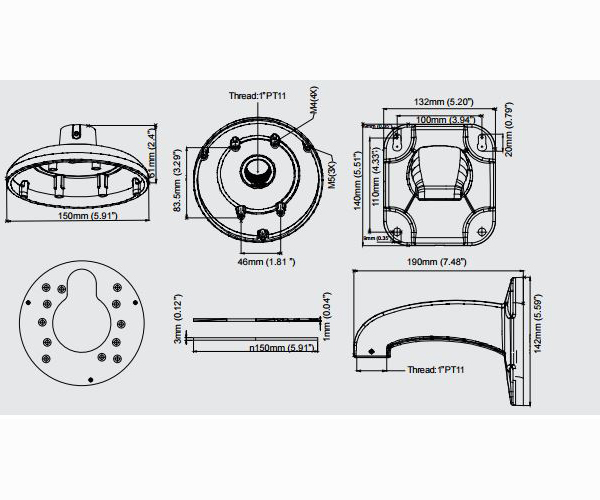

Dimensions

02

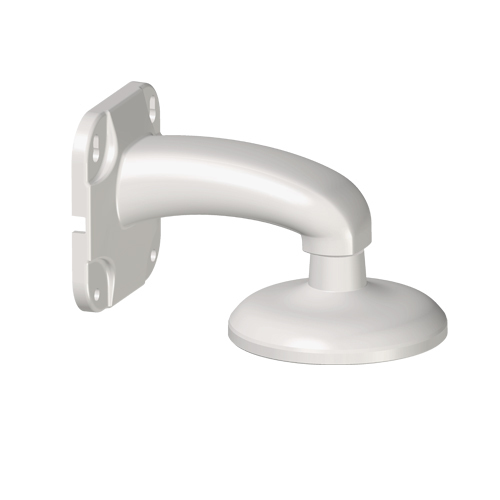

"Maven Series" MESSOA SAD013 - Cable Management Wall Mount Cable management wall mount, aluminum, white For mounting on wall with cable management: Package Content: Dome cap, Wall mount bracket, and Adaptor plate Support up to 3kg (6.6 lb) Compatible with MESSOA Network Camera: NOD385, NOD395, NOD398 Mechanical Material aluminum Color white Dimensions (WxHxD) Wall mount bracket: 142 x 132 x 190 mm (5.59" x 5.20" x 7.48") Dome cap: 150 X 150 X 61 mm (5.91" x 5.91" x 2.40") Adaptor plate: 150 X 150 X 3 mm (5.91” x 5.91” x 0.12”) Weight 1.15kg (2.53 lb)
