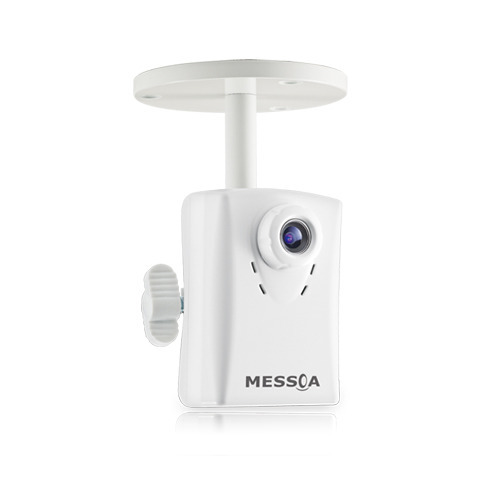

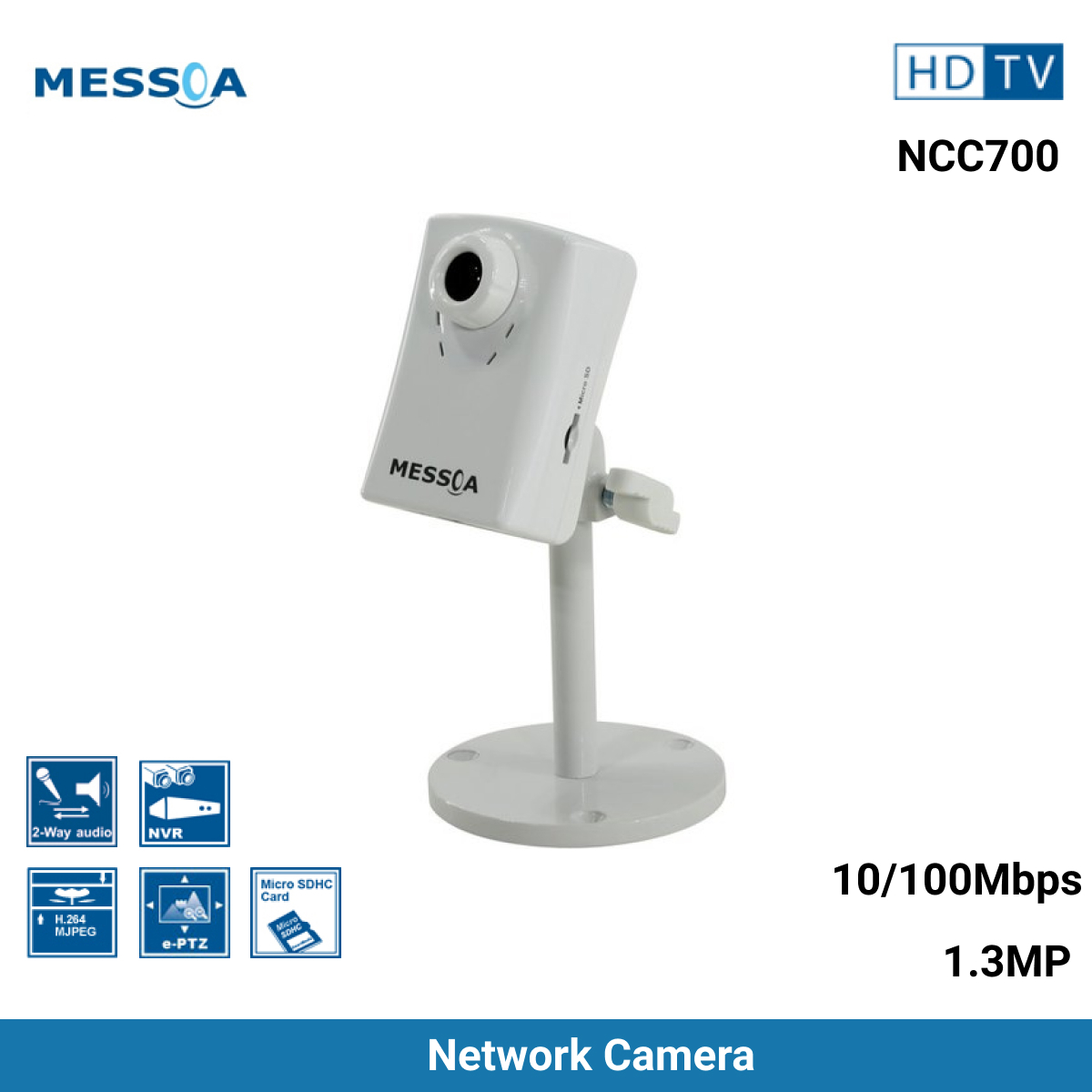

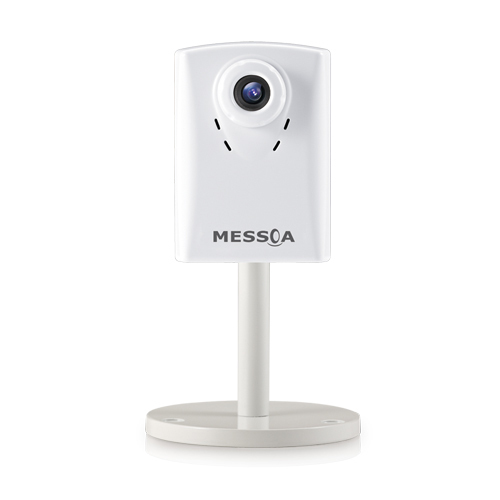

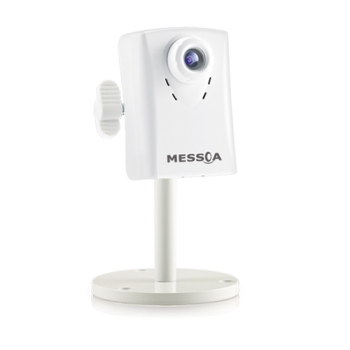

IP security CAMERA 1.3MP Network Ethernet Home Indoor H.264 Audio NCC700
Product Code: MS-NCC700
Price:
Share This Item:
| H.264/MJPEG Multi-profile Streaming | 01 |
|
| The camera supports multi-profile streaming in H.264 and Motion JPEG compression. H.264 enables optimization for bandwidth and storage efficiency by maximizing compression while maintaining image quality. |
| NVR Solution Ready | 02 |
|
| The camera supports plug-and-play when joined with the MESSOA Lite NVR Solution, making installation hassle-free. Ideal for users who are new to IP technology but want to take a leap forward from analog. |
| Intelligent Video Management | 03 |
|
| The camera features motion detection, event management, and smart encoding, allowing event/region-specific monitoring that help users stay informed when an event takes place while reducing network and storage loads as only relevant video streams will be recorded. |
| 2-Way Audio | 04 |
|
| The camera provides two-way audio support with a built-in microphone, allowing listening in on the monitored scene, as well as direct verbal communication with individuals at the scene from a remote location. |
| Local Storage | 05 |
|
| The camera comes with a MicroSD/SDHC card slot for local storage/backup up to 32 GB. It provides uninterrupted recording and data loss prevention should the network go down. |
MESSOA NCC700 - 1.3MP, H.264, Indoor Cube Network Camera 1/4” sensor, multiple streaming, full-frame rate, digital day/night, intelligent detections, local storage (Full compatibility with NVR203) * H.264/MJPEG Multi-profile Streaming * NVR Solution Ready * Intelligent Video Management * 2-Way Audio * Local Storage * 2 Year Warranty For Full Specifications please see Manufacturers Website.
Video | |
| Sensor Type | 1/4” image sensor |
| Active Pixels | 1280 x 1024 (HxV) |
| Compression | H.264 /Motion JPEG |
| Streaming | Simultaneously multi-profile streaming |
| Resolution | SXGA, VGA, QVGA, 160x120 (1.3 Mega Mode); 720P, 640x360, 160x90 (720p Mode) |
| Max. Frame Rate | 1.3MP (1280x1024) at 30 fps (NTSC/PAL) |
| Day/Night | Digital D/N Control |
| Day/Night Mode | Night Mode / Day Mode / Auto / Schedule |
| Shutter Time | Range from 1/120s to 1/5s Selectable (60Hz); Range from 1/100s to 1/4s Selectable (50Hz) |
| Minimum Illumination | 1.6 Lux @50IRE (Shutter speed: 1/15 sec) |
| Bit Rate Control | Multi-profile bit rate control: CBR/ VBR/ ECBR/ EVBR |
Lens | |
| Type, Focal Length, F-number | Built-in Fixed lens, f=4.3 mm, F1.8(Megapixel lens) |
| View Angle | H: 50°/ V: 38° (1.3MP Mode) H: 50°/V: 26° (720p Mode) |
Audio | |
| Audio Communication | Simplex or Full-duplex (2-way audio) Selectable |
| Compression | RTSP: G.711 64kbps, G.726 32kbps Selectable 3GPP: AMR |
| Audio In/Out | Built-in microphone |
Image Enhancement | |
| Image Settings | AWB, AES Exposure Mode: Auto/ Hold/Manual; White Balance: Auto/ Hold; Exposure Value, Sharpness, Color, Brightness, Contrast: 101 level sensitivity 3D Noise Reduction (De-Noise): Off/ On |
| Privacy Zone | Yes; customized threshold privacy zone (up to 8) |
| Image Orientation | Mirror, Flip |
| Frequency Control | 50Hz, 60Hz |
| Date & Time Stamp | Yes |
| Test Overlay | Yes |
Intelligent Video & Event Management | |
| Motion Detection | Up to 10 customized threshold detection windows with included or excluded options, 101 detected object size or level sensitivity |
| Smart Encoding | Up to 2 Configurable ROI for better picture quality and bandwidth efficiency |
| Others | Snapshot, e-PTZ, Optimized I-frame setting, Video Buffer |
| Events | Motion detection |
| Event Actions | File upload via FTP, SMTP, SAMBA(NAS) and SD Card; Notification via voice alert, email, HTTP and TCP; Video and audio recording to SD Card or SAMBA |
| Store Category | Motion / Schedule Stores video clips and snapshots |
Local Storage* | |
| Memory Card Slot | Micro SD / Micro SDHC Card up to 32 GB |
| Memory Card Overwrite | Yes |
Network | |
| Protocol | IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, RTCP, ICMP, UPnP, IPv6, HTTPS, DDNS, DIPS, ARP, Bonjour, IGMP, PPPoE, 3GPP, SAMBA |
| Ethernet | 10/100Mbps; 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45 |
| Browser | IE Browser 6.0 or above |
| Security | Two-level access with password protection; IP address filtering; HTTPS encrypted data transmission |
I/O & Controls | |
| Power | DC Jack (2.0mm) |
| Network | RJ-45 with network LED x2 (Green & Orange) |
| Audio In/Out | 3.5mm Phone Jack 1 out |
| Reset | More than 5 sec for loading default |
Power | |
| Power Requirement | DC 12V ± 10% |
| Power Consumption (Max.) | 3W |
Mechanical | |
| Dimensions(WxDxH) | 52.6 x 35 x 74.5mm (2.07” x 1.38” x 2.93”) |
| Weight | 70g (Without Bracket) |
Environmental | |
| Operating Temperature | 0ºC ~ 40ºC (32ºF ~ 104ºF) |
| Operating Humidity | 20~ 80% RH |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
Regulatory | |
| Approvals | CE, FCC, RoHS |
*
1. Memory card not included.
2. No memory card clot & local storage function for Argentina and Ecuador
| Model | NCC700 |
| Network Type | Wired |
| Packing Weight | 458 g |
| Connection Type | RJ45 |
| Type | Cube Camera |
| Interface | Ethernet |
| NetworkingProtocol | IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, RTCP, ICMP, UPnP, IPv6, HTTPS, DDNS, DIPS, ARP, Bonjour, IGMP, PPPoE, 3GPP, SAMBA |
| Video Resolution | 1280 x 1024 |
| Packing Width | 191 mm |
| Colour | White |
| Packing Depth | 118 mm |
| Effective Pixels | 1.3 MP |
| Packing Height | 85 mm |
| Night Vision | Yes |
| Additional Features | H.264/MJPEG Multi-profile Streaming NVR Solution Ready Intelligent Video Management 2-Way Audio Local Storage |
