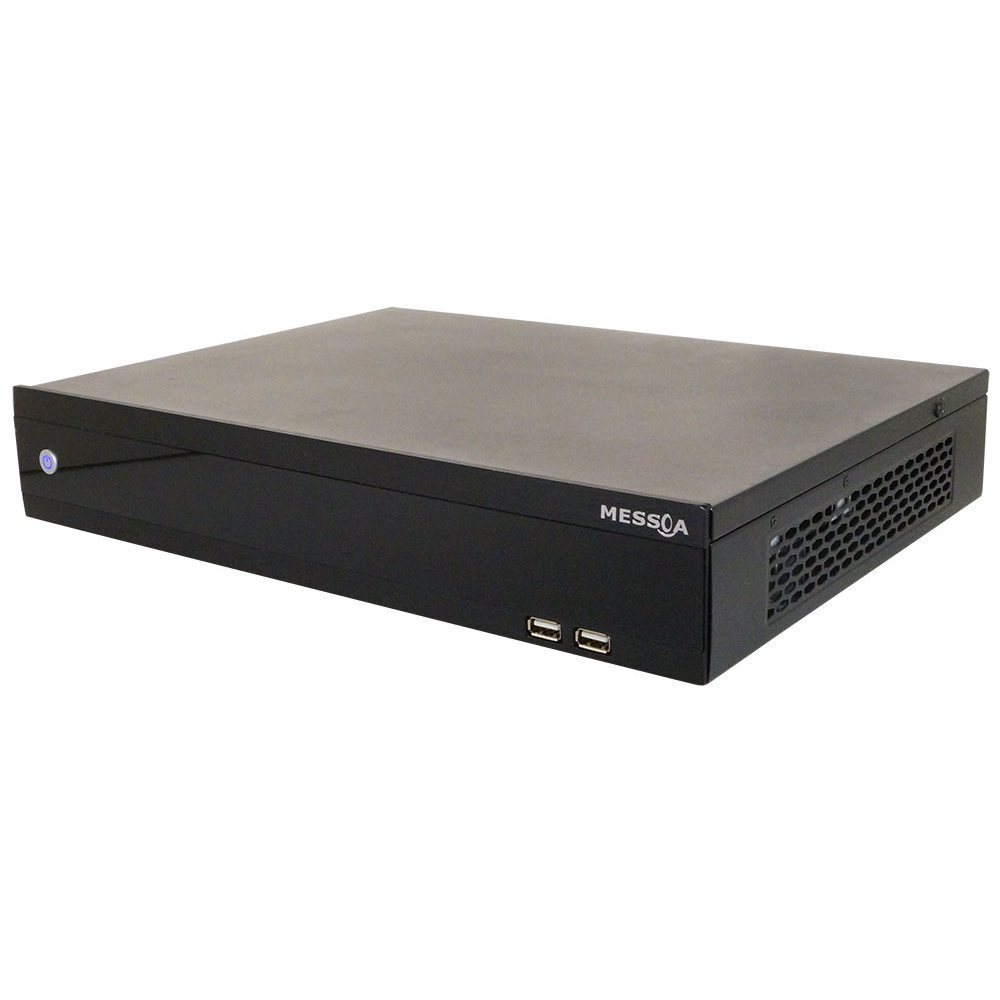

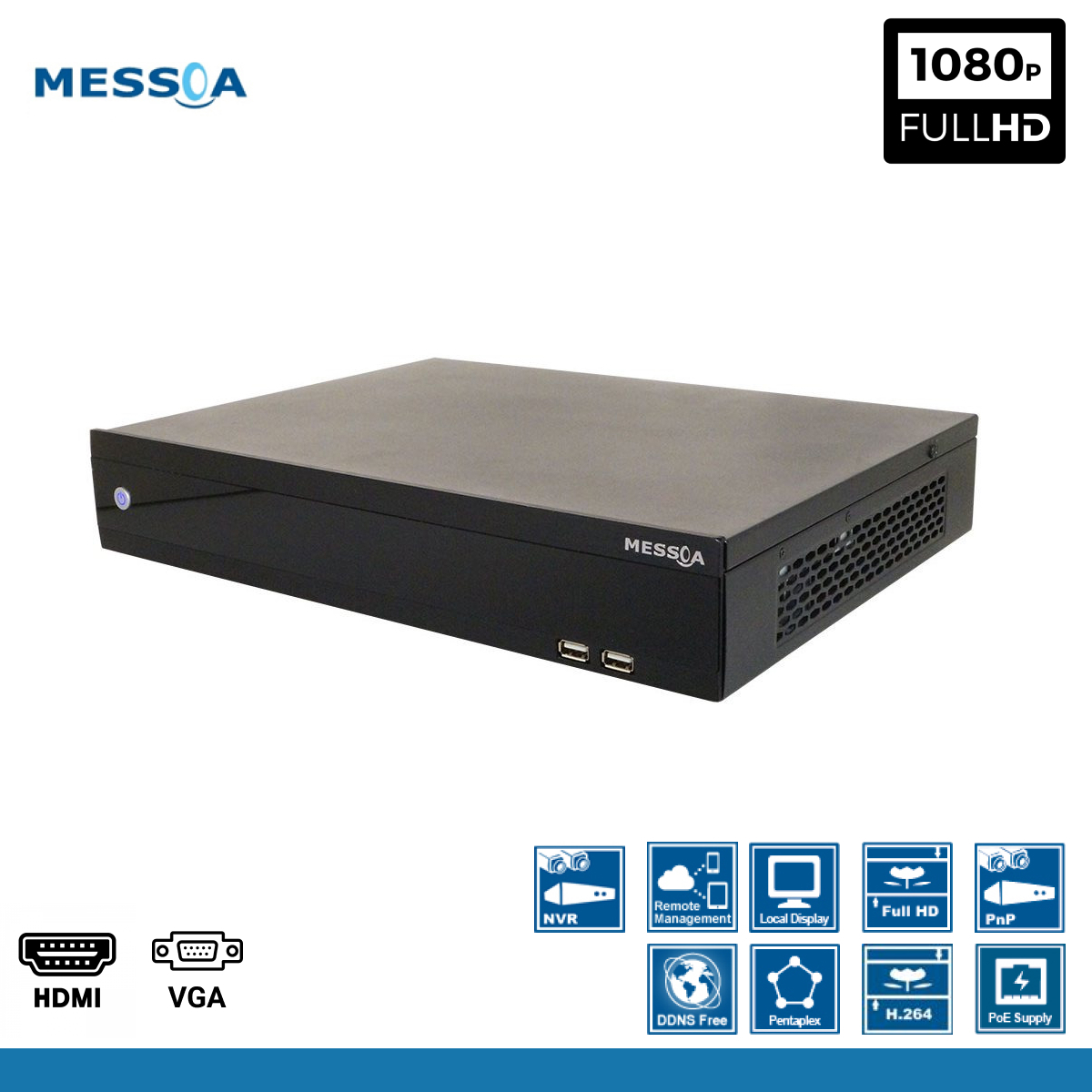

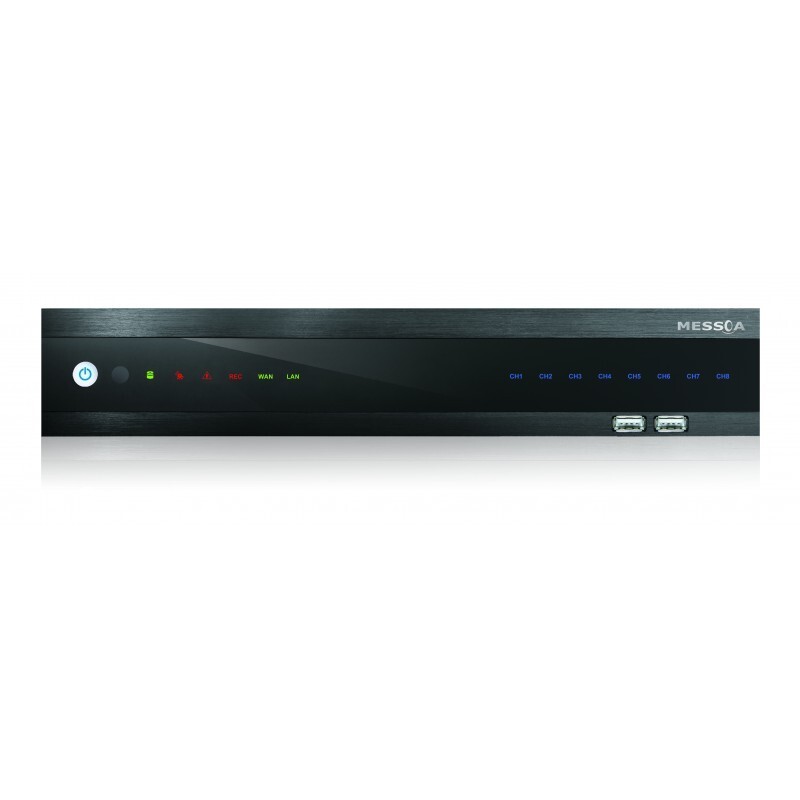

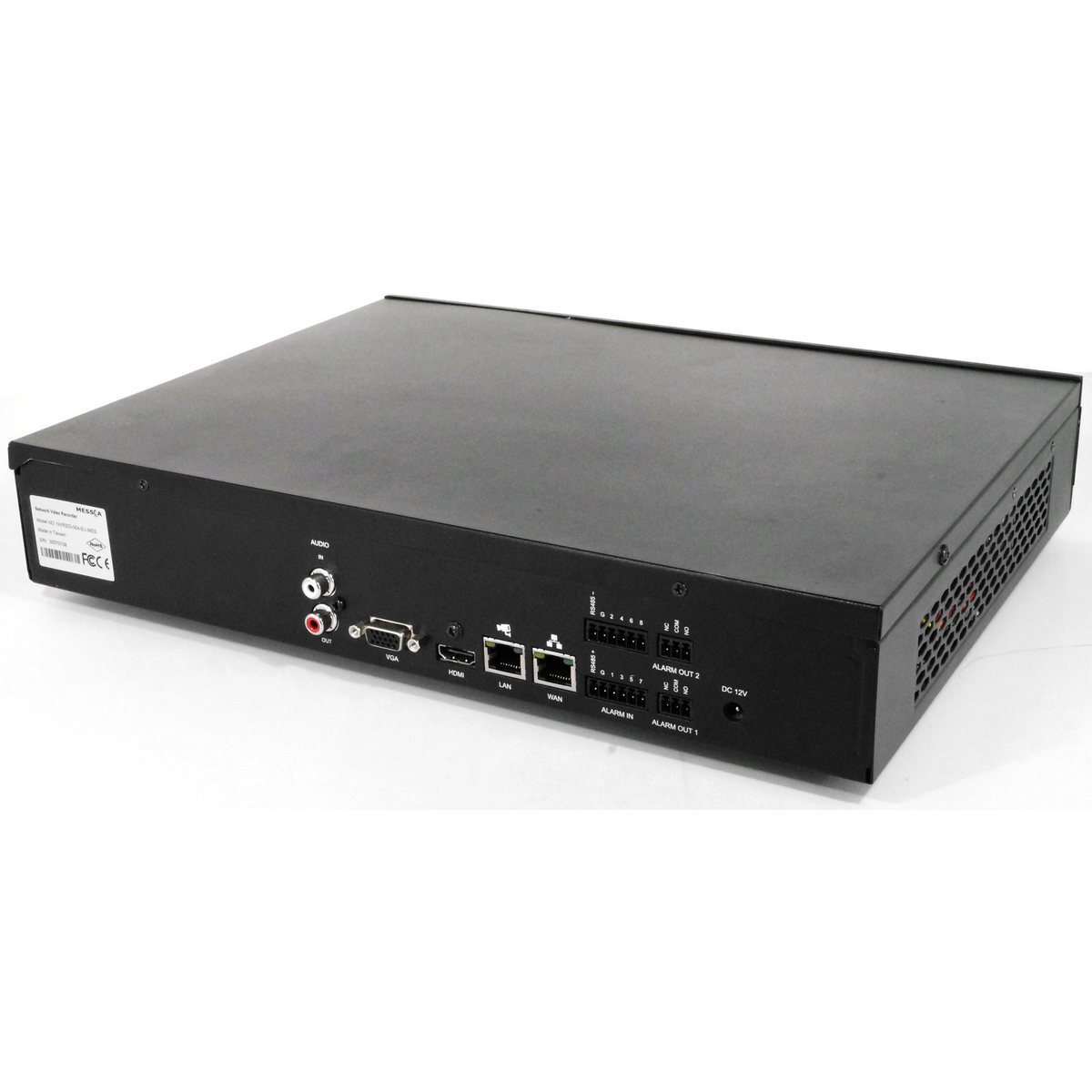

The NVR203-004P/008P is a network video recorder (NVR) with a built-in Power over Ethernet(PoE) switch. By integrating the NVR with the switch, it reduces the space and does not require any additional devices, making the system easy to install and operate. No complicated network settings, the Linux-based NVR solution supports plug-and-play with the MESSOA NVR-ready megapixel cameras and can be easily set up just like a DVR system. In addition, the robust and stable embedded NVR system allows for 5 simultaneous operations, including local live view, recording, setup, network configuration, and data backup for meeting multitasking surveillance needs. Taking advantage of the network video technology, it provides high-definition live video and playback up to 3MP resolution.

Remote surveillance is further accessible through the web, CMS, and MESSOA Live, the free mobile app, as well as MESSOA DDNS for convenient access to the NVR and cameras in a dynamic IP address environment from anywhere. Not only suitable for SMB applications, such as retail, hospitality, commercial, residence, etc., the NVR also offers a scalable solution for multi-site management with the complimentary CMS software for projects at greater scales.



  • Built-in 4/8-port PoE supply
  • ​Plug & Play, one-click setup for easy installation
  • Up to 3MP live view and playback, with H.264 video compression
  • 1080P local display via HDMI and VGA
  • Pentaplex multi-tasking for live view, recording, setup, network configuration, and data backup
  • The network interface of LAN and WAN, ideal for 1080P and up real-time streaming
  • Remote Management via the web, app, and CMS
  • Complimentary DDNS for accessing to the NVR and cameras in a dynamic IP
  • MESSOA Live, the free mobile app available for iOS and Android
  • Utilizing free bundle MESSOA CMS to manage 16 NVRs

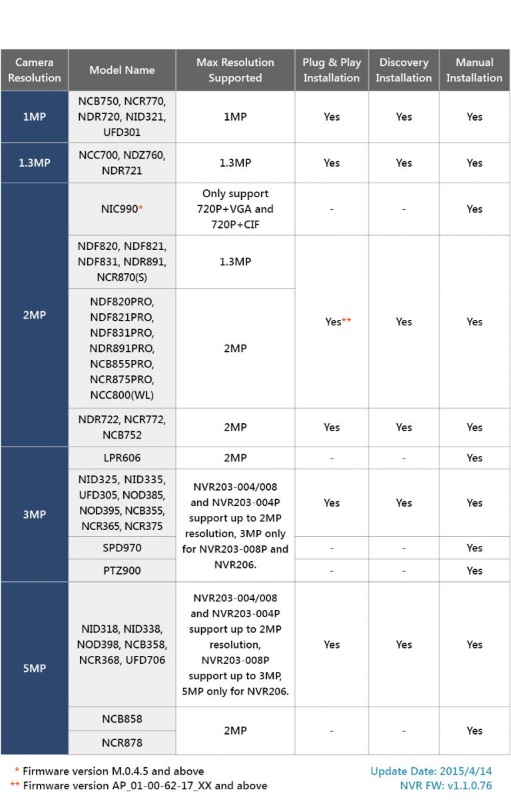

IP Cameras for Lite NVR Solution  01

Some Text

Tested-compatible HDD List  02







System

IP Camera Inputs 4 channels 8 channels
Operating System Embedded Linux
Operations Live, Recording, Playback, Backup & Remote Access
Control Mode USB mouse, Webpage, CMS

Video

Decompression H.264 HP/MP/BP
Resolution UP to Full HD (1920 x 1080) Up to 3MP(2048x1536)

Audio

Input 1 x RCA (Reserved)
Output 1 x RCA
Audio Recording Yes

Display

Display Mode Fullscreen / Multi-screen / PIP / Sequence
Output 1 x HDMI (up to 1920x1080, 60Hz),
1 x VGA (up to 1920x1080, 60Hz)
Sequence Yes
OSD GUI

Remote View

Remote Client Yes, Via IE Web Viewer, CMS(up to 16 NVR devices)
Mobile Viewing on Smartphone/Tablet PC Yes (iOS & Android)

Recording

Record Mode Continuous, scheduled, alarm, motion
Record Capability Up to 120fps at Full HD(1920x1080) Up to 240fps at Full HD(1920x1080)
Pre Recording 5 seconds
Post Recording 0 ~ 255

Playback & Backup

Display Mode Fullscreen / Multi-screen
Playback Capability up to 4 channel simultaneous playback up to 8 channel simultaneous playback
Playback Control Play / Pause / Step / Fast forward / Rewind / Fast rewind
Search Control By Camera, Date/Time, Events
Export Through USB / Webpage / CMS
Internal Storage* Up to 2 x SATA HDDs

Network

Support TCP/IP, SMTP, DHCP, DDNS, PPPoE, UDP, RTP, RTSP, NTP
Ethernet 1x10/100Mbps (WAN), 1-4 ports 10/100Mbps with
PoE(LAN)
1x10/100Mbps (WAN), 1-8 ports 10/100Mbps with PoE (LAN)

PoE

Standards IEEE 802.3af
Max. PoE Output per Port 15W
Total PoE Budget 60W

I/O

USB 2; For backup device and mouse control
Alarm 4  Alarm in, 1 Alarm out
RS485 1; Support Pelco D, Pelco P

Security

Watermark Yes
User Privilege 3 Levels of User Access Support

Environmental

Power Supply Input: AC100~240V, 50 / 60 Hz
Output: DC12V (NVR), DC48V (PoE switch)
Power Consumption (Max.) Mainboard: 48W
PoE device: 60W
Mainboard: 55W
PoE device: 60W
Dimensions 355 (W) x 72 (H) x 264 (D) mm
Temperature 0°C ~ 40°C

Order Information

Model No. NVR203-004P-EU-MES
NVR203-004P-US-MES
NVR203-008P-EU-MES
NVR203-008P-US-MES

*SATA HDD not included



Model MS-NVR-203-004P
Video Output HDMI VGA
Packing Weight 1500 g
External Outputs RCA USB 2.0 HDMI VGA
Network Interface 1 x 10/100 Mbps Ethernet Port
Packing Width 405 mm
Packing Depth 314 mm
Operating System Linux
Packing Height 122 mm
Package Type BOX
