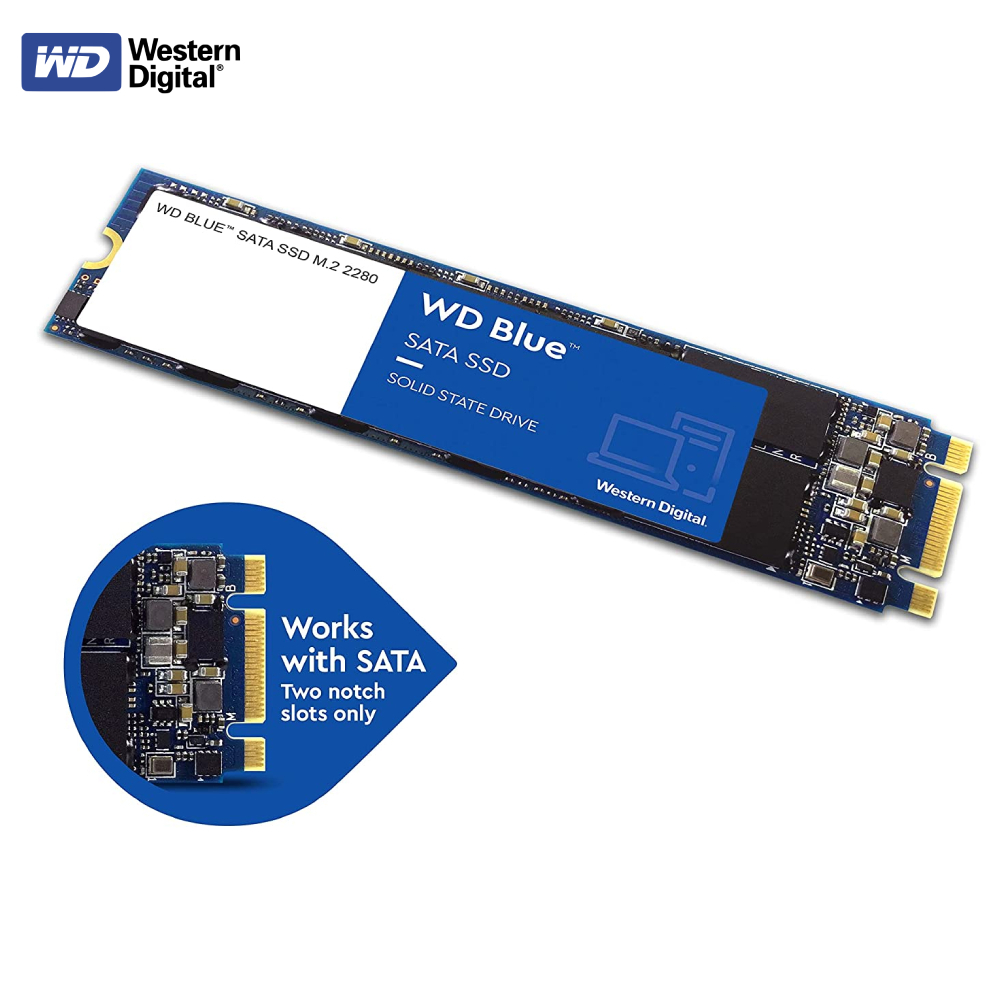

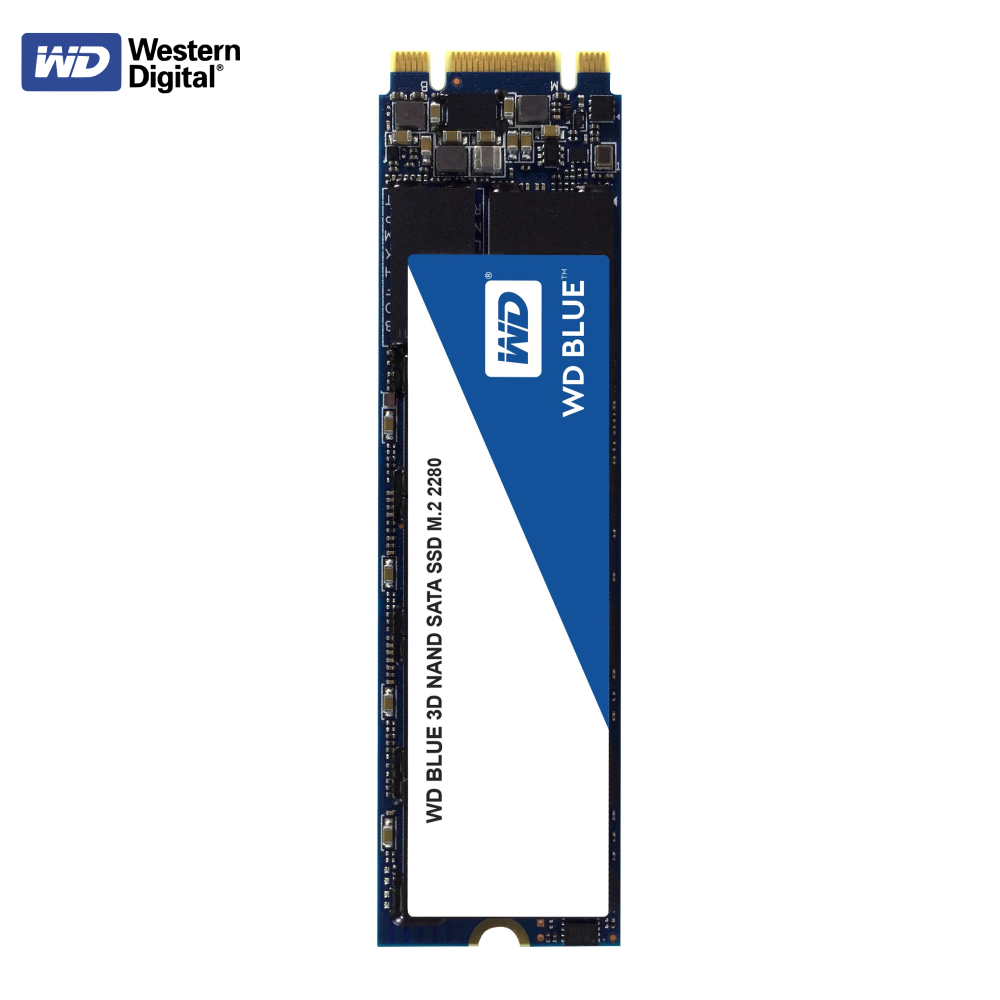

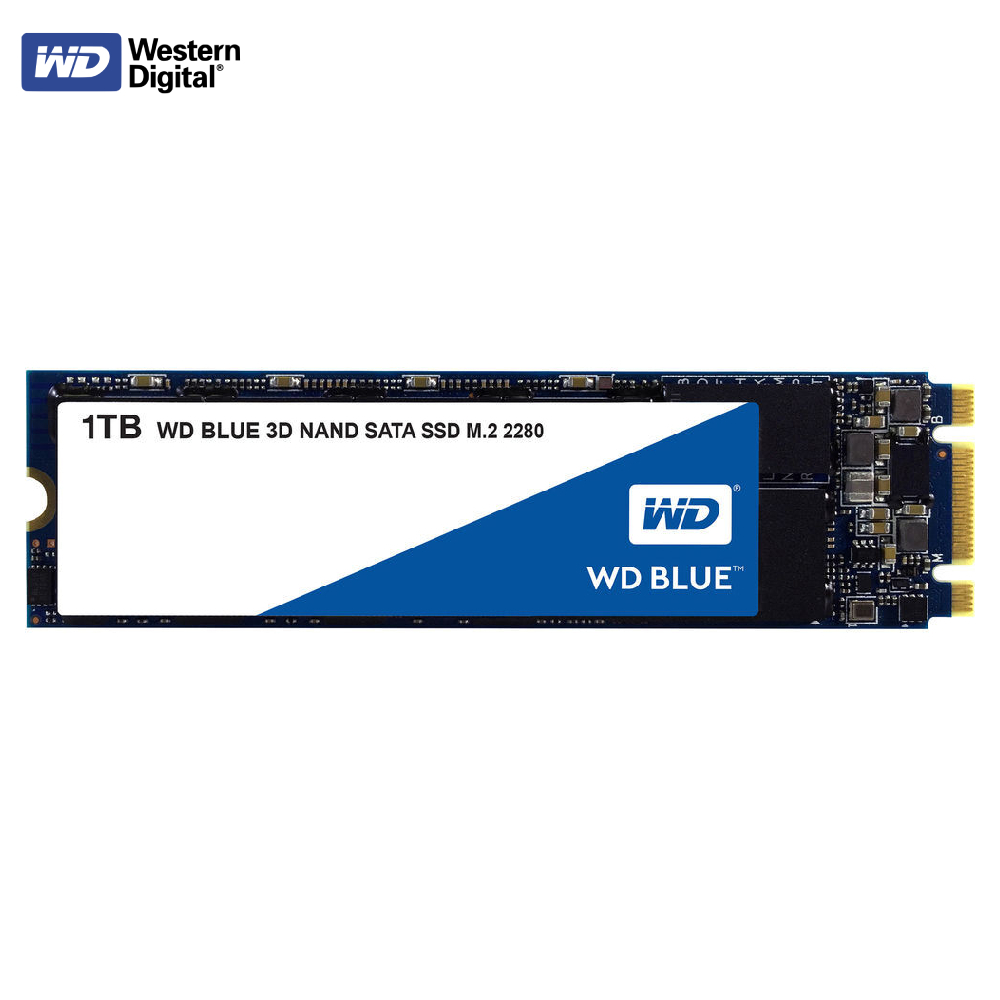

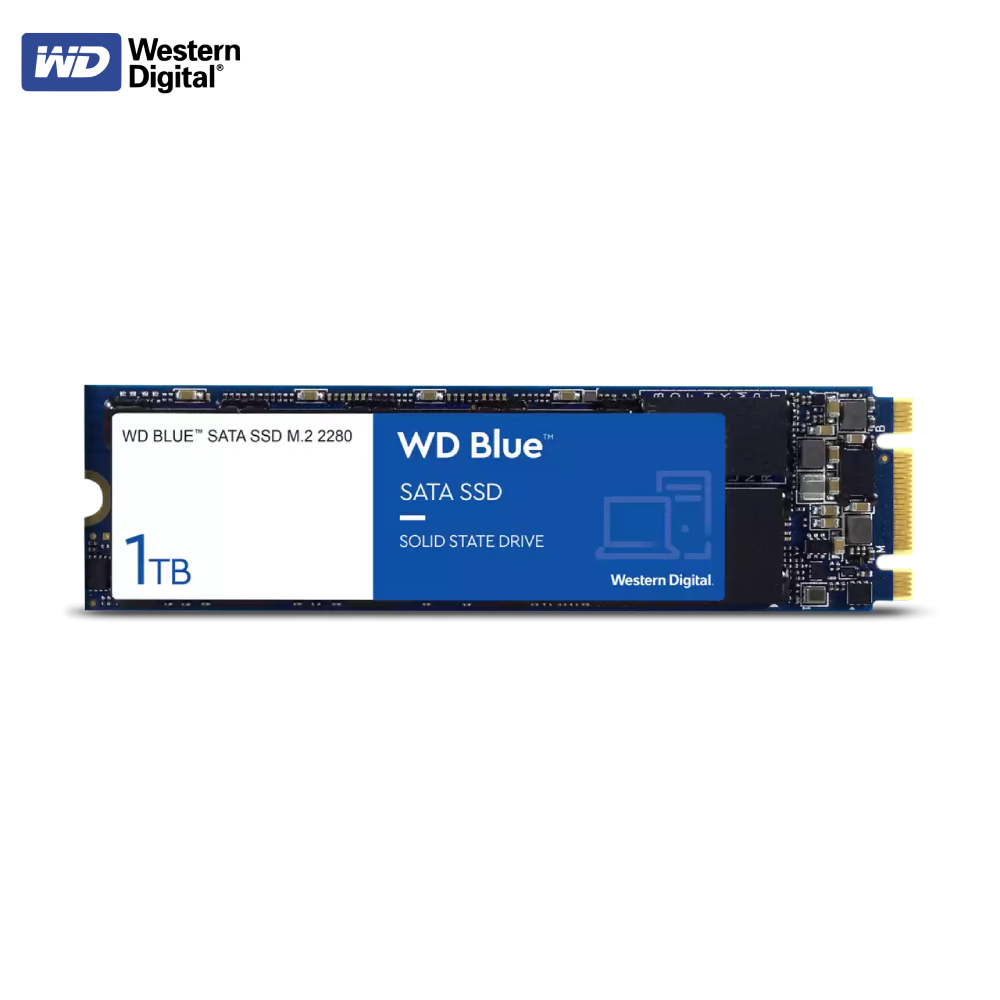

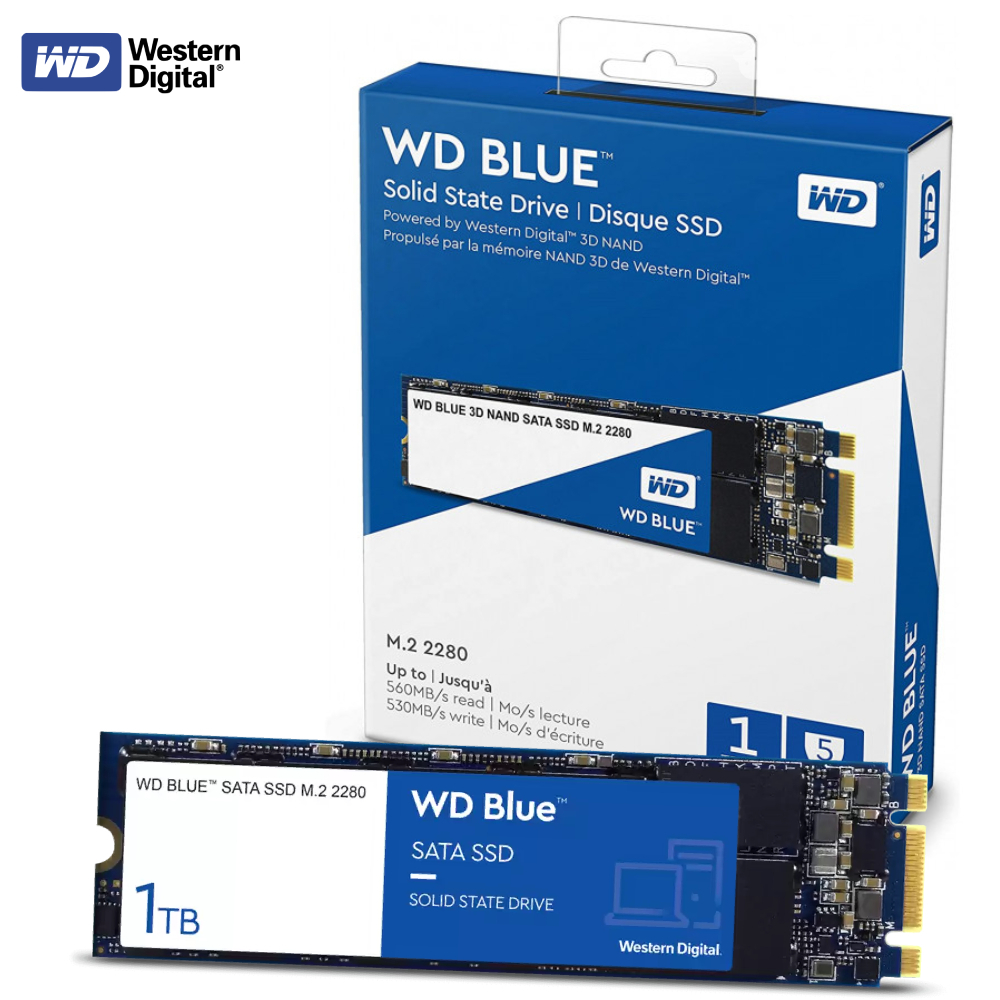

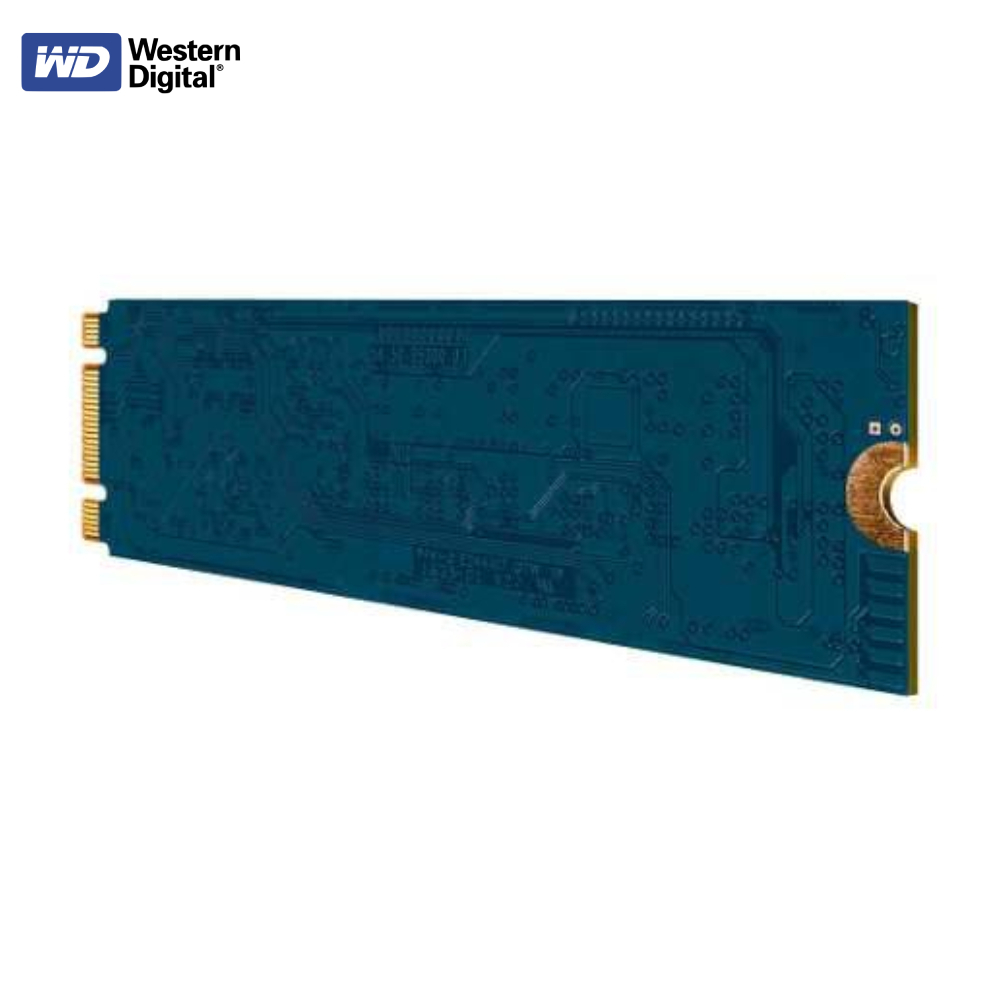

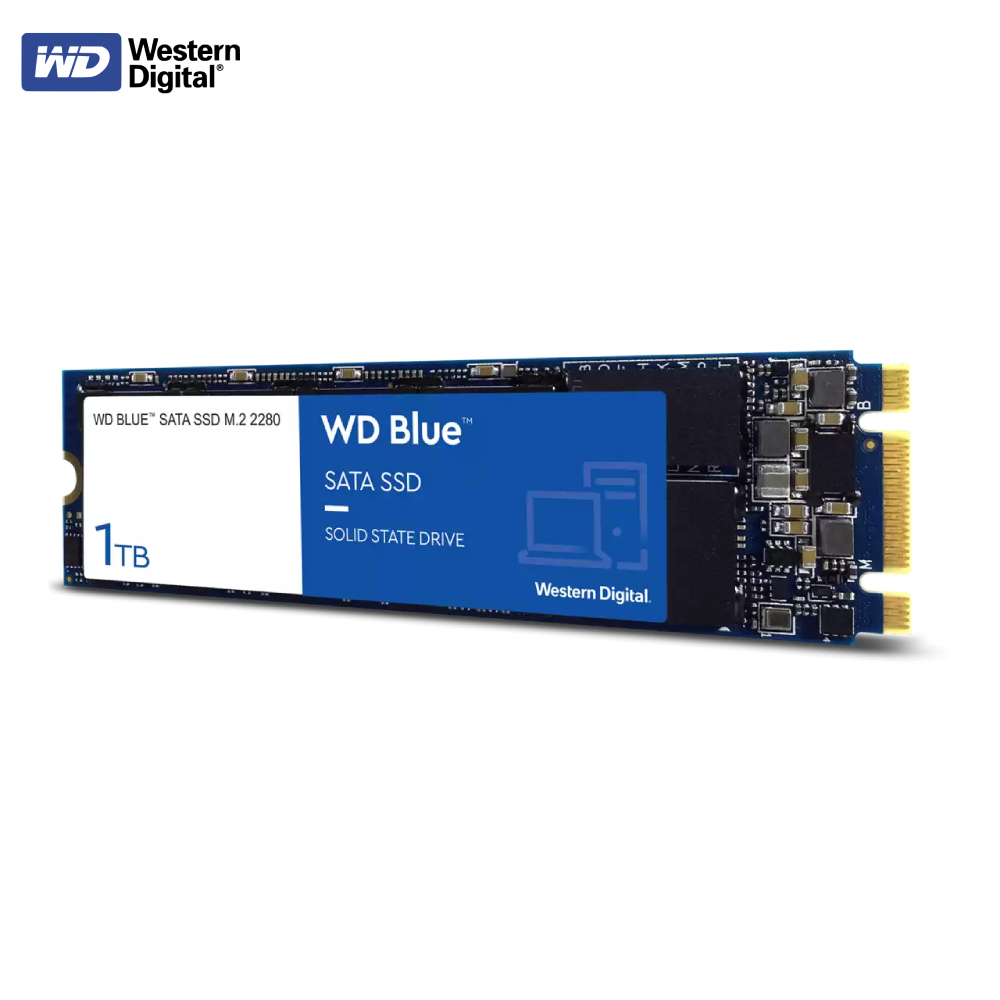

1TB M.2 2280 SSD WD Blue SATA III Internal Solid State Drive Western Digital WDS100T2B0B

Key Features

  • Fast Start-Up, Loading and File Transfers
  • SATA III 6Gb/sec SSD for Client PCs
  • Marvell 88SS1074 Controller Controller
  • SanDisk 64-Layer BiCS3 3D NAND Tri-Level Cell (TLC)
  • Tiered SLC Caching Technology
  • Shock and Vibration Resistant
  • Dynamic and Static Wear Leveling Technology
  • Thermal Throttling Technology
  • Bad Block Management Technology
  • Trim Command Support Technology
  • Error Management Technology
  • Built for Laptops, Ultrabooks and All-in-One PCs



3D Technology comes to SSD
Ideal as an upgrade to an aging laptop, or as additional storage in an existing system, the WD Blue™ SATA SSD is an outstanding choice.

Reliable SSD Storage
A WD Blue SATA SSD can last up to 1.75M hours MTTF (mean time to failure), with up to 600 TBW3 (terabytes written), and has built in technology to correct errors in real time.

Reliable Solid State Technology
WD Blue SSDs boost a variety of computing applications like gaming, HD media playback, or creative software.

Fast Solid State Performance
Western Digital technology helps enable sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s for fast system boot-ups, quick application responses, and rapid transfer speeds.

Compatible and Compact
The ultra-compact M.2 2280 WD Blue SATA SSD goes through extensive compatibility and reliability testing to ensure it meets the high standards of the WD brand.

Online Resources
Download the free WD SSD Dashboard to keep up-to-date with your drive’s health, or download and install Acronis True Image™ WD Edition to safely clone your old drive to a new WD SSD.



Product Highlights

  • 3D NAND SATA SSD for capacities up to 4TB¹ with enhanced reliability.
  • Sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s.2
  • An industry-leading 1.75M hours mean time to failure (MTTF)3 and up to 600 terabytes written (TBW)4 for enhanced reliability.
  • WD F.I.T. Lab™ certification for compatibility with a wide range of computers.
  • Free downloadable software to monitor the status of your drive and clone a drive, or backup your data.







  • Capacity: 1 TB
  • Cache Buffer: Tiered SLC Caching Technology
  • Flash Type: SanDisk 64-Layer BiCS3 3D NAND Flash Memory Tri-Level Cell (TLC)
  • Interface Connector: M.2 NGFF (B and M Key)
  • Interface Speed: SATA III 6Gb/sec
  • Encryption: No
  • Max Sequential Read: Up to 560MB/sec (Crystal Disk Mark)
  • Max Sequential Write: Up to 530MB/sec (Crystal Disk Mark)
  • 4K Random Read: Up to 95,000 IOPS (QD32) / Up to 10,000 IOPS (QD1)
  • 4K Random Write: Up to 84,000 IOPS (QD32) / Up to 32,000 IOPS (QD1)
  • SSD Endurance: 400TBW (Total Bytes Written)
  • Life Expectancy: 1.75 Million Hours (MTBF Mean Time Between Failures)
  • Shock Resistance: 1500Gs @ 0.5ms half sine
  • Ecc Recovery: Error Recovery using Error Correction Code (ECC)
  • Rohs Compliant: No
  • Form Factor: M.2 (2280) Single Sided

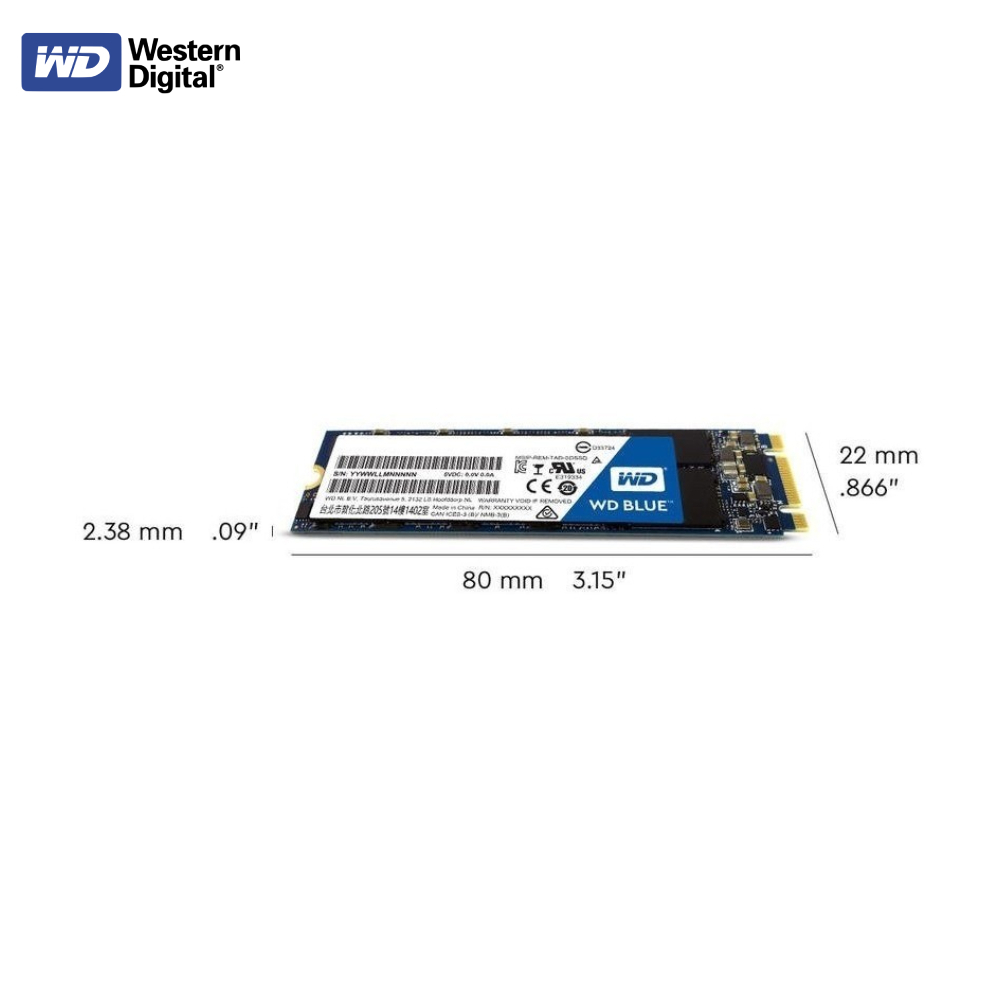

  • Dimensions: (L x W x H) 80.15mm x 22.15mm x 2.38mm
  • Controller: Marvell 88SS1074 Controller
  • Power Consumption: Active (AVG) 60mW / Operating (Max) Read 2,550mW - Write 3,750mW / Slumber 56mW / DEVSLP 5-12mW
  • Classification: Consumer
