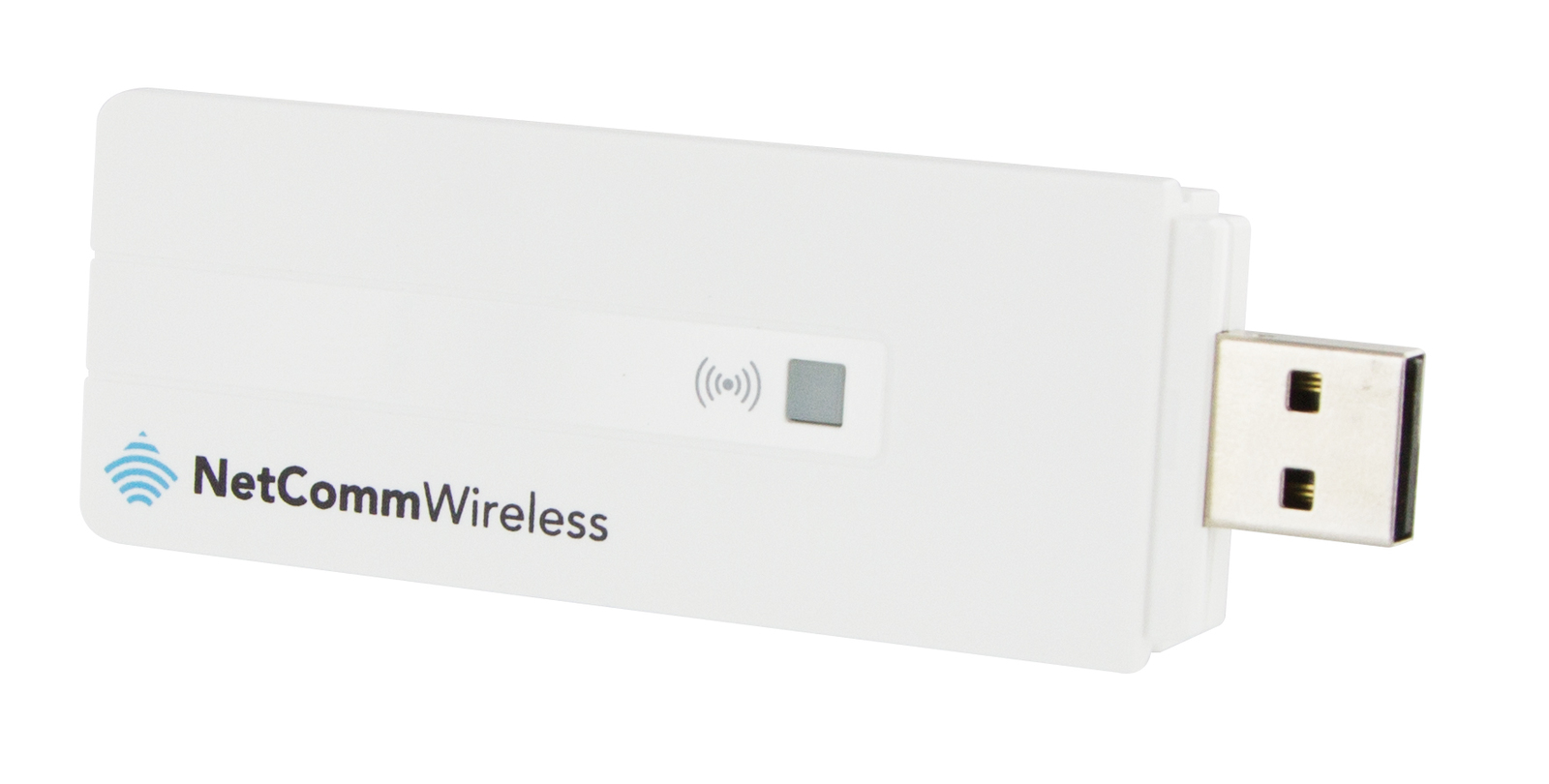

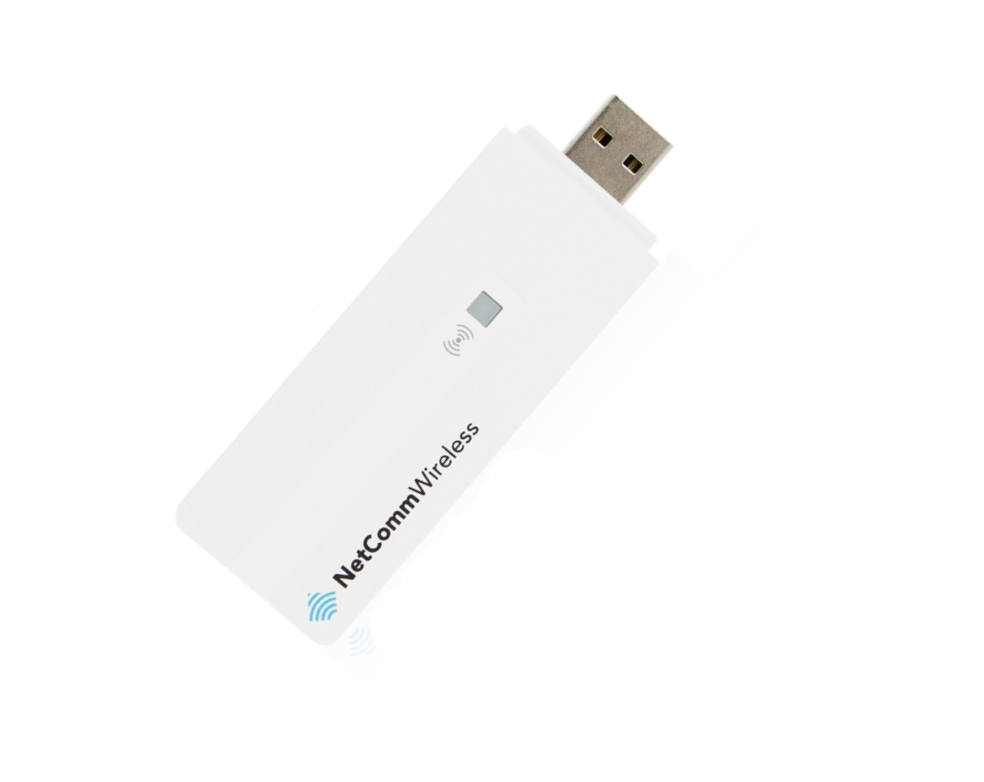

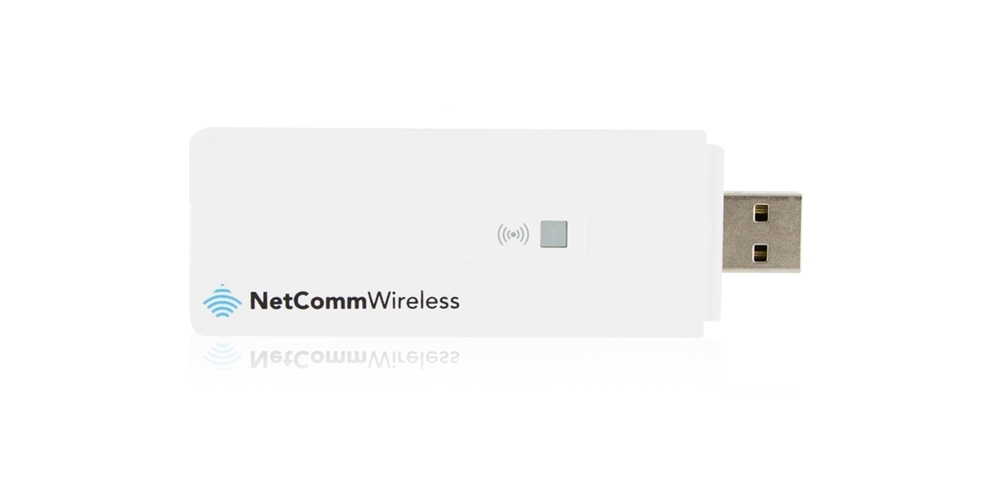

Dual Band AC WiFi USB Adapter

01

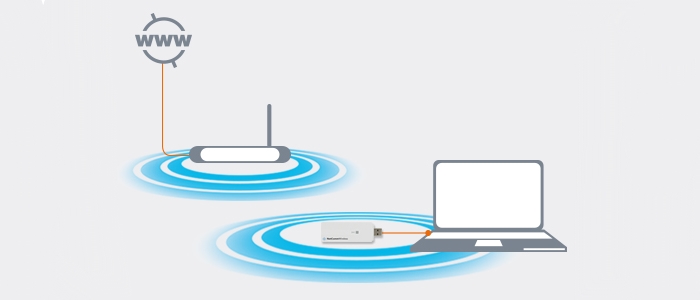

Designed to be paired with your dual band WiFi router, the Dual Band AC WiFi USB Adapter can connect to AC WiFi networks.  Perfect for pairing your laptop or desktop computer to a WiFi network for applications that require a high speed Internet signal. Select whether you connect to a 2.4GHz or 5GHz WiFi network.

Dual Band

02

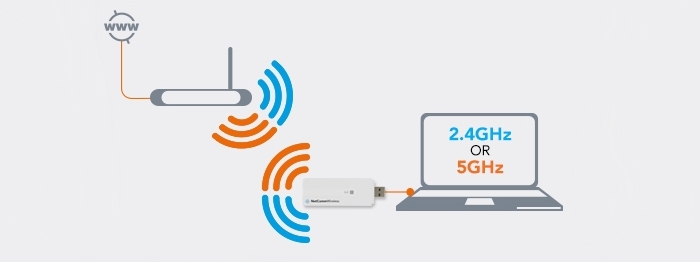

Dual band WiFi reduces WiFi interference between connected devices. You can use the more common 2.4GHz network for everyday web browsing and use the 5GHz network for applications such as online gaming, streaming HD video and audio, which require the cleanest possible signal.

AC WiFi

03

This USB adapter enables you to give your laptop or desktop computer AC WiFi capability. AC is the latest WiFi technology that can support fast speeds on the 5GHz WiFi frequency. Simply insert into your computer to give an instant WiFi boost.

Technical Specifications

CHIPSET

• BCM 43526

WIFI STANDARD

• IEEE 802.11 a/b/g/n/ac

SOFTWARE SUPPORTED

• Windows XP, 2000, Vista, 7, 8

OPERATING FREQUENCIES

• 2.4GHz and 5GHz

MODULATION

• PSK/CCK, DQPSK, DBPSK, OFDM

SECURITY

• 802.1x, WEP 64/128, WPA/WPA2, TKIP

RF OUTPUT POWER

• 14±1.5dBm@802.11g, 17±1.5dbm@802.11b,
• 13±1.5dBm@802.11n (2.4GHZ)
• 12±1.5dBm@802.11n (5GHZ)
• 11±1.5dBm@802.11ac (5GHZ / mcs8)
• 10±1.5dBm@802.11n (5GHZ / mcs9)

DATA RATE, MBPS

• 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1

20 MHz

• 150, 130, 117, 104, 78

40 MHZ

• 300, 270, 243, 216, 162, 108

80 MHZ

• 866.7, 2780, 650, 585, 520, 390, 260, 195, 130, 65

DIMENSIONS

• 90 x 30 x 11 mm

WEIGHT

• 10g

OPERATING TEMPERATURE

• 0°C ~ 40° C

STORAGE TEMPERATURE

• -20°C ~ 70° C

OPERATING HUMIDITY

• 10% ~ 90%

STORAGE HUMIDITY

• 5% ~ 90%
