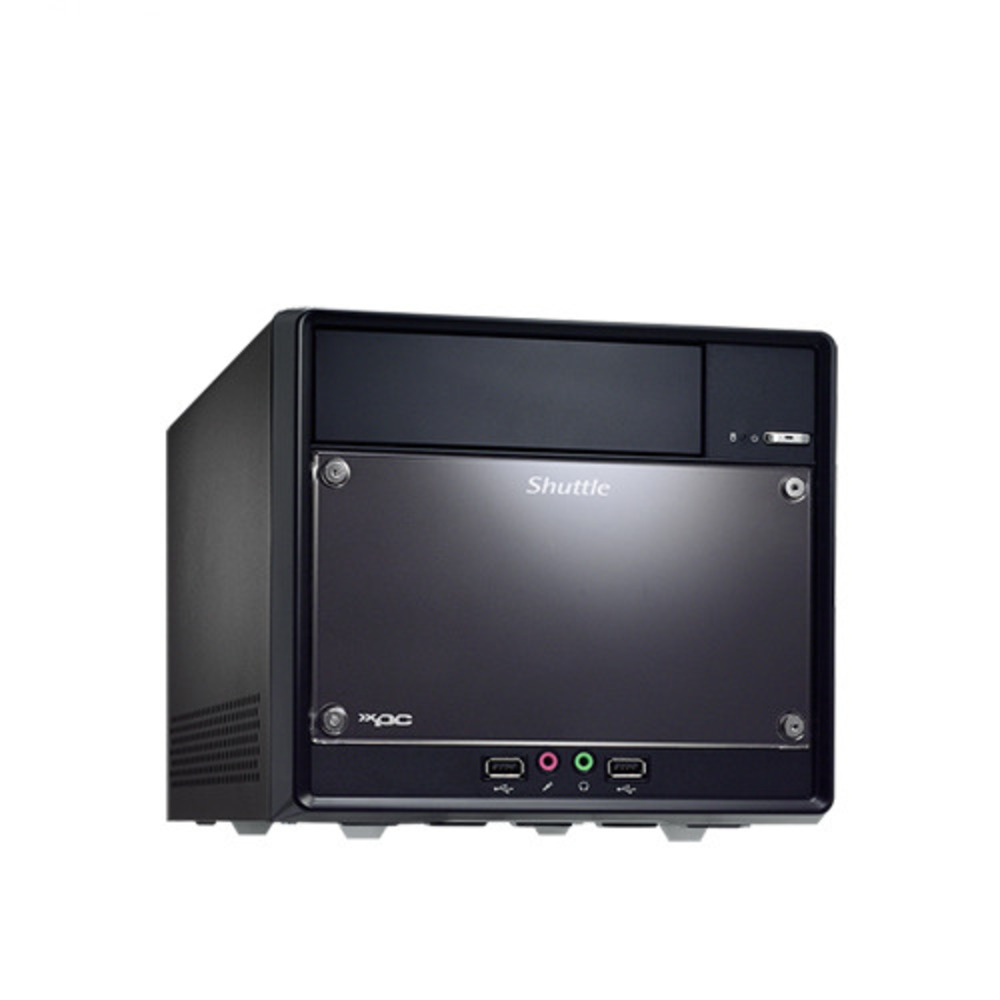

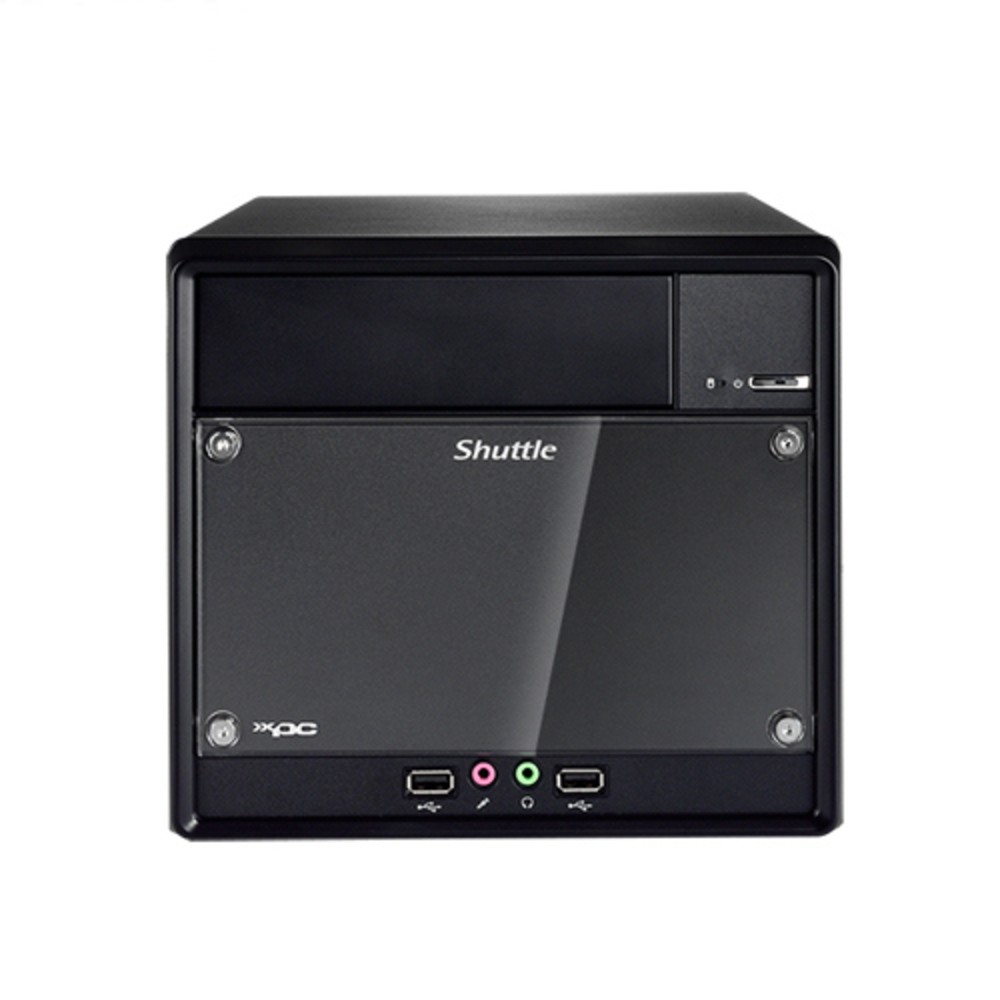

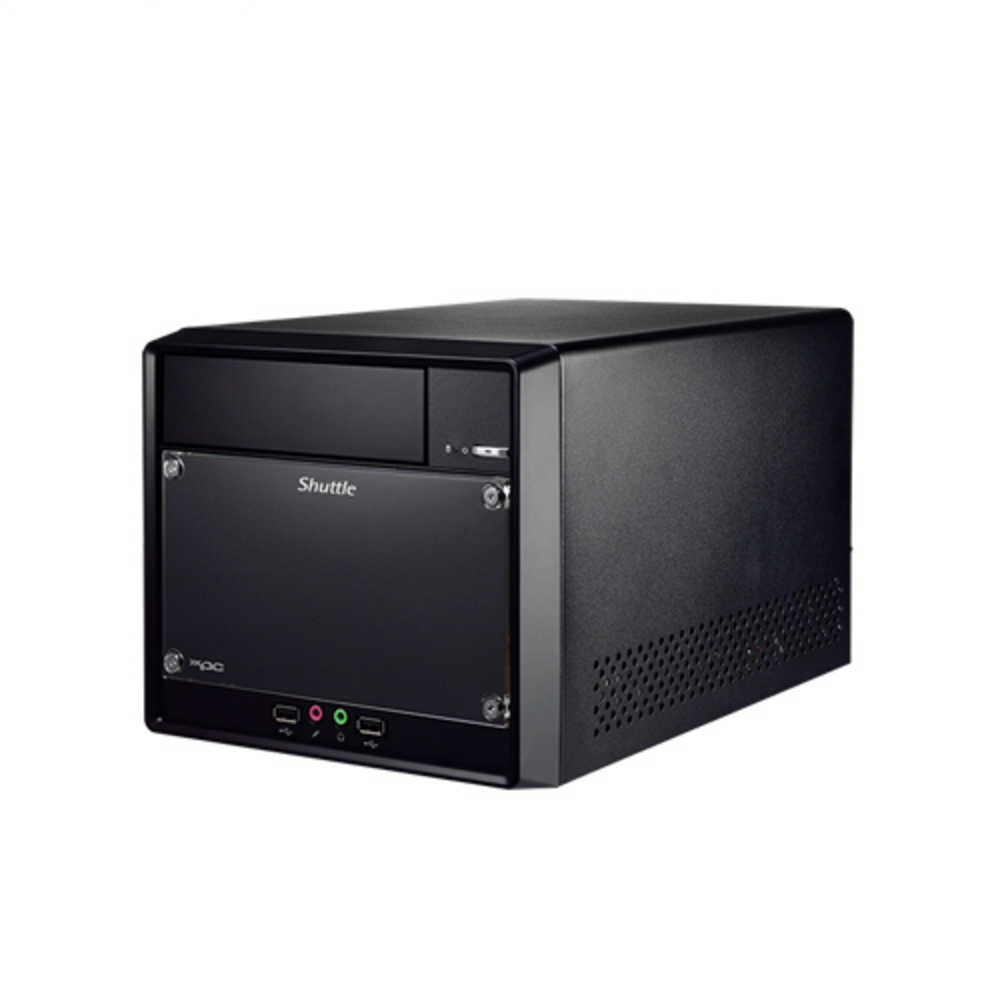

Shuttle SH81R4 Barebone XPC, LGA1150 (NO CPU Installed), Intel H81 Chipset, 2xDDR3 1600MHz up to 16 GB (NOT Installed), PCI-E x16, PCI-E x1, mPCI-E, m
Product Code: SH81R4
Price:
$315.00
RRP $449.00
30% OFF
Sold Out
Share This Item:
| Shuttle Mini PC for diverse applications | 01 |
Shuttle launches the new 8 series model-SH81R4 with excellent performance and strong expandability for diverse applications. The SH81R4 is based on an Intel® H81 Express Chipset and supports Intel® Haswell/Haswell Refresh 95W processors. Only 1/3 the size of a tower PC, the SH81R4 features extendibility and provides one PCI-E x16, one PCI-E x1, and two mini PCIe slots. Install dual-slot high-end graphics card, multi-display graphic cards, surveillance cards, RAID cards, mSATA SSD or WiFi modules and drive video wall, file server, network video recorder applications, and more. The SH81R4 is equipped with an 80 PLUS Bronze certified 300W power supply and Shuttle’s exclusive I.C.E. 2 heat pipe technology for highly energy-efficient and stable long-term operation.

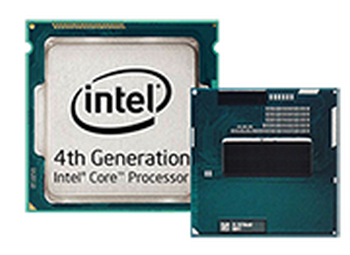

| Support Intel® 4th generation Core™ processor | 02 |
 | The SH81R4 supports Intel® fourth-generation Haswell/Haswell Refresh Core™ i3/i5/i7, Pentium®, and Celeron® processors. The Core™ i3/i5/i7 processors are integrated Intel® HD Graphics 4600 support for DirectX 11.1 that are significantly improved CPU or GPU performance. |
| Support Mini-ITX Motherboard | 03 |
 | For various market demands, Shuttle expands its capabilities by adding support for Mini-ITX mainboards (17x17 cm or 6.7x6.7 inches). The Shuttle chassis goes beyond the Shuttle mainboard, so you can easily upgrade to the mainboard of your desire without any modifications to the chassis. |
| Equipped with an Intel® 8 series Chipset | 04 |
 | The SH81R4 is equipped with an Intel® H81 Express Chipset. It supports dual-channel DDR3 1333/1600 with maximum memory capacity of up to 16GB (8GBx2). The device supports Gigabit LAN, SATA 6Gbps, and USB3.0 high-speed storage interfaces, providing superb data transfer speed. |

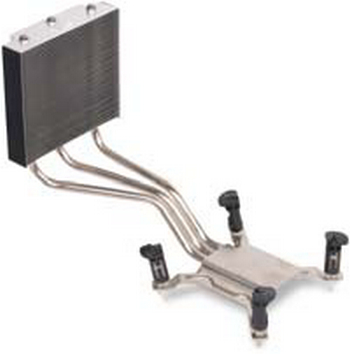

| Integrated Cooling Engine 2 (I.C.E. 2) Heat pipe technology | 05 |
 | Shuttle XPC features stable, cool, and silent operation with Shuttle’s I.C.E. 2 heat pipe technology. It uses convection cooling to dissipate heat away from and around the CPU. The I.C.E.2 copper tubes, coated in nickel for enhanced tube hardness and rust-proof protection, are filled with distilled water to effectively channel heat and provide highly efficient processor and chassis cooling. |

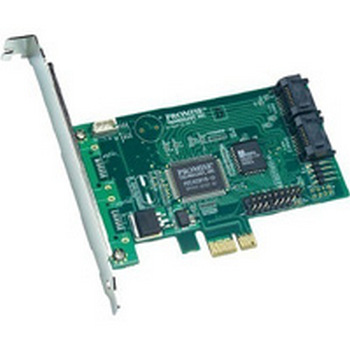

| Support PCI-E expansion cards | 06 |
 | The SH81R4 provides one PCI-Ex16 and one PCI-Ex1 slot to meet various needs of users. Select the card you want to use, such as multi-display graphic cards, surveillance cards, RAID cards, and professional sound cards, etc. |

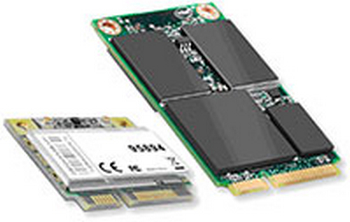

| Support 2x Mini-PCIe Slots | 07 |
 | The SH81R4 features one full size and one half-size Mini PCIe slots. This compact system supports mSATA SSD and WIFI modules, among other compatible modules. |
| Flexible expansion of hard disk installation | 08 |

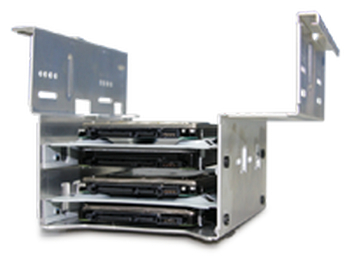

 | Shuttle XPC reserves space for installation of one 5.25” CD-ROM drive (ODD) and two 3.5” hard disks. With an optional PHD3 accessory users can install a maximum of four 2.5” hard drives (or SSDs). |
| Support 4K Ultra HD | 09 |
 | The SH81R4 provides HDMI video output to support 4K high resolution (3840x2160)*. Now with four times the resolution of Full HD, viewers can enjoy the super detailed and crystal clear imaging of 4K. *Intel® Pentium® and Celeron® processors built-in Intel® HD graphics cannot support 4K video playback capability. |

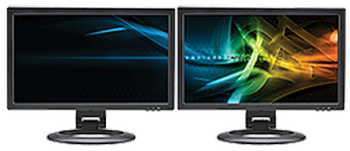

| Dual-screen display Outputs | 10 |
 | The SH81R4 features one HDMI and one DVI-I output to support dual-screen display. Use an adaptor to convert HDMI into DVI interface and DVI-I into D-sub (VGA) interface for diversified signal selection. |
| 80Plus Bronze Certified 300W Power Supply | 11 |
 | Shuttle’s SH81R4 is equipped with an 80 Plus Bronze 300W power supply for guaranteed energy efficiency and energy saving. Shuttle’s 300W power supply cuts down on unnecessary power consumption for a higher level of energy saving. |
| Specification | http://us.shuttle.com/products/sh81r4/ |
| Wattage | 300 W |
| Drive Type | ODD HDD |
| GraphicsType | Integrated |
| Capacity | |
| Drive Bays | ODD, 1 x 2.5" HDD, 2 x 3.5" |
| Port Location | Front Rear Front Front Rear Rear Rear Rear Rear Rear Rear |
| Model | Shuttle SH81R4 Support Haswell/Haswell refresh Core i3/i5/i7, Pentium, Celeron LGA 1150 CPU. Max. 95W |
| Graphics Adapter | Intel HD Graphics |
| Drive Type | ODD HDD |
| Type | Barebone/Mini Computers Internal DDR3 SDRAM |
| Bays | 1 x 2.5" 2 x 3.5" |
| Model | Shuttle SH81R4 Support Haswell/Haswell refresh Core i3/i5/i7, Pentium, Celeron LGA 1150 CPU. Max. 95W |

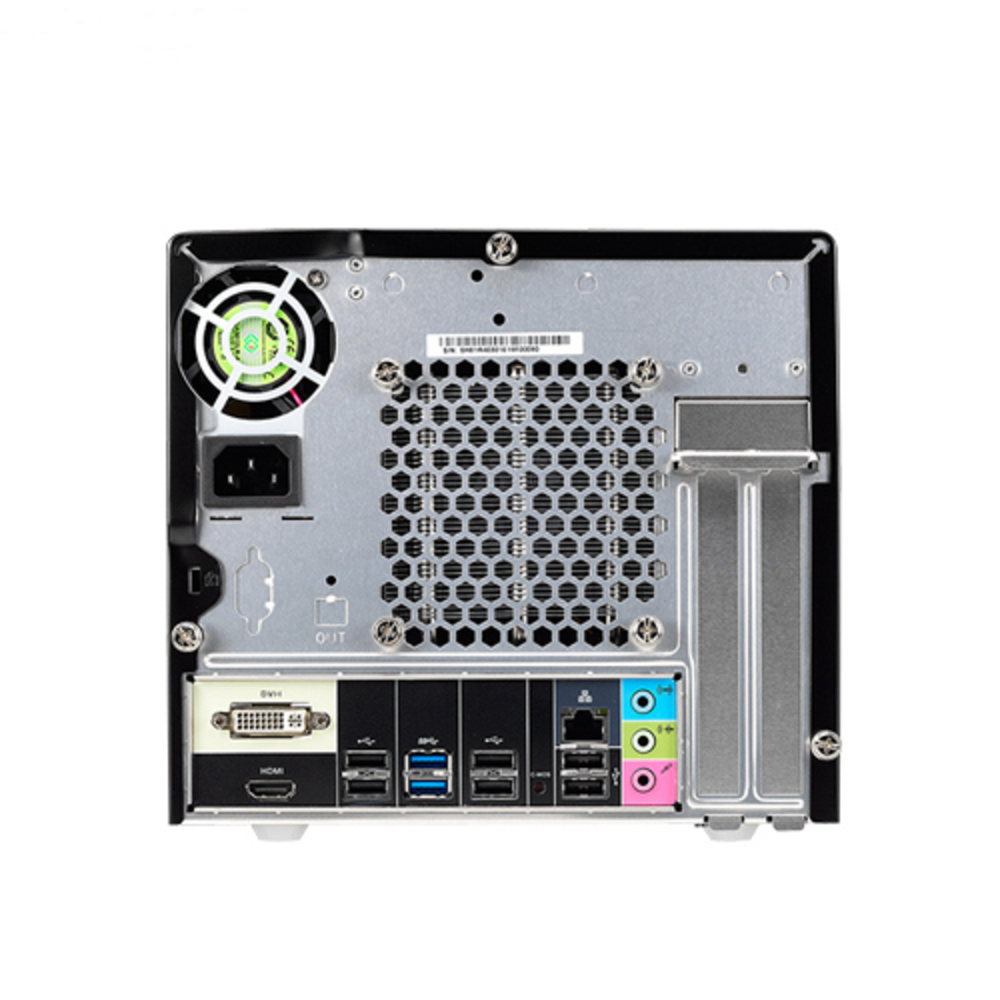

| Ports Input | 2 x USB 2.0 2 x USB 3.0 Microphone Input Microphone Input 1 x Line out port Headphone Output 2 x USB 3.0 DVI HDMI 1 x Line in port LAN (RJ-45) |
| Packing Weight | 5000 g |
| Option | Option Option Option |
| Speed | 1600 MHz |
| Colour | Black |
| Case Material | Metal |
| Max # of Memory Channels | 2 |
| Option | Option Option Option |
| Drive Interface | SATA |
| Option | Option Option Option |
| Ports | Front, Microphone Input Front, Headphone Output Rear, 2 x USB 3.0 Rear, DVI Rear, 1 x Line out port Rear, HDMI Rear, 1 x Line in port Rear, LAN (RJ-45) Rear, Microphone Input Front, 2 x USB 2.0 Rear, 2 x USB 3.0 |
| Networking | Gigabit Ethernet |
| Additional Features | Shuttle Form factor 5.1 channel High Definition Audio PCI-E X16 slot PCI-E X1 slot (mechanically compatible with PCI-E x4 card), Full size Mini-PCIE socket Full size Mini-PCIE socket Half size Mini-PCIE socket Intel H81 Express Chipset |
| Packing Width | 460 mm |
| Packing Depth | 300 mm |
| Packing Height | 250 mm |
| Package Type | BOX |
