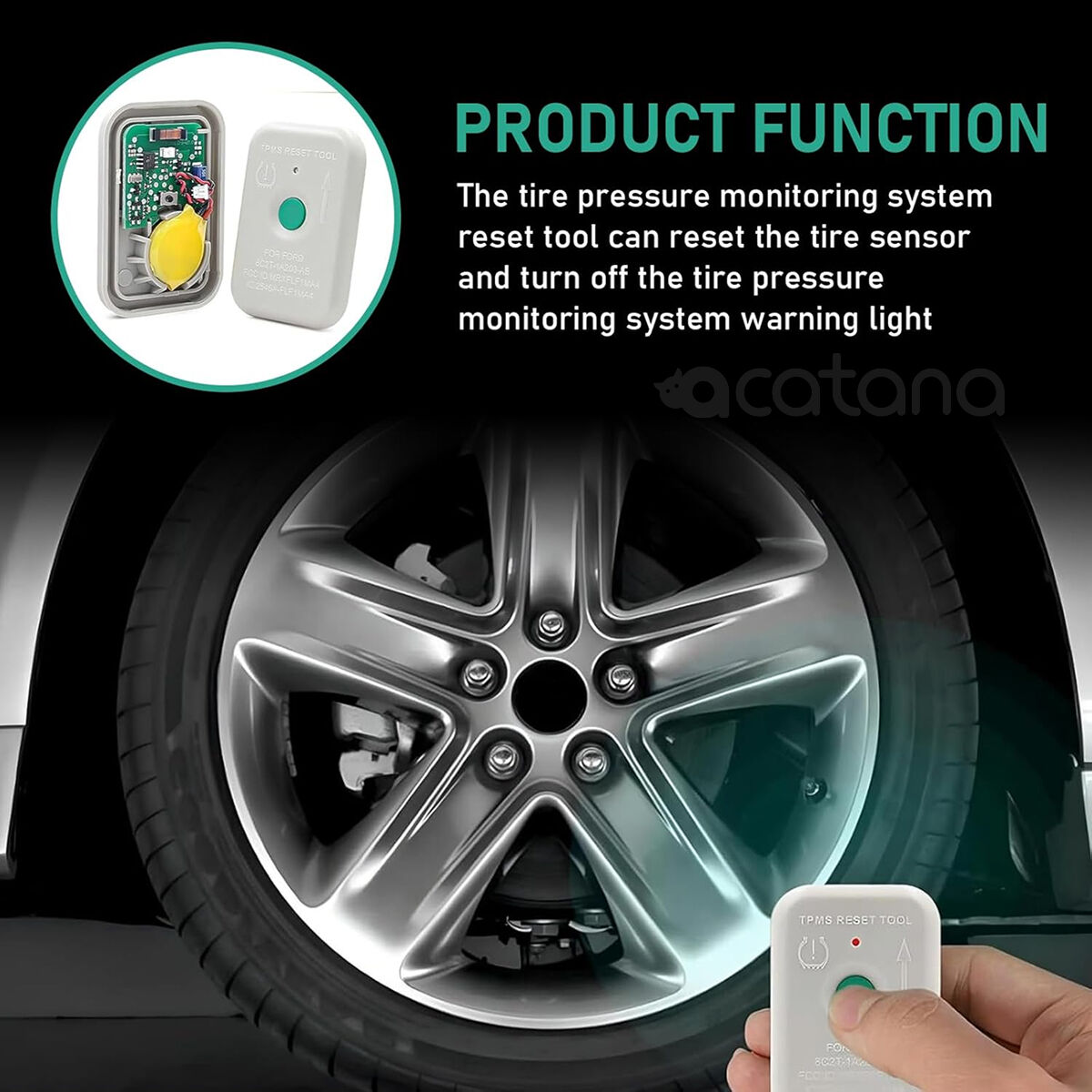

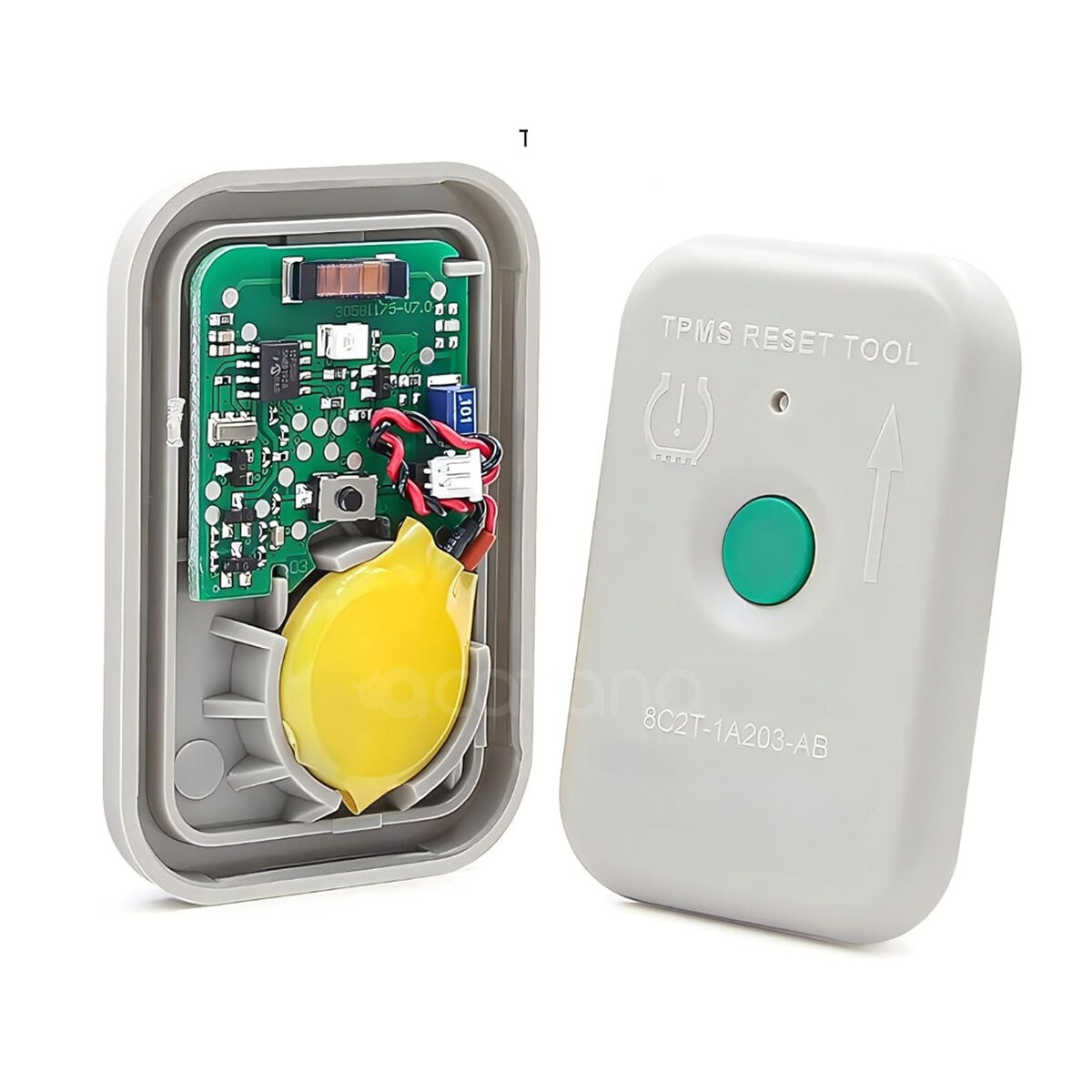

This Tire Pressure Sensor Training Activation Transmitter Reset Tool for Ford TPMS-19 is designed to activate and reprogram tire pressure monitoring system (TPMS) sensors after tire rotation, replacement, or sensor installation. It allows quick and easy synchronization between your vehicle’s TPMS sensors and the onboard computer, ensuring accurate tire pressure readings and system reliability.



Compatibility for:

• Ford F-150 2007 - 2016
• Ford F-250 F-350 F-450 F-550 Super Duty 2008 - 2016
• Ford Mustang 2007 - 2016
• Ford Edge 2007 - 2014
• Ford Escape Explorer 2006 - 2016
• Ford Expedition 2008 - 2016



Reference OEM: TPMS-19, 8C2Z-1A203-A, 8C2T-1A203-AB, 8C2Z1A203A, 8C2T1A203AB



Important note:

• The vehicle must be in TPMS Training Mode to perform sensor activation.
• This tool only activates OEM or compatible TPMS sensors - it does not program new IDs.
• Ensure each tire sensor is properly installed and functional before reset.

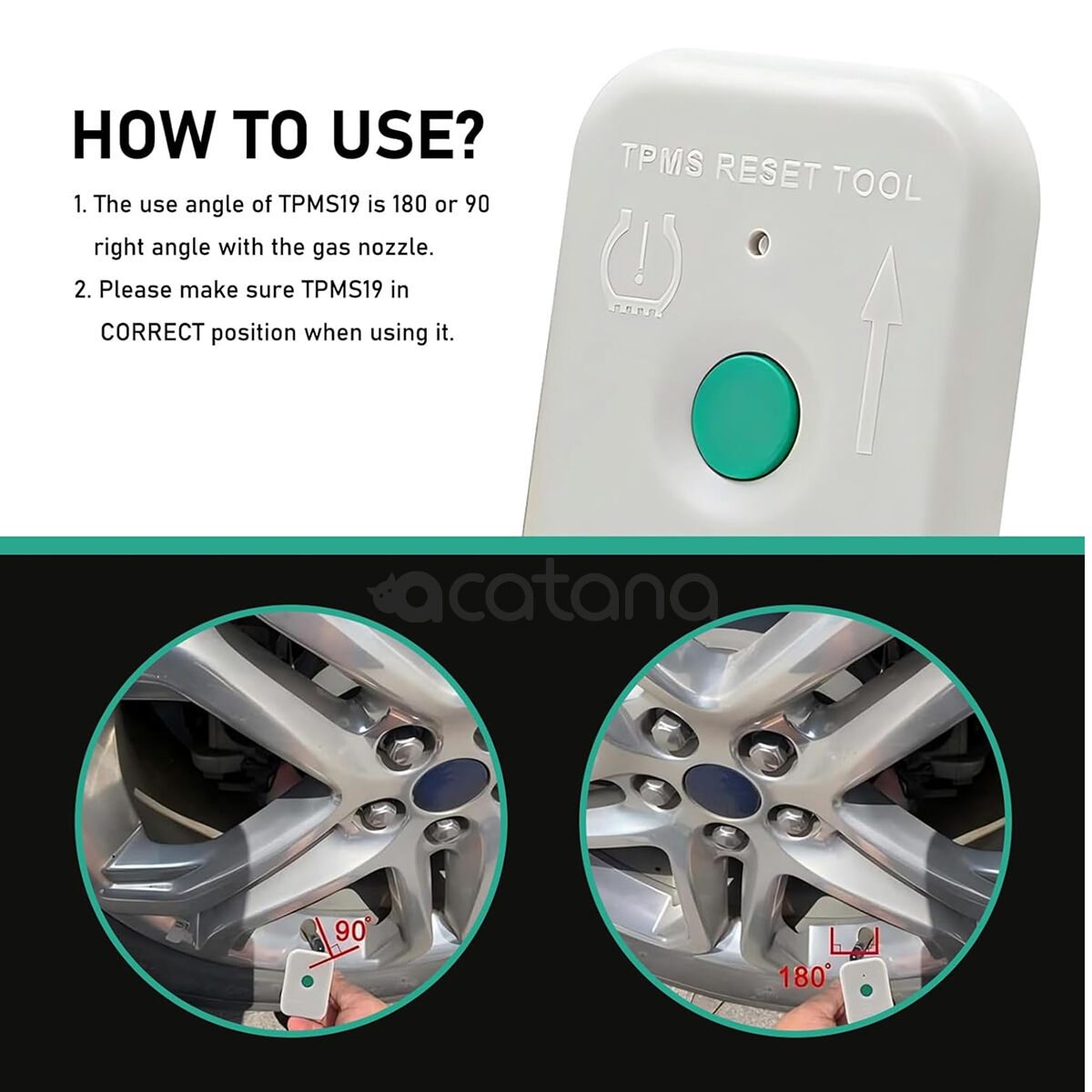

• The TPMS19 Reset Training Tool is used at a right angle of 180 degree or 90 degrees to the air nozzle, and has button operation, which is convenient for quick detection and reset



Features:

• Easy one-button operation - no complicated setup
• Quickly syncs new or rotated sensors with the vehicle’s ECU
• Compatible for most Ford vehicles with factory TPMS
• Compact and durable design - ideal for toolboxes or glove compartments
• Saves time and money on dealer visits



Specification:

• Type: TPMS Reset Training Tool
• Material: High-strength plastic and electronic components
• Power Supply: battery (included)



How to use the TPMS Reset Tool:

• STEP 1: Turn the ignition switch to the “ON” position (engine off).
• STEP 2: Press the hazard light switch six times to enter TPMS Training Mode (horn will sound once).
• STEP 3: Starting with the front left tire, hold the TPMS tool near the sidewall by the valve stem and press the button until the horn beeps.
• STEP 4: Repeat for front right, rear right, and rear left tires in order.
• STEP 5: After all four sensors are trained, the horn will sound twice to indicate completion.
• STEP 6: Turn ignition off and check that the tire pressure light has gone off.



Package includes: TPMS Reset Training Tool
