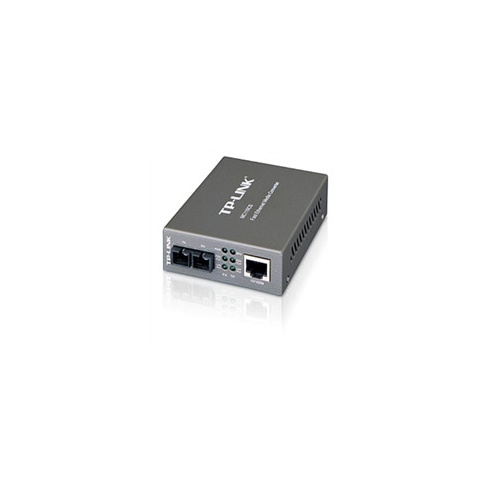

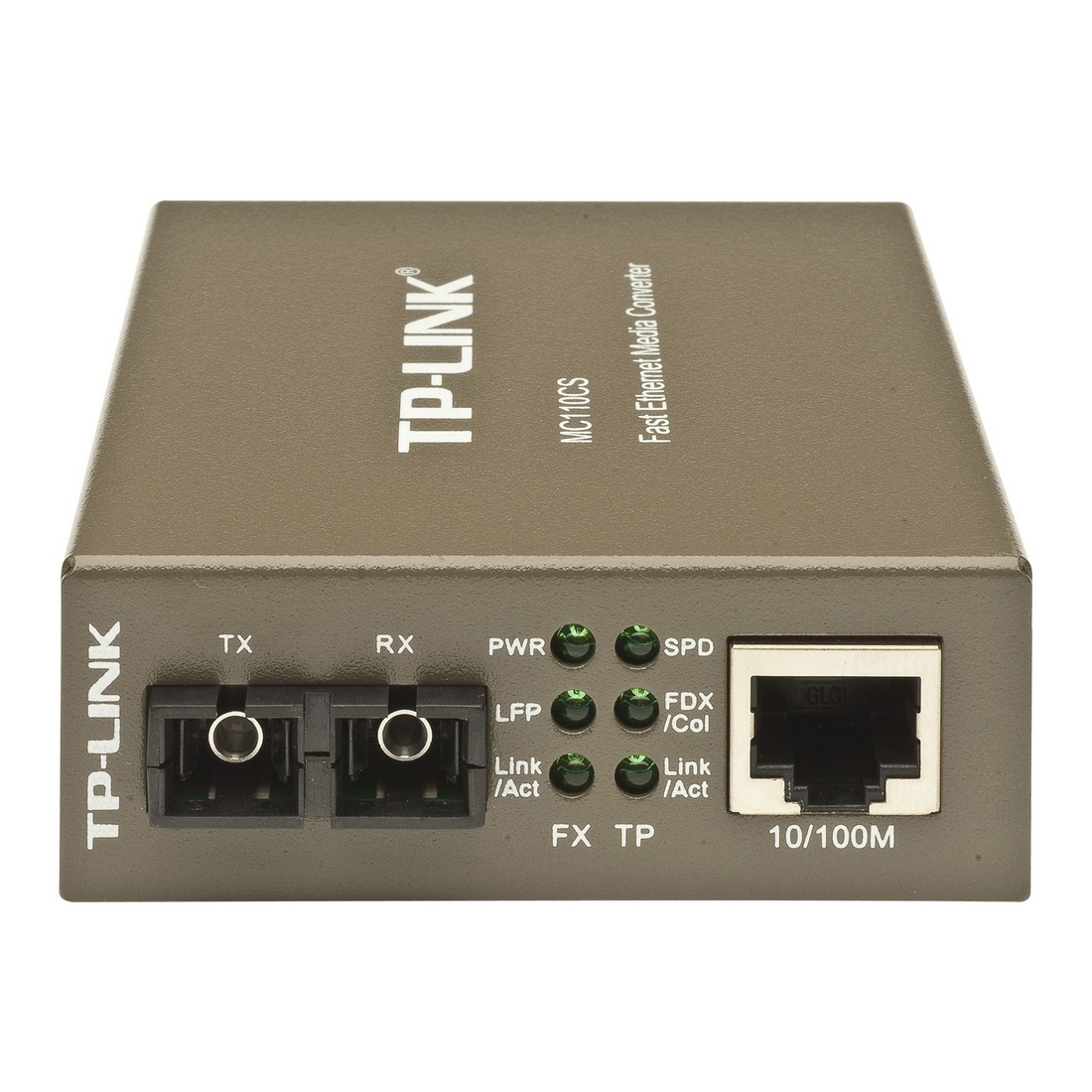

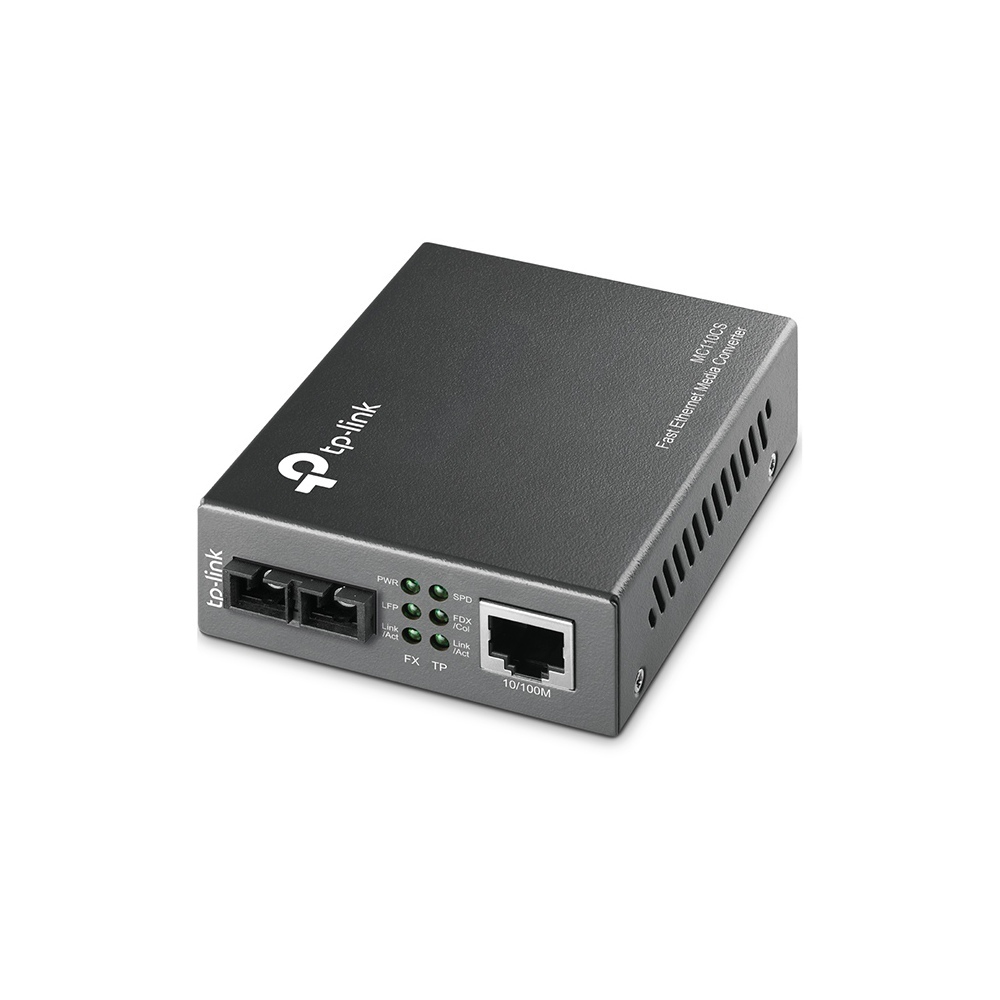

TP-Link MC110CS 10/100Mbps Single-mode SC Fiber Media Converter Full-duplex up to 2Km Switching Power Adapter Chassis mountable
Product Code: MC110CS
Price:
$300.00
Sold Out
Share This Item:
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely |
| Ports | 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, FDX/Col, Link/Act, SPD |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 1.52W |
| Safety & Emission | FCC, CE, RoHS |
| Material Type | Metal |
| Additional Features | Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Extend fiber distance up to 20km Easy-to-view LED indicators provide status to monitor network activity easily External power supply |
| Packing Weight | 470 g |
| Product Size | 94.5 x 73 x 27 mm |
| Packing Width | 120 mm |
| Packing Depth | 90 mm |
| Packing Height | 50 mm |
| Package Type | BOX |
