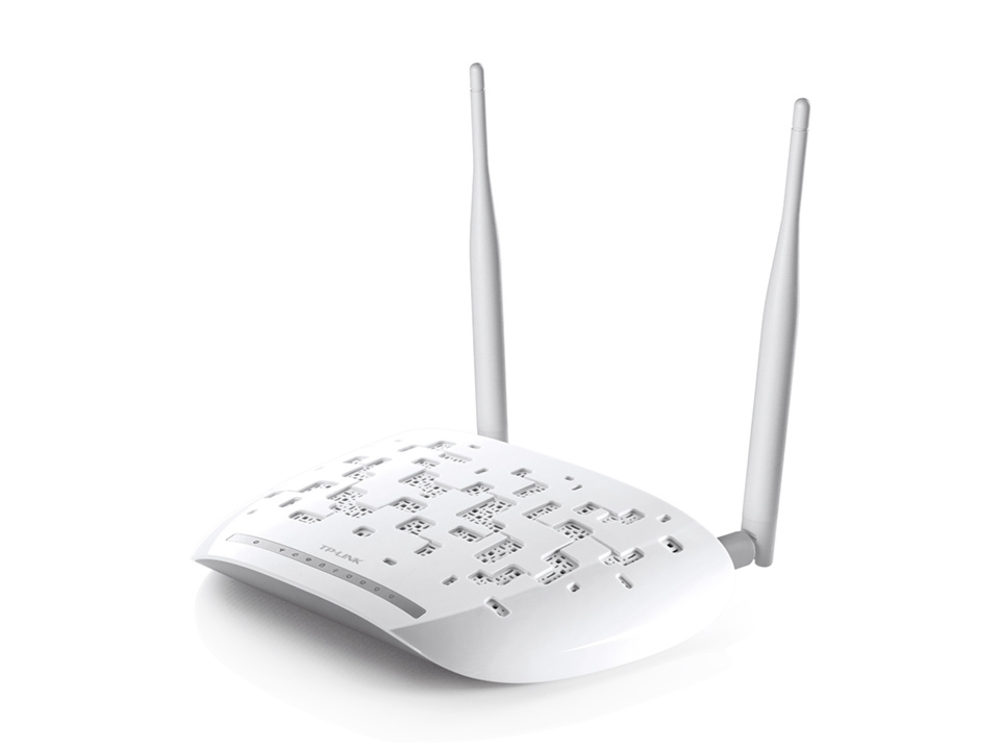

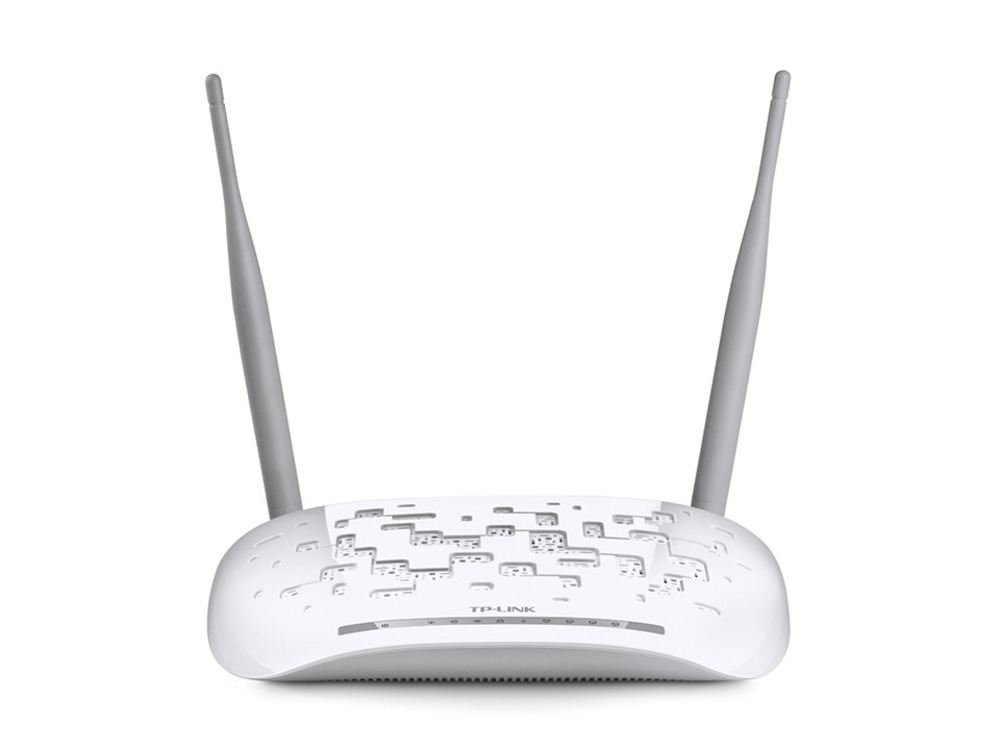

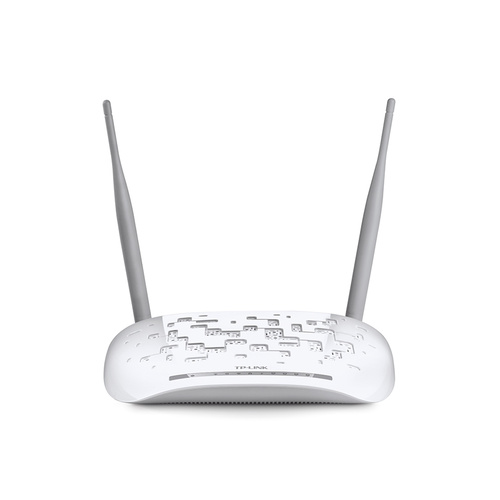

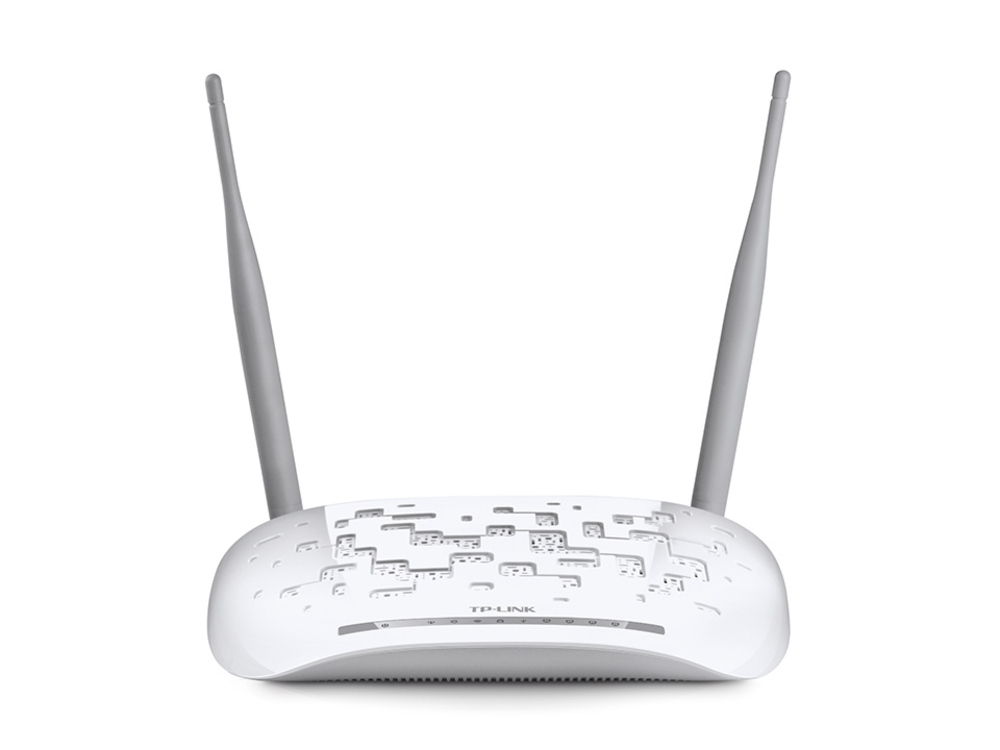

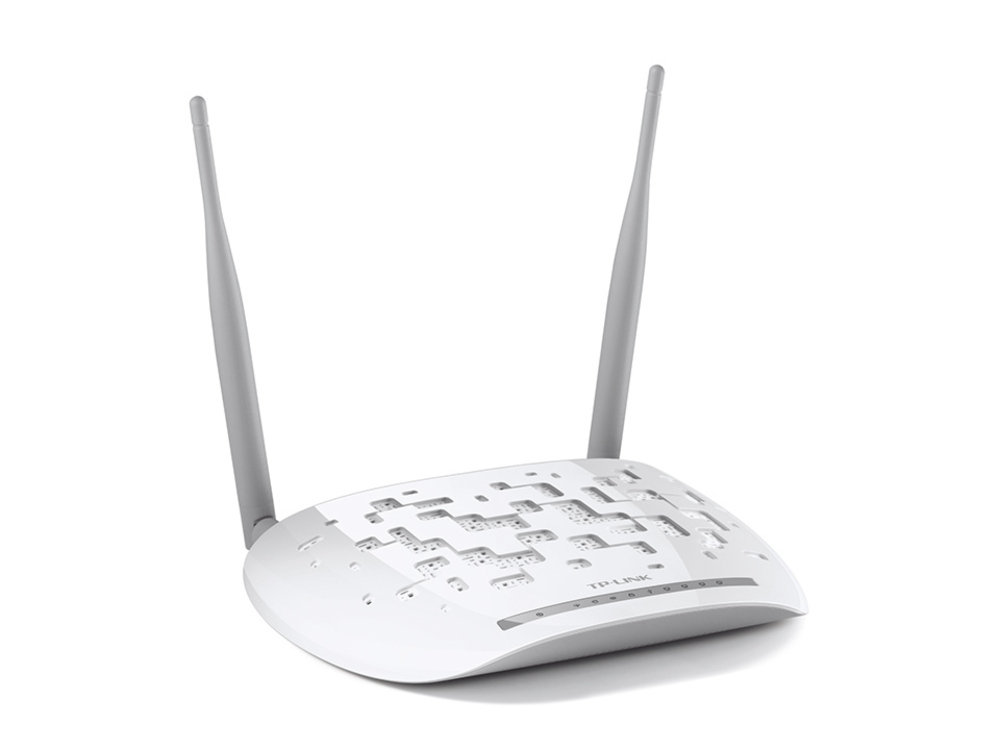

TD-W9970 VDSL2 Modem Router 01

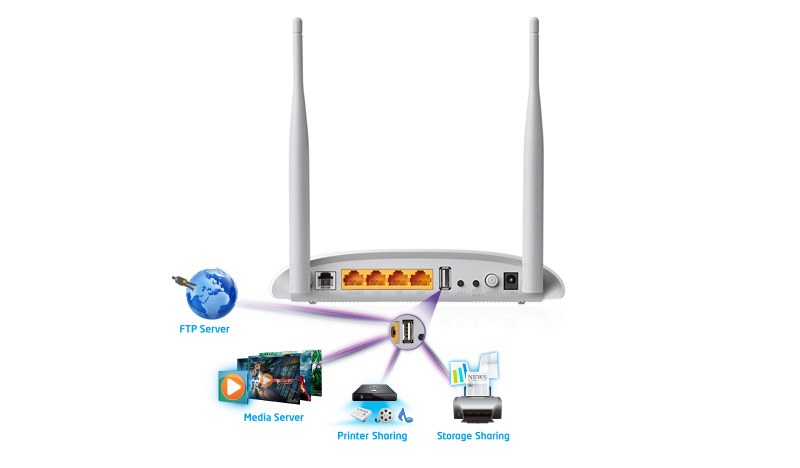

USB Sharing Port – Easy Sharing

Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.

Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service

The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Up to 100Mbps broadband speed

TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.

Virtually Impregnable-10 VPN IPsec tunnels

The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.



HARDWARE FEATURES

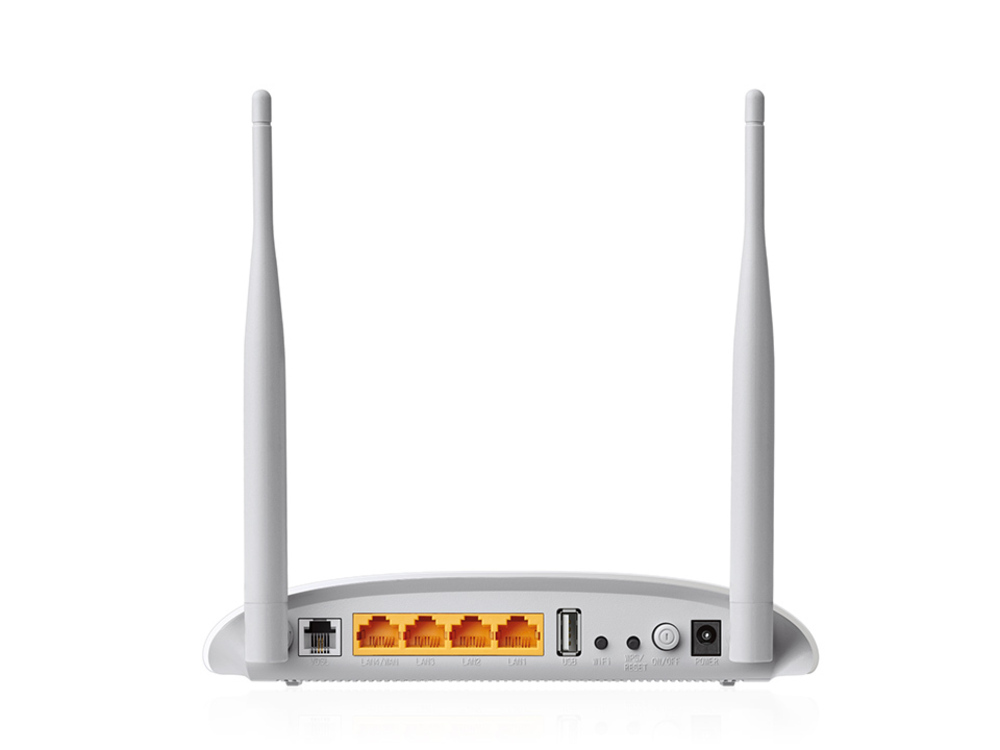

Interfaces 4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port
Button 1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch
Dimensions (W X D X H) 7.7*5.1*1.4 in. (195×130×36mm)
External Power Supply 12VDC/1A
IEEE Standards IEEE 802.3, 802.3u
VDSL2 Standards ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ADSL Standards Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards ITU-T G.992.5
Antenna Type Omni directional, Fixed
Antenna Gain 2 x 5dBi



WIRELESS FEATURES
Wireless Standards IEEE 802.11b, 802.11g, 802.11n
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control (IP QoS)
Security NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering
IPv6 IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
Port Forwarding Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
Advanced Features Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP
USB Sharing Storage Sharing
FTP Server
Media Server
Print Server
IGMP IGMP snooping V1/V2/V3
IGMP Multicast
IPSec VPN 10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
OTHERS
Certification CE, FCC, RoHS
Package Contents TD-W9970
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
System Requirements Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Network Type Wireless
Specification http://www.tp-link.com/en/products/details/cat-15_TD-W9970.html#specifications
WAN-port ADSL Ethernet
Ports 4 x 10/100 Mbps RJ45 1 x RJ11 1 x USB 2.0
Packing Weight 850 g
Frequency Wireless 2.4 GHz
Wi-FiSpeed 300 Mbps
LAN Speed 100 Mbps
Antenna External/Undetachable
Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering
Antennas Quantity 2
Standards Compliance IEEE 802.3 IEEE 802.3u
Security NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
Additional Features Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL Share files, media and printers with your friends or family using the multi-functional USB port
Packing Width 230 mm
Packing Depth 290 mm
Packing Height 70 mm
VPN Pass-Through PPTP L2TP IPsec
Package Type BOX
