Frequency DC~6GHz
Impedance 50Ω Nominal
Insertion Loss 2GHz 0.7dB
2.5GHz 0.8dB
3GHz 1.0dB
5GHz 1.2dB
5.5GHz 1.3dB
6.0GHz 1.4dB
VSWR(MAX.) 0~3GHz: 1.5:1 Max
3~6GHz: 1.6:1 Max

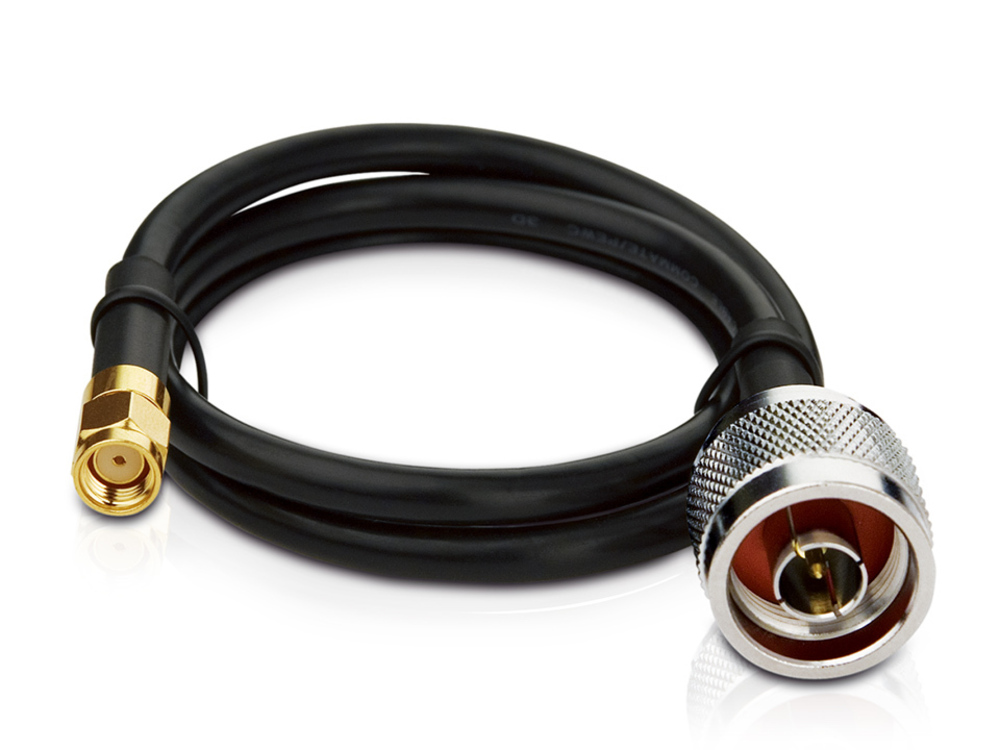

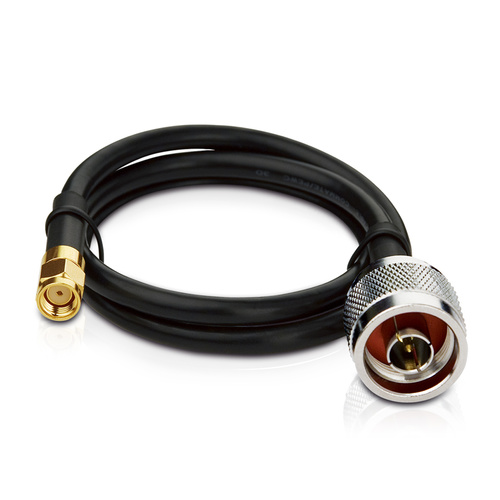

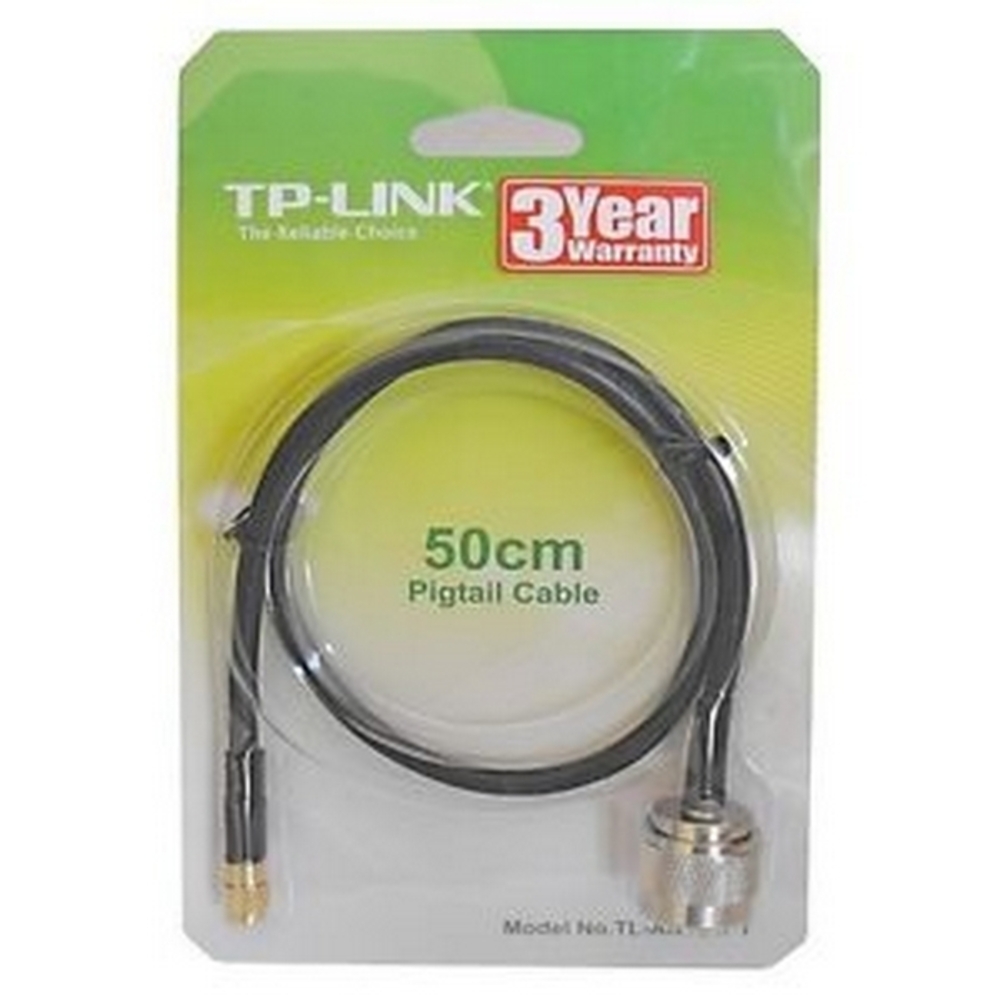

Connector Type N-Type Male to RP-SMA Female
Operating Temp. -10?~+60?
Storage Temp. -40?~+80?
Length 0.5m(1.64ft)



Material Type PVC
Additional Features Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a Weatherproof cable-designed for outdoor exposure Manufactured using 0.5m low loss cable providing better performance in the 5GHz & 2.4GHz applications and suitable for the same use as LMR®-200[1] N-Type Male to RP-SMA Female connector, applicable in most of connections between wireless AP/Router and antenna
Product Size 500 mm
Packing Weight 200 g
Packing Width 150 mm
Packing Depth 30 mm
Packing Height 120 mm
Package Type BOX
