WHAT THIS PRODUCT DOES

01

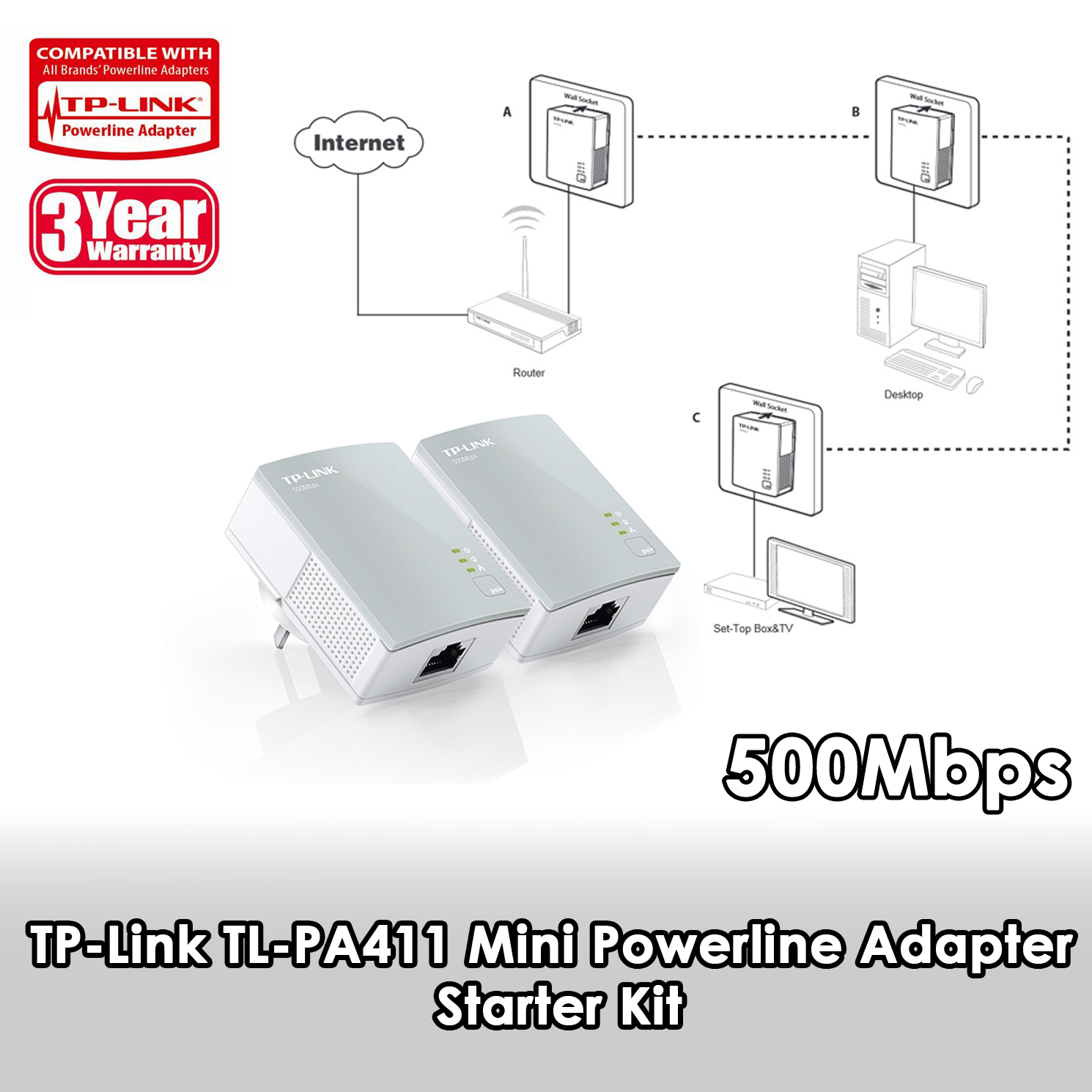

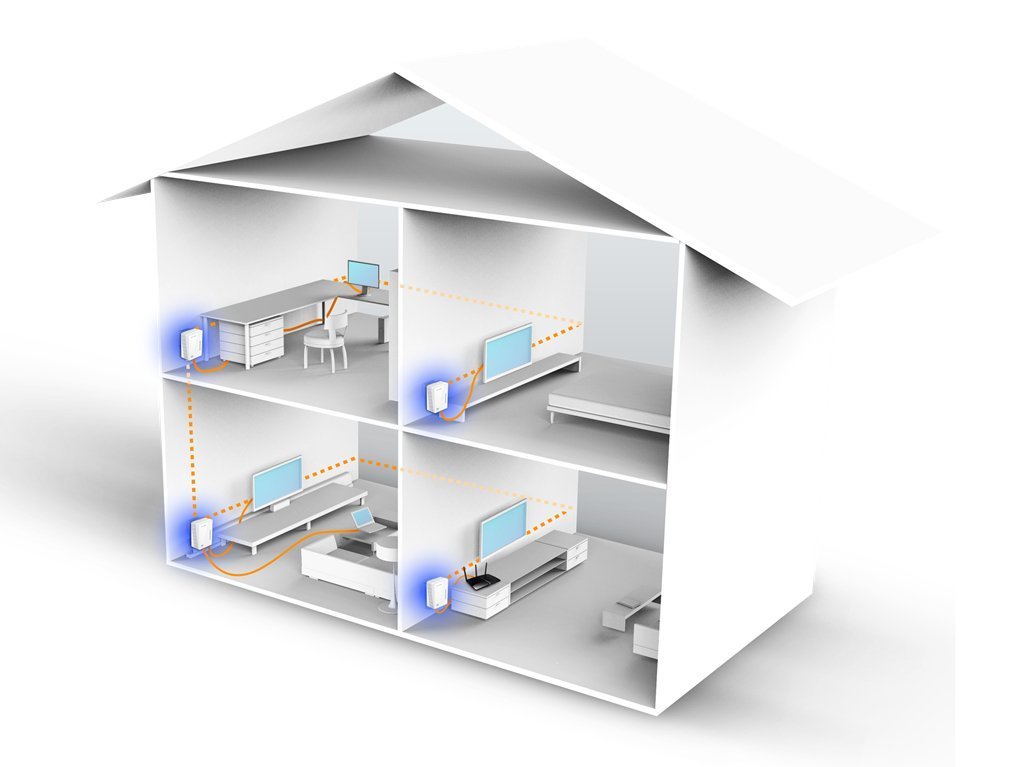

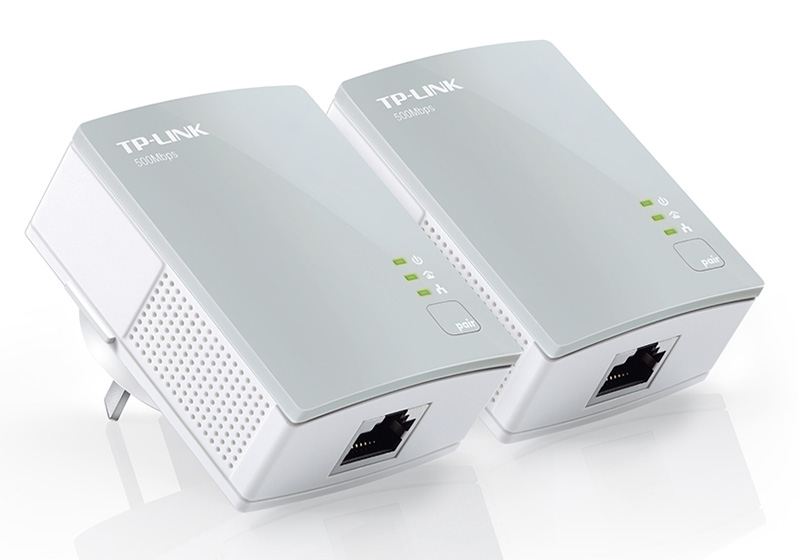

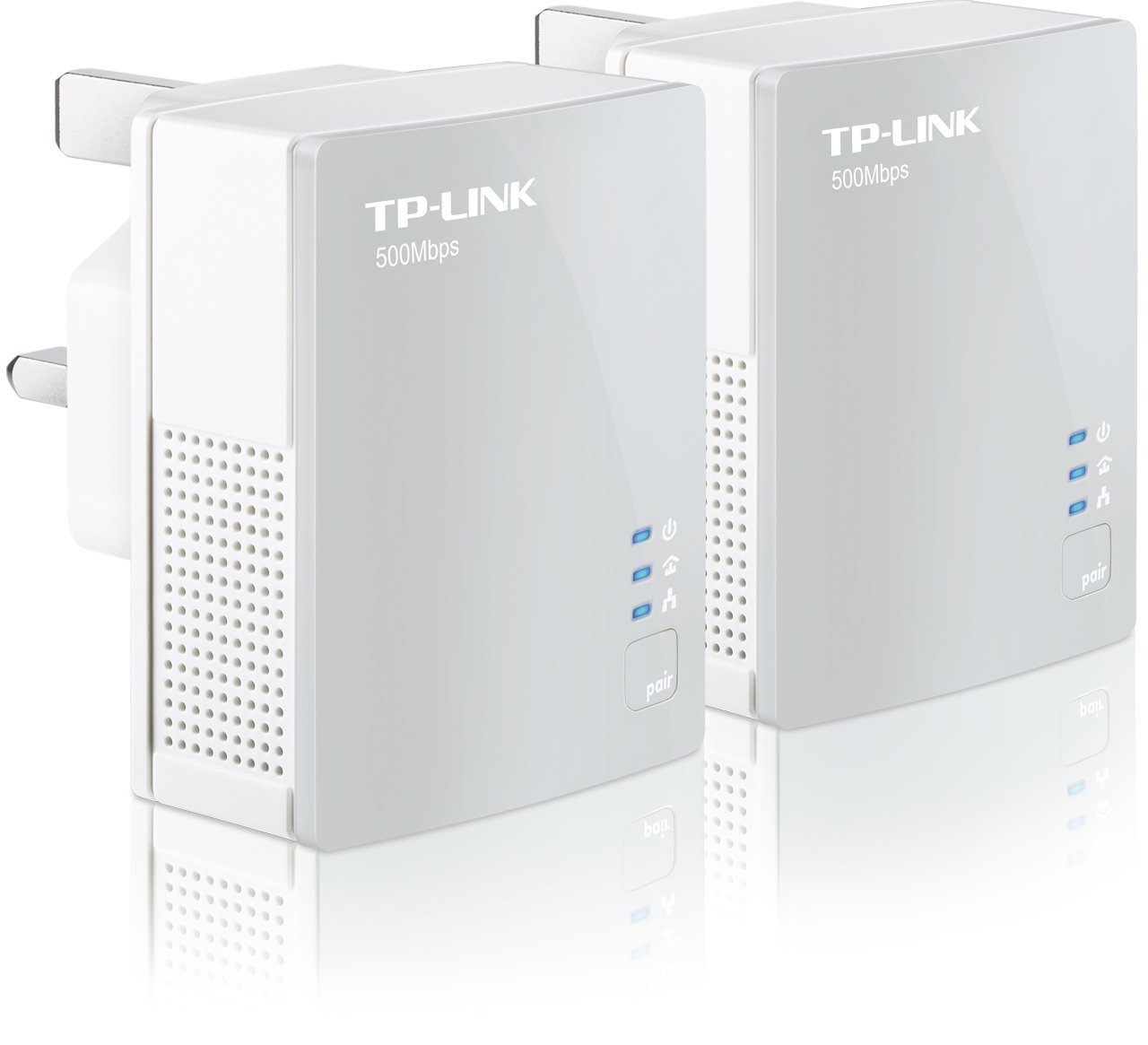

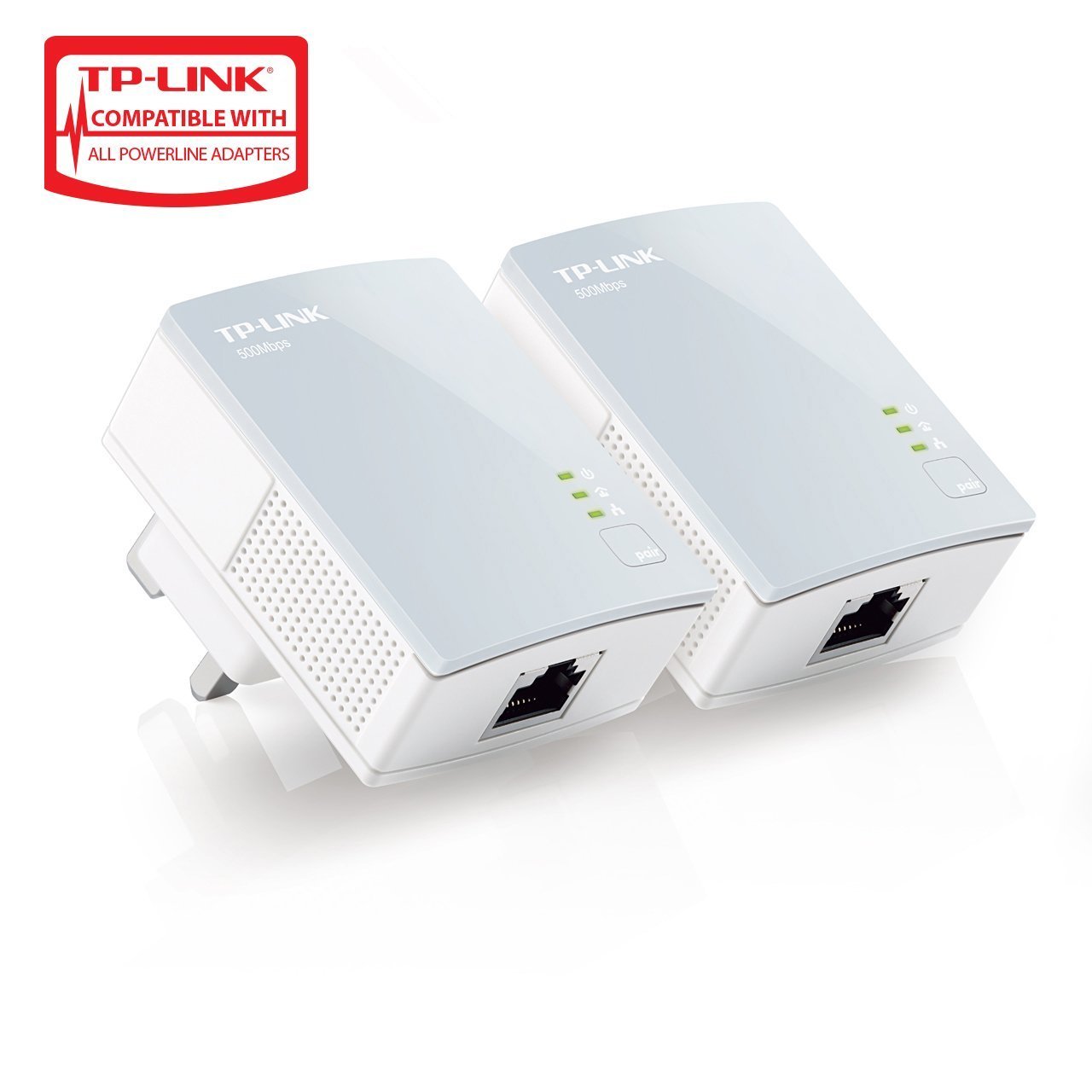

TP-LINK’s TL-PA411KIT uses your home's existing electrical wires to create or expand your home network. With no additional wiring required, you can simply plug the TL-PA411KIT into existing power sockets and instantly establish a networking infrastructure. With high-speed transfer rates of up to 500Mbps, TL-PA411KIT transmits multiple HD streams and even 3D movies to every room, making it a great choice for an easy-to-build multimedia entertainment network

PAIR BUTTON FOR EASY NETWORK SECURITY

02

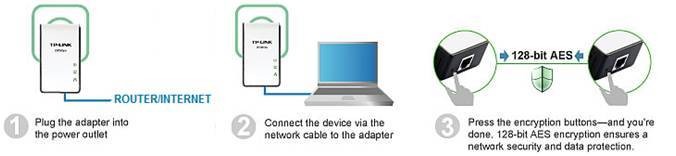

By simply pushing the Pair button on your TL-PA411KIT adapters, you can set up a hassle-free Powerline network within minutes that’s complete with 128-bit AES encryption for network security and data protection.It's that simple!1. Plug the adapter into a power outlet.2. Connect the device via a network cable to the adapter.3. Press the encryption buttons—and you're done!

SUPPORT QOS FOR ADVANCED MULTIPLE-MEDIA OPTIMIZATION

03

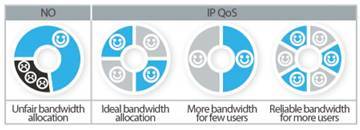

With Quality of Service (QoS), you can determine how much bandwidth is allocated to each application.  This can guarantee that each application will have some bandwidth, meaning that no single application can take down an entire Internet connection. All you have to do is choose which type of traffic you use – Internet surfing, online gaming, video streaming etc. -- and the QoS will guarantee clear, instant reproduction of that application even when with other applications are running on the network at the same time.



HARDWARE FEATURES
Plug Type	AU
Standards and Protocols	HomePlug AV, IEEE802.3, IEEE802.3u
Interface	1*10/100Mbps Ethernet Port
Button	Pair Button
Dimensions (W X D X H)	2.6 x 2.0 x 1.1 in.(65×52×28.5mm)
Power Consumption	Maximum: 4.0W (220V/50Hz) Typical: 3.2W (220V/50Hz) Standby: 0.7W (220V/50Hz)
LED Indicator	PWR, PLC, ETH
Range	300M in house



SOFTWARE FEATURES
Modulation Technology	OFDM
Encryption	128-bit AES Encryption

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Powerline Ethernet Adapter Ethernet cable (RJ45) Resource CD, Quick Installation Guide
System Requirements	Windows 8/7/Vista/XP/2000, Mac, Linux
Environment	Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
