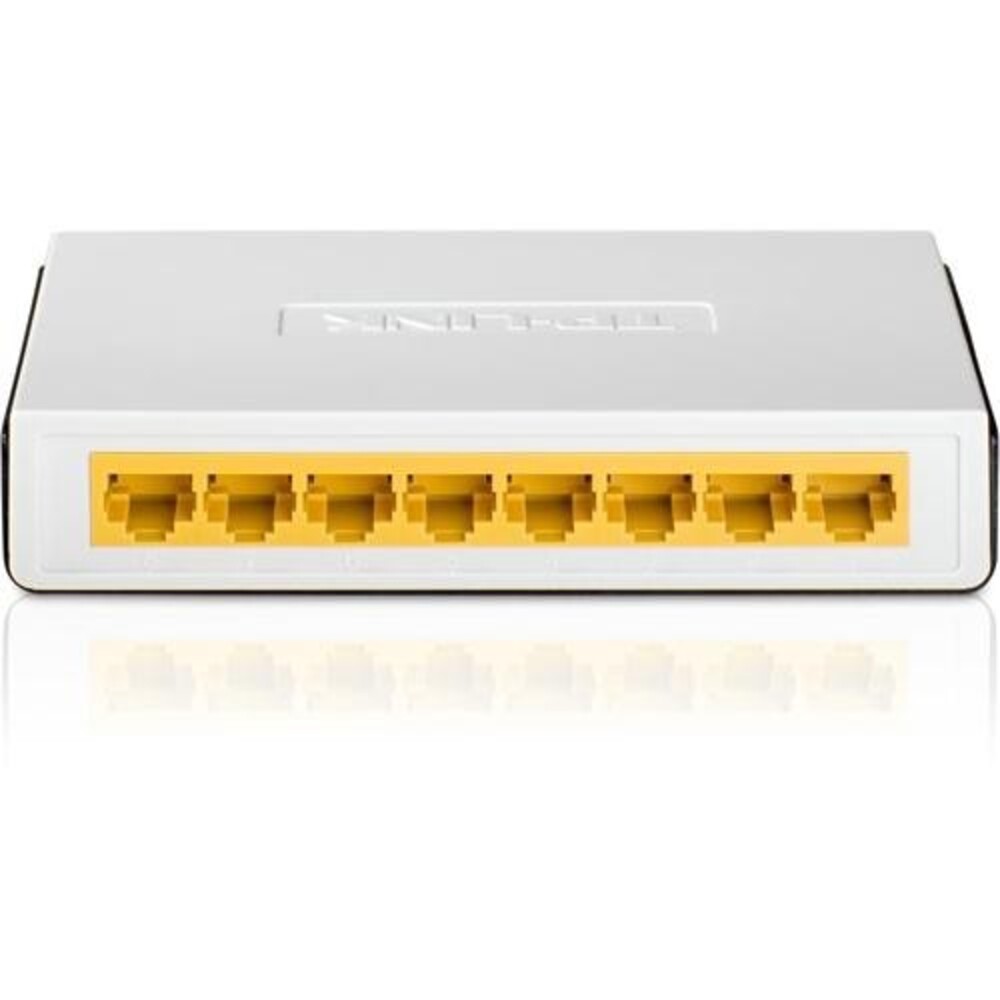

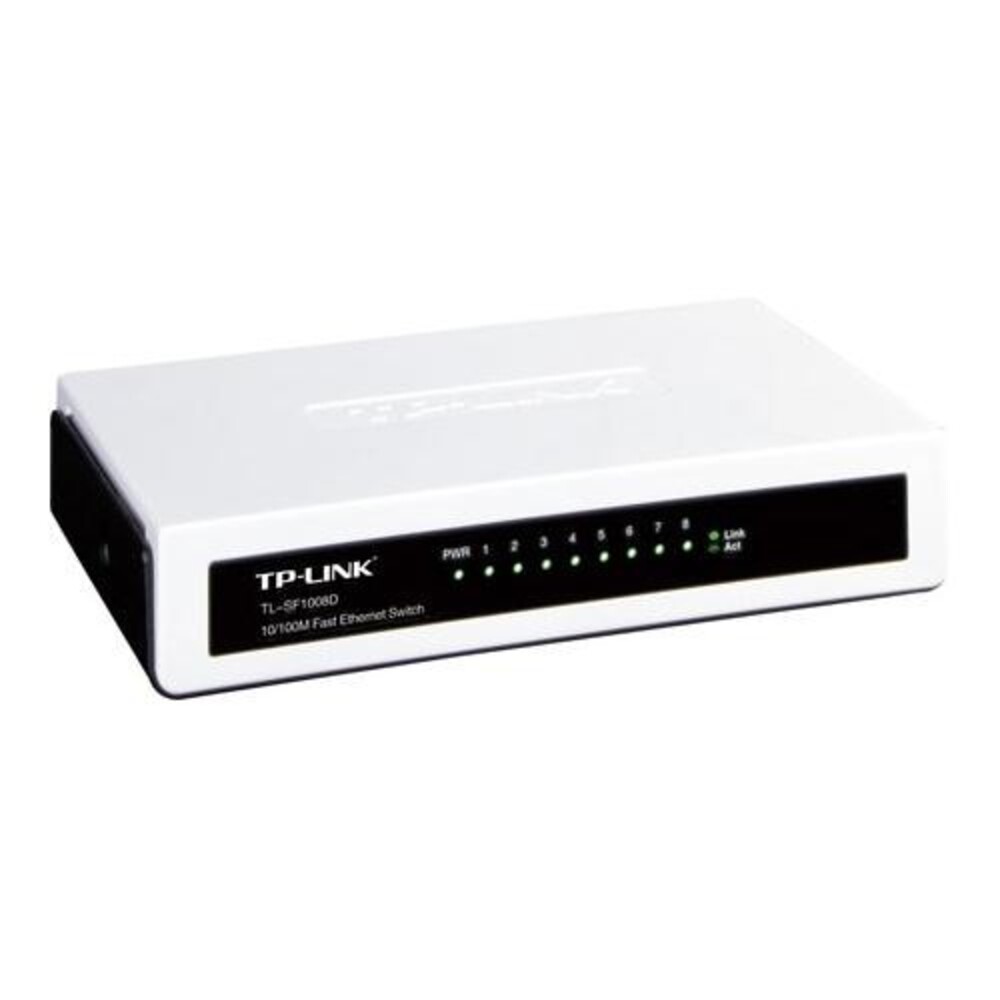

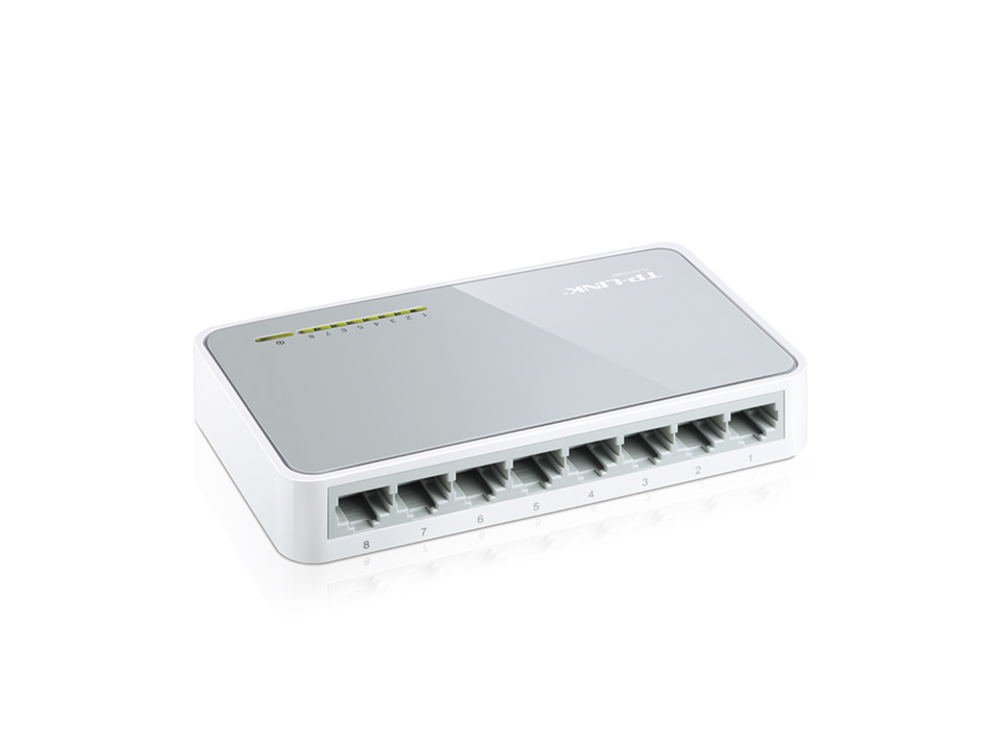

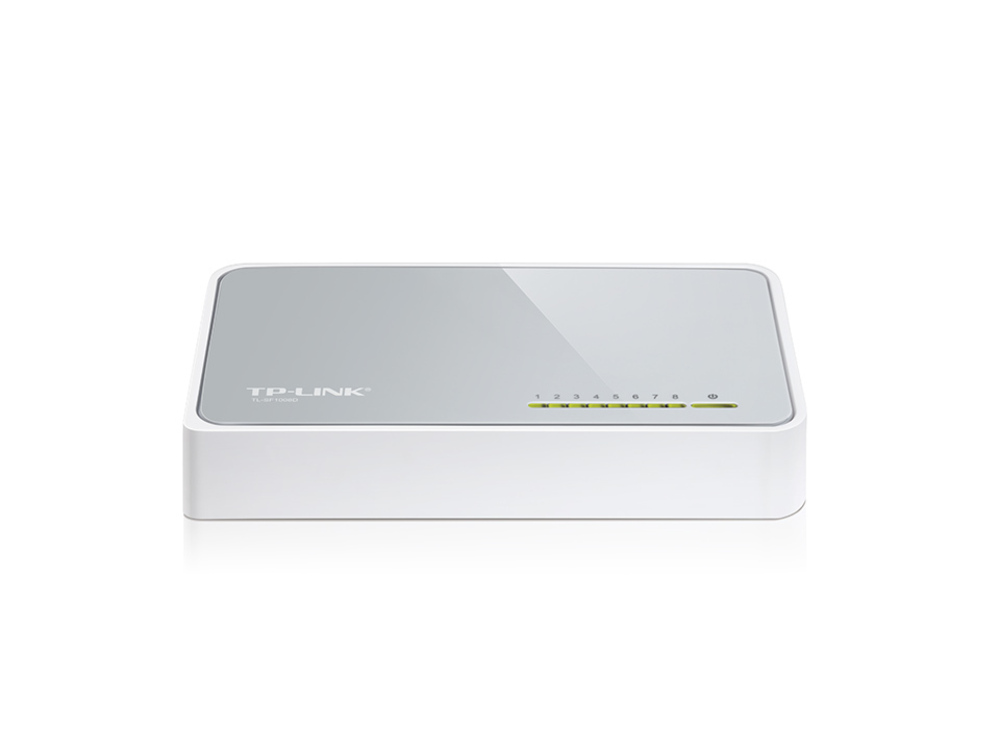

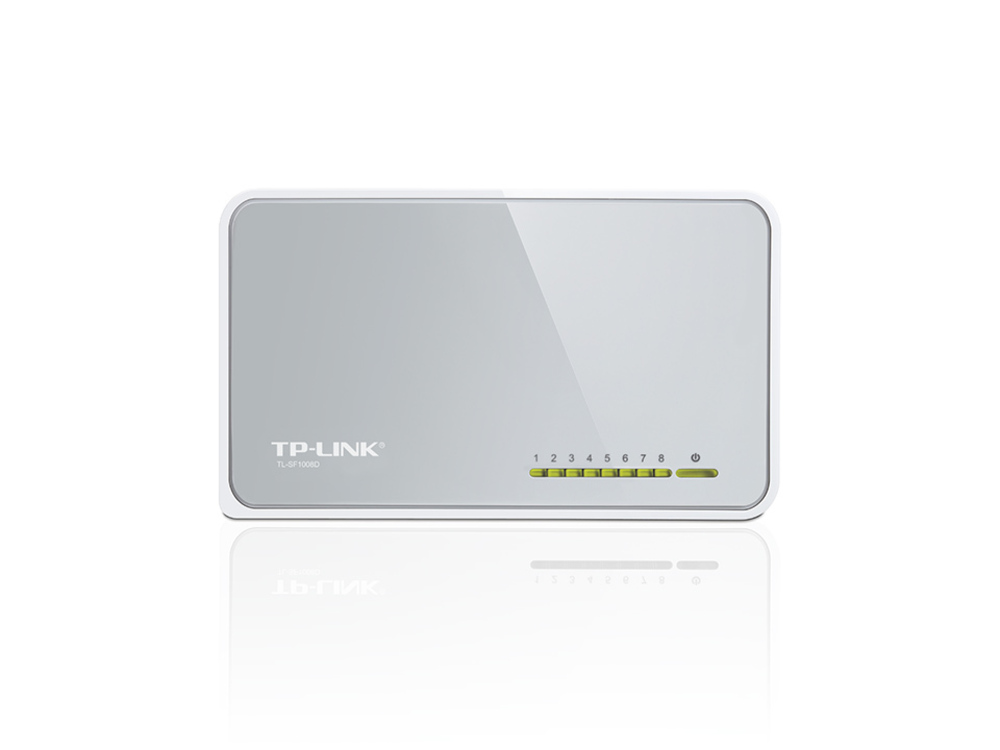

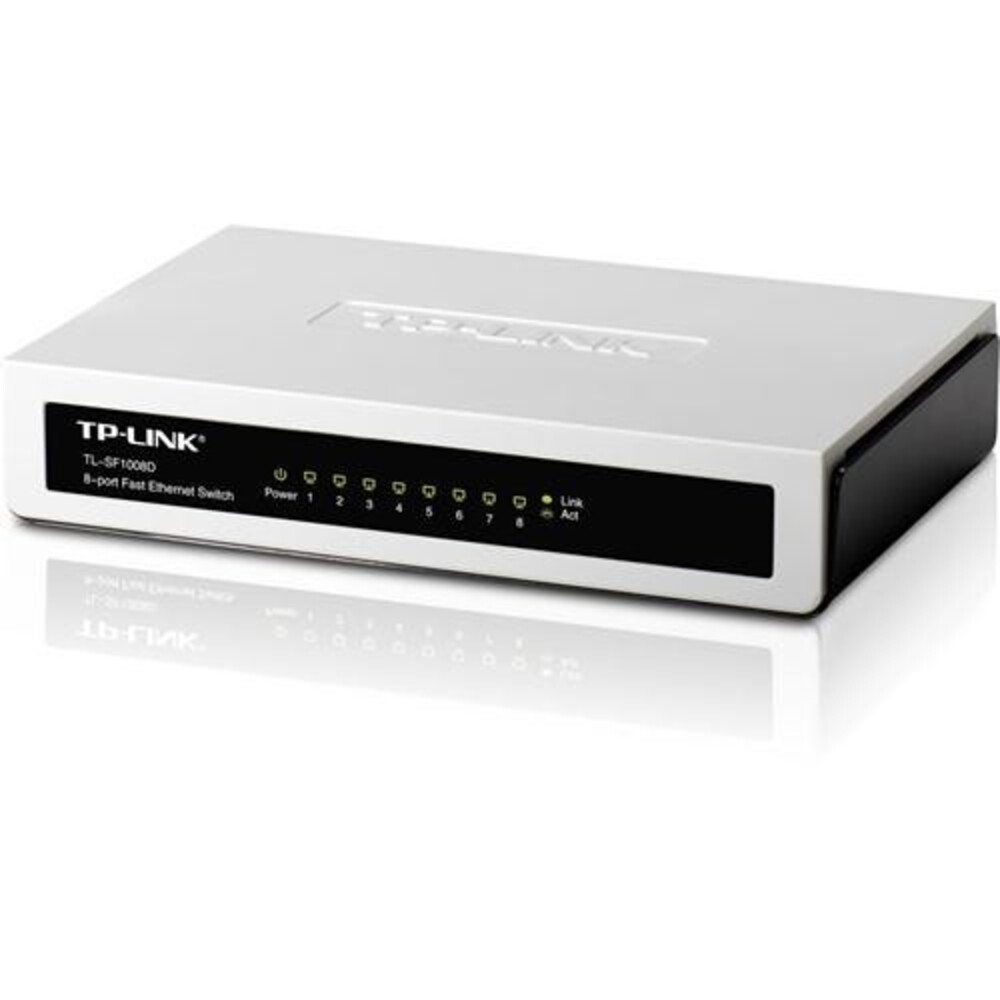

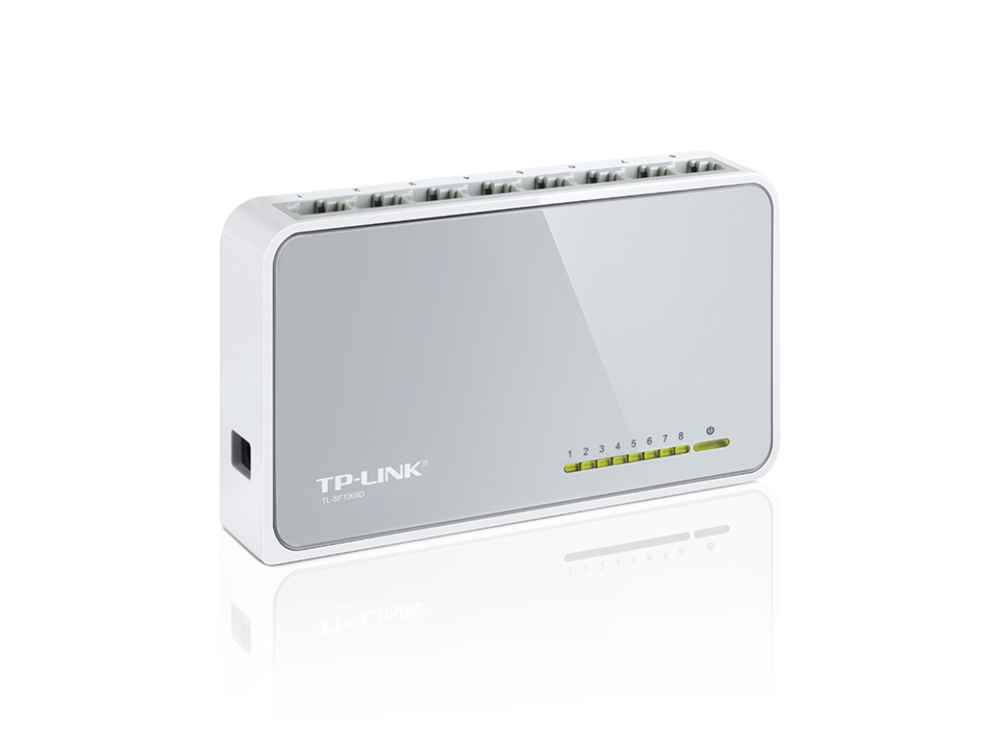

TP-Link TL-SF1008D 01

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-LINK Green Technology

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.



HARDWARE FEATURES



  • Standards and Protocols:
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    • CSMA/CD
  • Interface: 8 x 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
  • External Power Supply: 100-240VAC, 50/60Hz
  • Fan Quantity: Fanless
  • Data Rates:
    • 10/100Mbps at Half Duplex
    • 20/200Mbps at Full Duplex

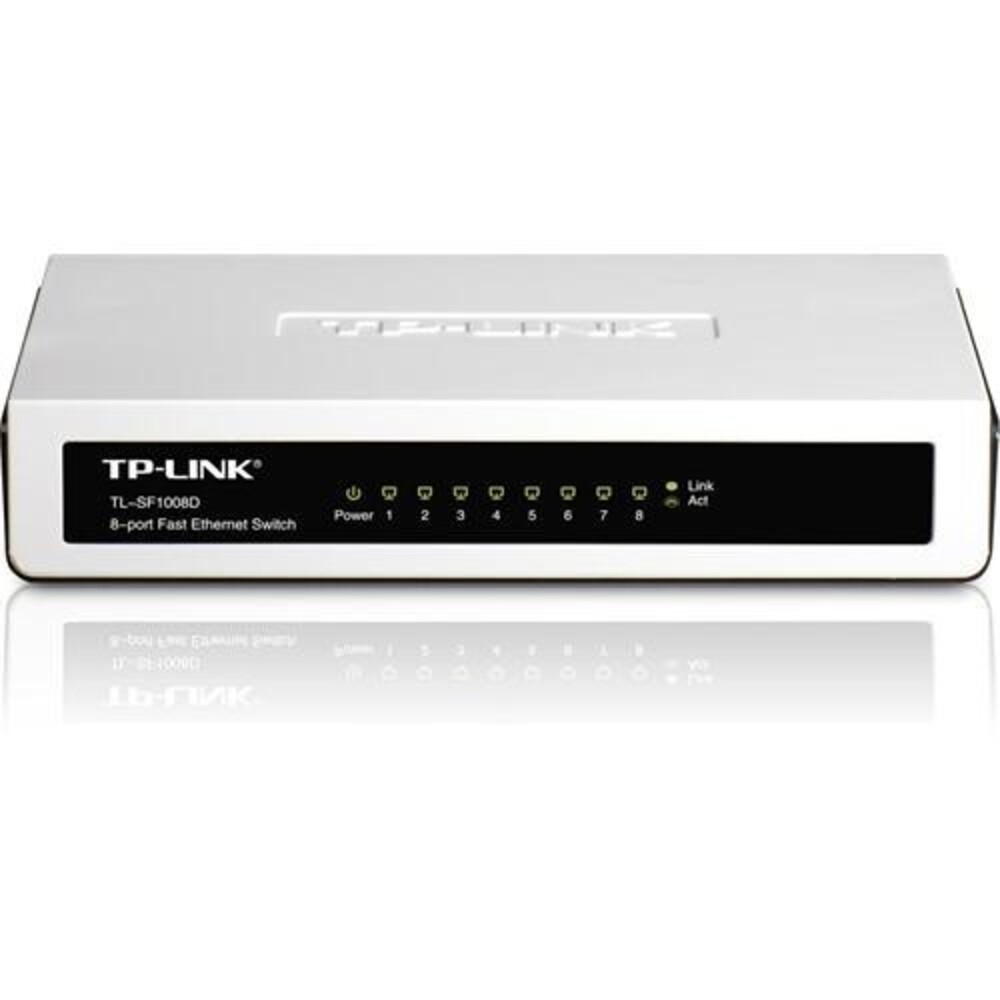

  • LED Indicator: Power, 1, 2, 3, 4, 5, 6, 7, 8
  • Dimensions (WxDxH): 5.3 x 3.1 x 0.9in. (134.5 x 79 x 22.5mm)
  • Power Supply: External Power Adapter

SOFTWARE FEATURES

  • Transfer Method: Store and Forward
  • Advanced Functions:
    • Green Technology, saving power up to 73%
    • 802.3X Flow Control, Back Pressure
    • Auto-Uplink Every Port

OTHERS

  • Certification: FCC, CE, RoHS
  • Package Contents:
    • 8-Port 10/100Mbps Desktop Switch
    • Power Adapter
    • User Guide
  • System Requirements:
    • Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8
    • Mac® OS, NetWare®, UNIX® or Linux
  • Environment:
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F);
    • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F);
    • Operating Humidity: 10% ~ 90% non-condensing;
    • Storage Humidity: 5% ~ 90% non-condensing
Additional Features 8 x 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX Green Ethernet technology saves the power up to 73% IEEE 802.3x flow control provides reliable data transfer Plug and play, no configuration required
Features 802.3X Flow Control, Back Pressure Green Technology, saving power up to 80%
Specification http://www.tp-link.com/en/products/details/cat-42_TL-SF1008D.html#specifications
Quantity Ports 8
Standards Compliance IEEE 802.3 IEEE 802.3u IEEE 802.3x
Ports 8 x 10/100 Mbps RJ45
Model TL-SF1008D
Packing Weight 450.0000 g
Packing Width 65.0000 mm
Packing Depth 165.0000 mm
Packing Height 205.0000 mm
