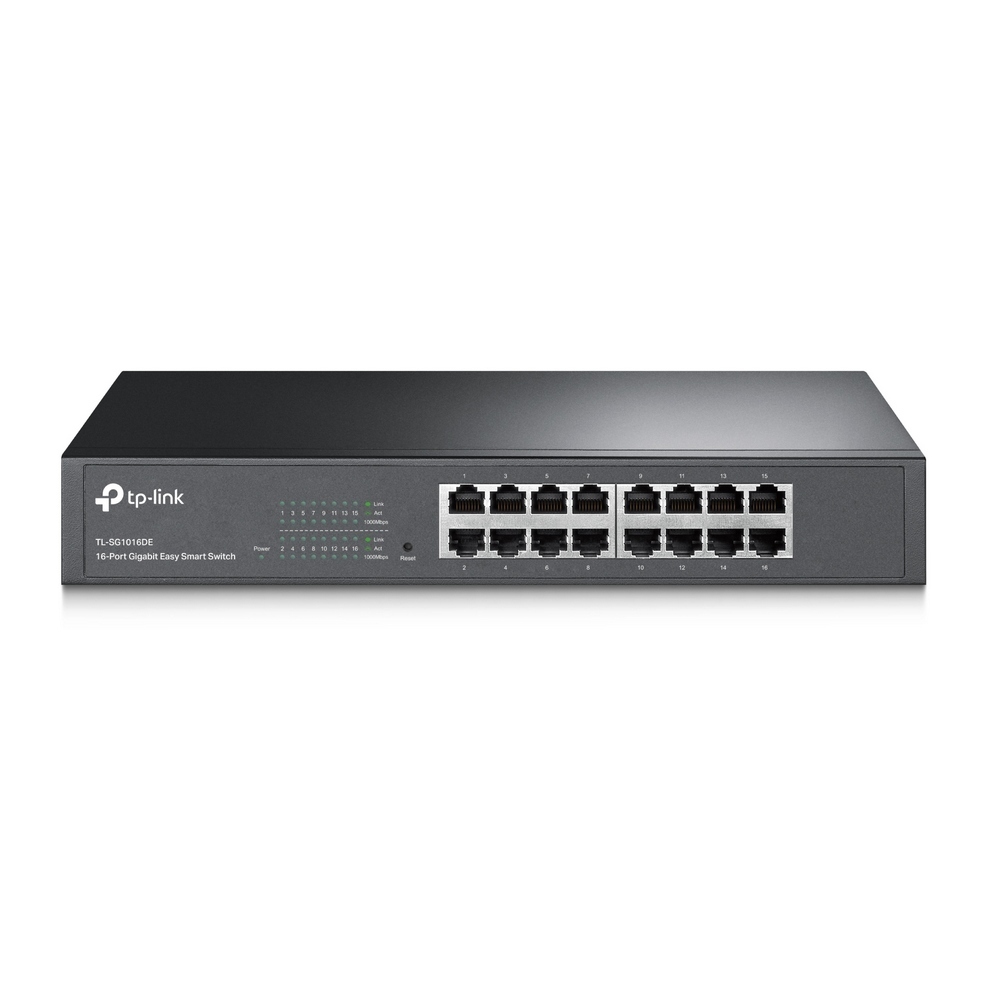

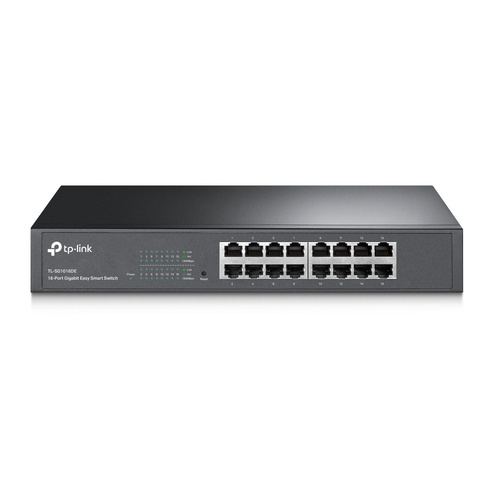

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch
Product Code: TL-SG1016DE
Price:
$150.00
Sold Out
Share This Item:
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 11.73W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 512KB |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| Quantity Ports | 16 |
| Switching Capacity | 32 GB/s |
| Ports | 16 x 10/100/1000 Mbps RJ45 |
| Standards Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.1q IEEE 802.1p |
| Features | Green Technology, saving power up to 80% |
| Power Consumption | 11.73 W |
| Additional Features | IEEE 802.3x flow control provides reliable data transfers 9K Jumbo frame improves performance of large data transfers Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics Port-based/802.1p/DSCP QoS enable smooth latency-sensitive traffic Abundant VLAN features improve network security via traffic segmentation IGMP Snooping optimizes multicast applications |
| Model | TL-SG1016DE |
| Packing Weight | 2500 g |
| Packing Width | 300 mm |
| Packing Depth | 260 mm |
| Packing Height | 80 mm |
| Package Type | BOX |
