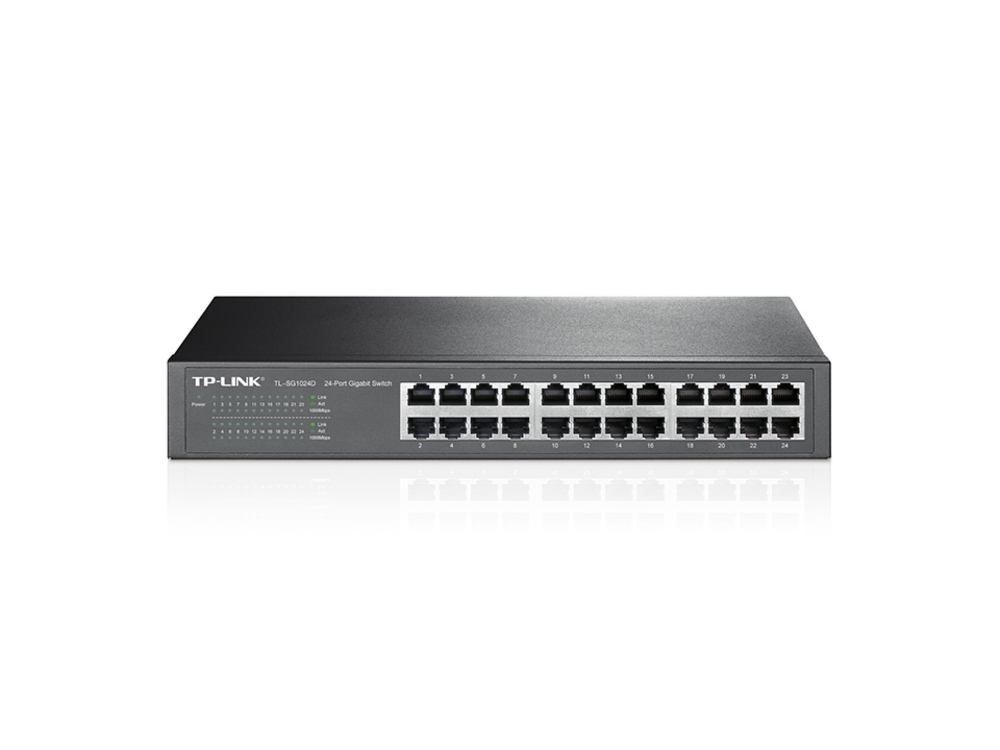

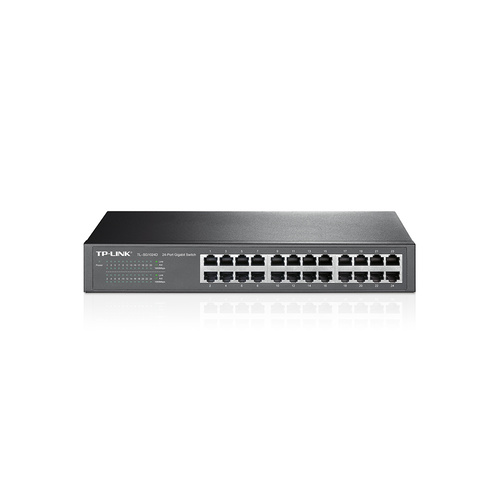

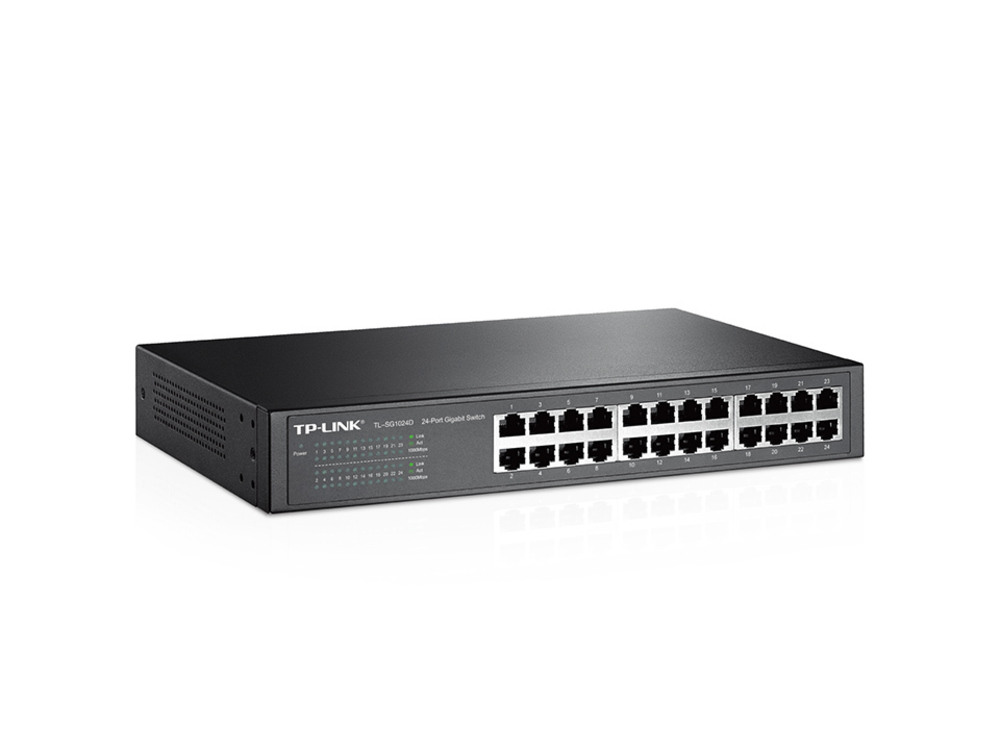

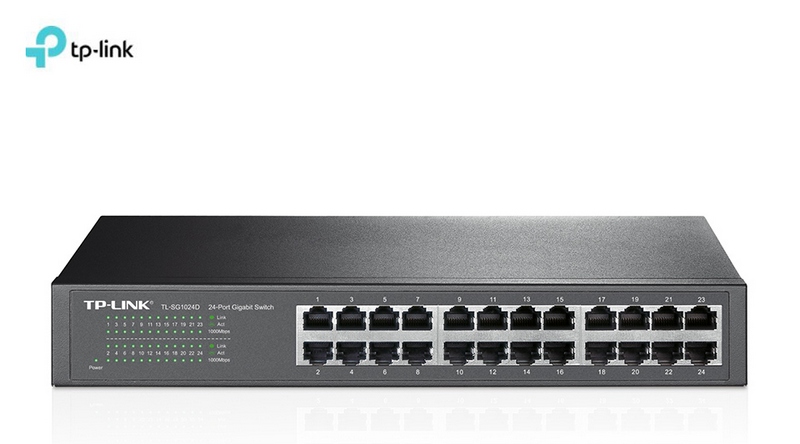

TP-Link TL-SG1024D 01

Gigabit Switch

Featured with 24 x 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 14.6W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)



PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 25%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Switching Capacity 48 GB/s
Features Green Technology, saving power up to 80%
Additional Features Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation Plug & play design Innovative energy-efficient technology saves power up to 40%
Quantity Ports 24
Ports 24 x 10/100/1000 Mbps
Power Consumption 13.1 W
Standards Compliance IEEE 802.3x IEEE 802.3u IEEE 802.3ab IEEE 802.3i
Model TL-SG1024D
Packing Weight 3000 g
Packing Width 260 mm
Packing Depth 550 mm
Packing Height 80 mm
Package Type BOX
