1. For V2 and later version.



2. DSCP QoS is for V2 and later version.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 6.2*4.0*1.0 in. (158*101*25 mm)
Power Consumption Maximum: 4.48W (220V/50Hz)
PERFORMANCE
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward

1. For V2 and later version.

2. DSCP QoS is for V2 and later version.

OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG108E
Power Cord
Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Standards Compliance IEEE 802.1q IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x
Features Green Technology, saving power up to 80%
Quantity Ports 8
Ports 8 x 10/100/1000 Mbps RJ45
Buffer Size 1.5 Mb
Specification http://www.tp-link.com/en/products/details/cat-41_TL-SG108E.html#specifications
Additional Features Provides network monitoring, traffic prioritization and VLAN features Innovative energy-efficient technology reduces power output by up to 58% Simple network set-up on top of plug-and-play connectivity Web-based user interface1 and management utility simplify configuration
Power Consumption 4.48 W

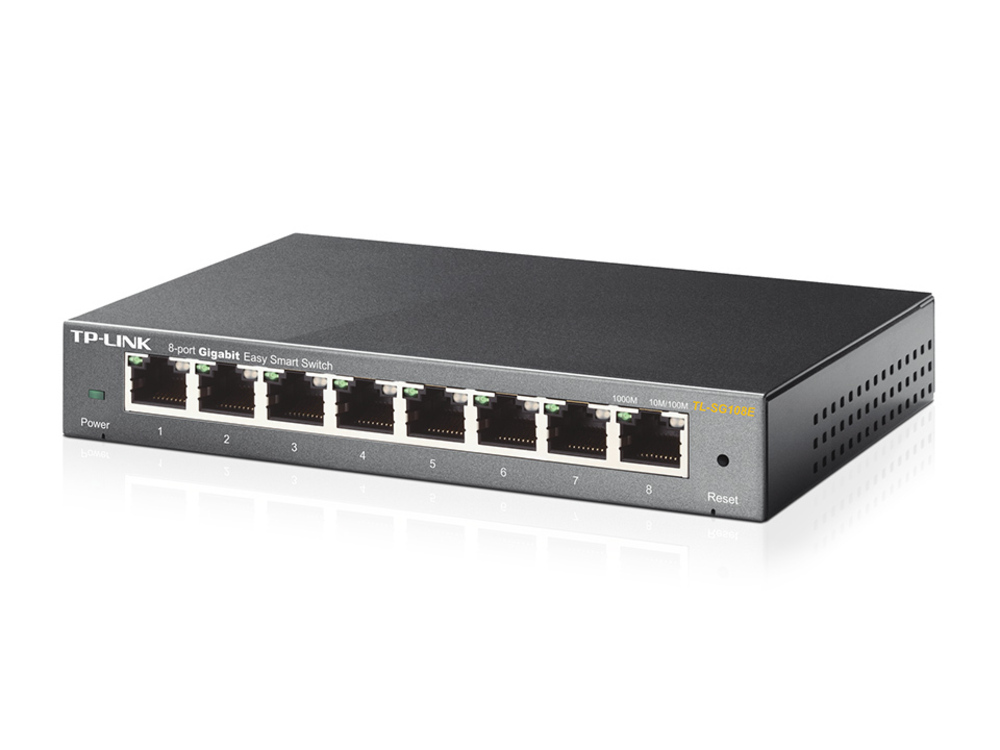

Model TL-SG108E
Packing Weight 635 g
Packing Width 170 mm
Packing Depth 115 mm
Packing Height 103 mm
Package Type BOX
