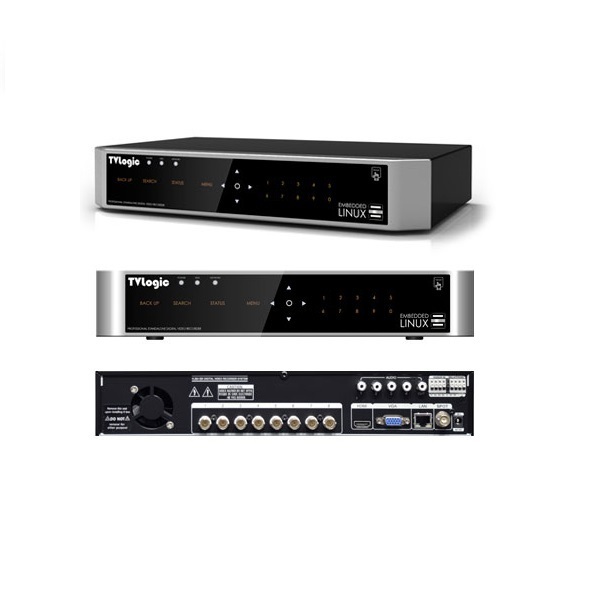

TVLOGIC EYE-ON-HD08 HD-SDI Only 1080p 8-channel Standalone DVR
Product Code: DVR-EYE-ONHD08
Price:
$625.00
RRP $779.00
20% OFF
Sold Out
Share This Item:
| SPECIFICATIONS | |||
| EYE-ON-HD08 | |||
| Video | Camera input | 8 BNC | |
| Individual HD/Analog selectable | HD-SDI only | ||
| Available source | 720p25,30,50,60 / 1080p25,30,50,60 / 1080i50,60 / Composite / 960H / Mixed | ||
| Output | 1 HDMI+1 VGA (simultaneously) / 1 Programmable SPOT with OSD | ||
| Audio | Audio input | 4 RCA | |
| Output | 1 RCA | ||
| Sensor In | 4 (NC, NO selectable) | ||
| Alarm out | 1 relay | ||
| Operating System | Embedded Linux OS | ||
| Display | Speed | Real Time | |
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | ||
| Split screen | 1,4,8 | ||
| Recording | CODEC | H.264 / JPEG for 3G, Dual CODEC | |
| Resolution (Pixel) | 720p, 1080p,1080i, 960H, 720H, Mixed | ||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||
| Speed (Total) | NTSC | 240frames@1080p | |
| PAL | 200frames@1080p | ||
| Playback | Display | 1,4,8 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||
| Speed (Total) | NTSC | 120frames@1080p | |
| PAL | 200frames@1080p | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||
| Network | Network Interface | Gigabit Ethernet | |
| Speed and Users | 60frames@1080p | ||
| Protocol | TCP/IP, HTTP, DHCP | ||
| Application | Windows 2000 / XP / Vista / 7 / 8 (PC Client system& IE)/MAC | ||
| Web Browser | Internet Explorer, Safari | ||
| Smart Phone App. | Android, iPhone for live and search | ||
| Backup | Interface | USB 2.0 X 2 | |
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||
| The number of HDD | 2 SATA (No capacity limit) | ||
| Function | Full GUI with alpha blending | ||
| 1 | Individual setting of resolution, frame rates and picture quality | ||
| 2 | Instant Replay | ||
| 3 | Digital Zoom | ||
| 4 | Mouse Control | ||
| 5 | Weekly scheduler with holiday by 10 minutes setting | ||
| 6 | Covert, Disable and Private function of cameras | ||
| 7 | Motion Detection with 352 area setting | ||
| 8 | Relay alarm output | ||
| 9 | PTZ control by RS-485 | ||
| 10 | Daylight Saving Time and Network Time Setting | ||
| 11 | Multi User Authority up to 8 Users | ||
| 12 | Deinterlacer upon live and playback | ||
| 13 | 17 languages with full graphic | ||
| 14 | Individual Network port setting | ||
| 15 | Import and Export the configuration | ||
| 16 | Mirroring | ||
| 17 | POS Interface | ||
| 18 | Dual CODEC engine for independent video transmission | ||
| 19 | Interactive setup via network | ||
| Others | Power Consumption | 60W | |
| Operating Temperature | 5 ~40?(41~104F) | ||
| Relative Humidity | Maximum 80% non-condensing | ||
| Dimension | 340(W)×250(D)×60(H) mm | ||
| Specification | http://www.tvlogic.tv/Systems/D_Spec.asp?idx=13 |
| Additional Features | Anytime access (live & playback) Individual channel setting Compact size design |
| Type | Video Capture & Editing |
| Interface | USB 2.0 |
| Packing Weight | 1600 g |
| FM Tuner | |
| Video Input | HDMI |
| Packing Width | 320 mm |
| Packing Depth | 300 mm |
| Packing Height | 120 mm |
| Package Type | BOX |
