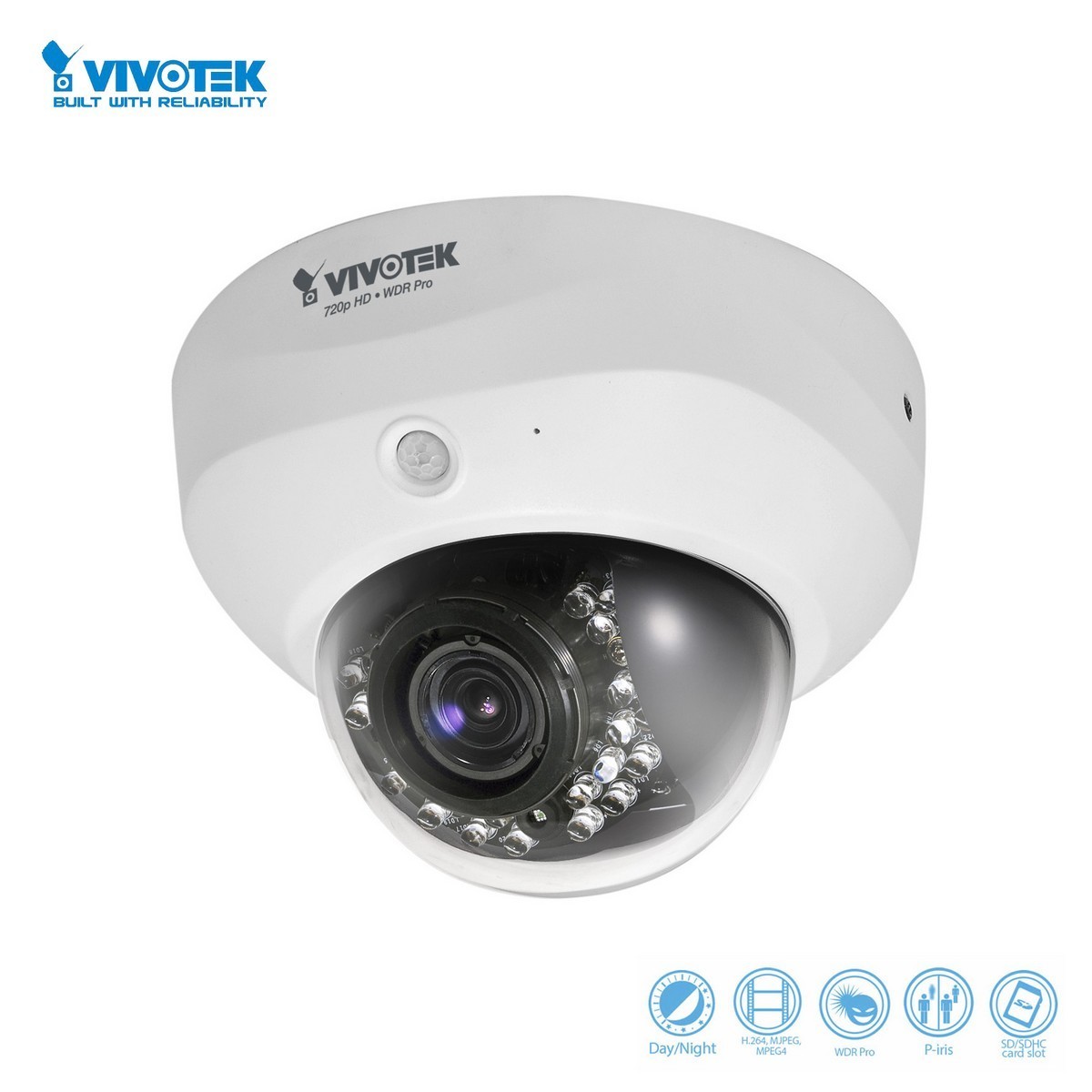

FD8135H 720p HD Fixed Network Dome Camera

01

VIVOTEK's FD8135H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8135H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8135H is an outstanding 24-hour surveillance solution. Together with a PIR sensor for human detection, 802.3af compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, the FD8135H is indisputably the top choice for reliable and performance surveillance.



• 1-Megapixel CMOS Sensor;
• 30 fps @ 1280x800;
• 3 ~ 9 mm Vari-focal, P-iris Lens;
• Removable IR-cut Filter for Day & Night Function;
• Built-in IR Illuminators, Effective up to 20 Meters;
• WDR Pro for Unparalleled Visibility in High Contrast Environments;
• Real-time H.264, MPEG-4, and MJPEG Compression(Triple Codec);
• Built-in PIR Sensor for Human Detection;
• Built-in 802.3af Compliant PoE;
• Built-in MicroSD/SDHC Card Slot for On-board Storage.



Full Specifications



System Information
CPU	Multimedia SoC (System-on-Chip)
Flash	16 MB
RAM	128 MB
Camera Features
Image sensor	1/3" Progressive CMOS
Maximum Resolution	1280x800
Lens Type	Vari-focal
Focal Length	f = 3~9
Aperture	F1.2 (wide), F2.1 (tele)
Iris	P-iris
Field of View	102.68° ~ 35.4° (horizontal) 61.93° ~ 22.8° (vertical) 122.56° ~ 41.11° (diagonal)
Shutter Time	1/5 sec. to 1/25,000 sec.
WDR Technology	WDR Pro
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.8 Lux @ F1.2, 50 IRE 0.001 Lux @ F1.2, 50 IRE ( B/W )
Pan / Tilt / Zoom	ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
IR Illuminators	Built-in IR illuminators, Effective up to 20 meters IR LED * 18
On-board Storage	MicroSD/SDHC card slot
Video
Compression	H.264, MPEG-4 & MJPEG
Maximum Frame Rate	H.264: 30 fps @ 1280x800 MPEG-4: 30 fps @ 1280x800 MJPEG: 30 fps @ 1280x800
Maximum Streams	2 simultaneous streams
S/N Ratio	Above 60.5 dB
Dynamic Range	Above 110.4 dB
Video Streaming	Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure control Gain BLC (Backlight compensation) Supports privacy masks Scheduled profile settings
Audio
Audio Capability	Audio input / Audio output ( half duplex )
Compression	GSM-AMR AAC G.711
Interface	External / Internal microphone
Network
Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X, ARP, SSL, TLS
Interface	10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Triple-window video motion detection
Alarm and Event
Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
Alarm Events	Event notification using HTTP, SMTP, FTP, NAS server File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System	Focus Assist OSD ( Network streaming )
Connectors	RJ-45 cable connector for Network/PoE connection Audio input Audio output 3.5 mm phone jack * 2 for audio input / output 24V AC Power input Terminal block * 4 for Digital input * 3 Terminal block * 2 for Digital output * 1 MicroSD/SDHC card slot
LED Indicator	System power and status indicator
Power input	24V AC 802.3af Power-over-Ethernet (Class 3)
Power consumption	Max. 8 W
Dimensions	Ø 157 x 110 mm
Weight	Net: 778 g
Safety Certifications	CE C-Tick FCC ( Class B ) LVD VCCI
Operating Temperature	Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
Warranty	24 Months
System Requirements
Operating System	Microsoft Windows 7 / Vista / XP / 2000
Browser	Mozilla Firefox 7~10 ( Streaming only ) Internet Explorer 7.x or 8.x
Other Players	VLC: 1.1.11 or above QuickTime: 7 or above
Included Accessories
CD:	User's manual, quick installation guide, Installation Wizard 2
Others:	Quick installation guide, warranty card, alignment sticker, T10 torx screwdriver, screws, plastic anchors, AV cable
