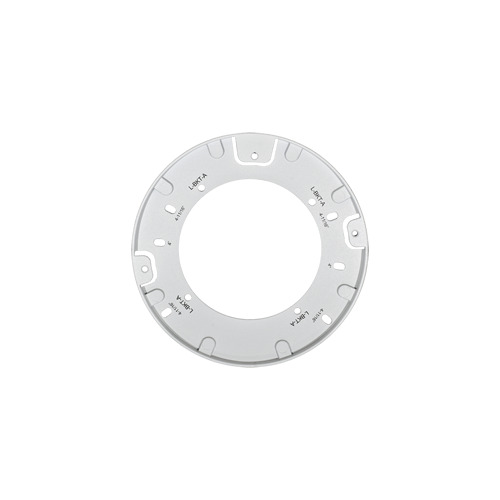

Vivotek VT-AM-516 Adapter Ring For FD8162, FD8135H, FD8163 + AM-211 or AM-214 + 4 11/16" junction box



Adaptor ring for FD8162 fixed dome camera. The supported installation types are:

1. to a 90º wall-mount bracket (AM-211).

2. to a 4" or 411/16" US standard, metal junction box.



To install camera with the adaptor ring:

1. Use the included machine screws to fasten the adaptor ring to a 4 in. or 4 11/16 in. junction box.

2. Route cables through the opening.

3. Secure the camera to the adaptor ring onto the 3 elevated mounting holes.

4. Connect the cabling, use the Ethernet connection to open a web console.

Adjust the camera's shooting angle, focus, and zoom. When done, install the dome cover.
