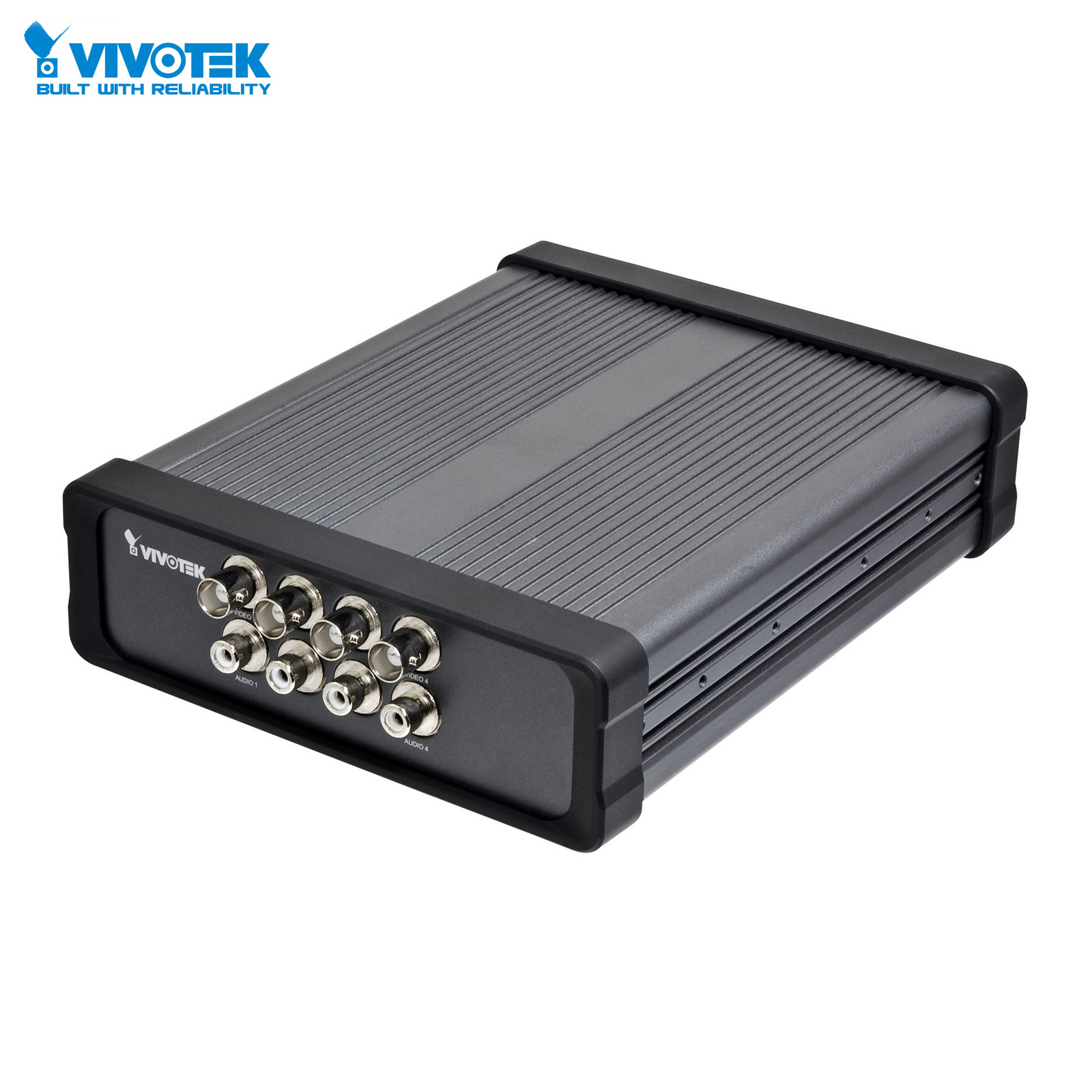

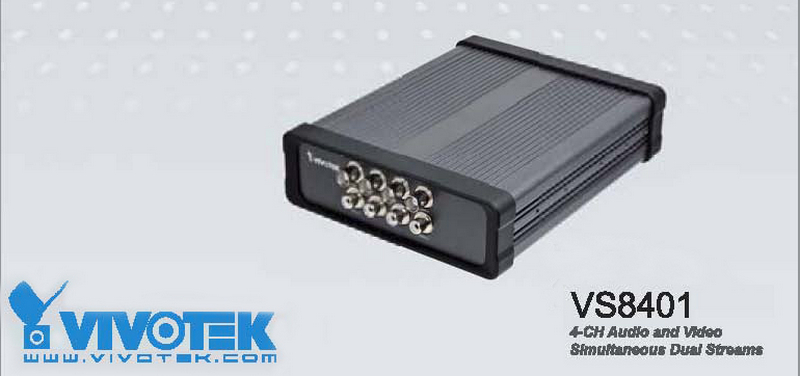

4-Channel Rack Mount Design H.264 SD/SDHC Card Video Server

01

Featured with intelligent video functions, such as motion detection & tamper detection, the VS8401 is capable of upgrading an analog camera into an intelligent camera. The tamper detection feature can detect events such as blockage, redirection, defocus, and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, it also upgrades the security level of the IP surveillance system with the network security protocols, HTTPS and 802.1x. It is also designed with Giga LAN for large transmission need and DC 12V / AC 24V compatible power input design. These features make it easy to install and integrate with the existing analog system.



The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. Monitoring with VIVOTEK's ST7501 as the video management software for better scalability and easy-to-use operation is another delightful benefit. Most importantly, it is designed for rack mount solution for easy installation. The solution for video server is a pioneering idea in the world. The innovative vision of video server, VS8401, helps you easily upgrade to a full-featured, high-end IP surveillance solution!



Full Specifications:



Camera Control	PTZ camera control through RS-485  Supported devices and protocols: DynaDome / SmartDome, Pelco D, LiLin, Pelco P, Samsung scc643, and customized types  Supports CGI command serial driver
Video	Compression: H.264, MPEG-4 & MJPEG  Streaming:  Simultaneous dual streams  H.264 streaming over UDP, TCP, HTTP or HTTPS  MPEG-4 streaming over UDP, TCP, HTTP or HTTPS  MJPEG streaming over HTTP or HTTPS  Supports activity adaptive streaming for dynamic frame rate control  Supports 3GPP mobile surveillance  Frame rates:  H.264: Up to 30/25 fps @ 720 x 480 (NTSC) /720 x 576 (PAL) per channel, Up to 180 fps at D1 in total  MPEG-4: Up to 30/25 fps @ 720 x 480 (NTSC) /720 x 576 (PAL) per channel, Up to 80 fps at D1 in total  MJPEG: Up to 30/25 fps @ 720 x 480 (NTSC) /720 x 576 (PAL) per channel  Up to 240 fps at D1 in total
Image Settings	Adjustable image size, quality, and bit rate  Time stamp and text caption overlay  Flip & mirror  Configurable brightness, contrast, saturation, sharpness, white balance and exposure control  Supports privacy masks
Audio	G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law  Interface:  Audio output  Terminal block x 4  Audio input  up to 1Vrms, 3.5 m Phone Jack  Supports two-way audio  Supports audio mute
Networking	10/100/1000 Mbps Gigabit Ethernet, RJ-45  * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.  ONVIF support  Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, ARP, ICMP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
	Triple-window video motion detection  4 D/I & 4 D/O for external sensor and alarm  Event notification using HTTP, SMTP, FTP  Local recording of MP4 files  Tamper Detection
On-board Storage	SD/SDHC card slot
Security	Multi-level user access with password protection  IP address filtering  HTTPS encrypted data transmission  802.1X port-based authentication for network protection
Users	Live viewing for up to 10 clients
Dimensions	Depth: 189mm  Width: 153mm  Height: 49.3mm
Weight	Net: 800 g
LED Indicator	System power and status indicator  System activity and network link indicator  Local storage activity indicator
Power	12V DC  24V AC  Power consumption: Max. 24 W
Approvals	CE C-Tick FCC LVD VCCI
Operating Environments	Temperature: -10 ~ 50 °C (14 ~ 122 °F)  Humidity: 20% ~ 80%
Viewing System Requirements	OS: Microsoft Windows 7 / Vista / XP / 2000  Browser: Mozilla Firefox  Browser: Internet Explorer 7.x or above  VLC: 10.5 or above  QuickTime: 6.5 or above  Cell phone: 3GPP player  Real Player 10.5 or above
Installation Management and Maintenance	RS-485: Half Duplex  Installation Wizard 2  ST7501 32-channel recording software  Supports firmware upgrade
Applications	SDK available for application development and system integration
