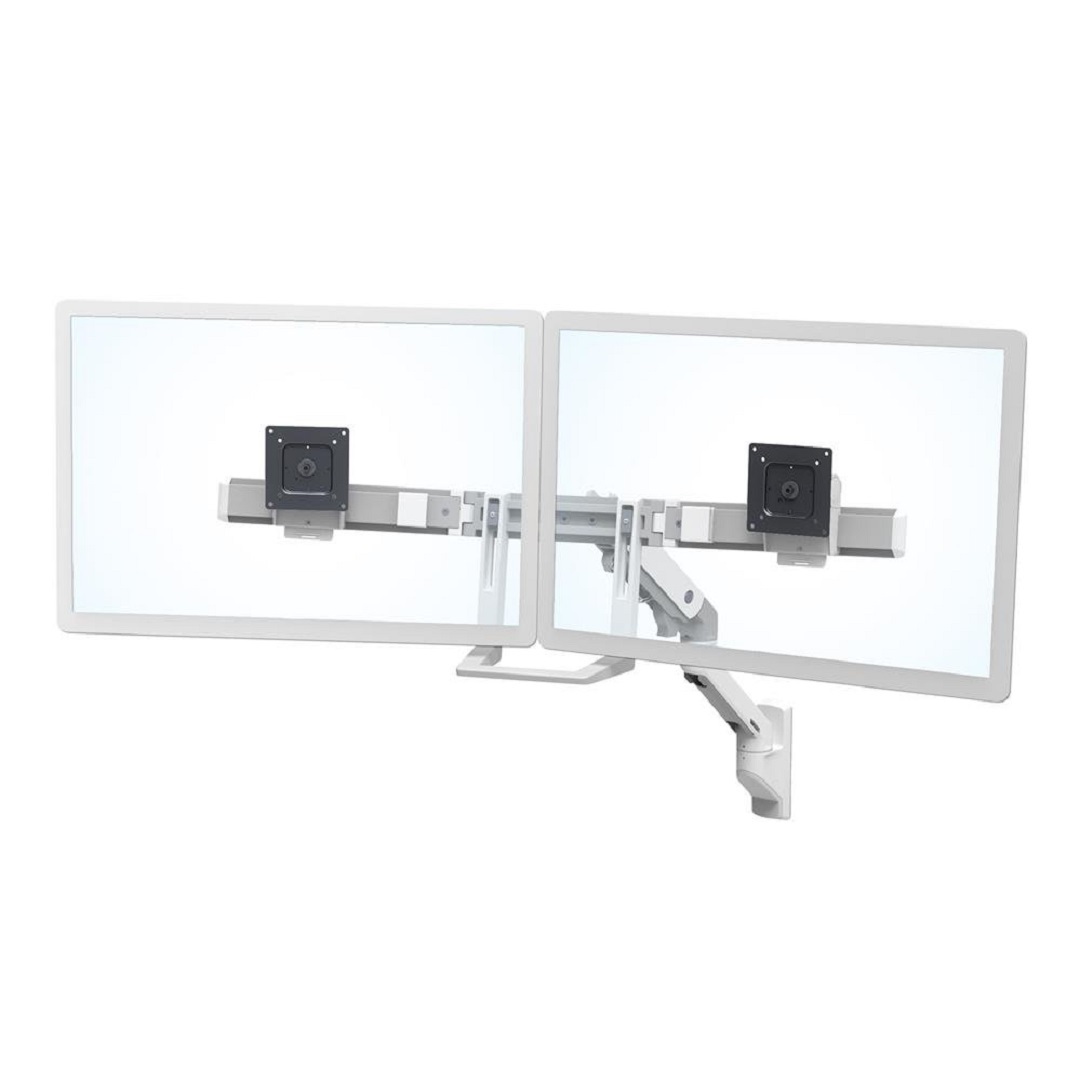

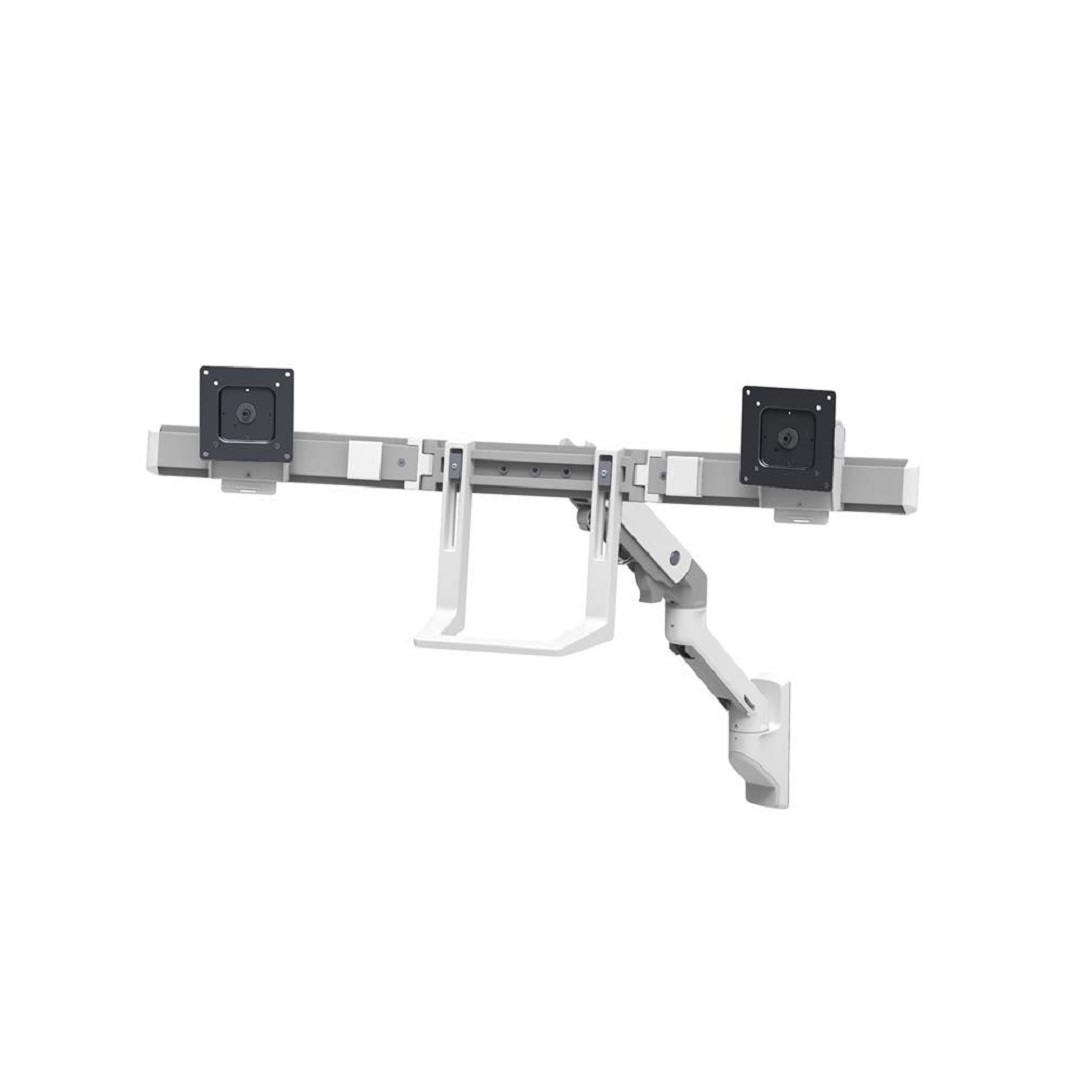

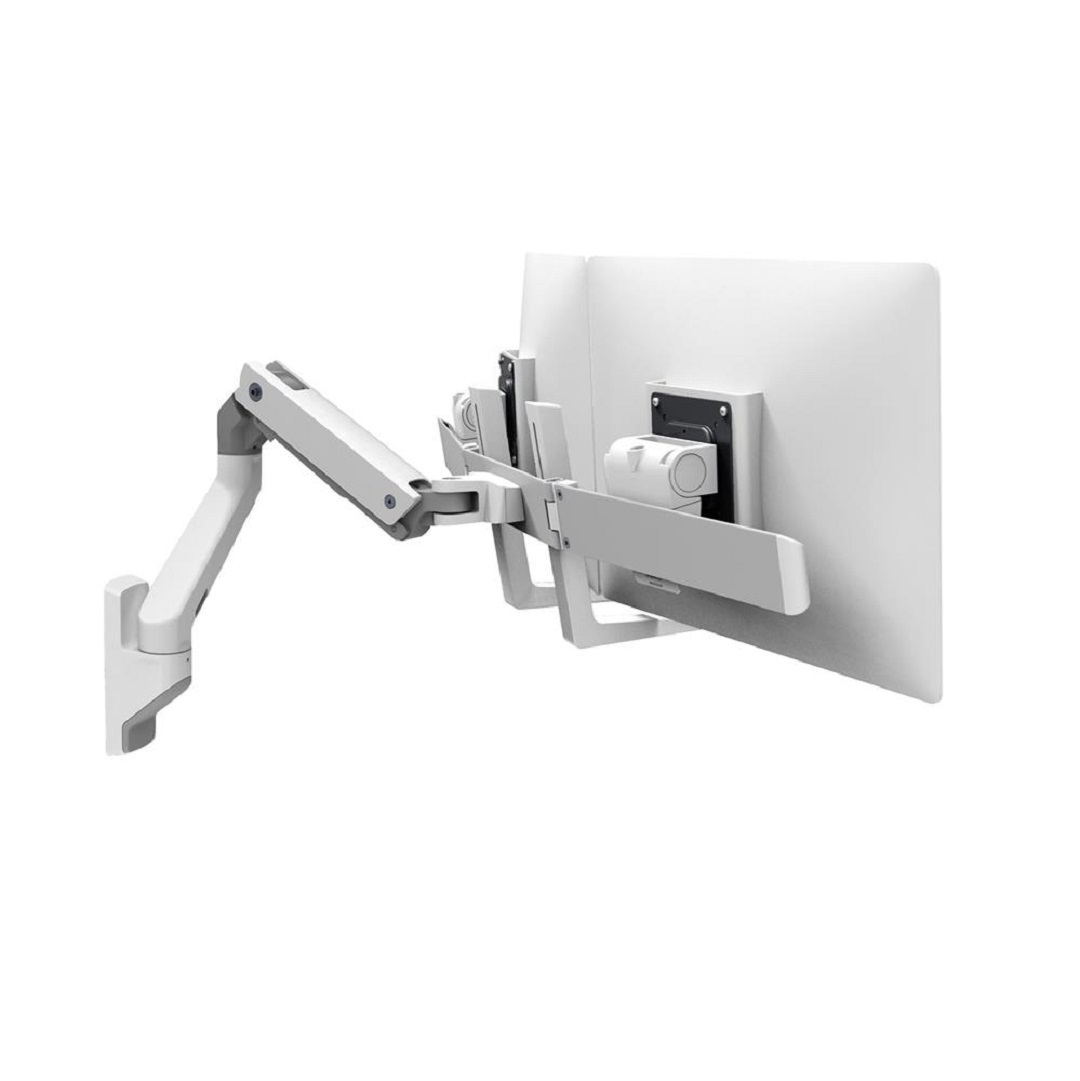

Ergotron 45-479-216 Dual Wall Mount LCD LED HD Monitor Arm Desktop Bracket Holder Up to 32" 15.9 kg



HX Wall Dual Monitor Arm (white) Two-Monitor Mount



Choose a monitor arm that’s as adaptable as you. With the HX Wall Dual Monitor Arm, you can easily reposition two 32" monitors using patented Constant Force™ Technology. The hinged bow lets you easily pan your monitors for screen sharing and the most comfortable views. Add a triple monitor bow kit to up your screen count and your productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact



Benefits



• Personalized views
• Independent pivots rotate, pan, and tilt each monitor
• Rotation stop
• Avoid hitting cube walls with a rotation-stop on the base
• Saves space
• Places screen in the best view and open up the valuable work area
• Sleek build
• Cables stay hidden under the arm and through the extension
• Sustainable choice
• BIFMA level® 2 certified for a low environmental and social impact



Specification:



• Screen ≤32"
• Capacity 4.5–15.9 kg
• Lift 29.2 cm
• Tilt 75° †
• Pan 180°
• Rotation 360°
• Vesa MIS-D



Part Number: 45-479-216 (white), 45-479-026 (polished aluminum)
Description: HX Wall Dual Monitor Arm
Includes arm, extension, hinge bow, 2 monitor pivots, handle, wall mount and monitor mounting hardware
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Portrait/landscape rotation with lockout
Streamline cable management that routes cables under arm and within extension
Mounting Standards: VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, apply to wood stud. Also attaches to wall track using bracket 97-091 (order separately)
Weight Capacity: Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight = 10–35 lbs (4.6–15.8 kg)
Monitor depth greater than 2.5" (6.4 cm) may diminish capacity
Hinge bow turns 40° inward and 90° outward
** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
† Tilt Range: 70° backward, 5° forward
Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Product Weight: 18.8 lb (8.5 kg)
Shipping Dimensions: 16" x 18.8" x 7.5" (48 x 41 x 19 cm)
Shipping Weight: 26.9 lbs (12.2 kg)
