Video Input
Video input format HD-SDI (SMPTE 292M), DoubleReach™
CVBS, 960H
Resolution / framerate HD1080p 1920x1080 / 25, 30 FPS
HD720p 1280x720 / 25, 30, 50, 60 FPS
DoubleReach 1920x1080 / 25, 30FPS
510H/760H 720x480 / 60i or 720x576 / 50i
960H 960x480 / 60i or 960x576 / 50i
Connectors 8ch, 75? BNC connector
Video Output
Video output HDMI
VGA
1, 4, 9  split-screen
1920x1080
User defined sequence / Alarm pop-up
BNC 1, 4, 9 split-screen
CVBS
Channel Switching / Alarm pop-up
Recording
Compression H.264 / JPEG
Resolution 1920 x 1080, 1280 x 720, 720 x 480(576), 960 x 480(576)
Rate Max. 30fps(25fps) per channel
Quality 10 levels up to 12Mbps
Mode Manual & Event / Schedule & Event / Continuous & Event
Schedule 24hrs / 7days
Playback
Mode Instant playback / search
Speed Max. 30fps(25fps) per channel
Search type Date/Time, Calendar/Time-line, Event, Thumbnail, Text
Block playback 24hours ~ 99days
Event & alarm
Event source MD(Motion Detection), sensor, text, Video Loss
Event check schedule 24hrs / 7days
Event action Buzzer, Relay, E-mail, FTP, Alarm pop-up
MD area 15x10
Sensor input Dry contact (NO or NC selectable)
Text input POS/ATM support, AVE VSI Pro/Hydra support
System alarm
Alarm source HDD fail, HDD almost full, Fan fail, Password fail, WRS fail
Alarm action Warning message, Buzzer, E-mail, Relay
Audio
Input/output 4ch RCA input / HDMI, RCA output
Compression ADPCM (32Kbps, 16KHz, 16bit sampleing)
Direction Both
PTZ
Protocols 35 models including C1080, C1080PT-Z20, Pelco-D, Pelco-P, Samsung,
Panasonic and others
Network
Interface 2 Gigabit Ethernet (10/100/1000Mbps)
Type Static IP, Dynamic IP, xDSL
DDNS WNS, DynDNS, NoIP, WRS
Bandwidth limit Supported
NTP Server / Client / Both
Users 10 monitoring, 2 playback
Streaming H.264 stream, High resolution
1 additional H.264 stream, Normal resolution
1 JPEG stream, Normal resolution for e-mail or mobile
Security
User level 1 admin, 10 users
User privilege Menu, PTZ, Relay, Playback, Power, Copy, Network MIC
IP filtering Supported
Storage & Backup
Storage devices 2 internal SATA HDDs, 1 external eSATA Interface
File system Proprietary file system, data-loss protection against power-failure
Capacity Max. 32TB with eSATA
Backup type Multi-channel or Single channel avi file
Backup device USB drive (2 ports)
S.M.A.R.T. Temperature and Health checking
Serial & I/O
Serial port 1 RS-232C, 2 RS-485
Sensor input 8 Dry-contact
Relay output 2 Relay
Controller
Device IR remote controller, Joystick Keyboard, Mouse
Software
Web viewer Monitoring / Event / PTZ / Playback with IE
Java viewer Monitoring / Event/ PTZ with IE, Chrome, Safari
Mobile viewer Monitoring / PTZ / LogView / Playback with iPhone & Android
CMS Control Center, Max. 1024 DVRs
SDK ActiveX(COM) SDK
Environmental & physical
Dimension 350(W) x 393(D) x 88(H) mm
Weight 8 Kg (No HDD)
Operating temperature 5°C~45°C (41°F ~ 113°F)
Power DC 12V / 5A
Power consumption Max. 40W Typical 30W
Approval KC, FCC, CE, RoHS



Specification http://www.webgateinc.com/wgi/eng/index.php?svc_name=product&amCode=C029&asCode=C036&ec_idx1=P010&page=&ptype=view2&p_idx=90

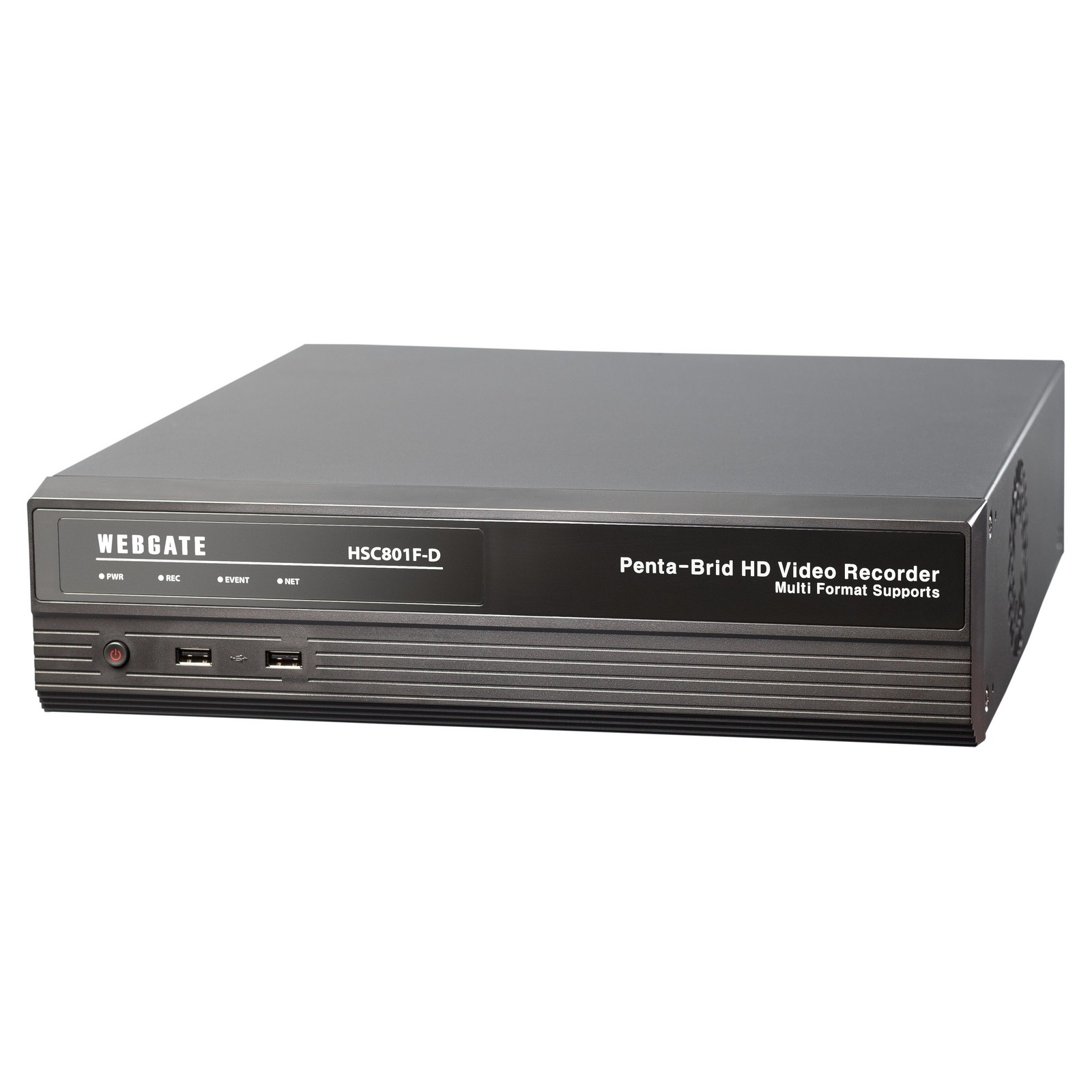

Model HSC801F-D
Video Output VGA HDMI Bridge Media slot
Packing Weight 8000 g
External Outputs RS-232 RCA RS-485 Audio input USB 2.0
Network Interface 2 x 10/100/1000 Mbps Ethernet Port
Packing Width 443 mm
Packing Depth 400 mm
Packing Height 138 mm
Package Type BOX
