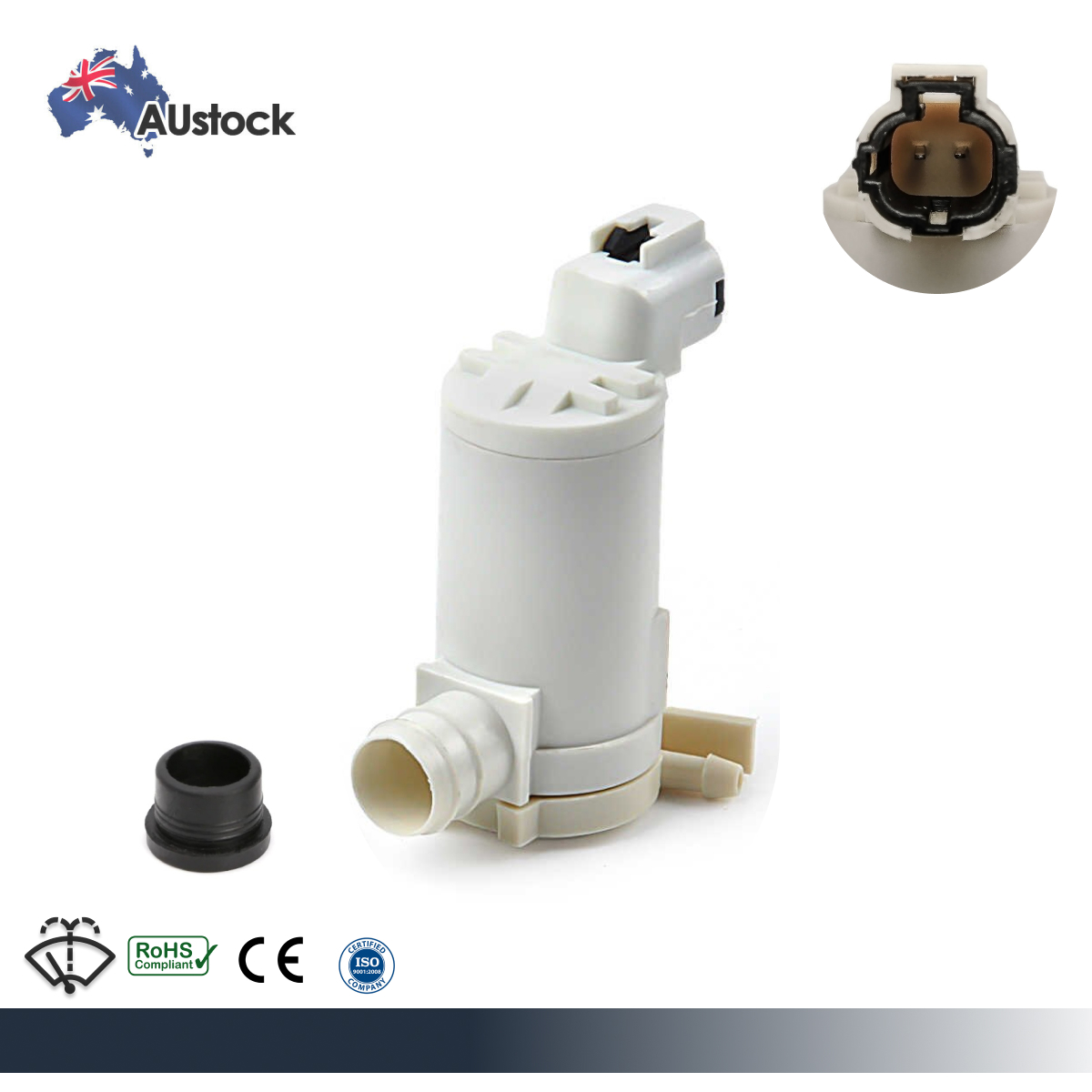

This is a replacement windscreen washer pump for your Nissan Patrol GQ GU 1997 - 08/2004. If your windscreen washers don't spray water or the washer fluid reservoir is leaking, you may need to replace your windshield washer pump and grommet. The LZ-203 model is the original OEM quality for repairing or replacing a faulty windscreen washer fluid pump.



Compatibility for:

• Nissan Patrol GQ / Y60 11/1997 - 1999 incl.: DX, ST 2door Cab Chassis
• Nissan Patrol GQ / Y60 11/1997 to End 1997 incl.: DX 2door Utility
• Nissan Patrol GQ / Y60 11/1997 to End 1997 incl.: DX, RX, RX3, ST, Ti 4door Wagon
• Nissan Patrol GU / Y61 1999 - 11/2002 incl.: DX, DX Plus, ST, ST Plus 2door Cab Chassis
• Nissan Patrol GU / Y61 1997 - 11/2002 incl.: DX, DX5, ST, ST Plus, Ti 4door Wagon
• Nissan Patrol GU / Y61 10/2001 - 08/2004 incl.: DX, ST, ST-L, ST-S, Ti 4door Wagon



IMPORTANT FITMENT NOTE: for Nissan Patrol GU / Y61, this washer pump is suitable for earlier models up to 08/2004 only. Not suitable for GU / Y61 Series 4 and later models from 08/2004 onwards. Please check the production date and compare the original pump / connector before ordering.



Reference OEM Numbers: 28920-3Z000; 28920-0W000; 28920-1E400

Specifications:

• Brand: acatana auto parts
• Model: LZ-203
• Colour: White
• Condition: Brand New
• Material: Plastic
• Quantity: 1pc

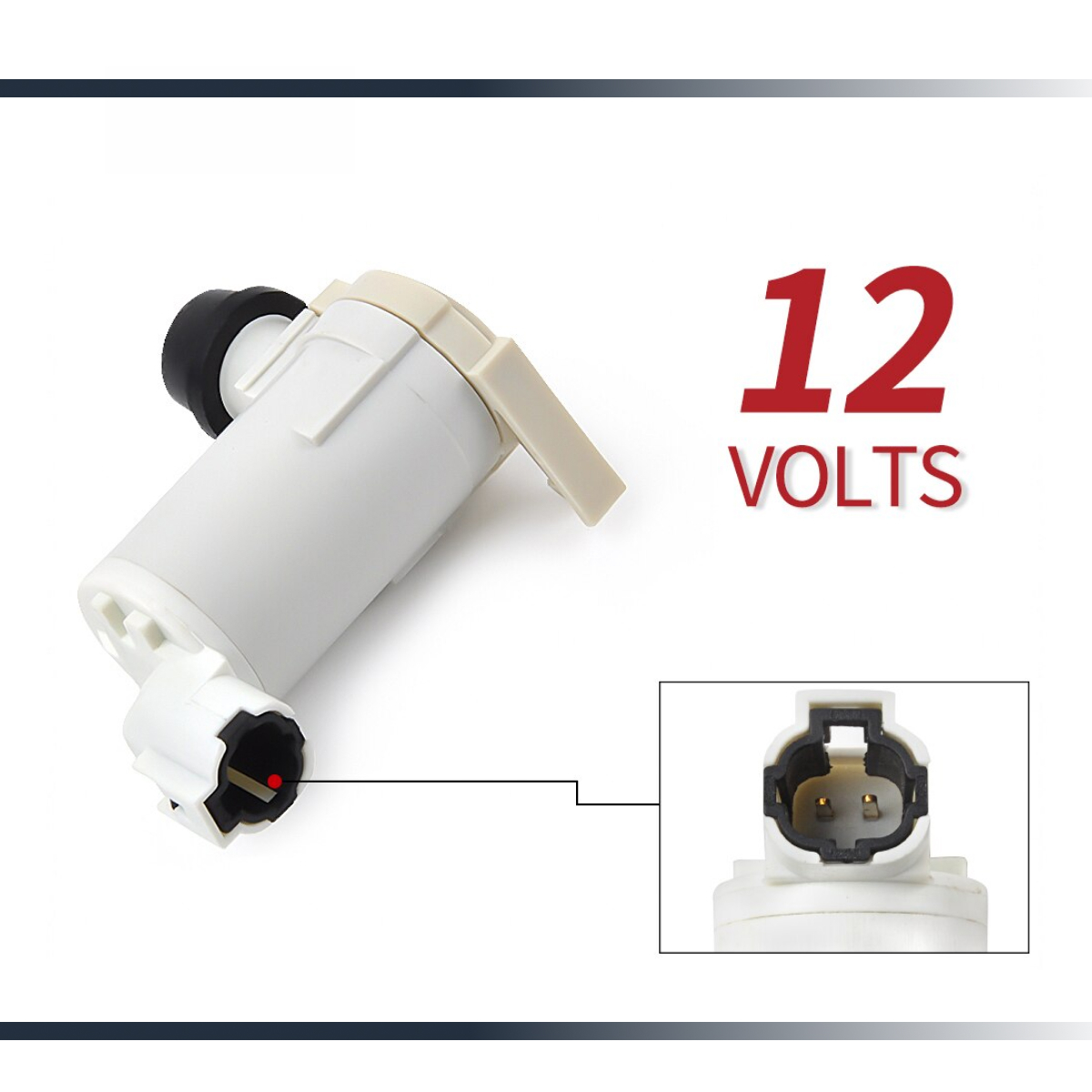

• Voltage 12 volt



Easy installation - replace it by yourself.

• First, disconnect the old one of the tanks, and unscrew the stopper that holds the feed hoses in place.
• Attach electrical connection, hoses and reservoir.
• Make sure there is plenty of screenwash in the reservoir and test.



IMPORTANT NOTICE:

• To install from the rear, you need to remove the black adapter in the electrical connector - this allows the contacts to match;
• After installation without the adater, additional sealing (for example, silicone or heat shrink) will be required to prevent water ingress.



Package includes:

• 1x Wiper Windshield Spray Motor
• 1x Rubber Ring Grommet
• Packaging Type: Box
• Fitment: Direct Replacement



Note and recommendations:

• It is always recommended to clean the bottle, and clear pipes before replacement as sludge can build up in the tank and cause damage to the new wiper fluid pump
• Please check OEM numbers, and photos when placing an order
