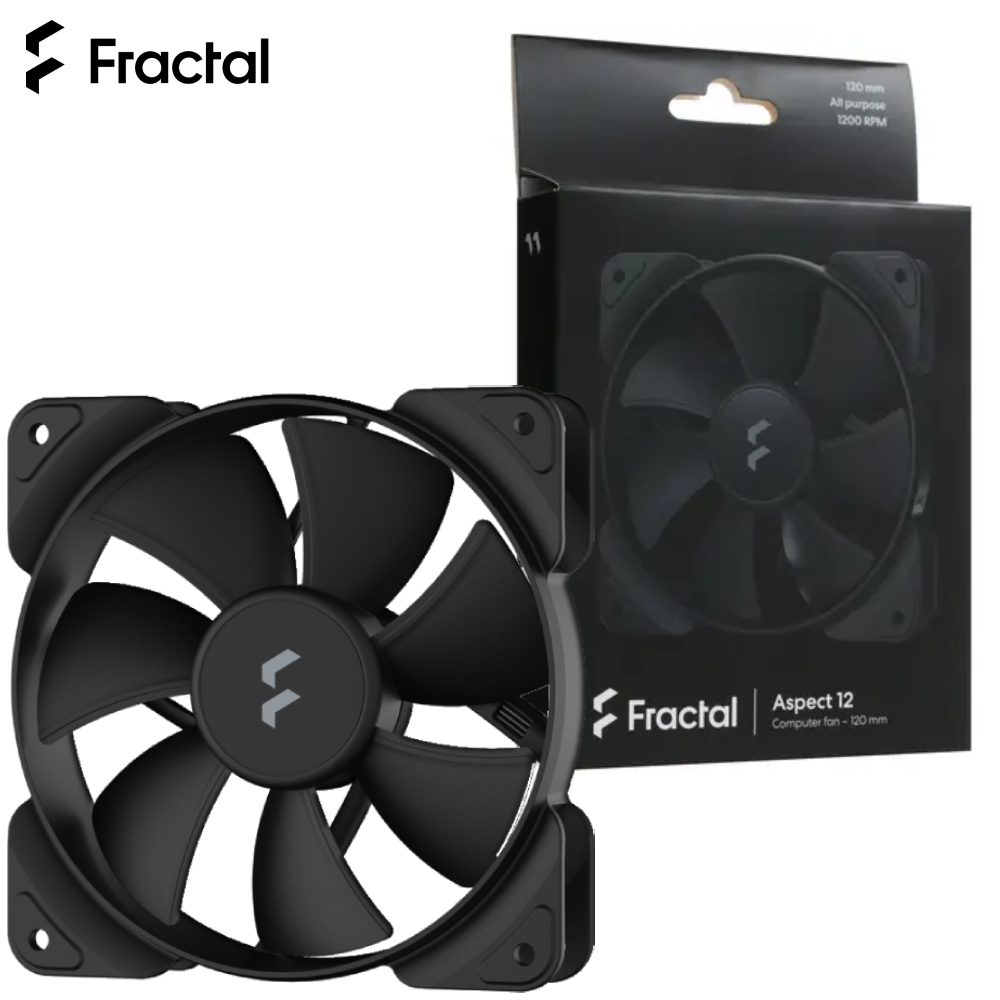

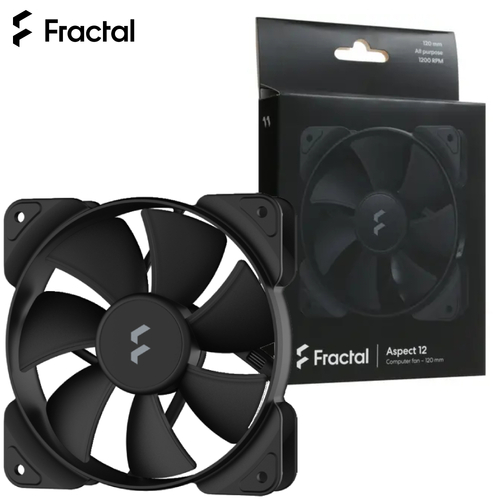

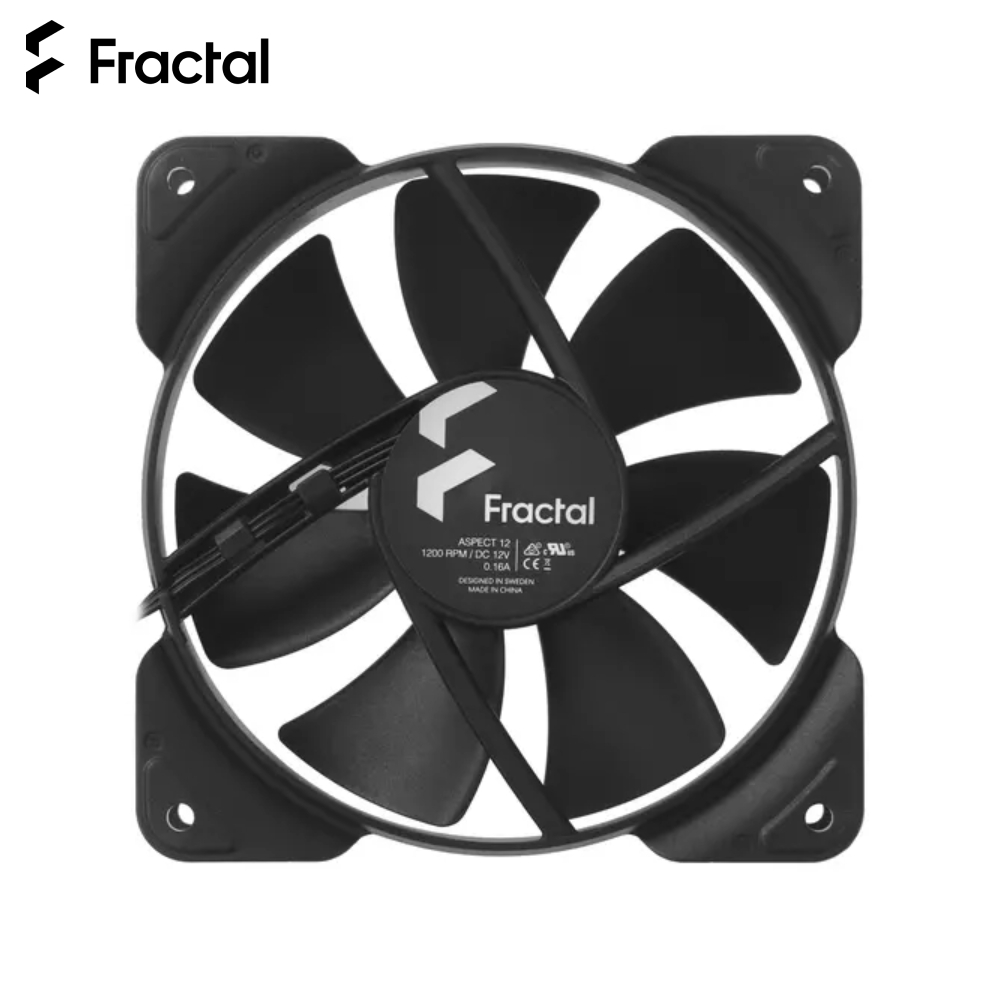

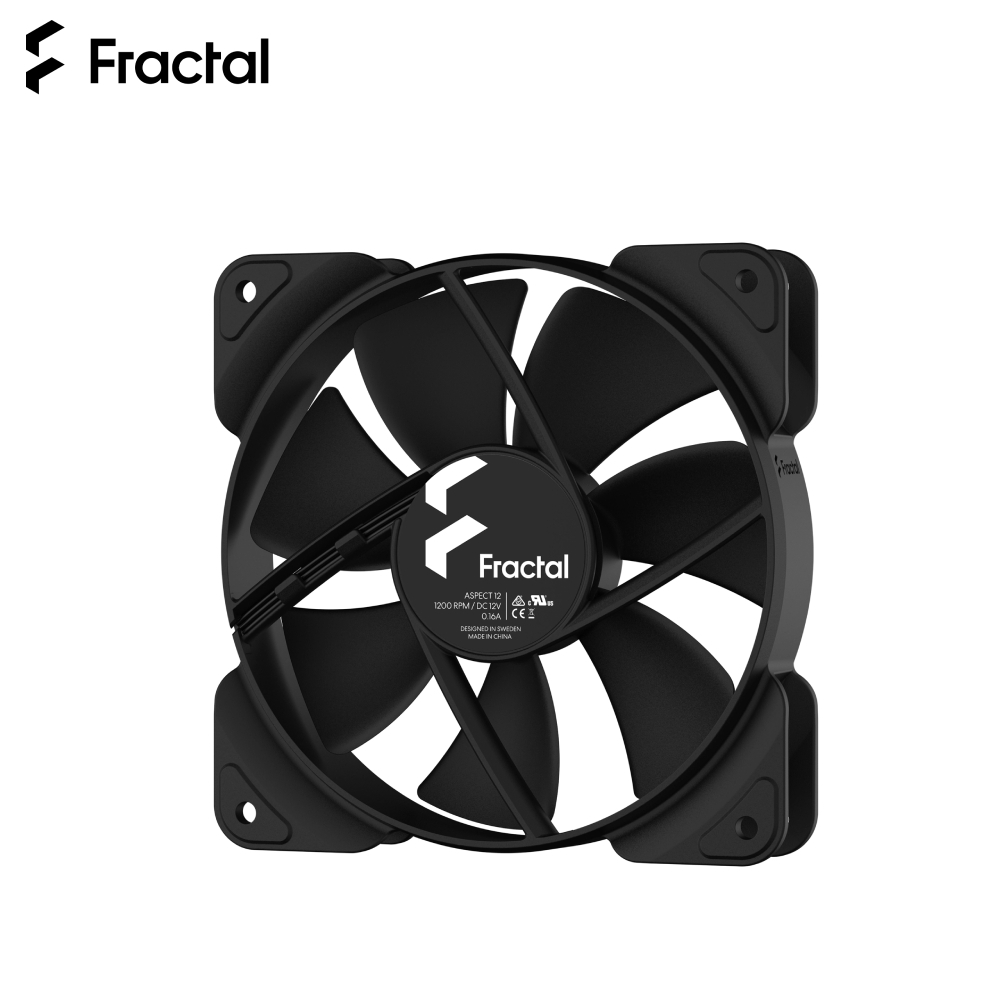

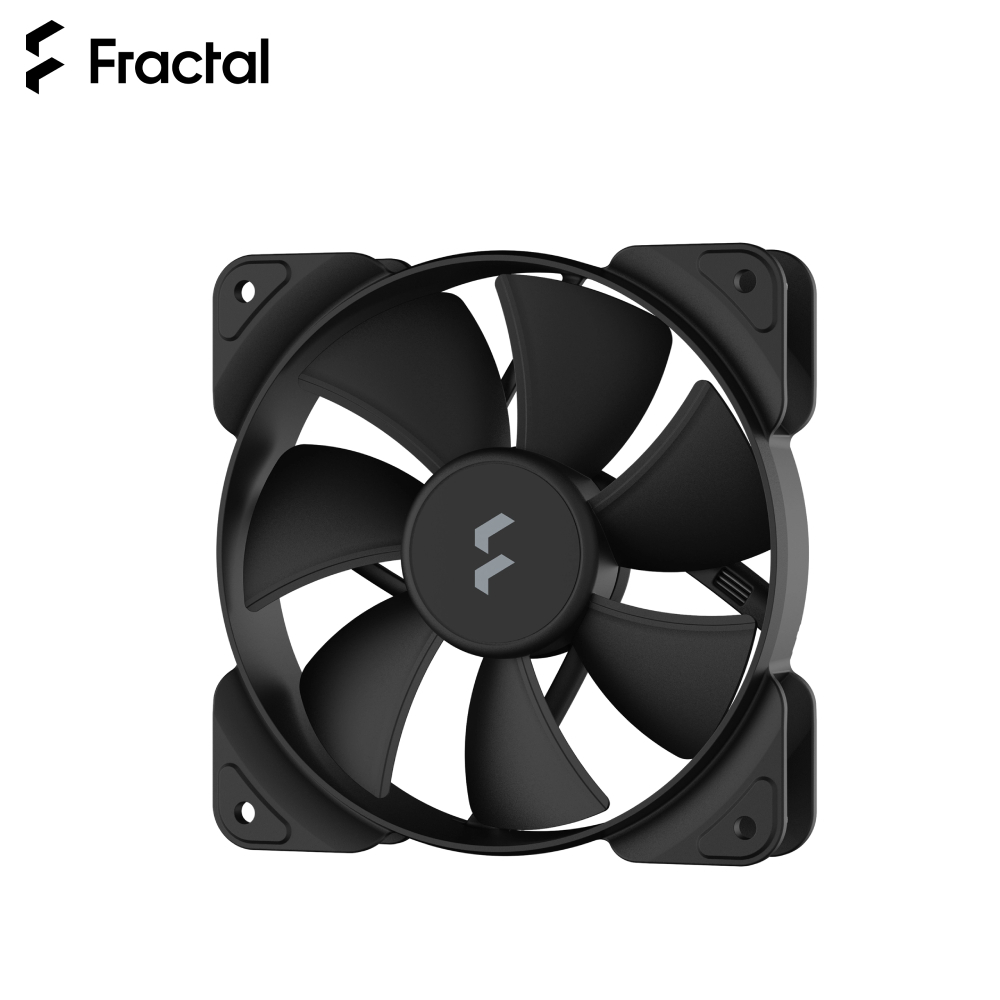

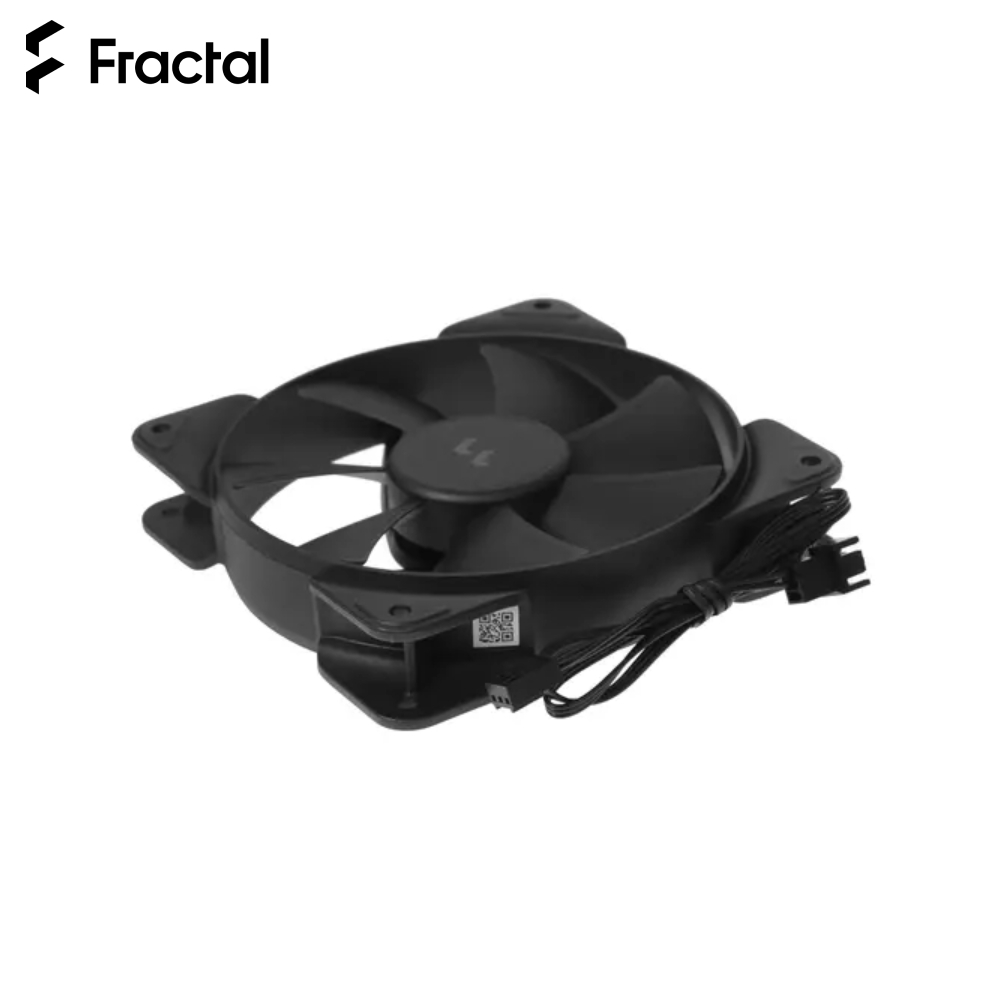

Computer Case Fan 120mm Fractal Design Aspect 12 Black Frame FD-F-AS1-1201

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

  • Less turbulence thanks to aerodynamic stator struts
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Supports chaining to simplify cable management



Key features

  • Less turbulence thanks to aerodynamic stator struts
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Supports chaining to simplify cable management
  • Rifle bearings – more efficient than standard sleeve
  • Combines aesthetic design and reliable performance



Less turbulence

  • The aerodynamic stator struts decrease turbulence and noise caused by flowing air
  • The Aspect frame offers aesthetics without compromising on performance
  • Available in black or white



Minimalistic nozzle frame

The Aspect frame offers aesthetics without compromising on performance



Trip Wire Technology

Introducing a micro-turbulent layer for enhanced blade efficiency

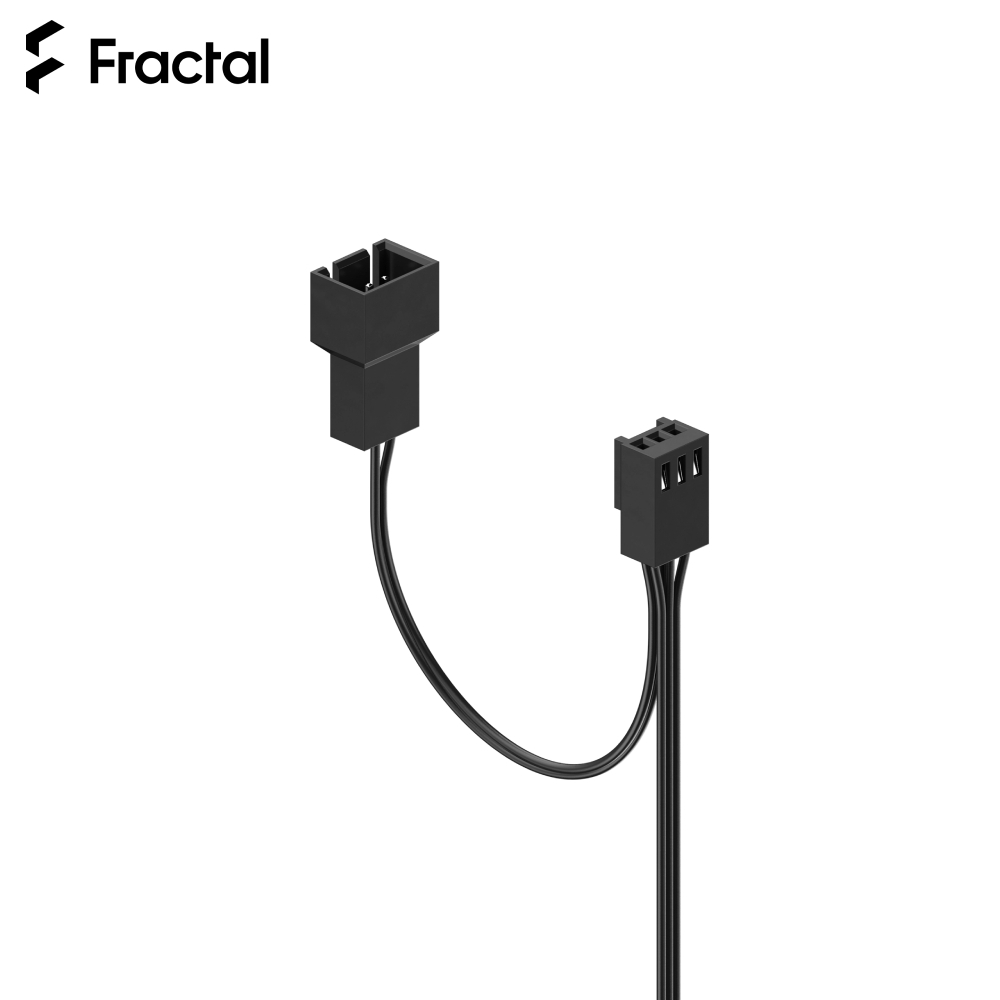

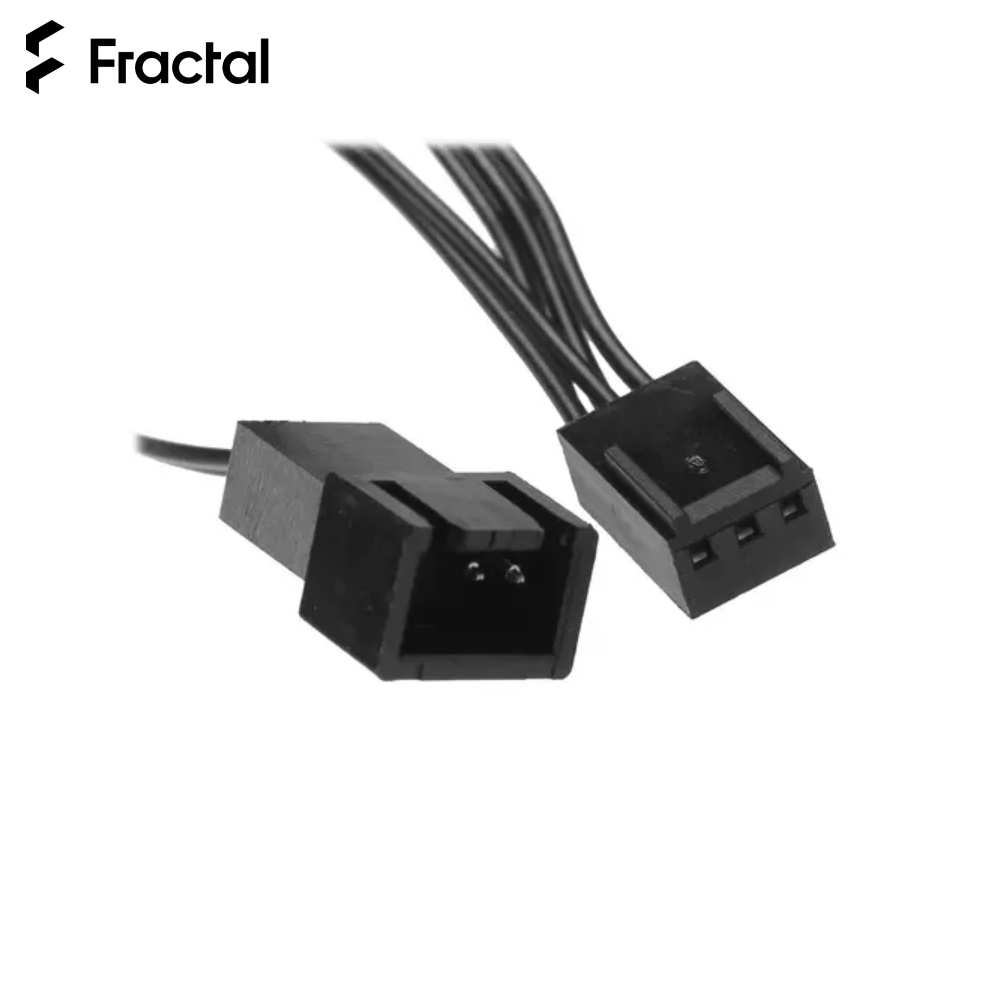

Chain feature

Simplify cable management by using the Aspect chain feature for multiple units



Rifle bearings

More efficient than standard sleeve bearings

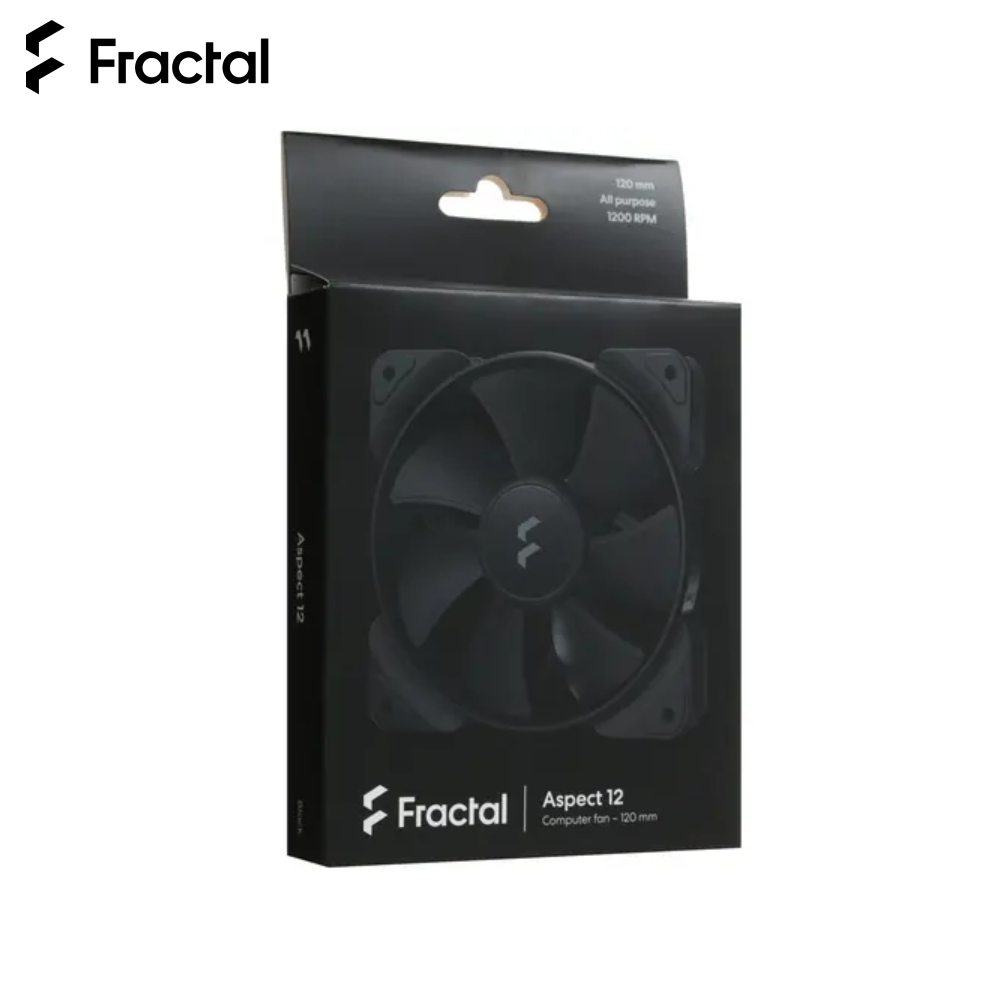

Package contents

  • Aspect Fan
  • 4x Fan screw







  • Size - 120 x 120 x 25 mm
  • Color - Black
  • Screw hole pattern - 105 x 105 mm
  • Power connector - 3-pin
  • Bearing - Rifle
  • Number of blades - 7
  • Rotational speed - 1200 RPM
  • Noise level - 18.3 dB(A)
  • Max airflow - 32 CFM
  • Max airflow - 54.4 m³/h
  • Max pressure - 1.20
  • Fan typical input power - 0.96 W
  • Fan typical input current - 0.08 A
  • Fan max input power - 1.92 W
  • Fan max input current - 0.16 A
  • Fan input voltage - 12 V
  • Minimum startup voltage - 7 V
  • MTTF - 90.000 h
  • Unit weight - 135 g
  • Package weight - 158 g
  • Cable length - 500 mm
  • Cable type - Black ribbon [allows chaining]
  • Packaging dimensions including hanging tab - 123 x 192 x 30
  • Packaging dimensions excluding hanging tab (WxHxD mm) - 123 x 150 x 30
